Hydraulic Arm Anti-Backtilt Cylinder for Truss Arm Crawler Cranes

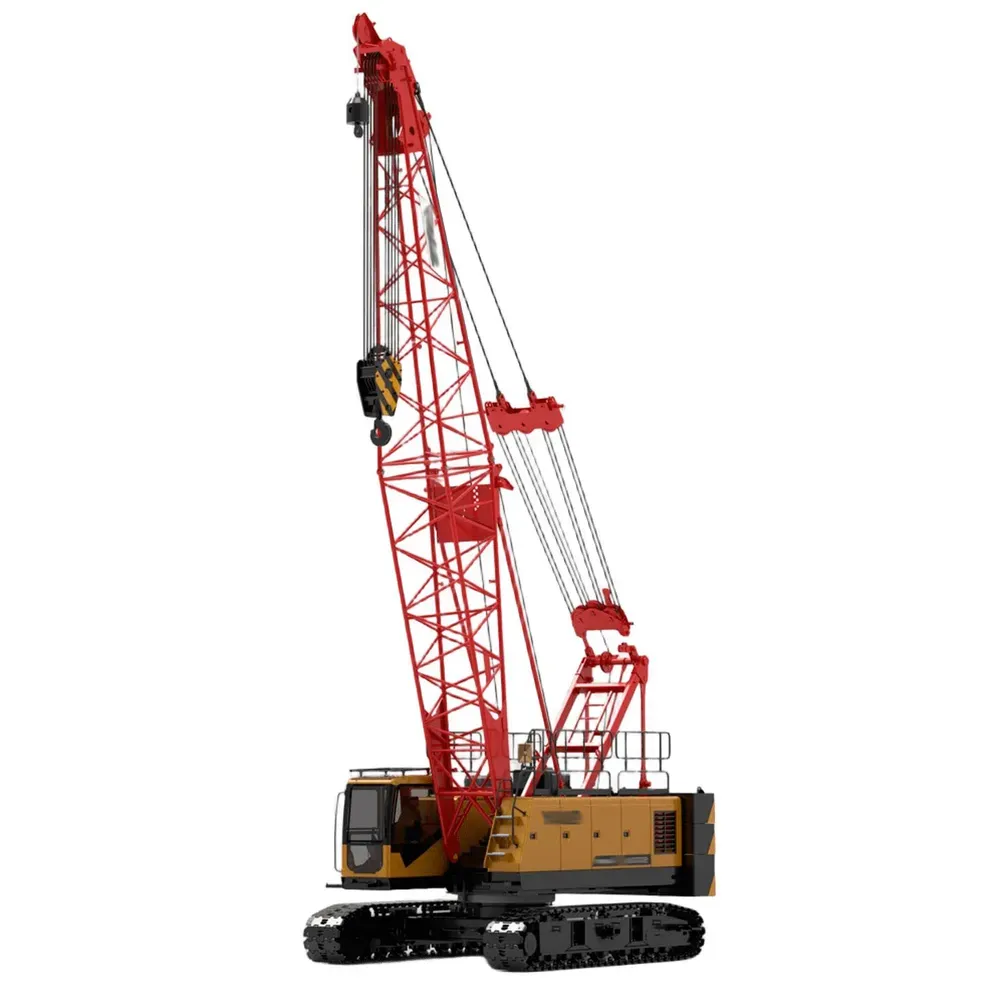

Crawler Crane Hydraulic Arm Anti-Backtilt Cylinder Overview

The hydraulic arm anti-backtilt cylinder serves as a vital component in truss arm crawler cranes, designed to prevent unintended backward tilting of the arm during heavy lifting and positioning tasks. This specialized hydraulic cylinder for crane operations ensures that the truss arm maintains its intended alignment, counteracting forces from uneven loads, wind, or sudden movements. By integrating high-strength materials and precision engineering, it provides reliable control over the arm's motion, enhancing overall crane stability in demanding construction and industrial environments. Operators in Mexico's bustling construction sites, where truss arm crawler cranes are commonly used for infrastructure projects, rely on such cylinders to minimize risks and improve productivity. The arm anti-backtilt cylinder hydraulic cylinder is built to withstand extreme pressures, making it indispensable for safe and efficient crane performance.

This hydraulic arm anti-backtilt cylinder incorporates advanced sealing technologies to prevent leaks and ensure long-term durability under harsh conditions. It is compatible with various truss arm configurations, allowing seamless integration into existing crane systems without extensive modifications. For industries in Mexico, where environmental factors like dust and humidity can challenge equipment, this cylinder's robust design offers peace of mind. It not only supports the crane's structural integrity but also contributes to smoother operations, reducing downtime and maintenance costs.

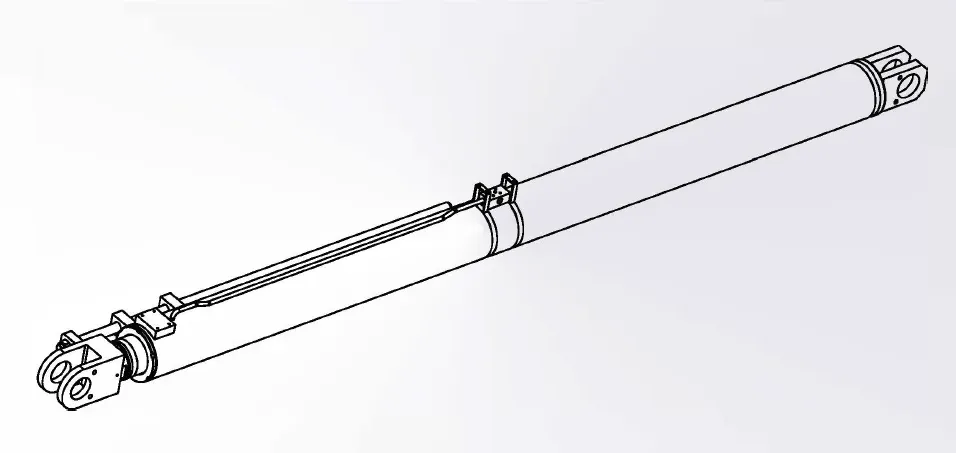

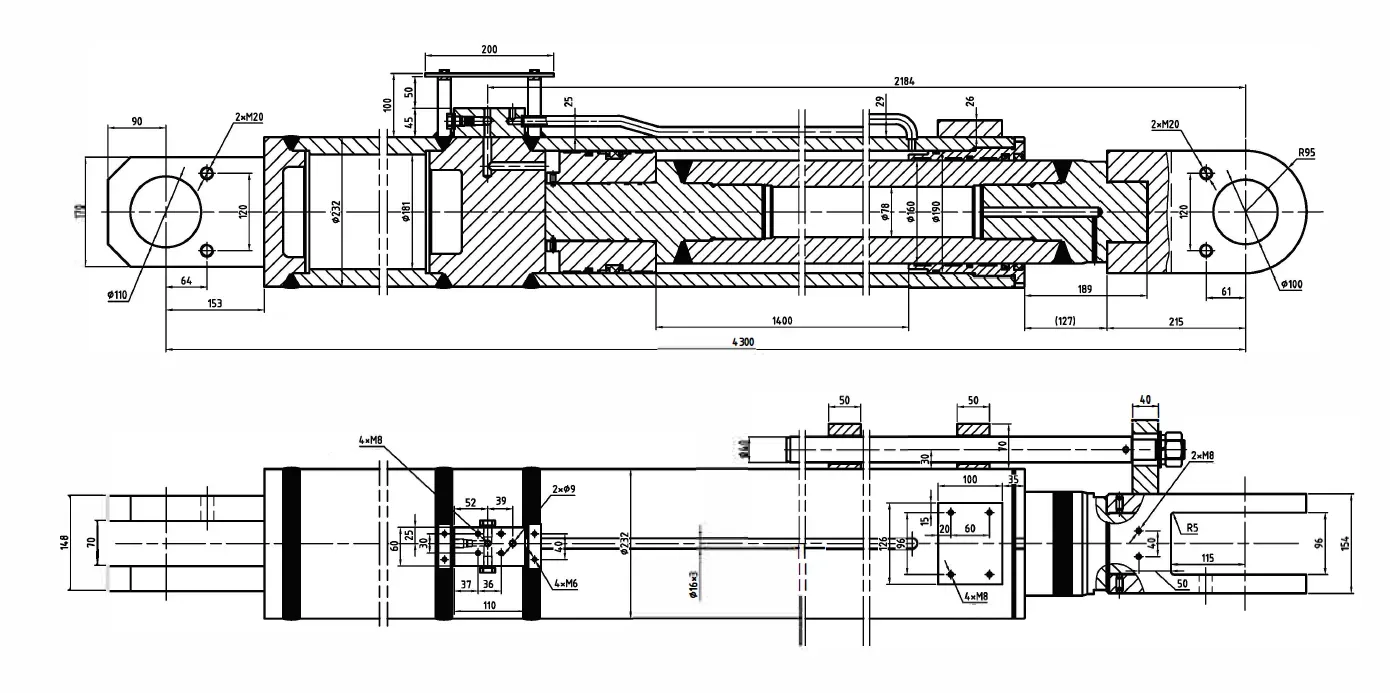

Hydraulic Arm Anti-Backtilt Cylinder Dimensions

Technical Specifications

For customized requirements beyond these specifications, such as adjusted stroke lengths or specific mounting options, please contact our team at Mexico Ever-Power for tailored solutions to fit your truss arm crawler crane needs.

Hydraulic Arm Anti Tilt Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112019	Φ190xΦ160x1400	31.5MPa	40MPa	1400	4300	820kg

Product Name:	Arm Anti Backtilt Hydraulic Cylinder
Function:	Control the movement of the arm frame.
Cylinder diameter:	100mm-320mm
Rod diameter:	85mm-220mm
Travel:	1200mm-3550mm
Maximum pressure:	31.5MPa
Maximum thrust:	2533KN

Features of Arm Anti-Backtilt Hydraulic Cylinder for Cranes

• Robust Construction with High-Grade Steel Alloys
  The arm anti-backtilt hydraulic cylinder features a sturdy build from premium steel alloys that effectively withstand corrosion and mechanical fatigue, particularly in humid coastal areas of Mexico where salt exposure is common. This design choice significantly prolongs operational life, minimizing downtime and replacement expenses for crane operators in industrial settings.
• Precision-Machined Components for Optimal Performance
  Each part of the hydraulic cylinder undergoes meticulous machining to achieve exact tolerances, which reduces internal wear and boosts overall energy use during crane activities. Such accuracy ensures consistent functionality, supporting seamless integration in truss arm crawler cranes used across Mexico's construction projects.
• Integrated Sensor Compatibility for Monitoring
  This cylinder supports advanced sensors that enable continuous tracking of position and hydraulic pressure, allowing crane operators to detect potential issues early and avoid overloads. In Mexico's demanding work environments, this capability enhances safety protocols and aligns with regulatory standards for heavy machinery.
• Double-Acting Functionality for Controlled Motion
  The double-acting mechanism permits precise extension and retraction of the piston rod, delivering smooth and reliable arm adjustments in crawler cranes. This attribute is essential for handling variable loads in urban development sites throughout Mexico, where stability directly impacts project timelines and worker protection.
• High-Pressure Seals to Prevent Leaks
  Equipped with durable seals capable of managing elevated pressures without failure, the cylinder maintains hydraulic fluid integrity over extended periods. This prevents costly spills and system breakdowns, proving invaluable for continuous operations in Mexico's mining and infrastructure sectors.
• Customizable Mounting Brackets for Versatile Installation
  The inclusion of adaptable brackets allows for straightforward attachment to various crane models, facilitating quick setups without extensive modifications. In Mexico's diverse industrial landscapes, this flexibility supports efficient retrofitting and reduces installation time for field teams.
• Thermal-Resistant Coatings for Environmental Durability
  Specialized coatings protect the cylinder from extreme temperature fluctuations, ensuring reliable performance in both hot desert regions and cooler high-altitude areas of Mexico. This resilience helps maintain structural strength, contributing to long-term dependability in outdoor crane applications.

Crawler Crane Hydraulic Arm Anti-Backtilt Cylinder Benefits

A fundamental benefit of the hydraulic arm anti-backtilt cylinder centers on improved safety measures during crane activities. This device actively counters potential tipping of the truss arm, safeguarding crane operators and surrounding infrastructure from hazards. In densely populated urban zones across Mexico, where construction sites often contend with confined spaces and require exact maneuvers, this stability feature proves indispensable. It enables the handling of heavier loads while preserving equilibrium, thereby reducing the likelihood of accidents and ensuring compliance with stringent workplace regulations.

Beyond safety, substantial cost reductions emerge as a key advantage, primarily through minimized upkeep demands. The cylinder's resilient parts endure prolonged exposure to rigorous conditions, lessening the frequency of repairs and part replacements. Its streamlined design also promotes more effective energy use in the crane's power system, which in turn cuts down on fuel expenses. For businesses operating in Mexico's vibrant construction industry, where profit margins can be tight amid fierce competition, these efficiencies accumulate into meaningful financial gains over extended periods.

The cylinder further excels in delivering superior precision for load positioning, allowing operators to execute tasks with greater accuracy and fewer adjustments. This precision is vital in complex projects, such as bridge assembly or high-rise developments, where even minor deviations can lead to delays or rework. Additionally, by alleviating mechanical stresses on the crane's framework, the component extends the overall service life of the equipment, protecting investments in heavy machinery.

Versatility stands out as another practical strength, with the hydraulic arm anti-backtilt cylinder adapting readily to a range of truss arm crawler crane configurations. Whether retrofitting older models or incorporating into new fleets, its compatible design simplifies integration without necessitating major overhauls. In Mexico's varied terrains—from coastal ports to inland mining operations—this adaptability supports diverse applications, enhancing productivity across sectors like infrastructure and resource extraction.

Types of Hydraulic Cylinder for Truss Arm Crawler Cranes

1. Hydraulic Support Cylinder
The hydraulic support cylinder, often referred to as a support leg cylinder, extends and stabilizes the crane's outriggers during operation, distributing weight evenly to prevent tipping on uneven terrain. In truss arm crawler cranes, it provides essential grounding force, ensuring secure positioning for heavy lifts in construction sites across Mexico, where soil conditions vary widely.

2. Hydraulic Lift Cylinder
This cylinder handles the vertical elevation of the truss arm, enabling precise raising and lowering of loads through controlled hydraulic pressure. Commonly used in crawler cranes for infrastructure projects, it supports extended reach while maintaining balance, which is critical in urban Mexican environments with space constraints and high safety demands.

3. Hydraulic Spring Cylinder
Incorporating internal springs alongside hydraulic mechanisms, the spring cylinder assists in shock absorption and automatic return of components after extension. For truss arm crawler cranes, it buffers impacts from sudden loads, enhancing durability during repetitive operations in mining or port activities in Mexico.

4. Hydraulic Pin Shaft Cylinder
Designed for rotational control at pivot points, the pin shaft cylinder manages the locking and unlocking of joints in the truss arm structure. It ensures smooth articulation in crawler cranes, facilitating adjustments without excessive wear, which proves vital for precise maneuvering in Mexico's diverse industrial settings.

5. Hydraulic Oil Cylinder
As a fundamental component, the oil cylinder utilizes pressurized hydraulic fluid to generate linear force for various crane functions, such as arm extension or stabilization. In truss arm crawler cranes, it offers reliable power transmission, supporting continuous performance in demanding tasks like bridge construction in Mexico.

6. Hydraulic Power Pin Cylinder
The power pin cylinder secures connections between the truss arm sections and the crane base, using hydraulic force to engage or disengage pins for assembly and disassembly. This type streamlines setup processes in crawler cranes, reducing downtime on job sites throughout Mexico's construction and heavy lifting sectors.

Applications of Crane Hydraulic Cylinders

• Construction Industry Applications
  In the construction sector, particularly for erecting tall buildings in Mexico City, the hydraulic arm anti-backtilt cylinder ensures truss arm stability against seismic activity, allowing secure lifting of substantial materials such as steel girders with reduced oscillation and enhanced operator control during extended operations.
• Mining Sector Uses
  Within mining activities throughout Mexico, these crane hydraulic cylinders support material transport by countering arm shifts on irregular surfaces, making it well-suited for open-pit excavations where durability against abrasive conditions and heavy payloads is essential for sustained productivity and safety.
• Infrastructure Development Projects
  For bridge construction and similar infrastructure endeavors, the hydraulic arm anti-backtilt cylinder facilitates precise truss arm positioning over water or elevated spans, enabling the safe handling of large components while minimizing structural risks in Mexico's expanding transportation networks.
• Port and Maritime Operations
  In port facilities along Mexico's coastlines, it aids in cargo management by maintaining arm steadiness during loading and unloading from vessels, accommodating variable weights and environmental factors like wind to improve efficiency in busy shipping hubs.
• Wind Energy Farm Installations
  During wind turbine assembly in remote or coastal Mexican sites, the cylinder provides critical arm control for placing heavy turbine parts at height, ensuring alignment accuracy amid gusty conditions to support the growth of renewable energy infrastructure.

Common Troubleshooting of Arm Anti-Backtilt Hydraulic Cylinders

Addressing Fluid Leaks in the Cylinder
Fluid leaks often appear around seals or fittings in the arm anti-backtilt hydraulic cylinder, stemming from worn gaskets or cracks due to prolonged exposure to high pressures in crane operations. To resolve this, inspect and replace damaged seals promptly, tighten loose connections, and ensure the system uses compatible hydraulic fluid to prevent further deterioration and maintain operational integrity on truss arm crawler cranes.

Resolving Slow or Erratic Arm Movement
When the cylinder exhibits sluggish or inconsistent extension in truss arm setups, trapped air bubbles or clogged filters might be the culprit, disrupting fluid flow during lifts. Bleed the system to remove air, clean or replace filters regularly, and verify pump efficiency to restore smooth performance, which is essential for precise control in demanding construction environments.

Correcting Cylinder Drift Issues
Drift occurs when the arm slowly shifts position without input, typically caused by internal leaks or faulty check valves allowing pressure loss over time. Examine valves for proper seating, repair internal seals if needed, and adjust system pressure settings to eliminate unintended movement, ensuring stability during heavy load handling on crawler cranes.

Handling Reduced Power or Pressure Loss
If the hydraulic arm anti-backtilt cylinder fails to generate sufficient force, leading to stalled operations, low fluid levels or pump wear could be responsible. Refill the reservoir with the correct fluid grade, inspect the pump for damage, and test relief valves to regain full thrust capability, critical for maintaining productivity in industrial applications.

Managing Overheating Problems
Excessive heat in the cylinder can result from contaminated fluid or overloaded conditions, accelerating component wear and reducing efficiency in truss arm systems. Flush the hydraulic circuit to remove debris, monitor load limits strictly, and install cooling devices if necessary to keep temperatures within safe ranges and prolong equipment lifespan.

Dealing with Unusual Noises or Vibrations
Noises like knocking or vibrations during operation often indicate misalignment, bent rods, or cavitation from air ingress in the anti-backtilt mechanism. Realign the cylinder assembly, straighten or replace bent rods, and purge air from the lines to eliminate these disturbances, promoting quieter and more reliable crane performance on-site.

Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?

FAQs

Q: How does the arm anti-backtilt cylinder hydraulic cylinder handle high-pressure environments?
A: Engineered to endure pressures reaching 40MPa, it employs sturdy alloys and reinforced structures that preserve functionality amid intense workloads, such as those encountered in major building projects. Specialized seals and internal reinforcements distribute stress evenly, allowing consistent operation without compromise in rigorous settings like crowded construction zones.

Q: What stroke lengths are available for the hydraulic cylinder for crane anti-backtilt applications?
A: Options span from 1200mm up to 3550mm, offering adaptability to match varying truss arm extensions in different crane setups. This range accommodates specific project demands, whether for compact urban lifts or expansive industrial reaches, ensuring optimal arm control without restricting crane versatility.

Q: Can the hydraulic arm anti-backtilt cylinder be customized for specific crane models?
A: Certainly, modifications encompass alterations to bore dimensions and bracket configurations to align with particular crane designs. This personalization process involves assessing equipment specifications to deliver precise fits, facilitating integration that enhances performance across a spectrum of truss arm crawler crane variants used in field operations.

Q: What materials are used in constructing the arm anti-backtilt cylinder hydraulic cylinder?
A: Premium steel compositions fortified with anti-corrosion layers form the basis, promoting extended service in adverse conditions like dusty or moist sites. These selections resist degradation from environmental exposure, while internal elements incorporate durable composites to support repeated cycles under load without structural weakening.

Q: How often should maintenance be performed on the hydraulic cylinder for crane?
A: Conduct visual checks and functional tests after every 500 hours of use, coupled with yearly hydraulic fluid replacements to avert component fatigue. This schedule includes examining connections and seals for integrity, which helps sustain reliability and prevents unexpected failures during critical truss arm maneuvers.

Q: What are the signs of wear in a hydraulic arm anti-backtilt cylinder?
A: Indicators include visible fluid seepage around joints, audible irregularities during activation, or delayed reactions to controls while in use. Monitoring for diminished pressure retention or surface abrasions also signals potential issues, prompting timely interventions to restore full operational capacity in crane systems.

Q: Is the arm anti-backtilt cylinder hydraulic cylinder compatible with older truss arm crawler cranes?
A: Indeed, flexible attachment points and modular interfaces allow straightforward incorporation into dated models without major alterations. This compatibility stems from standardized dimensions that bridge generational differences in crane technology, supporting upgrades that bolster stability in legacy equipment fleets.

Q: How does the hydraulic cylinder for crane contribute to safety in operations?
A: It mitigates tipping hazards by opposing angular deviations, thereby lowering incident probabilities on irregular surfaces common in fieldwork. Through real-time force balancing, it protects personnel and assets, aligning with safety protocols that prioritize controlled movements in high-stakes lifting environments.

Q: What is the maximum thrust capability of the hydraulic arm anti-backtilt cylinder?
A: Capable of delivering forces up to 2533KN, it effectively manages substantial burdens with minimal strain on the truss arm assembly. This thrust level accommodates demanding applications, providing the necessary power for secure elevations while preserving crane equilibrium under maximum capacity.

Q: How to install the arm anti-backtilt cylinder hydraulic cylinder safely?
A: Begin with verifying alignment between mounting surfaces and fasten all linkages firmly, followed by initial trials without applied weight to confirm smooth function. Incorporate pressure monitoring during setup to detect anomalies early, ensuring the integration adheres to manufacturer guidelines for hazard-free deployment.

Q: What environmental factors affect the hydraulic cylinder for crane performance?
A: Elements such as airborne particles, elevated moisture levels, and fluctuating thermal conditions can impair seals and fluid viscosity over time. Routine surface wiping and protective coverings help counteract these influences, maintaining consistent output in varied operational climates typical of outdoor crane usage.
