Hydraulic Jib Cylinder for Arm Type Aerial Work Platforms

Hydraulic Jib Cylinder Overview

In the demanding field of elevated operations, the hydraulic jib cylinder serves as an essential element for arm type aerial work platforms, enabling operators to achieve greater reach and flexibility in challenging environments. This specialized component, often referred to as a jib hydraulic cylinder, is engineered to manage the extension and angular adjustments of the jib arm, which extends from the main boom to provide additional maneuverability. Professionals in construction, facility maintenance, and industrial settings in Mexico rely on these cylinders to position work platforms accurately around obstacles like building facades or overhead structures. Built with high-strength materials, the cylinder withstands rigorous daily use, ensuring stability under varying loads and pressures. Its integration into aerial platforms enhances overall system performance by allowing smooth transitions between positions, reducing operator fatigue, and minimizing downtime.

Beyond basic functionality, the hydraulic jib cylinder incorporates advanced design principles to meet the specific needs of modern aerial equipment. With dimensions tailored for compact installation, such as a typical bore of 70mm and rod of 40mm, it delivers consistent force output up to 21MPa, supporting tasks that require precision at heights. Mexican industries, from telecommunications tower repairs to warehouse stocking, benefit from its ability to handle environmental factors like humidity and dust prevalent in regions like Baja California or Yucatan. The cylinder's role in facilitating rotation and extension of the forearm section allows for a broader operational radius, making it suitable for both indoor and outdoor applications.

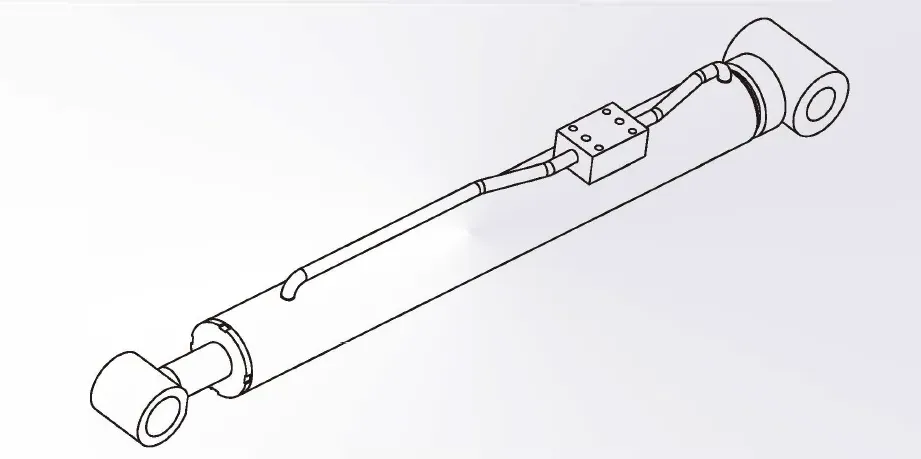

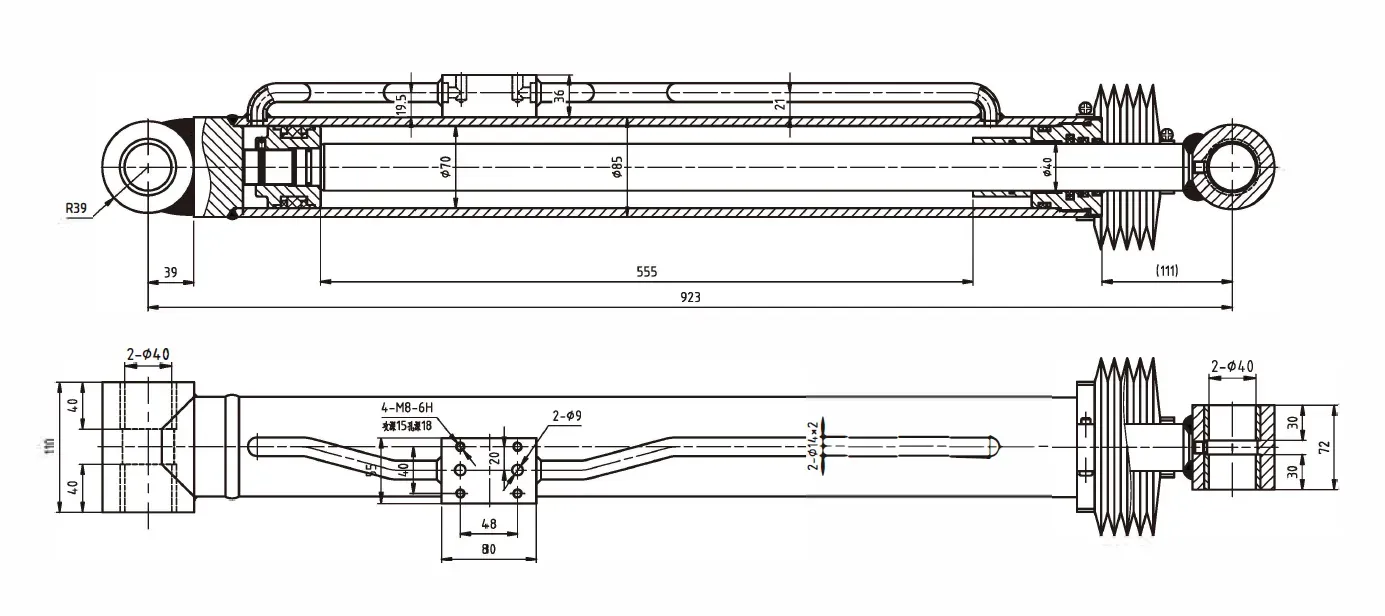

Hydraulic Jib Cylinder Dimensions

Technical Specifications

For additional customization needs, such as adjusted stroke lengths or specialized mounting options, please contact our team at Mexico Ever-Power to discuss tailored solutions that fit your specific project demands.

Jib Hydraulic Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112010	Φ70xΦ40x 555	21 MPa	30MPa	555	923	28kg

Product Name:	Jib Hydraulic Cylinder
Function:	To achieve the extension and rotation of the forearm.
Cylinder diameter:	63mm-110mm
Rod diameter:	40mm-90mm
Travel:	500mm-1200mm
Maximum pressure:	22MPa
Maximum thrust:	209KN

Features of Hydraulic Jib Cylinder for Arm Type AWPs

1. Robust Construction Using High-Grade Alloy Steel
This hydraulic jib cylinder employs premium alloy steel in its build, offering superior resistance to mechanical wear from constant use in demanding environments. Such durability supports ongoing operations in Mexico's active construction zones, where equipment faces heavy loads and frequent cycles, ultimately lowering replacement frequency and operational interruptions for site managers.

2. Advanced Sealing Mechanisms for Leak Prevention
Equipped with state-of-the-art seals, the cylinder effectively blocks hydraulic fluid escapes under intense pressures up to 21MPa. This design extends component lifespan in humid or dusty Mexican regions like coastal ports, helping operators avoid costly downtime and maintain consistent performance during elevated tasks.

3. Compact Design for Seamless Integration
The streamlined profile of this jib hydraulic cylinder allows straightforward fitting into various arm type aerial platforms without major modifications. In urban Mexican settings such as bustling cities, this facilitates quick upgrades, enabling teams to adapt equipment rapidly to project needs and enhance overall workflow efficiency.

4. Precision Engineering with Tight Tolerances
Manufactured with exacting bore and rod measurements, the cylinder reduces internal friction for fluid, controlled movements essential in confined workspaces. Mexican engineers appreciate this for accurate arm positioning during infrastructure projects, ensuring worker safety and precise task execution in high-stakes scenarios.

5. Corrosion-Resistant Coatings for Environmental Protection
Specialized protective layers shield the cylinder from rust and degradation caused by exposure to salt-laden air or arid dust common in areas like Veracruz or Chihuahua. This feature promotes long-term reliability for outdoor applications across Mexico, reducing maintenance demands and supporting sustained use in diverse climatic conditions.

6. High-Strength Seals for Optimal Pressure Retention
These reinforced seals maintain hydraulic integrity even during peak loads, preventing pressure drops that could compromise platform stability. For Mexican industrial users, this translates to dependable operation in maintenance routines, fostering trust in equipment that handles daily pressures without faltering.

Applications for Jib Hydraulic Cylinder in Aerial Platforms

In the realm of construction endeavors throughout Mexico, the cjib cylinder plays a pivotal role by allowing exact boom adjustments essential for activities such as fitting windows on towering structures in Mexico City. This capability to maneuver past building contours proves vital for city growth initiatives, where space limitations demand adaptable equipment to reach awkward angles without compromising stability. Contractors in regions like Guadalajara also depend on it for installing signage or repairing exteriors on multi-story edifices, ensuring projects proceed smoothly amid dense urban layouts. The cylinder's extension features support heavy loads at extended reaches, minimizing the need for additional support structures and accelerating timelines in fast-paced development zones.

Industrial Maintenance Uses

Within manufacturing facilities scattered across Puebla and similar industrial hubs, this cylinder is routinely utilized for servicing overhead machinery, granting access to elevated components without the hassle of erecting temporary scaffolds. Technicians can extend the arm to inspect or replace parts in conveyor systems or ventilation units, which is particularly beneficial in large-scale plants where downtime translates to significant financial losses. In automotive assembly lines in Querétaro, for instance, it aids in precise positioning for welding or painting tasks at height, enhancing worker efficiency while adhering to stringent safety protocols. The robust design handles vibrations from ongoing operations, making it a reliable choice for environments with continuous machinery movement.

Utility and Infrastructure Applications

For essential services like power grid examinations in isolated locales such as the Sierra Madre mountains, the hydraulic jib cylinder ensures secure elevation to inspect transmission lines or transformers, reducing risks associated with manual climbing. Utility crews in Baja California employ it to maintain solar panels or wind turbines, where the jib's rotational flexibility allows navigation around natural obstacles like rugged terrain or vegetation. Beyond utilities, it's instrumental in bridge inspections over rivers in Chiapas, providing stable platforms for engineers to assess structural integrity without disrupting traffic flow below.

• Building Facade Work: Professionals use the hydraulic cylinder to position workers close to exterior walls for cleaning, painting, or restoration on historic sites in colonial towns like Oaxaca, where delicate handling preserves architectural heritage while reaching upper levels safely.
• Tree Trimming in Parks: Municipal teams in urban green spaces, such as those in Monterrey's parks, leverage the extended reach to prune branches overhanging pathways or power lines, preventing hazards and maintaining aesthetic appeal without ground-based equipment that could damage landscapes.
• Warehouse Stocking at Heights: In expansive storage facilities near Mexico's ports like Veracruz, the cylinder facilitates stocking high shelves with goods, allowing operators to lift pallets or inventory to upper tiers efficiently, optimizing space utilization in logistics operations.

Hydraulic Cylinder for Arm Type Aerial Work Platforms

• Hydraulic Leveling Cylinder
  In arm type aerial work platforms, this cylinder maintains horizontal stability of the basket or platform during elevation, compensating for uneven terrain commonly encountered in Mexican construction sites. Its precise extension mechanism ensures operator safety by preventing tilts, with robust seals that withstand pressures up to 21MPa for reliable performance in diverse environments like urban developments or rural infrastructure projects.
• Hydraulic Steering Cylinder
  This component facilitates directional control of the aerial platform's chassis or arm assembly, enabling smooth navigation around obstacles in tight spaces such as Mexico City's high-rise zones. Built with durable rod materials, it handles steering loads efficiently, promoting maneuverability that reduces setup time and enhances productivity for maintenance teams working on elevated structures.
• Hydraulic Luffing Cylinder
  Responsible for adjusting the boom's vertical angle in aerial platforms, the luffing cylinder allows operators to raise or lower the arm with controlled force, ideal for tasks like bridge inspections in regions like Chiapas. Its high-thrust design supports heavy payloads, ensuring stable operations under varying wind conditions prevalent in coastal Mexican areas.
• Hydraulic Telescopic Cylinder
  Designed for extending the reach of the boom in multiple stages, this cylinder provides variable length adjustments crucial for accessing heights in warehouse stocking or telecommunications installations across Puebla. The multi-stage construction offers compact storage when retracted, combined with corrosion-resistant finishes to endure Mexico's humid climates without compromising extension speed or load capacity.
• Hydraulic Floating Cylinder
  Utilized to absorb shocks and maintain equilibrium in the platform's suspension system, the floating cylinder adapts to dynamic loads during movement, which is essential for safe transport over uneven Mexican roadways. Its floating piston setup minimizes vibrations, protecting both equipment and personnel in applications such as utility repairs in remote mountainous terrains.

Maintenance Tips for Hydraulic Jib Cylinders

To ensure the longevity and reliable operation of a hydraulic jib cylinder in arm type aerial work platforms, establishing a consistent maintenance routine is essential. This begins with conducting visual and functional inspections at intervals of approximately 500 operating hours, particularly beneficial for users in Mexico where environmental factors like high humidity in coastal regions or dust in arid interiors can accelerate wear. Focus on checking seal conditions to detect any signs of cracking or degradation early, as these components are critical for containing hydraulic fluid and maintaining pressure integrity during arm extensions. Simultaneously, monitor fluid levels and quality, topping up with manufacturer-recommended hydraulic oil to prevent cavitation or overheating that could lead to system failures on job sites.

Preventive Checks for Optimal Performance

Regular preventive measures include a thorough examination of the cylinder's exterior for corrosion, which is common in salty environments near Veracruz or industrial zones with chemical exposure. If rust spots appear, address them promptly with appropriate touch-up coatings to avoid structural weakening. Additionally, inspect and replace hydraulic filters as required to keep contaminants out of the system, ensuring smooth piston movements and reducing the risk of internal abrasion over time. Mexican operators working in variable climates should adapt these checks to local conditions, perhaps increasing frequency during rainy seasons to mitigate moisture-related issues.

Lubrication and Cleaning Procedures

Proper lubrication forms a cornerstone of maintenance, involving the application of specified greases to rod ends and pivot points to minimize friction and extend component life. Use tools like grease guns for even distribution, avoiding over-application that might attract dirt. Cleaning the cylinder's outer surfaces regularly with mild solvents removes accumulated debris, grime, or residues from construction sites, which is crucial in dusty areas like Chihuahua to prevent buildup that could impair seals or valves. Always perform these tasks with the system depressurized for safety.

• Fluid Replacement Intervals: Change hydraulic fluid every 1,000 to 2,000 hours or annually, depending on usage intensity, to maintain viscosity and remove impurities; in Mexico's warmer climates, more frequent replacements help counteract thermal breakdown.
• Pressure Testing Protocols: Conduct hydrostatic tests quarterly using calibrated gauges to verify the cylinder holds up to 30MPa without leaks, simulating real-world loads to confirm readiness for aerial tasks and comply with local safety standards.
• Storage Recommendations: When not in use, store the cylinder in a dry, covered area with the rod retracted to protect against environmental damage; for long-term storage in humid Mexican regions, apply protective wraps and maintain ambient temperatures below 40°C to preserve seals.

Why Choose Mexico Ever-Power's Hydraulic Jib Cylinder?

FAQs

Q: What is the typical stroke length for a hydraulic jib cylinder in aerial platforms?
A: The common stroke length stands at 555mm for standard models, providing sufficient extension for most arm adjustments in aerial platforms. For specialized needs in Mexican projects, we can customize lengths reaching up to 1200mm, allowing greater flexibility in urban construction or remote utility tasks where extended reach is necessary to navigate obstacles effectively.

Q: How does the working pressure affect the performance of a jib hydraulic cylinder?
A: Operating at 21MPa, this pressure level delivers strong, consistent force for smooth arm extensions and rotations, crucial for handling loads in elevated operations. The design includes a safety margin up to 30MPa to manage peak demands without risking failure, ensuring reliable performance in high-stress environments like Mexico's industrial sites.

Q: Can I get a custom hydraulic jib cylinder for my specific aerial work platform model?
A: Certainly, our team at Mexico Ever-Power specializes in personalized configurations, such as modifying bore sizes from 70mm or rod diameters to 40mm, to fit unique platform requirements. Reach out with your model details for a consultation, and we'll develop a solution that integrates seamlessly, supporting your operational goals in local markets.

Q: What materials are used in manufacturing hydraulic jib cylinders?
A: We utilize premium alloy steel for the core structure, enhanced with specialized coatings that resist corrosion from environmental exposures. This combination promotes durability in Mexico's diverse conditions, from coastal salt spray to inland dryness, while maintaining structural strength under repeated pressure cycles for extended service periods.

Q: How to install a jib hydraulic cylinder on an arm type platform?
A: Begin by aligning the cylinder's mounting brackets with the platform's frame, securing them with appropriate bolts torqued to specifications. Next, connect hydraulic lines carefully to avoid air pockets, then test for leaks and full extension; this process ensures stable integration, vital for safe use in Mexican construction zones.

Q: What maintenance is required for long-term use of hydraulic jib cylinders?
A: Essential upkeep includes examining seals for wear and refreshing fluid every 500 hours to prevent contamination and pressure loss. In Mexico's varying climates, incorporate corrosion checks and filter replacements into your schedule, which helps sustain efficiency and avoids unexpected downtime during critical aerial tasks.

Q: How does the hydraulic jib cylinder improve safety in aerial work?
A: It enhances protection through precise control of arm positioning, incorporating overload safeguards that prevent excessive strain or sudden movements. For workers in Mexico's high-risk elevated environments, this stability minimizes accident potential, aligning with national safety guidelines and promoting confident operation at heights.

Q: What are common applications for jib hydraulic cylinders in construction?
A: In building projects, they enable accurate maneuvering for facade repairs, site inspections, and positioning tools around structural elements in cities like Monterrey. Their versatility also suits installing fixtures on high-rises, where the cylinder's extension supports efficient workflows and adapts to complex site layouts prevalent in Mexican developments.

Q: How to troubleshoot leaks in a hydraulic jib cylinder?
A: Start by visually inspecting all seals and fittings for damage or looseness, tightening connections as needed to restore integrity. If issues persist, drain and replace fluid while checking for cracks; this methodical approach resolves most leaks, ensuring continued reliability for aerial platforms in demanding Mexican settings.
