Hydraulic Luffing Cylinder for Truck Cranes

Truck Crane Hydraulic Luffing Cylinder Overview

The hydraulic luffing cylinder serves as a critical component in truck cranes, facilitating the controlled vertical adjustment of the boom to handle diverse lifting requirements. Designed specifically for demanding environments like construction sites and industrial yards in Mexico, this cylinder integrates high-strength materials and precision engineering to deliver consistent performance under heavy loads. By converting hydraulic fluid pressure into linear motion, it allows operators to extend or retract the boom smoothly, adapting to varying heights and angles without compromising stability. We focus on incorporating features such as chrome-plated pistons and imported seals to enhance longevity and reduce downtime, making it an essential part for truck cranes operating in urban or remote areas where reliability is paramount.

The hydraulic luffing cylinder for truck cranes emphasizes safety and efficiency through advanced design elements that manage unbalanced loads effectively. This ensures that the crane can perform in confined spaces or over obstacles, which is particularly useful in Mexico's growing infrastructure projects. With specifications tailored to high-pressure operations, including a working pressure of 31.5MPa and a maximum withstand pressure of 39MPa, it supports a wide range of applications from shipbuilding to material handling. The cylinder's robust construction, weighing around 1155kg for standard models, provides the necessary thrust—up to 950KN—to lift substantial weights while maintaining precise control, thereby optimizing operational productivity and minimizing maintenance needs.

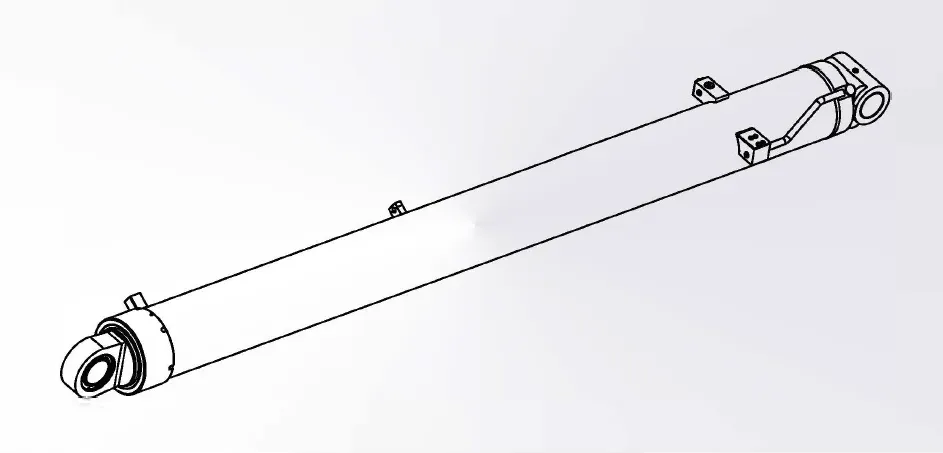

Truck Crane Hydraulic Luffing Cylinder Dimensions

Technical Specifications

For custom requirements beyond these standard specifications, such as adjusted bore diameters ranging from 180mm to 220mm or rod diameters from 110mm to 180mm, please contact our team at Mexico Ever-Power for tailored solutions to fit your specific truck crane applications.

Hydraulic Luffing Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112021	Φ280xΦ250x3507	31.5MPa	39MPa	3507	4218	1155kg

Product Name:	Luffing Hydraulic Cylinder
Function:	Control the movement of the main arm.
Cylinder diameter:	180mm-220mm
Rod diameter:	110mm-180mm
Travel:	1000mm-200mm
Maximum pressure:	25MPa
Maximum thrust:	950KN

Features of Hydraulic Luffing Cylinder for Truck Cranes

The hydraulic luffing cylinder stands out due to its robust construction, which includes a cylinder barrel made from high-strength steel alloys precision-machined for optimal fluid flow and minimal friction. This design not only enhances the cylinder's ability to handle high pressures but also contributes to its overall durability in harsh operating conditions typical of Mexican construction sites. Seals and gaskets, sourced from reliable international suppliers, prevent leaks and maintain system integrity over extended periods, reducing the risk of hydraulic fluid contamination and ensuring consistent performance.

Another notable feature is the piston rod, crafted from hardened chrome-plated steel to resist corrosion and wear, which is crucial for truck cranes exposed to outdoor elements like dust and moisture. The end caps provide secure mounting points, allowing for easy integration into existing crane structures without extensive modifications. Hydraulic ports are strategically placed for efficient fluid entry and exit, supporting quick response times during luffing operations. These elements collectively enable the cylinder to deliver a maximum thrust of 950KN, making it suitable for heavy lifting tasks.

Furthermore, the cylinder incorporates special steering structures that help manage unbalanced loads, a common challenge in crane operations. This feature improves safety by preventing sudden shifts or failures under stress. With a stroke length of up to 3507mm in standard models, it offers flexibility in boom adjustment, catering to various working heights. Engineers appreciate the tight tolerances in manufacturing, which minimize backlash and ensure precise control, ultimately leading to higher productivity on the job site.

In terms of adaptability, the crane hydraulic cylinders can be customized for specific rod and bore diameters, aligning with different crane hydraulic systems. This versatility makes it a preferred choice for fleet operators in Mexico seeking components that integrate seamlessly. The weight of 1155kg reflects a balance between strength and manageability, facilitating easier installation without sacrificing performance.

Consider the integration of wear-resistant coatings on moving parts, which extend service life and reduce maintenance intervals. This is particularly beneficial in high-cycle environments where downtime can be costly. The cylinder's design also complies with international standards for pressure vessels, ensuring it meets safety regulations across borders. For users in Mexico, this means compliance with local industry norms, providing peace of mind during audits or inspections.

Advantages of Using Luffing Hydraulic Cylinder in Truck Cranes

One primary advantage is the enhanced operational efficiency it brings to truck cranes, allowing for smoother boom adjustments that save time on site. In Mexico's bustling construction industry, where projects often face tight deadlines, this cylinder's quick response to hydraulic inputs minimizes delays, enabling operators to position loads accurately without repeated corrections. Its high-pressure tolerance of 31.5MPa ensures it can handle demanding tasks, such as lifting heavy materials in urban developments, without compromising on speed or precision.

Durability represents another key benefit, as the cylinder's components are built to endure prolonged use in challenging environments. The chrome-plated piston rod and robust seals resist abrasion from dust and debris common in Mexican mining or infrastructure sites, leading to fewer breakdowns and lower repair costs over time. This reliability translates into higher uptime for cranes, which is essential for contractors aiming to maximize equipment utilization and profitability.

Cost-effectiveness is evident through reduced maintenance requirements and extended service life. By incorporating high-quality materials, the hydraulic luffing cylinder decreases the frequency of part replacements, offering a strong return on investment. For businesses in Mexico importing or operating truck cranes, this means predictable budgeting and less disruption to workflows. Additionally, its compatibility with various crane models simplifies fleet management, avoiding the need for multiple specialized components.

Safety improvements cannot be overlooked, with features like load-balancing mechanisms that prevent tipping or overload incidents. This is particularly valuable in densely populated areas where crane operations must prioritize worker and public safety. The cylinder's precise control reduces operator fatigue, allowing for longer shifts without increased error rates.

Types of Hydraulic Cylinder for Truck Cranes

1. Hydraulic Horizontal Cylinder
This type extends and retracts horizontally to manage the crane's boom extension, providing essential reach for lifting operations in confined spaces such as urban construction sites. It typically features robust steel construction with precise seals to handle pressures up to 35MPa, ensuring stable performance during material handling tasks. Operators value its ability to maintain alignment under heavy loads, reducing wear on connected components and enhancing overall crane efficiency in demanding environments.

2. Hydraulic Counterweight Cylinder
Designed to adjust the crane's counterweight system, this cylinder shifts weights dynamically to balance loads and prevent tipping during lifts. With bore diameters often ranging from 150mm to 250mm, it supports maximum thrusts exceeding 500KN, making it indispensable for high-capacity truck cranes used in infrastructure projects. Its integration allows for quick adaptations to varying load conditions, promoting safety and operational reliability on uneven terrain.

3. Hydraulic Support Leg Cylinder
These cylinders deploy and retract the crane's outriggers or support legs, establishing a stable base before lifting commences. Engineered with durable rod materials and high-pressure tolerances around 30MPa, they ensure firm grounding on diverse surfaces, from soft soil to concrete pads. This functionality minimizes risks of instability, allowing cranes to operate at full capacity in remote or industrial settings without compromising structural integrity.

4. Hydraulic Luffing Cylinder
Responsible for controlling the boom's vertical angle, this cylinder enables precise luffing motions to position loads accurately at different heights. Featuring strokes up to 3500mm and working pressures of 31.5MPa, it incorporates advanced steering mechanisms to manage unbalanced forces effectively. Such design proves critical for truck cranes in shipyards or high-rise builds, where controlled elevation adjustments directly impact productivity and worker safety.

Applications of Hydraulic Cylinder for Truck Cranes

• Construction
  In Mexico's expanding urban and infrastructure sectors, such as building high-rises in Mexico City or highways across the country, the luffing hydraulic cylinder enables truck cranes to adjust boom angles precisely for placing materials at elevated positions. This component handles pressures up to 31.5MPa, supporting heavy concrete or steel loads while navigating tight job sites, thereby improving safety and reducing project timelines in regions like Guadalajara where rapid development demands reliable equipment.
• Port Logistics
  At major Mexican ports including Veracruz and Manzanillo, the luffing hydraulic cylinder facilitates efficient container handling by allowing truck cranes to tilt booms over ships or storage areas, managing thrusts exceeding 950KN for swift loading and unloading. Its robust design withstands coastal corrosion and high humidity, ensuring continuous operations in logistics hubs that process millions of tons annually, thus optimizing supply chain flows for international trade.
• Wind Energy
  Within Mexico's growing renewable energy landscape, particularly in windy areas like Oaxaca or Baja California, this cylinder aids truck cranes in assembling turbine towers by controlling boom elevations for precise component placement at heights over 100 meters. With strokes reaching 3507mm, it accommodates the assembly of large blades and nacelles, contributing to the nation's goal of increasing wind power capacity while maintaining stability on uneven terrain during installations.
• Power Plant
  For maintenance and construction at thermal or hydroelectric facilities in states such as Nuevo León or Chiapas, the luffing hydraulic cylinder supports truck cranes in lifting heavy machinery parts, such as turbines or generators, under controlled angles to avoid structural interference. Operating at maximum pressures of 39MPa, it ensures precise maneuvers in confined plant environments, enhancing operational uptime and safety protocols in energy production sites critical to Mexico's grid reliability.

Construction	Port Logistics
Wind Energy	Power Plant

Maintenance and Care for Hydraulic Luffing Cylinders

To ensure the longevity and reliable performance of a hydraulic luffing cylinder in truck cranes, a structured maintenance regimen is essential. Begin with routine visual examinations, ideally performed on a weekly basis for equipment in frequent operation, to identify any signs of fluid leakage, surface cracks, or mechanical wear. In regions of Mexico with elevated humidity levels, such as coastal zones near Veracruz or tropical areas in the south, prioritize cleaning the exterior with mild, non-corrosive agents to eliminate accumulated grime and moisture, thereby safeguarding the protective layers on the piston rod and preventing oxidation that could compromise structural integrity over time.

Hydraulic fluid management forms a critical aspect of upkeep; conduct thorough inspections and replacements every 1,000 operating hours or sooner based on the specific demands of the crane's workload. Select fluids that align precisely with the manufacturer's guidelines to maintain optimal viscosity and thermal stability, while regularly assessing filter elements for blockages that might introduce contaminants and hinder smooth piston travel. This practice not only preserves internal components but also enhances overall system efficiency, reducing the likelihood of unexpected failures during critical lifts in construction or port activities.

Seal integrity requires periodic attention, with replacements recommended every two to three years, adjusted according to the intensity of use in demanding Mexican environments like mining sites in Sonora. During this process, adhere strictly to depressurization procedures to mitigate risks, followed by meticulous disassembly and the application of appropriate lubricants to all dynamic surfaces upon reassembly. Engaging qualified technicians for advanced interventions, such as barrel honing to address any scoring from abrasive particles, can significantly prolong service life and maintain pressure tolerances up to 39MPa.

For periods of inactivity, store the cylinder in its fully retracted position within a controlled, arid setting, capping all ports to shield against dust ingress and environmental degradation. Implementing these measures, tailored to local conditions in Mexico, supports compliance with industry standards and optimizes the cylinder's contribution to safe, productive crane operations across diverse sectors.

Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?

FAQs

Q: How does a luffing cylinder hydraulic cylinder differ from other crane cylinders?
A: Unlike cylinders dedicated to vertical lifting that focus on direct elevation of loads, the luffing variant specializes in adjusting the boom's angle, enabling accurate tilting to maneuver around barriers and enhance precision in tight workspaces common in urban Mexican projects.

Q: What materials are used in manufacturing hydraulic cylinder for crane applications?
A: Construction involves high-strength steel alloys for the main barrel to endure intense pressures, chrome-plated steel for the piston rod to resist wear, and premium imported seals that promote extended durability in harsh industrial conditions prevalent in Mexico.

Q: Can I customize the stroke length of a hydraulic cylinder for truck crane?
A: Certainly, customization options extend beyond the standard 3507mm stroke, allowing modifications to suit particular crane specifications; we encourage reaching out to our team for consultations on tailored designs that align with your operational needs in Mexico.

Q: What is the installation distance for standard hydraulic luffing cylinder models?
A: Standard models feature an installation distance of 4218mm, though adjustments are feasible to accommodate unique configurations, ensuring seamless integration into various truck crane setups utilized in Mexico's infrastructure and logistics sectors.

Q: Are hydraulic cylinders for truck cranes resistant to corrosion?
A: Yes, these cylinders incorporate specialized protective coatings and resilient materials engineered for prolonged exposure to outdoor elements, making them well-suited for Mexico's varied environments, including salty coastal air and dusty industrial zones.

Q: What thrust force can a luffing cylinder hydraulic cylinder provide?
A: It delivers a thrust force reaching up to 950KN, which adequately supports rigorous lifting demands in fields like construction and mining, providing the necessary power for handling heavy materials in Mexico's expanding industrial operations.

Q: How often should I replace seals in a hydraulic cylinder for crane?
A: Seal replacements are advisable every 2-3 years or following approximately 5000 operational cycles, adjusted based on the frequency and severity of use to prevent leaks and maintain pressure integrity in demanding crane applications.

Q: Is the hydraulic luffing cylinder compatible with Mexican truck crane brands?
A: Indeed, its design promotes universal compatibility, with available adaptations to fit prominent Mexican crane brands, facilitating straightforward incorporation into local fleets without requiring extensive modifications or compatibility checks.

Q: How to troubleshoot leaks in luffing cylinder hydraulic cylinder?
A: Start by examining ports and seals for wear or looseness, then proceed to secure connections or substitute faulty components immediately; this approach averts broader system disruptions and preserves operational safety in crane environments.
