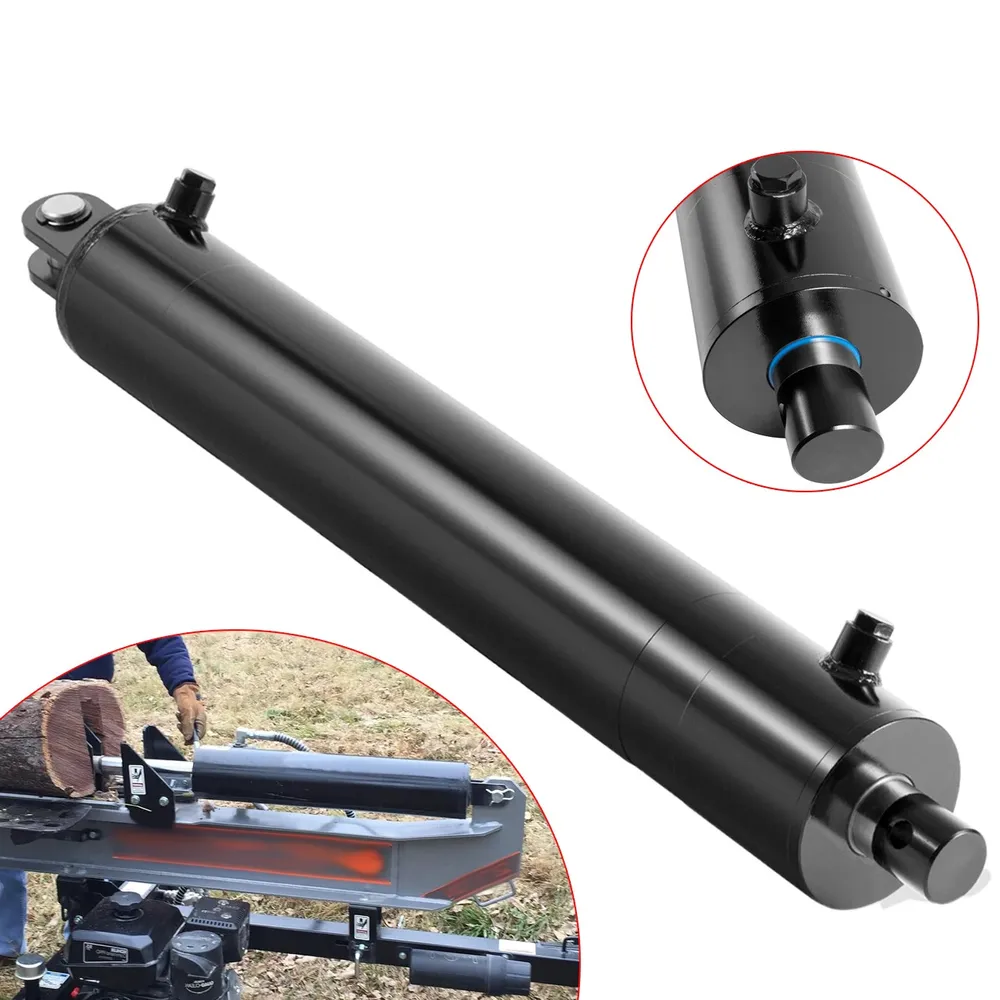

5″ Bore x 24″ Stroke Log Splitter Hydraulic Cylinder

5" Bore x 24" Stroke Log Splitter Hydraulic Cylinder Overview

In the demanding field of wood processing equipment, the log splitter hydraulic cylinder stands as a critical component for transforming raw logs into usable firewood or lumber. Our 5" bore x 24" stroke model, designed specifically for log splitter applications, combines robust engineering with practical functionality to meet the needs of both residential users and commercial operators in Mexico and beyond. This hydraulic cylinder for log splitter excels in providing consistent force application, enabling users to handle tough, knotty woods without excessive manual effort.

Built with precision-welded construction, it incorporates high-grade materials that resist wear and corrosion, ensuring longevity even under frequent use in outdoor environments. The cylinder's compatibility with various log splitter brands, such as Champion, YARDMAX, and CountyLine, makes it a versatile replacement option, reducing downtime and maintenance costs for equipment owners. Furthermore, its double-acting design allows for controlled extension and retraction, which is essential for safe and efficient operation in hydraulic log splitter systems.

Log Splitter Hydraulic Cylinder Dimensions

Technical Specifications

If your application requires custom modifications or additional features beyond these standard specifications, please contact our team at Mexico Ever-Power for personalized assistance and quoting.

Bore :	5 in
Outer Dia. (⌀) :	5.5 in
Stroke :	24 in
Rod Dia. (⌀) :	2 in
Port Size :	1/2" NPT
Pin Dia. (⌀) :	9/16 in
Extended :	58.5 in
Retracted :	34.5 in
Overall length :	36.625 in
Pressure :	3500 PSI
Column Load :	58,900 LBs
Oil Volume :	8.16 QTs
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Pin Hole
Action :	Double Acting
Weight :	89 LBs

Characteristics of Hydraulic Cylinder for Log Splitter

• Extreme Load Capacity
  This hydraulic cylinder features a welded clevis mount at the base end, combined with a 5.5-inch honed cold-drawn tubing and a 2.0-inch chrome-plated rod made from steel 1045, which includes a drilled pin-hole rod end for straightforward mounting. These elements enable it to manage substantial forces effectively during log splitting, supported by premium piston seals that enhance its ability to endure rigorous conditions over a 24-inch stroke, making it suitable for demanding wood processing environments where reliability under pressure is essential.
• Wide Range Hydraulic Applications
  Perfect for various wood processing operations, this cylinder generates significant force to split logs with precision and dependability in both home-based and professional settings. It integrates seamlessly into horizontal or vertical splitter configurations thanks to its rod-end pin design, allowing users to adapt it for diverse tasks such as preparing firewood or handling larger timber volumes, thereby improving overall efficiency in forestry and agricultural workflows.
• Double-Acting Functionality
  The cylinder operates with powered extension and retraction, delivering balanced control in both directions to optimize performance across multiple uses. This setup facilitates quicker cycle times during splitting processes, reducing manual intervention and enhancing safety for operators, while its versatility supports integration into complex hydraulic systems commonly found in equipment for material handling or construction-related activities.
• High-Quality Construction
  Built with a steel piston and a steel gland incorporating wear rings, the cylinder utilizes top-tier materials that provide superior resistance to wear and environmental factors like moisture or debris. This robust assembly ensures prolonged operational life, even in harsh outdoor conditions, by minimizing degradation and maintaining structural integrity through repeated heavy-duty cycles in log splitting machinery.
• Precision Engineering
  Engineered with exacting standards, including narrow tolerances and sophisticated sealing mechanisms, this cylinder prevents fluid loss and sustains consistent hydraulic pressure. Such detailed craftsmanship guarantees reliable function in high-stakes applications, where even minor variances could impact output, thus supporting precise force application essential for effective log division without unnecessary energy expenditure.
• Smooth Operation
  Equipped with meticulously honed cylinder barrels and superior seals, the unit promotes fluid, uninterrupted motion during extension and retraction phases. This results in reduced vibration and noise levels, contributing to a more comfortable user experience and preserving the longevity of connected components in splitter setups, particularly beneficial for extended sessions in varied terrain or weather.
• Easy Maintenance
  Designed for straightforward servicing, the cylinder allows quick access to key parts like seals and rods, which helps minimize equipment downtime and supports ongoing productivity. Routine checks and replacements can be performed with basic tools, ensuring that operators in remote or field-based locations can keep the system running efficiently without specialized expertise or prolonged interruptions.

How Does a Log Splitter Hydraulic Cylinder Work

The operation of a log splitter hydraulic cylinder relies on fundamental hydraulic principles, particularly the concept that pressure exerted on a confined fluid distributes evenly throughout the system without reduction. This allows for the amplification of force, enabling the cylinder to perform heavy-duty tasks such as splitting dense logs with minimal input effort.

In a typical setup, the process begins with the extension phase. A hydraulic pump draws fluid from a reservoir and directs it under pressure into the cylinder's base end, also known as the cap end. As the fluid enters, it pushes against the piston, causing the attached rod to extend outward. For a model with a 5-inch bore diameter, this generates substantial thrust—often measured in tons—sufficient to propel the splitting wedge forward into the log. The bore size directly influences the force output, as a larger internal area multiplies the applied pressure, allowing the wedge to penetrate even tough, fibrous woods like oak or hickory without excessive strain on the machinery.

Once the split is complete, the retraction phase engages. The pump redirects the hydraulic fluid to the rod end of the cylinder, while simultaneously allowing fluid from the base end to return to the reservoir. This action pulls the piston and rod back inward, resetting the wedge for the subsequent cycle. The double-acting design—meaning the cylinder exerts force in both directions—optimizes the system's efficiency by utilizing powered movement for both extension and retraction, rather than relying on gravity or springs for return, which can be less reliable in varied operating conditions.

Critical to seamless performance are the cylinder's internal components. The chrome-plated rod, typically made from durable steel alloys, minimizes surface friction during movement, reducing wear and heat buildup that could otherwise lead to inefficiencies or failures. Precision-honed tubing inside the cylinder barrel ensures a smooth pathway for the piston, further enhancing operational fluidity. Equally important is the sealing arrangement, which includes high-grade O-rings, wear rings, and piston seals. These elements create airtight barriers that preserve hydraulic pressure, preventing fluid leaks that might diminish force or contaminate the environment. Without effective seals, pressure losses could occur, compromising the cylinder's ability to maintain consistent output over repeated cycles.

Types of Log Splitter Hydraulic Cylinders

• 20 Ton Hydraulic Cylinder for Log Splitter
  This model provides moderate splitting force suitable for residential use, handling softwoods and smaller logs up to 18 inches in diameter. It typically features a 4-inch bore and 24-inch stroke, operating at pressures around 3000 PSI, making it ideal for occasional firewood preparation in home workshops or small farms, where compactness and affordability are priorities without sacrificing basic durability.
• 25 Ton Hydraulic Cylinder for Log Splitter
  Designed for slightly heavier tasks, this cylinder delivers enhanced power for medium-sized logs, including some hardwoods like maple. With a common 4.5-inch bore configuration, it supports efficient cycles in semi-professional environments, ensuring reliable performance during extended sessions and compatibility with portable splitter frames for versatile outdoor applications.
• 27 Ton Hydraulic Cylinder for Log Splitter
  Offering a balanced force output, this type excels in splitting knotty or denser woods without excessive strain on the equipment. Often equipped with a 4.5 to 5-inch bore and reinforced seals, it suits users in rural settings who require consistent operation for moderate commercial loads, promoting safety through stable pressure maintenance.
• 30 Ton Hydraulic Cylinder for Log Splitter
  This robust option generates substantial thrust for larger logs up to 24 inches, targeting professional forestry operations. Featuring a 5-inch bore and chrome-plated rods for corrosion resistance, it integrates well with high-flow pumps, reducing cycle times and enhancing productivity in demanding agricultural or lumber processing workflows.
• 35 Ton Hydraulic Cylinder for Log Splitter
  Engineered for intensive use, this cylinder manages tough, fibrous timbers effectively, with a typical 5.5-inch bore providing superior leverage under 3500 PSI. It appeals to contractors handling bulk wood volumes, incorporating welded mounts for secure installation and long-term reliability in varied environmental conditions.
• 40 Ton Hydraulic Cylinder for Log Splitter
  Providing high-end force capabilities, this model tackles oversized or extremely hard logs, such as oak rounds exceeding 30 inches. Built with heavy-duty components like 6-inch bores and precision-honed tubing, it supports industrial-scale splitting, ensuring minimal downtime through advanced sealing that prevents fluid leaks during prolonged operations.
• 50 Ton Hydraulic Cylinder for Log Splitter
  This heavy-duty variant offers exceptional power for commercial-grade applications, splitting massive logs with ease. Commonly with a 6.5-inch bore and extended stroke options, it features steel construction resistant to wear, making it a staple in large forestry enterprises where efficiency and endurance are critical for high-volume production.
• 60 Ton Hydraulic Cylinder for Log Splitter
  Representing top-tier performance, this cylinder delivers maximum force for the most challenging splitting tasks, including dense exotic woods. Equipped with oversized 7-inch bores and reinforced pistons, it ensures optimal hydraulic efficiency in professional setups, facilitating rapid processing while maintaining structural integrity under extreme loads.

Hydraulic Log Splitter Cylinder Applications

Hydraulic log splitter cylinders serve as essential components in wood processing equipment, primarily utilized in residential and small-scale agricultural settings where efficient firewood preparation is required. For homeowners managing personal fuel supplies or maintaining properties in rural areas, these cylinders enable the safe and rapid division of logs into manageable pieces, often integrating with portable or stationary splitters powered by gasoline or electric engines. In professional forestry operations, they support high-volume tasks such as preparing timber for lumber mills or biomass energy production, where models with higher tonnage ratings handle dense hardwoods like oak or walnut without compromising structural integrity.

Their double-acting mechanism facilitates controlled force application, reducing operator fatigue and minimizing risks associated with manual splitting tools. Beyond standard wood handling, these cylinders find roles in landscaping businesses for clearing debris or processing fallen trees after storms, ensuring compliance with environmental regulations by promoting sustainable resource use. Compatibility with various splitter designs, including horizontal and vertical configurations, allows for seamless upgrades in existing machinery, thereby extending equipment lifespan and optimizing workflow in diverse operational environments.

In commercial applications, hydraulic log splitter cylinders contribute to industrial-scale wood recycling and manufacturing processes, such as in sawmills where they assist in initial log breakdown before further cutting. This enhances productivity by enabling continuous operation with minimal downtime, particularly when paired with automated systems that monitor pressure and cycle times. For agricultural enterprises, they aid in preparing organic mulch or animal bedding from excess timber, supporting eco-friendly practices that reduce waste and generate additional revenue streams.

In construction sectors, these cylinders occasionally adapt for specialized tasks like splitting reclaimed wood for reuse in building projects, demonstrating their versatility across materials beyond fresh logs. Maintenance considerations, such as regular seal inspections, ensure long-term reliability in harsh conditions, while their robust construction withstands exposure to moisture and debris common in outdoor sites.

Custom Hydraulic Cylinder for a Log Splitter

• Tubing Customization
  For those seeking a hydraulic cylinder for log splitter that aligns precisely with operational demands, we provide varied tubing materials and dimensions, such as honed cold-drawn steel options in diameters from 4 to 7 inches. This ensures enhanced structural support and compatibility with different log splitter hydraulic cylinder setups, allowing for better fluid flow and resistance to internal pressures during extended wood processing sessions.
• Rod Plating Options
  Our hydraulic cylinder for a log splitter features customizable rod plating, including chrome or nickel finishes on steel 1045 rods, which offer superior corrosion protection in outdoor environments. This customization extends the lifespan of the log splitter hydraulic cylinder, making it a reliable choice for users handling moist or abrasive conditions while maintaining smooth extension and retraction movements.
• Seal Variations
  To optimize performance in hydraulic log splitter cylinder applications, we offer a selection of seals crafted from polyurethane or nitrile compounds, designed to withstand temperatures ranging from -40°F to 250°F. These seals prevent leaks and maintain hydraulic integrity, positioning our products as the best hydraulic cylinder for log splitter in scenarios requiring consistent force output without frequent replacements.
• Mounting Ends Flexibility
  Custom mounting ends for hydraulic cylinder log splitter include welded clevis, pin-hole, or threaded options, facilitating seamless integration into both horizontal and vertical splitter frames. This adaptability ensures secure attachments and reduces vibration, enhancing overall stability for commercial operations where log splitter hydraulic cylinders must endure repetitive heavy loads.
• Pressure Ratings Adjustments
  We tailor pressure ratings up to 4000 PSI for our hydraulic cylinder for log splitter models, based on specific workload requirements, such as splitting dense hardwoods. This customization allows users to match the cylinder's capabilities with their equipment's pump system, ensuring efficient energy transfer and minimizing risks of overpressure in demanding forestry tasks.
• Color Options
  Aesthetic and functional color choices for log splitter hydraulic cylinder exteriors include powder-coated finishes in black, red, or custom hues for branding purposes. These coatings not only improve visibility in low-light conditions but also provide an additional layer of rust resistance, appealing to professionals who prioritize both durability and visual identification in their machinery fleets.
• Packaging Solutions
  Our packaging for hydraulic cylinder for a log splitter is customizable, with options like reinforced crates or foam inserts to protect components during transit to international destinations. This approach safeguards against damage and ensures that log splitter hydraulic cylinders arrive ready for immediate installation, supporting bulk orders for resellers or large-scale users.
• Labeling Personalization
  Detailed labeling services for hydraulic log splitter cylinder include engraved serial numbers, specification tags, or QR codes linking to maintenance guides. This feature aids in inventory management and compliance with industry standards, making it easier for operators to track usage and perform routine checks on their best hydraulic cylinder for log splitter investments.

Why Choose Mexico Ever-Power's Log Splitter Hydraulic Cylinders?

FAQs

Q: What is the maximum pressure rating for a 5" bore x 24" stroke log splitter hydraulic cylinder?
A: The hydraulic cylinder for log splitter in this configuration typically handles up to 3500 PSI, making it well-suited for demanding wood splitting tasks that require consistent force application on dense materials, ensuring safe and effective operation without risking structural failure under heavy loads.

Q: How do I choose the best hydraulic cylinder for log splitter based on log size?
A: When selecting the best hydraulic cylinder for log splitter, evaluate the stroke length relative to your average log dimensions; a 24-inch stroke accommodates most standard logs up to that length, while considering bore size for force output helps match the unit to your specific wood types and splitting frequency.

Q: What maintenance is required for hydraulic cylinder for log splitter to prevent leaks?
A: Regular maintenance for a hydraulic cylinder for log splitter involves inspecting log splitter hydraulic cylinder seals every few months for cracks or wear, replacing hydraulic fluid annually to avoid contamination, and checking connections to maintain system integrity and prevent costly downtime from fluid loss.

Q: Is the hydraulic log splitter cylinder compatible with Champion brands?
A: Yes, the hydraulic log splitter cylinder serves as a universal replacement hydraulic cylinder for log splitter models from Champion, featuring standard mounting options like pin-hole ends and clevis bases that align with their designs, allowing for straightforward swaps without modifications.

Q: How to install a hydraulic cylinder log splitter in a vertical setup?
A: To install a hydraulic cylinder log splitter in a vertical configuration, first align the welded mounts with the splitter frame, secure the pins through the drilled holes for stability, and connect hydraulic lines to the ports, ensuring proper torque to avoid leaks during upright operation.

Q: What are signs of wear in log splitter hydraulic cylinders?
A: Indicators of wear in log splitter hydraulic cylinders include noticeably slow extension or retraction cycles, visible fluid leaks around seals, or unusual noises during use, which signal the need for log splitter hydraulic cylinder repair to restore performance and prevent further damage.

Q: Can I customize the rod diameter in hydraulic cylinder for a log splitter?
A: Customization options for the rod diameter in a hydraulic cylinder for a log splitter are available upon request; contact our team to discuss adjustments that enhance durability or force, tailored to your equipment's specifications for optimal integration and long-term reliability.

Q: How does working principle affect efficiency in best hydraulic cylinder for log splitter?
A: The double-acting design in the best hydraulic cylinder for log splitter improves efficiency by enabling powered retraction, which accelerates cycle times compared to single-acting models, reducing energy consumption and operator wait times during repetitive wood processing tasks.

Q: What applications suit log splitter hydraulic cylinder in Mexico?
A: In Mexico, the log splitter hydraulic cylinder excels in forestry for timber preparation and agriculture for biomass handling, supporting sustainable practices in regions with abundant hardwood resources, where its robust construction withstands varied climates and intensive daily use.

Q: How to store hydraulic cylinder for log splitter during off-season?
A: For off-season storage of a hydraulic cylinder for log splitter, keep it in a dry, covered area with the rod fully retracted to protect seals from dust and moisture, and apply a light coat of oil to exposed surfaces to prevent corrosion over extended periods.

Q: What advantages does welded construction offer in hydraulic log splitter cylinder?
A: Welded construction in a hydraulic log splitter cylinder provides enhanced durability by creating seamless joints that resist fatigue from repeated pressure cycles, offering superior strength over bolted alternatives, which contributes to longer service life in rugged splitting environments.

Q: How to troubleshoot slow operation in hydraulic cylinder log splitter?
A: To troubleshoot slow operation in a hydraulic cylinder log splitter, first check fluid levels and quality for adequate viscosity, then inspect for air pockets by learning how to bleed hydraulic cylinder for a log splitter, and examine filters or pumps for blockages that impede flow.

Q: What size hydraulic cylinder for log splitter is ideal for heavy-duty use?
A: Determining what size hydraulic cylinder for log splitter suits heavy-duty applications involves assessing bore diameter and stroke; a 5-inch bore with 24-inch stroke delivers ample force for large logs, balancing power with compatibility for professional setups requiring consistent performance.
