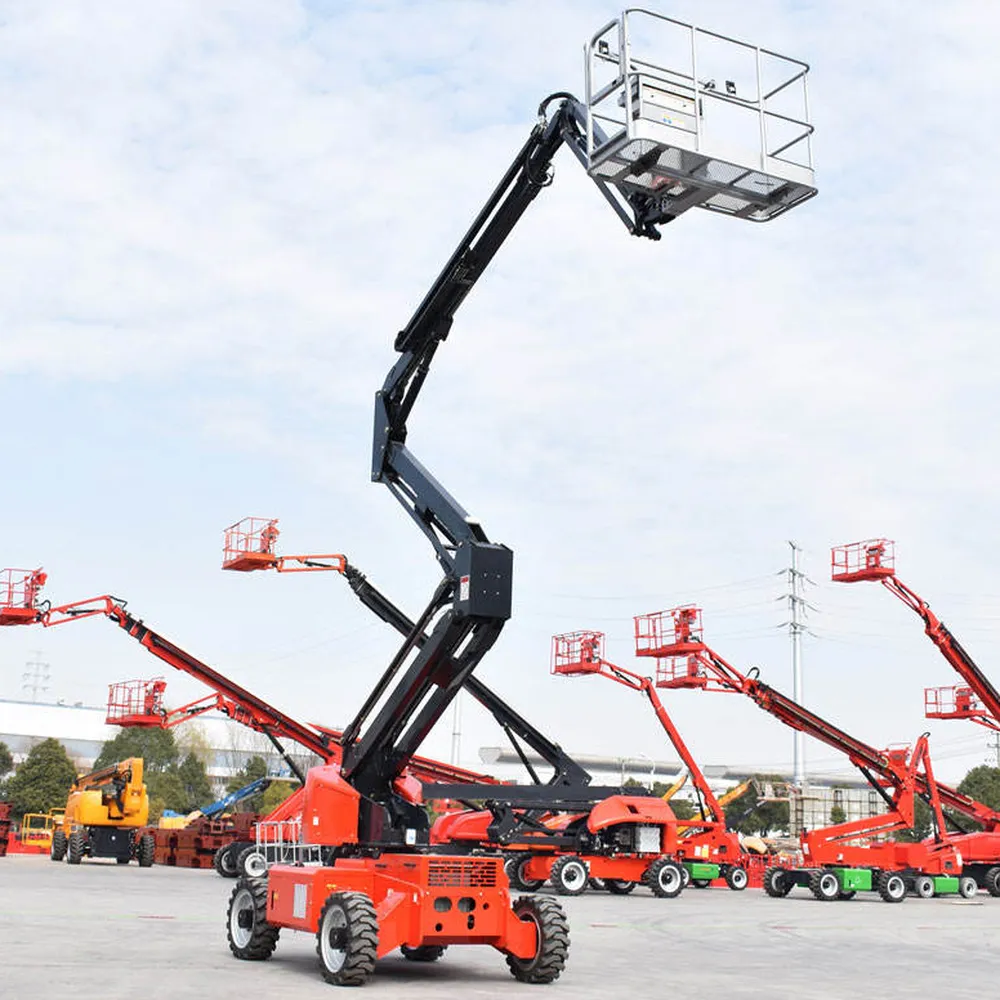

Hydraulic Steering Cylinder for Arm Type Aerial Work Platforms

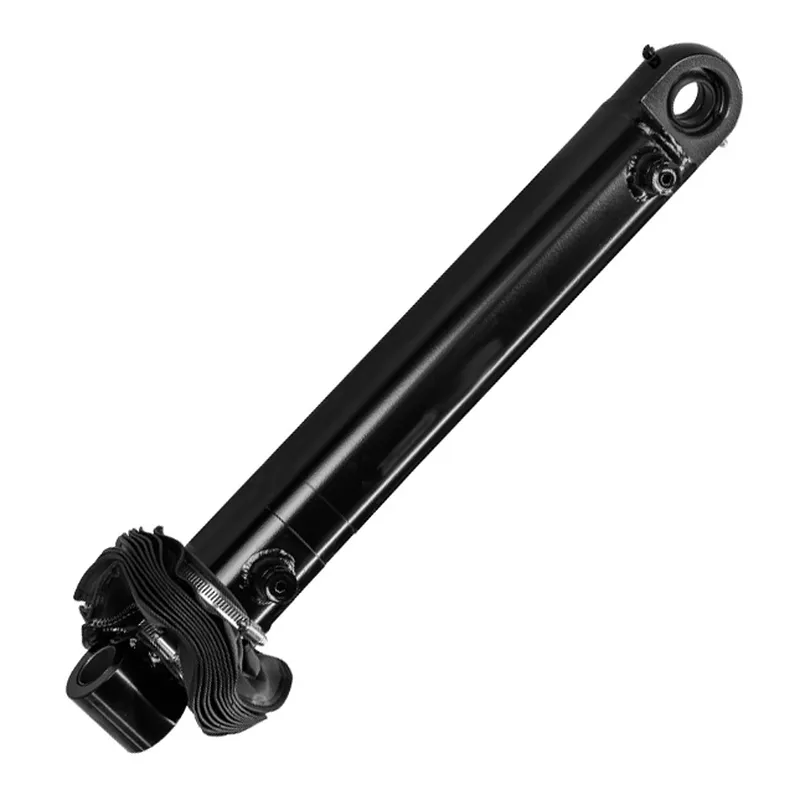

Hydraulic Steering Cylinder Overview

In the demanding field of elevated operations, the hydraulic steering cylinder serves as a critical component for arm type aerial work platforms, enabling operators to maneuver equipment with accuracy and safety. These cylinders are specifically designed to handle the steering functions of wheeled or tracked chassis, converting hydraulic pressure into linear motion that directs the platform's movement. Built from high-strength materials like alloy steel, they resist corrosion and wear, making them suitable for outdoor environments where exposure to weather and debris is common. At Mexico Ever-Power, we focus on producing these cylinders to meet international standards, ensuring compatibility with various platform models used in construction sites, utility maintenance, and industrial inspections across Mexico and beyond.

Beyond basic functionality, this steering hydraulic cylinder integrates advanced sealing technology to prevent fluid leaks, which could compromise system integrity. Its piston and rod assembly allows for smooth extension and retraction, supporting loads while maintaining stability during turns. Professionals in the industry appreciate how these units contribute to overall machine productivity by reducing downtime and enhancing control in tight spaces. Whether you're operating in urban areas like Mexico City or rural sites, the cylinder's robust design addresses common challenges such as uneven terrain and heavy payloads, providing a reliable solution that aligns with operational needs.

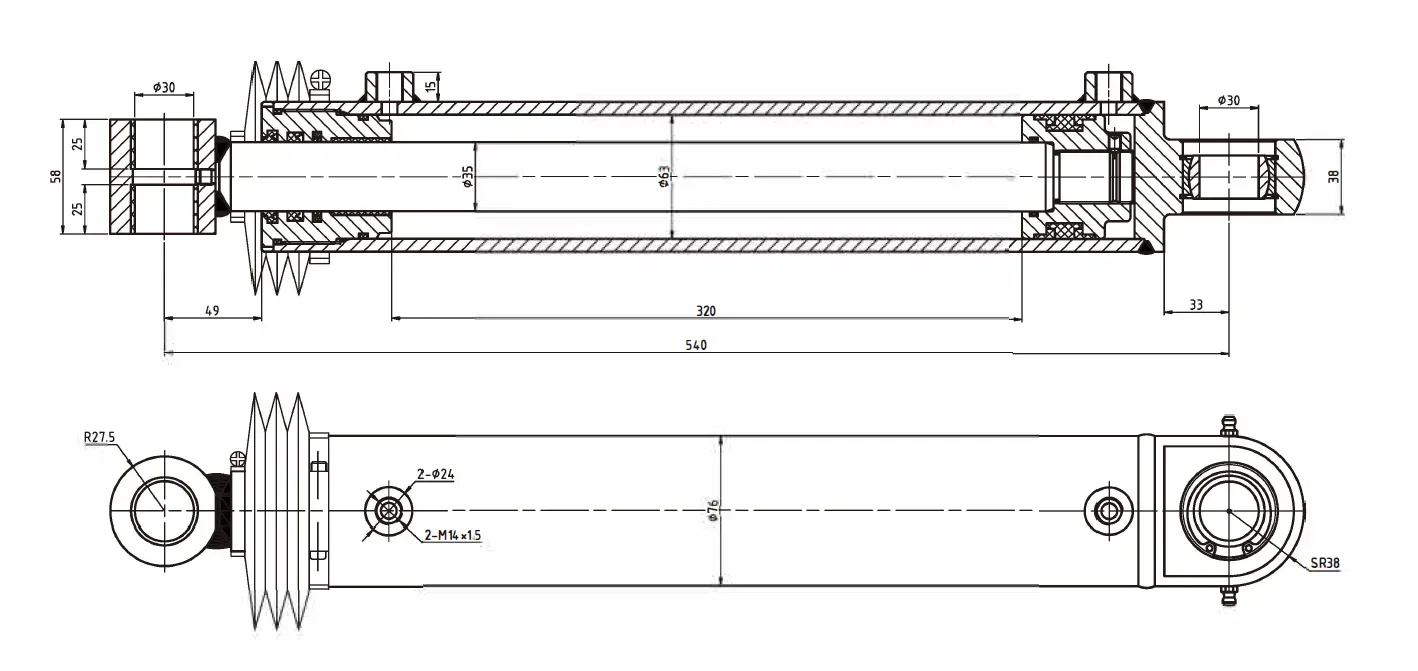

Hydraulic Steering Cylinder Dimensions

Technical Specifications

If your project requires adjustments beyond these standard specs, such as modified stroke lengths or mounting configurations, reach out to our team at Mexico Ever-Power for personalized consultations.

Steering Hydraulic Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112012	Φ63xΦ35x320	21 MPa	32MPa	320	540	13kg

Product Name:	Steering Hydraulic Cylinder
Function:	Implement steering axle action and enable arm-type tire steering.
Cylinder diameter:	40mm-80mm
Rod diameter:	20mm-50mm
Travel:	110mm-300mm
Maximum pressure:	20MPa
Maximum thrust:	100KN

Key Features of Hydraulic Steering Cylinder in Aerial Platforms

The hydraulic steering cylinder stands out in aerial work platforms due to its precision-engineered features that prioritize durability and efficiency. One primary aspect is the robust barrel construction, typically made from seamless steel tubing, which houses the internal components and withstands high internal pressures without deformation. This design not only extends the unit's lifespan but also minimizes maintenance needs in high-cycle operations. Additionally, the piston rod is chrome-plated to resist scratching and corrosion, ensuring consistent performance even in humid or dusty Mexican climates.

Enhanced Sealing Systems

Seals within the cylinder are crafted from premium polyurethane materials, offering superior resistance to oil degradation and temperature fluctuations. This prevents common issues like fluid seepage, which can lead to steering inaccuracies over time.

Flexible Mounting Options

Our models include versatile mounting points, allowing integration with various axle setups in arm type platforms. This adaptability reduces installation time and accommodates custom requirements for different vehicle frames.

Operators value these features because they contribute to safer workflows. For instance, the cylinder's ability to handle dynamic loads without backlash ensures smooth turns, reducing the risk of tipping on uneven ground. In practical terms, construction teams in Mexico have reported fewer interruptions during bridge inspections or building facade work, thanks to the cylinder's reliable response to hydraulic inputs. Compared to older designs, our steering hydraulic cylinders incorporate modern tolerances that improve fuel efficiency by optimizing steering effort. This results in lower operational costs for fleet managers.

Furthermore, the integration of pressure relief valves as a standard feature protects against overloads, a common concern in heavy-duty applications. By distributing force evenly, the cylinder enhances the platform's overall stability, which is crucial for worker safety at heights. Maintenance personnel also benefit from accessible ports for fluid checks, simplifying routine inspections.

Advantages of Using a Steering Hydraulic Cylinder for Arm Platforms

Adopting high-quality steering hydraulic cylinders delivers substantial benefits to arm type aerial work platforms, enhancing overall operational efficiency and reliability in demanding environments. These systems excel in providing precise control that mechanical alternatives often lack, making them ideal for complex job sites throughout Mexico.

1. Superior Maneuverability in Confined Spaces

Operators gain exceptional control through proportional hydraulic action, enabling subtle adjustments that navigate tight urban areas effectively. In bustling locations such as Mexico City construction zones, this feature minimizes collision risks with nearby structures or vehicles, allowing teams to position platforms accurately and complete tasks more swiftly without unnecessary repositioning efforts. This level of precision supports productivity in high-density work settings where space constraints are common challenges for equipment handlers.

2. Extended Service Life and Cost Savings

The robust construction of these cylinders resists everyday wear from repeated cycles and exposure to harsh conditions, leading to longer intervals between servicing. Companies transitioning to our units frequently experience reductions in maintenance expenditures by as much as 20 percent, as fewer replacements for parts like seals or rods are needed. This financial advantage accumulates over time, freeing up budgets for other operational needs and contributing to a lower total ownership cost for fleet managers in Mexico's competitive construction industry.

3. Enhanced Safety Through Shock Absorption

Integrated damping features effectively mitigate impacts from uneven surfaces, maintaining platform stability during movement and reducing physical strain on users. For extended sessions at elevated heights, this stability is crucial in preventing mishaps that could arise from sudden jolts or loss of control. In practical terms, workers in prolonged maintenance or inspection roles report feeling more secure, which aligns with safety protocols emphasized in Mexican regulatory standards for aerial equipment operation.

4. Superior Performance Over Basic Alternatives

These cylinders surpass simpler designs by delivering elevated thrust levels, reaching up to 100 KN, which accommodates heavier loads without sacrificing responsiveness or speed. Construction firms in Mexico appreciate how this capability allows for handling larger platforms efficiently, ensuring that even demanding projects proceed without delays caused by underpowered steering. The result is a competitive edge in bidding for contracts where equipment reliability directly influences project outcomes and client satisfaction.

5. Accelerated Task Completion and Productivity Boost

By facilitating quicker directional changes and smoother handling, these hydraulic systems enable faster execution of work sequences on site. Fleet operators in Mexico's building sector observe notable improvements in daily output, as teams spend less time adjusting positions and more on core activities like repairs or installations. This efficiency gain translates to meeting tight deadlines more consistently, enhancing reputation and opening doors to additional business opportunities in a fast-paced market.

Hydraulic Cylinder for Arm Type Aerial Work Platforms

In arm type aerial work platforms, hydraulic cylinders play essential roles in ensuring stable and efficient operations at elevated heights. These components convert hydraulic energy into mechanical force, enabling precise movements across various platform functions. Designed for durability in construction, maintenance, and industrial settings, they incorporate robust materials to withstand high pressures and repetitive cycles. Proper selection and maintenance of these cylinders contribute to safer workflows and extended equipment lifespan in demanding environments.

Leveling Hydraulic Cylinder

This cylinder maintains platform horizontality during elevation, compensating for uneven ground or structural tilts. It adjusts the base or outriggers through controlled extension, ensuring worker stability at heights up to 50 meters in urban construction sites. Engineers integrate sensors for real-time feedback, preventing overloads and enhancing precision in tasks like window installation or bridge inspections. Regular checks on seals and fluid levels are crucial to avoid drifts that could compromise safety protocols.

Luffing Hydraulic Cylinder

Responsible for raising and lowering the arm assembly, the luffing cylinder provides the primary lifting mechanism in aerial platforms. It operates under pressures reaching 25 MPa, allowing smooth angular adjustments from horizontal to near-vertical positions. In maintenance operations on tall structures, such as power lines in rural areas, this cylinder facilitates access to hard-to-reach spots without excessive vehicle repositioning. Its double-acting design supports both extension and retraction, reducing cycle times and improving overall productivity for field teams.

Telescopic Hydraulic Cylinder

Featuring multiple nested stages, the telescopic cylinder extends the arm's reach significantly, often beyond 30 meters for high-altitude tasks. It deploys sequentially to minimize collapsed length while maximizing extension, ideal for compact storage and transport. Construction professionals rely on it for facade repairs on skyscrapers, where sequential staging ensures controlled deployment without sudden jerks. Maintenance involves monitoring stage alignments to prevent binding, ensuring reliable performance in variable weather conditions across diverse job locations.

Floating Hydraulic Cylinder

The floating cylinder absorbs shocks and vibrations during platform movement, acting as a damper to enhance ride comfort and structural integrity. Mounted with flexible connections, it allows minor lateral shifts, protecting the arm from impacts on rough terrain. In industrial applications like warehouse roofing, this feature reduces wear on joints and extends component life by distributing forces evenly. Operators appreciate its role in minimizing fatigue during prolonged shifts, with routine inspections focusing on mounting hardware to sustain effectiveness.

Hydraulic Jib Cylinder

This cylinder controls the jib extension at the arm's end, providing additional articulation for precise positioning over obstacles. It handles loads up to several tons, enabling fine-tuned outreach in confined spaces such as indoor arenas or forested areas. For event setup or tree trimming, the jib cylinder's compact design allows for versatile angles, improving access without base relocation. Technical teams emphasize fluid purity to avoid internal corrosion, ensuring consistent force output and operational reliability in specialized scenarios.

Applications of Steering Hydraulic Cylinder in Arm Type Platforms

Steering hydraulic cylinders serve vital roles in arm type aerial work platforms, supporting a wide range of sectors by delivering accurate directional control essential for safe and effective elevated tasks. In the construction field, these cylinders allow operators to guide platforms around complex building frameworks, granting access to elevated surfaces for activities such as facade restoration or structural inspections. Within Mexico's expanding infrastructure developments, they prove indispensable for maneuvering in dense urban zones, where precise steering prevents equipment collisions and optimizes worker positioning on high-rise projects.

For utility services, particularly power line maintenance, the cylinders enable alignment with transmission poles on irregular terrain, cutting down on preparation periods and enabling swift interventions to restore services. In industrial environments like manufacturing plants, they assist in directing platforms along confined pathways for overhead equipment handling, streamlining processes such as crane installations or conveyor adjustments to boost operational throughput.

Expanding beyond traditional uses, these cylinders enhance event management by facilitating navigation in packed event spaces for setting up stage lighting or sound systems, a common requirement for Mexican festivals and conferences that demand rapid reconfiguration. In agricultural operations, they support platforms adapted for orchard management, allowing steady traversal of inclined landscapes during fruit tree trimming or pest control, thereby reducing soil disruption and improving harvest efficiency.

Additionally, in telecommunications upkeep, steering hydraulic cylinders aid in reaching cellular towers for antenna repairs, ensuring minimal downtime in network coverage across remote or hilly regions. Fire and rescue teams utilize them in emergency responses, steering platforms to inaccessible building levels for evacuation or firefighting efforts, where quick and stable positioning can be life-saving. In film production, they provide controlled movement for capturing aerial footage, enabling directors to achieve dynamic angles without extensive ground support.

Why Choose Mexico Ever-Power's Hydraulic Steering Cylinder?

FAQs

Q: What are common signs of wear in a steering hydraulic cylinder?
A: Indicators include visible hydraulic fluid leaks around seals, sluggish or inconsistent steering responses during use, and audible irregularities like grinding or hissing sounds from internal components. These symptoms often point to degraded seals, scored rods, or contamination buildup, necessitating prompt inspection to prevent complete failure and maintain operational reliability in elevated work environments.

Q: Can hydraulic steering cylinders be customized for specific arm type platforms?
A: Certainly, at Mexico Ever-Power, we provide tailored modifications including altered stroke distances, unique mounting brackets, or enhanced pressure tolerances to suit particular platform designs. This flexibility accommodates diverse applications, from urban construction to rural inspections, ensuring the cylinder integrates seamlessly with existing systems for optimal functionality and longevity.

Q: How often should I perform maintenance on my hydraulic steering cylinder?
A: Conduct visual checks and fluid level assessments every 500 operating hours, with full fluid replacement recommended annually or after 2,000 hours to sustain efficiency and avert breakdowns. Regular servicing also involves examining hoses and fittings for cracks, aligning with industry standards to extend service life in demanding aerial tasks.

Q: What materials are used in durable hydraulic steering cylinders for aerial work?
A: Typically constructed with high-tensile alloy steel barrels for pressure resistance and chrome-coated piston rods to combat rust and abrasion, these materials ensure robustness in outdoor settings. Additional elements like polyurethane seals enhance leak prevention, supporting consistent performance across temperature fluctuations and heavy-duty cycles common in platform operations.

Q: How to repair a leaking steering hydraulic cylinder in arm platforms?
A: First, fully depressurize the hydraulic circuit, then disassemble to access and swap out damaged seals or O-rings, followed by thorough cleaning of internal parts. Reassemble carefully, refill with appropriate fluid, and conduct low-pressure tests to confirm no further leaks, always prioritizing safety measures to avoid injuries during the process.

Q: Are there long-tail options like hydraulic steering cylinder for high-reach aerial platforms?
A: Yes, we offer specialized versions optimized for extended elevation tasks, featuring boosted thrust capabilities reaching 100 KN alongside adjustable configurations. These adaptations cater to high-reach scenarios in infrastructure projects, providing enhanced stability and control to manage greater heights and weights effectively in professional settings.

Q: How does temperature affect hydraulic steering cylinder performance?
A: Functioning optimally between -20°C and 80°C, exposure to extremes can thicken or thin the fluid, impacting response times and seal integrity. In colder climates, heaters or specialized oils may be necessary, while high-heat areas require cooling measures to preserve efficiency and prevent component degradation over time.

Q: What advantages do double-acting steering hydraulic cylinders offer?
A: These designs apply force in extension and retraction phases, delivering balanced and exact directional adjustments suited for active steering needs. They excel in dynamic environments by allowing quicker corrections and smoother handling, which reduces operator effort and enhances safety during prolonged use on uneven job sites.

Q: How to install a new hydraulic steering cylinder on an arm type platform?
A: Begin by aligning the cylinder with existing mounts, secure bolts to specified torque values, and attach hydraulic lines using proper fittings to prevent leaks. Purge air from the system, then perform initial low-pressure trials to verify smooth movement, ensuring all connections are tight and compliant with equipment manuals for secure integration.

Customer Reviews

Maria Gonzalez, Construction Foreman, Guadalajara
"Our crew has depended on this hydraulic steering cylinder across several arm platforms for more than 18 months in demanding city projects. The 320mm stroke manages tight urban maneuvers without fail, consistently performing at 21MPa levels. When we reached out about tailored fittings, Mexico Ever-Power responded swiftly, preventing any project delays. The construction holds strong through constant use—no signs of weakness or breakdowns."

Carlos Mendoza, Maintenance Technician, Monterrey
"We made the switch to Mexico Ever-Power's steering hydraulic cylinder over a year ago, and it has transformed how we handle our equipment lineup. Installation went smoothly without complications, and its lightweight 13kg design avoids adding unnecessary weight to the setup. No leaks have appeared despite rigorous industrial applications, and their phone guidance on upkeep routines was straightforward and effective—truly excellent assistance."

Ana Lopez, Project Manager, Tijuana
"The toughness of this cylinder has really stood out in our operations. It tackles challenging landscapes effortlessly, thanks to its ability to withstand up to 32MPa. Shipments arrived precisely as scheduled, keeping our timelines on point. In comparison to past vendors, Mexico Ever-Power delivers superior affordability while upholding high standards in materials and craftsmanship."

Jose Ramirez, Equipment Operator, Puebla
"I've trusted this for storage facility duties, where the 40-80mm diameter provides spot-on handling through cramped corridors. A small hiccup during the first assembly was resolved promptly by their support staff. It's proven its worth in daily reliability, making every operation smoother and more dependable than before."

Laura Hernandez, Safety Supervisor, Cancun
"Prioritizing protection in our work, this cylinder ensures steady direction even with substantial weights. We've fitted it to our seaside upkeep rigs, and after 12 months, there's been no rust or degradation from the salty air. The delivery process was efficient, landing in our hands within days—impressive coordination from start to finish."

Diego Silva, Fleet Owner, Veracruz
"This stands out for our elevated access requirements, with the 100 KN force capacity managing tough demands without strain. Their team shone when clarifying technical details for us. Over time, it has noticeably cut back on idle periods, allowing smoother fleet management and better overall results."

Elena Torres, Site Engineer, Queretaro
"Incorporating this steering hydraulic cylinder into our infrastructure builds has been seamless for the past two years. Its precise response at varying pressures keeps everything aligned on uneven sites. Mexico Ever-Power's customization for our specific axle setups was handled professionally, and we've experienced enhanced stability that boosts team confidence during high-stakes lifts."
