Hydraulic Counterweight Cylinder for Truck Cranes

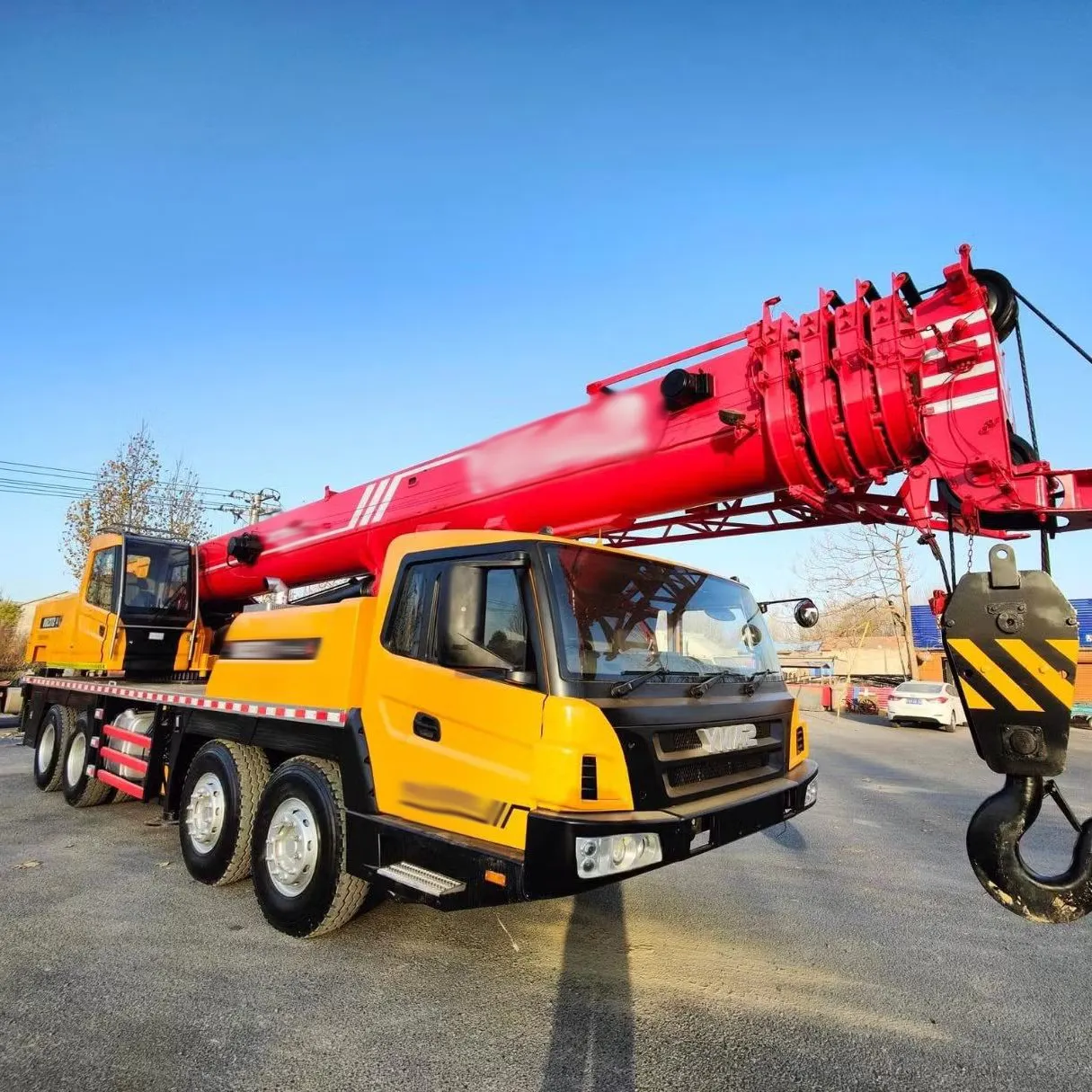

Truck Crane Hydraulic Counterweight Cylinder Overview

The hydraulic counterweight cylinder plays a pivotal role in the operation of truck cranes, serving as a key component that ensures balance and stability during lifting tasks. Designed specifically for truck cranes, this cylinder facilitates the adjustment of counterweights at the rear of the vehicle, counteracting the forces exerted by heavy loads on the boom. By converting hydraulic pressure into mechanical force, it allows operators to extend or retract the counterweight smoothly, preventing tipping and enhancing overall safety on job sites.

In Mexico's diverse construction and industrial landscapes, where projects range from urban developments to remote mining operations, the counterweight hydraulic cylinder proves indispensable for maintaining crane equilibrium under varying load conditions. Its construction from high-strength alloy steel provides the durability needed to withstand repeated cycles of high-pressure operation, making it a reliable choice for professionals who demand consistent performance.

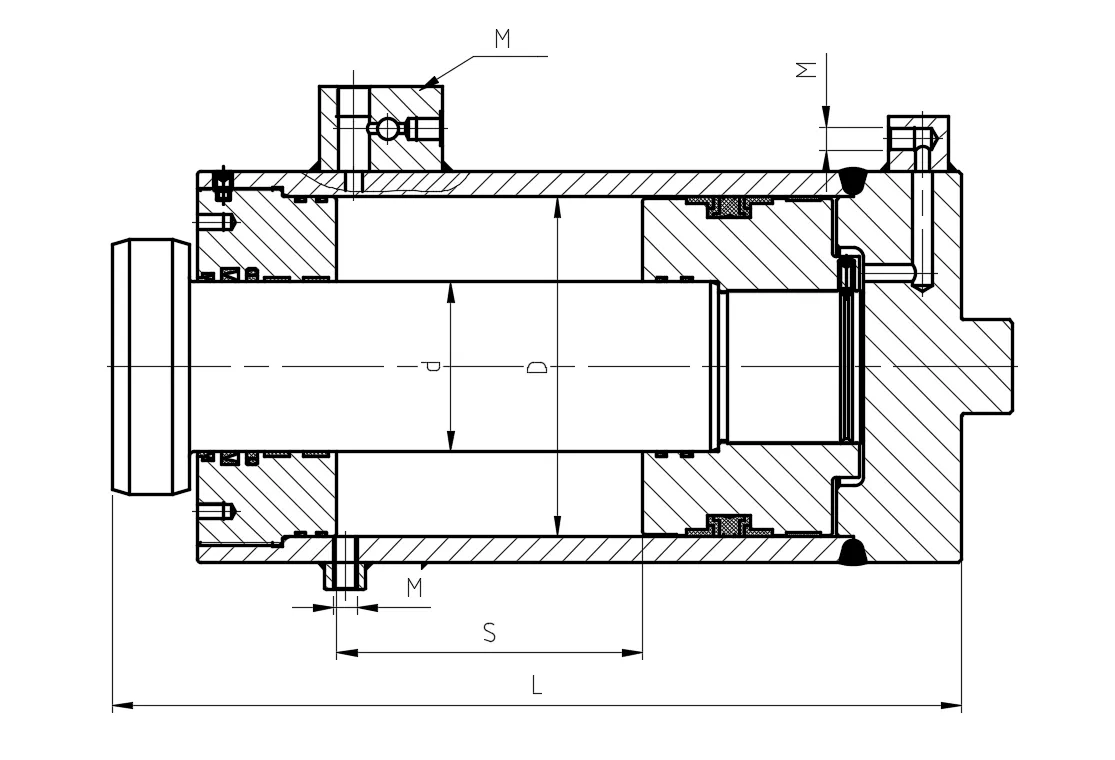

Hydraulic Counterweight Cylinder Dimensions

Technical Specifications

For custom requirements beyond these standard specifications, such as adjusted stroke lengths or specialized interfaces, please contact our team at Mexico Ever-Power for tailored solutions.

Hydraulic Counterweight Cylinder
Drawing number	Bore diameter (D)	Rod diameter (d)	Stroke (S)	Installation distance (L)	Working pressure	Interface dimensions (M)	Weight
QAY220.12/13A-00	Φ200	Φ100	180	530	25MPa;40MPa	3-G1/4;M20*1.5;2-M14*1.5	124kg

Product Name:	Counterweight Hydraulic Cylinder
Function:	Control the action of the counterweight.
Cylinder diameter:	160mm-180mm
Rod diameter:	90mm-150mm
Travel:	180mm-400mm
Maximum pressure:	25MPa
Maximum thrust:	1540KN

Features of Hydraulic Counterweight Cylinder for Truck Crane

One standout aspect of the counterweight hydraulic cylinder is its robust construction, utilizing high-strength alloy steel that resists deformation under extreme loads. This material choice ensures the cylinder can handle the repetitive stresses encountered in truck crane operations, from lifting heavy materials in construction to positioning equipment in ports. The integration of chrome plating further enhances its resistance to corrosion, a critical feature for use in Mexico's humid coastal regions or dusty inland sites. Operators appreciate how these features contribute to fewer breakdowns, allowing projects to proceed without costly interruptions.

Another important feature is the high-precision control mechanism, which enables fine-tuned adjustments to the counterweight position. This precision is achieved through advanced piston designs and sealing systems that minimize fluid leakage and maintain consistent pressure. For hydraulic cylinders for truck crane applications, this means smoother operations and better load balancing, reducing the risk of accidents on busy job sites. In practice, users in Mexico have reported improved efficiency, as the cylinder responds quickly to hydraulic inputs, adapting to varying load weights seamlessly.

The compact design of the hydraulic counterweight cylinder also deserves mention, as it allows for easy integration into existing crane frameworks without requiring major modifications. This space-saving attribute is particularly beneficial in mobile setups where every inch counts. Combined with its high load-bearing capacity, the cylinder supports thrusts that keep cranes stable even under maximum extension. Additional elements like advanced sealing technology protect against contaminants, extending the component's lifespan and reducing maintenance needs over time.

Working Principle of Counterweight Hydraulic Cylinder in Cranes

• Hydraulic Pressure Conversion to Mechanical Force
  The counterweight hydraulic cylinder operates by converting hydraulic pressure into mechanical force to adjust the position of the counterweight. When hydraulic fluid is pumped into the cylinder under high pressure, it pushes the piston, causing linear motion. This motion allows for precise control over the extension or retraction of the counterweight, ensuring the crane remains balanced even under uneven load conditions.
• Dynamic Load Balancing
  During lifting operations, the crane’s boom generates significant forces that can destabilize the vehicle. The hydraulic cylinder mitigates this by dynamically adjusting the counterweight to counterbalance these forces. By shifting the counterweight in real time, it ensures stability and prevents tipping, even when handling heavy or asymmetrical loads. This ability to adapt to changing load conditions enhances operational safety and efficiency.
• High-Pressure Performance and Durability
  The cylinder is designed to operate under extreme pressures, often exceeding 40MPa. This capability allows it to handle heavy-duty tasks while maintaining reliability. Its construction from high-strength alloy steel minimizes deformation and wear, ensuring long-term durability. The smooth operation of the cylinder under high-pressure conditions is vital for maintaining the crane’s stability, particularly in demanding environments such as construction sites or industrial zones.
• Precision and Operator Control
  The counterweight hydraulic cylinder offers precise control over the counterweight position, which is critical for maintaining the crane’s center of gravity. Operators can adjust the counterweight smoothly and accurately using the hydraulic system, allowing for safe operation in various scenarios. This precision minimizes risks, reduces mechanical strain on the crane, and optimizes performance during complex lifting tasks, making it an indispensable component in crane operations.

Types of Hydraulic Cylinder for Truck Cranes

1. Hydraulic Horizontal Cylinder
The hydraulic horizontal cylinder is essential for controlling the horizontal extension and retraction of components such as crane booms or telescopic arms. It ensures precise linear motion, allowing the crane to reach extended distances while maintaining stability. This type of cylinder is critical for operations requiring long horizontal reach, such as lifting materials over obstacles or into confined spaces. Its robust design ensures smooth performance under high pressure and heavy loads, making it a vital component for efficient crane operation.

2. Hydraulic Counterweight Cylinder
The hydraulic counterweight cylinder plays a pivotal role in maintaining the crane’s balance during lifting operations. By adjusting the position of the counterweight, it counteracts the forces exerted by heavy loads on the boom, preventing tipping and ensuring stability. This cylinder is designed to handle dynamic load changes and operates reliably even in harsh environments. Its durability and precision are crucial for safe handling of heavy loads, especially in demanding industries like construction, mining, and ports.

3. Hydraulic Support Leg Cylinder
Hydraulic support leg cylinders are responsible for stabilizing the crane by extending and retracting the support legs (outriggers). These cylinders distribute the crane’s weight evenly and provide a stable base on uneven or soft ground. They are engineered for high load-bearing capacity and precise positioning, ensuring the crane remains secure during heavy lifting tasks. Their rugged construction and ability to handle extreme pressure are critical for maintaining operational safety and preventing accidents on job sites.

4. Hydraulic Luffing Cylinder
The hydraulic luffing cylinder is used to control the angle of the crane’s boom, enabling it to move vertically. This function is essential for adjusting the lifting height and reach, making it possible to handle loads at varying elevations. These cylinders are built for high performance, offering precise angular adjustments and reliable operation under heavy loads. Their robust design and smooth functionality are indispensable for tasks requiring precise positioning of materials, such as high-rise construction or wind turbine assembly.

Truck Crane Hydraulic Counterweight Cylinder Applications

1. Construction Industry
In the construction sector, hydraulic counterweight cylinders play a critical role in stabilizing truck cranes used for lifting heavy beams, steel structures, and construction materials. They ensure balance on uneven terrains often found in urban developments, such as high-rise buildings or bridge projects. By dynamically adjusting counterweights, they prevent tipping, enabling safe and efficient operations even in confined or challenging construction sites.

2. Oil and Gas Industry
The harsh and demanding environments of the oil and gas sector require dependable equipment. Hydraulic counterweight cylinders are used in truck cranes for positioning rigs, heavy pipeline sections, and drilling equipment. These cylinders provide the necessary stability to counteract shifting loads, ensuring safety during operations in remote or offshore locations, where reliability and precision are paramount for successful projects.

3. Port and Maritime Applications
Ports and maritime facilities rely on truck cranes equipped with hydraulic counterweight cylinders for loading and unloading cargo from ships. These cylinders adapt to dynamic and unpredictable load conditions caused by shifting cargo weights or moving vessels. Their ability to provide precise balance ensures smooth operations, minimizes the risk of accidents, and supports the high-efficiency demands of modern port logistics.

4. Wind Energy Sector
In the wind energy industry, hydraulic counterweight cylinders are essential for assembling and maintaining wind turbines. Truck cranes equipped with these cylinders handle massive turbine components, such as blades and nacelles, ensuring precise placement at significant heights. The cylinders’ ability to counterbalance heavy loads and maintain stability is crucial for safe operations in remote and often windy environments typical of wind farm locations.

5. Power Plant Industry
Power plants, particularly those involved in thermal, hydro, and nuclear energy, utilize hydraulic counterweight cylinders to support crane operations during equipment installation and maintenance. These cylinders enable the safe handling of heavy machinery, such as turbines, generators, and transformers. Their high-pressure performance ensures stability during precise lifting tasks, which is vital for maintaining operational efficiency and ensuring workplace safety.

6. Mining and Heavy Industry Applications
In mining and other heavy industries, hydraulic counterweight cylinders assist truck cranes in lifting and transporting heavy machinery, raw materials, and equipment. Their robust construction allows them to perform reliably in harsh conditions, such as dusty, uneven, or rugged terrains. The ability to maintain crane stability while handling substantial loads reduces downtime and enhances productivity, making them indispensable in these demanding industries.

Construction	Port Logistics
Wind Energy	Power Plant

Maintenance Tips for Counterweight Hydraulic Cylinder

Proper maintenance of counterweight hydraulic cylinders is essential to ensure their durability, reliability, and safety in heavy-duty applications. Here are detailed maintenance practices tailored to optimize performance and minimize downtime:

1. Regular Inspection for Wear and Damage
   Periodic inspection of the crane hydraulic cylinders is critical to identify early signs of wear, corrosion, or surface damage. Examine the cylinder body, piston rod, seals, and mounting components for scratches, dents, or deformities. Pay special attention to the piston rod, as any damage here can compromise the cylinder's sealing integrity. Promptly addressing minor issues prevents them from escalating into costly repairs or operational failures.
2. Monitor Hydraulic Fluid Quality
   The quality of hydraulic fluid directly impacts the cylinder’s performance. Contaminated or degraded fluid can cause internal wear, overheating, or pressure loss. Regularly check the fluid for discoloration, metallic particles, or water contamination. Replace hydraulic fluid as per the manufacturer’s recommended intervals, and ensure the use of high-quality, compatible fluids to maintain optimal lubrication and pressure stability.
3. Inspect and Replace Seals
   Seals play a vital role in preventing hydraulic leaks and maintaining internal pressure. Over time, seals can wear out due to friction, heat, or exposure to contaminants. Regularly inspect seals for cracks, hardening, or deformation. Replace worn-out seals immediately to prevent leaks, which can lead to a loss of balance during crane operations and potential safety hazards.
4. Maintain Proper Alignment
   Misaligned hydraulic cylinders can cause uneven stress on the piston rod, seals, and mounting components, leading to premature wear. Ensure the cylinder is correctly aligned with the crane’s counterweight system during installation and operation. Misalignment not only reduces efficiency but also increases the risk of mechanical failure under load conditions.
5. Check for Leaks and Pressure Loss
   Hydraulic leaks can compromise the cylinder’s ability to maintain stability and balance. Regularly inspect connections, hoses, and fittings for signs of leaks or pressure loss. Tighten loose fittings and replace damaged hoses immediately. Consistent pressure monitoring can also help detect internal issues before they affect crane performance.
6. Protect Against Environmental Damage
   Counterweight hydraulic cylinders often operate in harsh environments, such as construction sites or industrial facilities. Protect the piston rod from dirt, debris, and moisture by using rod boots or wipers. Additionally, store cranes equipped with hydraulic cylinders in covered areas when not in use to prevent exposure to extreme weather, which can accelerate corrosion and wear.

Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?

FAQs

Q: How do I choose the right stroke length for my hydraulic cylinder for crane?
A: Selecting the appropriate stroke length involves evaluating your crane's boom reach and anticipated load weights, with available options spanning from 180mm to 400mm to accommodate various operational needs. Factors such as site terrain in Mexico's diverse landscapes, including mountainous areas or coastal zones, should guide your decision to optimize balance and efficiency. Consulting with specialists can help match the stroke to specific crane models for enhanced safety and productivity.

Q: What materials are used in constructing a counterweight hydraulic cylinder?
A: The counterweight hydraulic cylinder is primarily built from high-strength alloy steel, enhanced with chrome plating to provide superior resistance against corrosion and wear. This combination ensures longevity in harsh conditions, such as those encountered in Mexico's humid tropical climates or dusty mining operations. Additional components like seals made from durable polymers further contribute to the overall robustness and reliability of the unit.

Q: Can the hydraulic counterweight cylinder be customized for specific truck crane models?
A: Customization is readily available for the hydraulic counterweight cylinder, allowing adjustments to bore diameters, rod sizes, and interface configurations to precisely fit individual truck crane specifications. This tailored approach addresses unique requirements in Mexican markets, where equipment varies across urban construction projects and remote industrial sites. Our engineering team collaborates closely to deliver modifications that maintain compliance with local standards and enhance operational compatibility.

Q: How often should I inspect the seals in my hydraulic cylinder for truck crane?
A: Seals in the hydraulic cylinder for truck cranes should undergo inspection every 500 operating hours or on a monthly basis, whichever occurs first, based on the intensity of usage in your specific applications. In Mexico's variable weather patterns, more frequent checks may be advisable during rainy seasons to prevent issues from moisture ingress. Regular assessments help identify early signs of degradation, preserving system efficiency and avoiding costly interruptions.

Q: What are common signs of wear in a counterweight hydraulic cylinder?
A: Indicators of wear in a counterweight hydraulic cylinder include visible fluid leaks around seals, noticeable slowdowns in rod extension or retraction speeds, and abnormal sounds like grinding or hissing during cycles. These symptoms often arise from extended exposure to heavy loads or environmental factors prevalent in Mexican ports and construction zones. Prompt recognition allows for timely interventions, mitigating risks of complete failure and ensuring sustained crane functionality.

Q: How does the working principle of a hydraulic cylinder for crane affect stability?
A: The working principle relies on pressurized hydraulic fluid to drive piston movement, enabling precise counterweight adjustments that directly enhance crane stability by counteracting load-induced imbalances. In truck crane operations, this mechanism prevents tipping during lifts, crucial for safety on uneven Mexican terrains in mining or urban development. Effective pressure management ensures smooth transitions, contributing to overall equipment control and operator confidence in challenging scenarios.

Q: Are there weight considerations when installing a counterweight hydraulic cylinder on truck cranes?
A: Installation of the counterweight hydraulic cylinder requires careful attention to its approximate 124kg weight, ensuring the crane's framework can accommodate this without affecting mobility or structural balance. In Mexican fleet management, verifying compatibility with vehicle specifications is essential to maintain transport efficiency across highways and job sites. Proper mounting techniques distribute the load evenly, preserving the crane's handling characteristics and compliance with regional safety regulations.

Q: How to troubleshoot low pressure in a hydraulic cylinder for truck crane?
A: Troubleshooting low pressure in a hydraulic cylinder for truck cranes begins with examining potential leaks in hoses or seals, assessing fluid for contamination or low levels, and inspecting the pump for operational faults. In Mexican industrial settings, where dust or heat may exacerbate issues, systematic checks using pressure gauges can pinpoint causes efficiently. If problems persist, reaching out to our technical support team provides expert guidance tailored to your equipment's configuration.

Q: What applications benefit most from using a hydraulic counterweight cylinder?
A: Applications in construction, port logistics, and mining operations gain the most from the hydraulic counterweight cylinder, as it enables precise load balancing essential for handling heavy materials in Mexico's bustling sectors. For instance, in high-rise builds in Mexico City or cargo management at ports like Manzanillo, its role in maintaining stability under variable weights improves safety and workflow. This versatility supports a range of heavy-duty tasks, enhancing productivity across industries.
