Hydraulic Floating Cylinder for Scissor Type Aerial Work Platforms
Discover the reliable Hydraulic Floating Cylinder for scissor-type aerial work platforms from Mexico Ever-Power. Engineered for stability with max pressure up to 25MPa and thrust reaching 159KN, it handles misalignments and heavy loads in construction, ensuring safe, efficient elevation. Ideal for uneven terrains—contact us for custom solutions tailored to your needs.

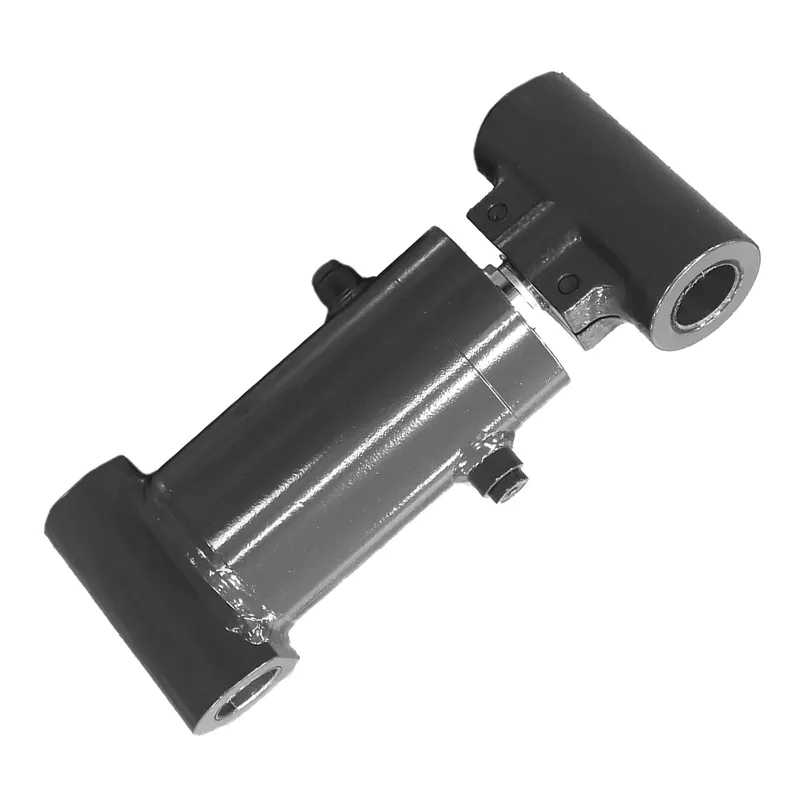

Hydraulic Floating Cylinder Overview
The Hydraulic Floating Cylinder represents a critical component in modern scissor-type aerial work platforms, designed specifically to enable controlled vertical movement while accommodating minor lateral shifts. This cylinder type stands out in industrial applications due to its ability to mitigate misalignments that often occur in dynamic environments, such as construction sites or warehouse operations. By integrating high-strength materials and precise engineering, it ensures that the platform remains stable even under varying loads, reducing the risk of mechanical failure and enhancing overall operational safety. In the context of Mexico's growing infrastructure sector, where aerial platforms are essential for high-rise maintenance and urban development projects, this floating hydraulic cylinder provides a robust solution that aligns with local demands for durability and efficiency.
Building on its foundational design, the Hydraulic Floating Cylinder operates through pressurized fluid dynamics, allowing for smooth extension and retraction that compensates for angular deviations. This feature is particularly beneficial in scenarios involving uneven terrain, common in Mexico's diverse landscapes from coastal regions to mountainous areas. The cylinder's construction incorporates reinforced steel to withstand harsh conditions, including exposure to dust, moisture, and temperature fluctuations typical in industrial settings. For businesses in Mexico City or Guadalajara, where rapid urban expansion drives the need for efficient aerial access, this product minimizes downtime by preventing stress on interconnected components. Furthermore, its compatibility with various platform sizes—from small warehouse lifts to larger construction units—offers versatility, ensuring that users can adapt it to specific project requirements.
Hydraulic Floating Cylinder Dimensions
Technical Specifications
For any specialized requirements beyond these standard specifications, such as custom bore sizes or modified interfaces, please reach out to our team at Mexico Ever-Power for tailored consultations and manufacturing options.
| Hydraulic Floating Cylinder | |||||||
| drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
| JCPT1212HD-531000-00A | Φ75 | Φ63 | 1269 | 1530 | 25MPa | G1/4;M18*1.5 | 60kg |
| JCPT0607DCS-531000-00A | Φ63 | Φ40 | 563 | 812 | 20MPa | G1/4;M18*1.5 | 17kg |
| Product Name: | Floating Hydraulic Cylinders |
| Function: | To achieve floating walking, improve passability, maintain vehicle stability, and improve the off-road capability of the entire machine. |
| Cylinder diameter: | 55mm-90mm |
| Rod diameter: | 32mm-45mm |
| Travel: | 60mm-112mm |
| Maximum pressure: | 25MPa |
| Maximum thrust: | 159KN |
Key Features of Hydraulic Floating Cylinder for Scissor Type AWPs
- Lateral and Angular Flexibility
The hydraulic floating cylinder incorporates a unique piston setup that enables minor side-to-side and tilting adjustments, essential for maintaining equilibrium in scissor lifts on irregular surfaces commonly found in Mexican building projects. This design effectively distributes forces, avoiding premature wear on mechanical linkages and ensuring steady elevation even under shifting weights. - Robust Material Construction
Built with premium alloy steels and reinforced components, this cylinder withstands intense operational demands, including high-cycle usage in industrial settings. Its strength supports prolonged exposure to elements like dust and humidity prevalent in Mexico's diverse climates, thereby guaranteeing reliability for extended periods without structural degradation. - Sealed Protection Systems
Advanced sealing mechanisms shield internal parts from debris and moisture ingress, which is particularly beneficial in outdoor construction environments. These seals maintain hydraulic integrity, prolonging the unit's operational lifespan and minimizing the need for frequent repairs, thus optimizing uptime for users in fast-paced job sites. - Precise Motion Control
Through carefully engineered fluid channels, the cylinder delivers accurate extension and retraction at pressures reaching 25MPa, allowing for fine-tuned adjustments in aerial platforms. This precision enhances control during lifting tasks, reducing risks associated with sudden movements and improving overall handling in confined spaces. - Compact Design Profile
The streamlined dimensions of the hydraulic floating cylinder facilitate straightforward integration into space-constrained scissor mechanisms, making it ideal for retrofitting existing equipment. This compactness does not compromise performance, enabling efficient assembly and disassembly processes that save time for maintenance teams in urban Mexican facilities. - Low-Friction Surface Technology
Specialized coatings on internal surfaces reduce resistance during piston travel, which conserves energy and lowers heat buildup over repeated operations. This feature contributes to smoother functionality, extending component life and supporting energy-efficient practices in industries where power consumption directly affects operational costs.
Hydraulic Cylinder for Scissor Type Aerial Work Platforms
1. Hydraulic Support Cylinder
This cylinder serves as the primary stabilizing element in scissor-type aerial work platforms, providing firm vertical support to the lifting structure during elevation and descent. Engineered with high-strength piston rods and reinforced barrel walls, it effectively counters lateral forces and maintains platform levelness under varying loads, making it indispensable for safe operations on construction sites and industrial facilities where stability is paramount.
2. Hydraulic Lifting Cylinder
Designed specifically for generating the main upward force, the hydraulic lifting cylinder drives the scissor arms to extend and retract the platform to required heights. Featuring optimized bore and rod diameters along with precise sealing systems, it ensures smooth, controlled lifting even at maximum working pressures, delivering consistent performance for repetitive tasks in warehouse maintenance, building repairs, and elevated access applications.
3. Hydraulic Steering Cylinder
Employed in mobile scissor-type aerial work platforms equipped with chassis steering mechanisms, this cylinder enables precise directional control and maneuverability on uneven terrain. Its compact design and responsive piston movement allow operators to navigate tight spaces or adjust positioning with accuracy, enhancing overall equipment agility and reducing the risk of collisions in confined work environments such as indoor factories or urban construction zones.
4. Hydraulic Floating Cylinder
The hydraulic floating cylinder incorporates specialized mounting and piston arrangements that permit controlled lateral and angular displacement, compensating for misalignments caused by ground irregularities or dynamic loads. This unique flexibility prevents excessive stress on the scissor linkage and surrounding components, resulting in extended service life, improved platform stability, and safer elevated work conditions in diverse settings including outdoor infrastructure projects and variable-surface job sites.
Applications of Floating Hydraulic Cylinder in Industry
Construction Industry Applications

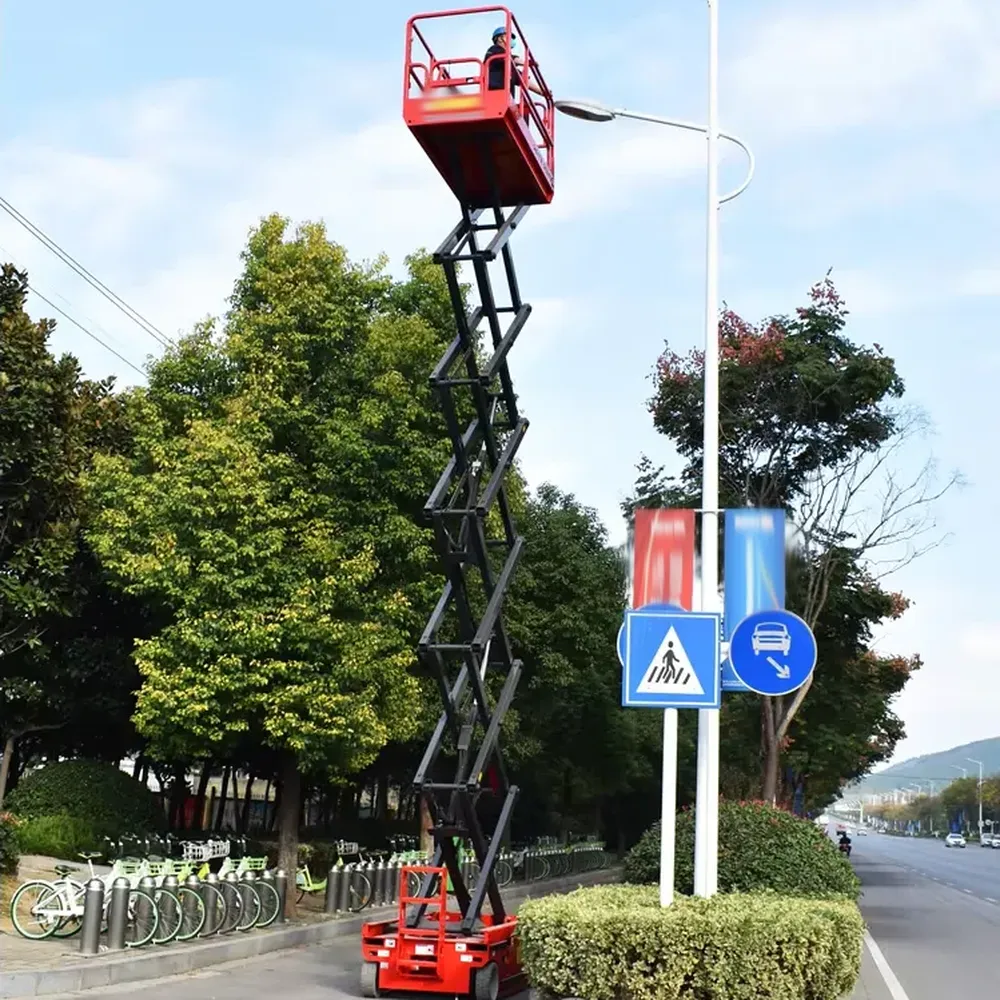

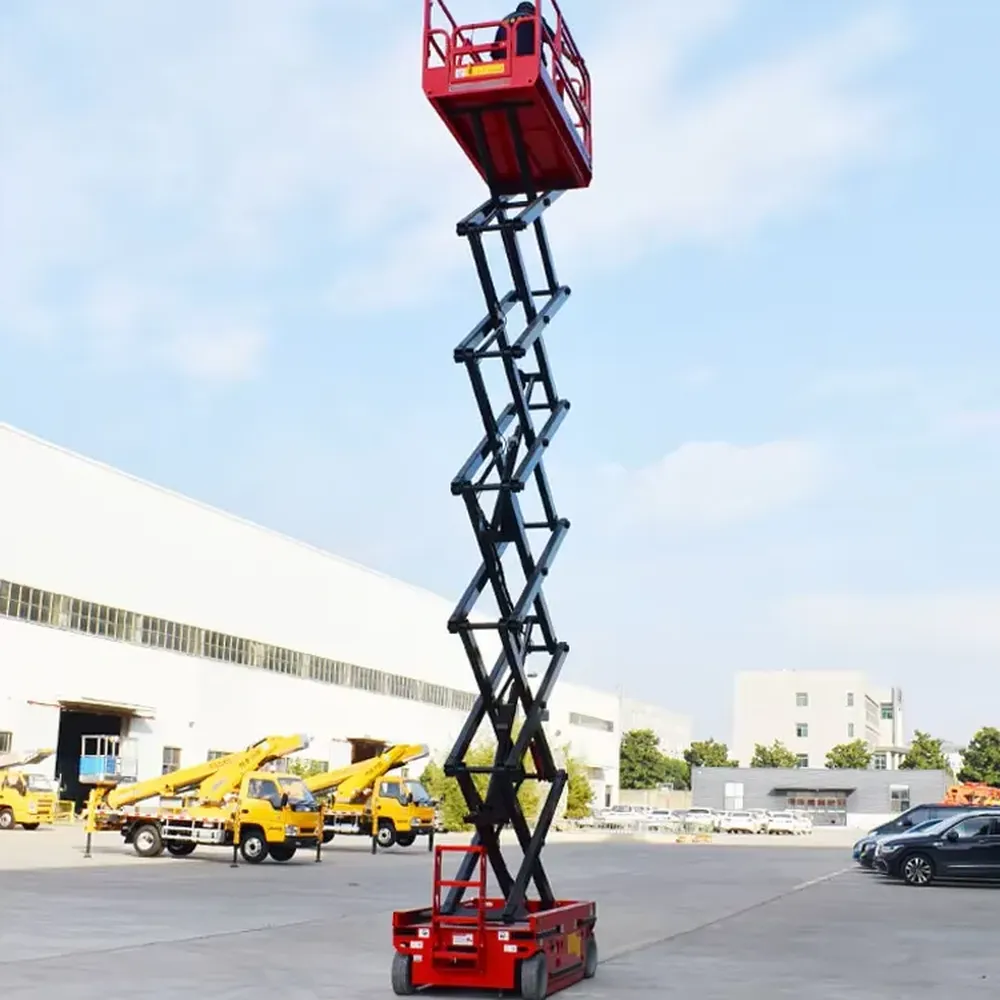

In the construction sector, hydraulic floating cylinders play a pivotal role in powering scissor-type aerial work platforms for tasks such as facade installation and electrical wiring on high-rise buildings. Their ability to compensate for uneven ground surfaces ensures consistent stability, minimizing risks during framework assembly and enabling workers to access elevated areas securely in Mexico's rapidly expanding urban development projects.
Warehousing and Logistics Applications
Hydraulic floating cylinders enhance efficiency in warehousing by facilitating smooth operation of scissor lifts for retrieving inventory from tall shelving units. This setup streamlines stock management processes, reduces manual handling errors, and supports high-volume distribution centers where quick access to goods is essential for maintaining supply chain timelines in competitive markets.
Maintenance and Repair Applications
For maintenance activities, these hydraulic cylinders provide reliable support in aerial platforms used for overhead inspections and repairs in factories, airports, and other large facilities. They ensure prolonged stability under continuous use, allowing technicians to perform detailed work on infrastructure like HVAC systems or lighting fixtures without interruptions from mechanical shifts.
Event Management Applications
In event management, hydraulic floating cylinders assist in deploying scissor lifts for assembling stages, lighting rigs, and sound equipment at venues. Their precise positioning capabilities enable quick adjustments to varying setup requirements, ensuring safe and efficient preparations for concerts, exhibitions, or corporate gatherings where height access is critical.
Industrial Cleaning Applications
Hydraulic floating cylinders are integral to industrial cleaning operations, enabling scissor platforms to reach high ceilings, machinery, and ventilation systems in manufacturing plants. This application promotes thorough sanitation while adapting to irregular surfaces, helping maintain hygiene standards and operational uptime in environments prone to dust accumulation.
Infrastructure Inspection Applications
Specialized applications in infrastructure involve using hydraulic floating cylinders for bridge and highway inspections within Mexico's extensive networks. The floating mechanism effectively absorbs vibrations from passing vehicles, allowing inspectors to conduct detailed assessments at height with minimal disruption, thereby supporting preventive maintenance strategies for public safety.
Maintenance Tips
To ensure the longevity and optimal performance of the Hydraulic Floating Cylinder, it is essential to implement a structured maintenance regimen tailored to operational demands and environmental factors prevalent in Mexico. Begin with routine visual examinations every week to identify any signs of abrasion or deformation on the cylinder body and rod, which could compromise functionality over time. In regions with high humidity, such as coastal areas, apply anti-corrosion treatments periodically to exterior surfaces, complementing the monthly fluid checks to maintain hydraulic integrity.
Furthermore, adhere to a quarterly protocol for evaluating hydraulic hoses and connections, tightening fittings as needed to prevent pressure drops or fluid seepage that might arise from vibrational stresses in scissor-type aerial platforms. Monitoring system pressure through calibrated gauges should be conducted during each operation cycle, noting any deviations that could indicate internal blockages or component fatigue. Annually, perform a complete system flush using manufacturer-approved fluids to remove accumulated particulates, followed by a bleed procedure to eliminate air pockets that hinder smooth extension and retraction.
During periods of inactivity exceeding one month, position the cylinder in a retracted state within a controlled, low-humidity storage facility to avert oxidation on exposed parts. Engage certified technicians for biennial overhauls, which include disassembly for thorough cleaning and replacement of worn seals or bearings, aligning with industry benchmarks for safety and efficiency. Maintaining detailed records of all servicing activities facilitates predictive maintenance, allowing operators to anticipate issues based on usage patterns. By following these practices diligently, organizations can minimize unexpected failures, reduce repair costs, and enhance the cylinder's reliability in demanding industrial applications across Mexico.
Why Choose Mexico Ever-Power's Hydraulic Floating Cylinder?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd. was established in May 1978. It is a high-tech enterprise specializing in the manufacturing of mid to high-end hydraulic components, with hydraulic cylinders as the main product. As a specialized enterprise, we have honed our focus on mid- to high-end products, delivering solutions to prominent domestic and international clients. Our expansive facility in Mexico City, covering 103 acres at Avenida Ejercito Nacional 418 – Oficina 302, 3er. Piso Polanco employs more than 400 professionals, facilitating swift local support and customized responses to client inquiries. This infrastructure enables us to address the unique demands of the Mexican market, including robust designs that withstand tropical humidity and variable weather patterns common in the region.
Our product portfolio encompasses a wide array of hydraulic cylinders tailored for diverse applications, with a particular emphasis on those for aerial work platforms like scissor-type systems. Supported by an in-house research institute, advanced testing laboratories, and a high-tech R&D center, we maintain independent intellectual property rights over key production technologies. This setup fosters ongoing advancements in hydraulic transmission, ensuring our cylinders offer enhanced safety, efficiency, and durability through rigorous quality controls and comprehensive testing protocols.
Furthermore, our adherence to international standards, underscored by ISO and CE certifications, assures that every Hydraulic Floating Cylinder meets stringent global benchmarks for performance and reliability. Our export footprint spans more than 34 countries across continents, including key partnerships in Latin America, Asia, Europe, and beyond, reflecting our proven track record in delivering precision-engineered components. By committing to the development of a "future factory" model, characterized by automation, intelligence, customization, and networking. We provide innovative, client-specific solutions that enhance operational resilience in challenging environments. Opting for Mexico Ever-Power means aligning with a partner dedicated to long-term value, technical excellence, and responsive service tailored to your hydraulic needs.
 |
 |
 |
 |
FAQs
Q: Can the floating hydraulic cylinder be customized for specific aerial work platform dimensions?
A: Yes, Mexico Ever-Power provides customization options for floating hydraulic cylinders, including adjusted stroke lengths and modified connection interfaces to accommodate unique aerial work platform configurations. This tailoring ensures seamless fitment and enhanced performance, with engineering support available to refine dimensions based on client blueprints or site requirements for optimal functionality.
Q: What advantages does a hydraulic floating cylinder provide in construction applications?
A: In construction settings, a hydraulic floating cylinder boosts platform steadiness on irregular ground, lessens abrasion on mechanical parts through misalignment absorption, and accommodates substantial weights up to 159 kilonewtons, fostering safer worker access during tasks like scaffolding erection. This results in fewer operational halts and improved efficiency on job sites across Mexico's urban expansions.
Q: How does the working principle of a floating hydraulic cylinder improve platform safety?
A: The operational mechanics of a floating hydraulic cylinder rely on fluid pressure to drive piston movement while incorporating flexibility to cushion impacts from uneven surfaces, thereby reducing the likelihood of platform overturning. This controlled damping enhances overall security by maintaining balance during lifts, especially beneficial in dynamic environments where sudden shifts could pose hazards to personnel.
Q: What materials are used in manufacturing hydraulic floating cylinders?
A: Hydraulic floating cylinders are constructed from high-tensile alloy steels reinforced for superior load resistance, paired with protective layers that repel rust and chemical erosion in tough industrial atmospheres. These choices promote longevity and consistent operation, with internal components like seals made from durable polymers to handle repeated pressure cycles effectively.
Q: How to install a hydraulic floating cylinder in a scissor-type aerial work platform?
A: Installation of a hydraulic floating cylinder requires precise alignment of attachment brackets with the scissor frame, followed by fastening hydraulic lines and verifying secure fittings to avoid leaks. Initial testing at reduced pressure confirms proper extension and float functionality, with adjustments made to ensure compatibility and smooth integration into the platform's lifting system.
Q: How often should I check the hydraulic fluid in a floating hydraulic cylinder?
A: Inspect the hydraulic fluid in a floating hydraulic cylinder every three to six months, increasing frequency in particle-heavy surroundings to preserve system efficiency. This routine involves assessing for contamination or viscosity changes, with timely replacements preventing internal damage and maintaining consistent pressure delivery during use.
Q: Are there any compatibility issues with existing scissor lift systems when using hydraulic floating cylinders?
A: Mexico Ever-Power's floating hydraulic cylinders are engineered for broad interchangeability with conventional scissor lift setups, though minor adaptations may be necessary for older models. We recommend consulting our technical staff to evaluate specific dimensions and interfaces, ensuring flawless integration without performance setbacks.
Q: What role does a hydraulic floating cylinder play in improving off-road capability of aerial platforms?
A: A hydraulic floating cylinder enhances off-road performance of aerial platforms by adapting to ground undulations, preserving alignment and traction through its compensatory movement. This capability bolsters machine maneuverability in rugged terrains, such as those in Mexico's rural construction areas, leading to greater reliability and reduced strain on the overall chassis structure.
Customer Reviews
Elena Vargas, Operations Director, Queretaro
Our warehouse operations have benefited immensely from the hydraulic floating cylinder over the past 22 months, particularly with its 75mm bore diameter managing substantial loads during peak seasons. The unit's resilience against frequent impacts and environmental factors has proven exceptional, and Mexico Ever-Power's expedited delivery within four business days allowed us to avoid any production delays, underscoring their commitment to client timelines and product robustness in demanding logistics environments.
Rafael Ortiz, Site Engineer, Veracruz
Incorporating the floating hydraulic cylinder into our coastal construction projects has enhanced platform reliability for more than 15 months, with the 1269mm stroke providing precise elevation control at 25MPa under humid conditions. The seamless integration and absence of operational failures highlight superior engineering, while the responsive support from Mexico Ever-Power addressed our customization needs promptly, ensuring compliance with local safety protocols and contributing to uninterrupted project progress.
Sofia Martinez, Facility Manager, Leon
For over two years, our maintenance teams have depended on these hydraulic floating cylinders for overhead tasks in manufacturing plants, where the 63mm bore and 20MPa pressure facilitate controlled lifts in restricted areas. The consistent performance without leaks or degradation, combined with efficient logistics that delivered units in under a week, reflects Mexico Ever-Power's dedication to quality craftsmanship and reliable supply chains tailored to industrial upkeep demands.
Miguel Torres, Production Supervisor, Hermosillo
The hydraulic floating cylinder has been integral to our assembly line elevations for 16 months, excelling in misalignment compensation with its 563mm stroke during high-volume shifts. Its flawless operation and sturdy build have eliminated downtime issues, and Mexico Ever-Power's customer service team handled our interface modifications swiftly, demonstrating professionalism that aligns with our operational efficiency goals in arid manufacturing settings.
Gabriela Ruiz, Safety Inspector, Merida
In our high-reach inspection routines, the 60kg hydraulic floating cylinder has delivered powerful 159KN thrust reliably for a full year, adapting well to tropical humidity without any performance dips. The prompt arrival of shipments and evident material durability make it a standout choice, with Mexico Ever-Power's focus on tailored solutions enhancing safety standards across our Yucatan-based infrastructure evaluations.
Jorge Navarro, Logistics Coordinator, Chihuahua
Managing a fleet of aerial platforms, we've seen the G1/4 interface of the floating hydraulic cylinder integrate effortlessly, maintaining integrity at 25MPa over 19 months of rigorous use. No visible wear despite border-region challenges, thanks to Mexico Ever-Power's streamlined shipping processes that ensured timely arrivals, emphasizing their role in supporting cross-regional equipment reliability and operational continuity.
