Hydraulic Horizontal Cylinder for Truck Cranes
Discover our robust hydraulic horizontal cylinder for truck cranes, engineered for stability with a stroke range of 1200-2000mm and 20MPa working pressure. Ideal for outrigger control, it ensures precise movements and durability in demanding construction environments. Customize for your needs—reliable performance that minimizes downtime and boosts safety on site.
Truck Crane Hydraulic Horizontal Cylinder Overview
In the demanding world of heavy machinery, the hydraulic horizontal cylinder plays a pivotal role in ensuring operational efficiency and safety. Specifically designed for truck cranes, this component delivers linear force in a horizontal plane, facilitating the extension and retraction of outriggers that stabilize the crane during lifts. Manufactured with high-strength materials, it withstands rigorous conditions, from urban construction sites to remote industrial projects. The cylinder's design integrates seamlessly with crane systems, allowing operators to achieve precise control over lateral movements. This not only enhances the crane's balance but also contributes to overall productivity by reducing setup times and minimizing risks associated with uneven terrain.
The horizontal hydraulic cylinder for truck cranes embodies engineering excellence tailored to modern needs. With variations in bore and rod diameters—typically ranging from 63mm to 70mm for the cylinder and 45mm to 50mm for the rod—it accommodates diverse crane models. Its stroke capabilities, extending up to 2000mm, provide the flexibility required for various outreach requirements. In Mexico's growing construction sector, where truck cranes are essential for infrastructure development, this cylinder ensures compliance with safety standards while optimizing performance.
Hydraulic Horizontal Cylinder Dimensions
Technical Specifications
For custom specifications or variations beyond these standards, please contact our team at Mexico Ever-Power for tailored solutions that fit your exact requirements.
| Hydraulic Horizontal Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| YY11112022 | Φ70xΦ50x1237 | 20MPa | 30MPa | 1237 | 140 | 48kg |
| Product Name: | Horizontal Hydraulic Cylinder |
| Function: | Control the movement of the main arm. |
| Cylinder diameter: | φ 63mm- φ 70mm |
| Rod diameter: | φ 45mm- φ 50mm |
| Travel: | 1200mm-2000mm |
| Maximum pressure Mpa: | 20MPa |
| Maximum thrust KN: | 77KN |
Characteristics of Hydraulic Horizontal Cylinder for Truck Cranes
The hydraulic horizontal cylinder distinguishes itself through its sturdy build, utilizing high-grade steel alloys engineered to endure significant stress without distortion. This attribute promotes extended service life in settings involving frequent operations, like those found in truck crane stabilization mechanisms. Moreover, state-of-the-art sealing systems effectively block hydraulic fluid escape, preserving steady internal force and averting potential breakdowns during critical tasks. Its streamlined profile facilitates straightforward incorporation into established crane structures, thereby cutting down on necessary alterations and setup duration.
Precision Engineering in Design
At the core, meticulously crafted elements such as the piston and rod enable fluid motion. The internal barrel is refined to exacting standards at the micrometer scale, which curtails resistance and boosts overall system productivity. Such refinements prove especially valuable in scenarios demanding firm side-to-side balance, as seen in crane deployments requiring unwavering support.
Material and Build Quality
The chosen materials encompass rods coated with chromium for exceptional defense against rust, making them well-suited for exposure to diverse weather patterns outdoors. The outer casing frequently receives specialized finishes to repel dents and scrapes, enhancing resilience in rugged job sites.
Customization Options
Users have access to multiple attachment configurations, including pivot or pin-based setups, tailored to match particular truck crane variants. This adaptability covers adjustments in extension reach and force thresholds, guaranteeing that the unit aligns with a wide array of operational demands.
Further highlighting its capabilities, the cylinder integrates overload safeguards that automatically regulate pressure spikes, protecting both the equipment and personnel on site. In practical terms, this means fewer interruptions in workflows, as the component reliably manages forces up to substantial levels without compromise. For industries reliant on mobile lifting solutions, such as infrastructure development or material transport, these traits translate into measurable gains in safety and efficiency.
Benefits of Horizontal Hydraulic Cylinder for Cranes
One significant benefit stems from improved crane stability during use. The cylinder delivers regulated lateral extension, which effectively counters tipping risks on irregular ground often encountered in construction zones across Mexico. This promotes secure working conditions and aligns with regional safety standards, reducing accident potential for operators handling heavy equipment.
Another advantage involves streamlined operational processes. By enabling rapid outrigger positioning, the horizontal hydraulic cylinder shortens preparation periods, allowing teams to commence lifting tasks sooner. Capable of generating forces reaching 77 kN, it manages large weights with minimal power draw, thereby elevating overall site productivity in demanding projects.
Long-term financial gains arise from the cylinder's resilient construction. Engineered to withstand repeated stresses, it lowers the need for frequent repairs or part replacements. In contrast to vertical models, this horizontal design better tolerates lateral forces, prolonging operational lifespan and cutting maintenance expenses for crane fleets.
Enhanced safety features contribute to dependable performance. Built-in mechanisms for pressure regulation safeguard against excessive loads, while controlled retraction movements avoid abrupt shifts that might pose hazards to personnel. These elements foster a more secure environment, particularly in high-stakes lifting scenarios. In material handling and transport sectors, the cylinder excels at offering exact placement control. This precision is essential for positioning loads accurately, minimizing the requirement for repeated corrections and ensuring steady output throughout extended work periods for truck crane operators.
Reduced operational interruptions result from its sturdy framework, which resists wear from daily cycles, allowing continuous use without unexpected halts in construction or industrial settings.Better energy management in hydraulic setups comes from efficient force transmission, leading to lower fuel usage in crane machinery and supporting cost controls over prolonged operations. Versatility across different crane dimensions permits seamless adaptation to various models, making it suitable for a range of applications from small-scale builds to large infrastructure developments in diverse locations.

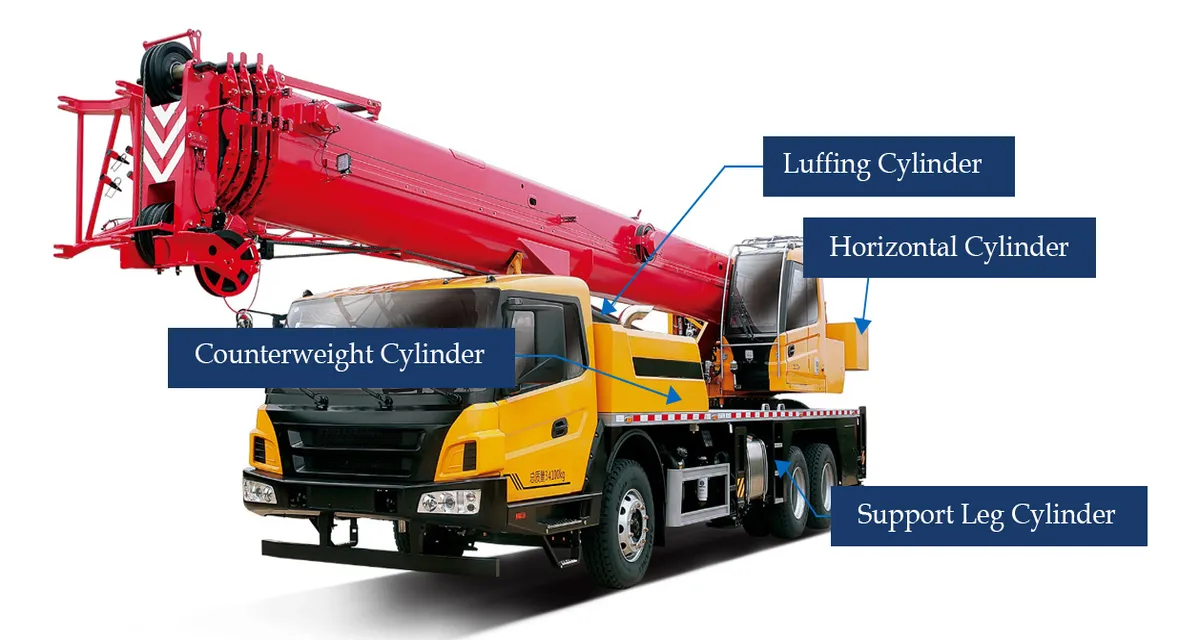

Types of Hydraulic Cylinder for Truck Cranes
Hydraulic Counterweight Cylinder
This cylinder manages the positioning of counterweights on truck cranes to maintain equilibrium during heavy lifts. By extending or retracting under hydraulic pressure, it offsets the forward load on the boom, reducing the risk of tipping and allowing operators to handle substantial weights safely across various job sites, with typical designs incorporating robust seals for reliable performance in demanding conditions.
Support Leg Hydraulic Cylinder
Commonly known as an outrigger cylinder, this component deploys and retracts the crane's stabilizing legs vertically to establish a firm foundation on uneven ground. It enhances overall machine stability by distributing weight evenly, which is vital for preventing overturning during operations in construction or industrial settings, often featuring high-pressure ratings to support extended use without failure.
Luffing Hydraulic Cylinder
Responsible for adjusting the boom's vertical angle, this cylinder enables precise control over the crane's reach and height without relocating the vehicle. It applies force to raise or lower the boom smoothly, facilitating accurate load placement in confined areas, and is engineered with double-acting mechanisms to ensure consistent motion under varying loads typical in urban lifting tasks.
Horizontal Hydraulic Cylinder
Utilized for lateral extensions such as outrigger arms, this cylinder expands the crane's base horizontally to improve balance on sloped or soft surfaces. It provides controlled outward movement to widen support, minimizing sway and enhancing safety for overhead work, with constructions often including corrosion-resistant materials to withstand exposure in outdoor environments over prolonged periods.
Applications of Hydraulic Horizontal Cylinders
1. Construction Industry
Hydraulic horizontal cylinders play a key role in stabilizing mobile cranes and excavators by extending outriggers laterally, which helps distribute weight evenly on uneven building sites. This setup allows for secure lifting of materials like steel beams or concrete panels, minimizing risks during high-rise developments or road projects, where precise horizontal adjustments ensure operational safety and efficiency over extended shifts.
2. Oil and Gas Industry
In drilling rigs and pipeline maintenance, these cylinders facilitate the horizontal positioning of heavy equipment arms, enabling controlled movements for aligning pipes or supporting extraction tools under high-pressure conditions. Their robust design withstands corrosive environments, aiding in offshore platforms where they extend stabilizers to counter wave-induced shifts, thus maintaining steady operations in remote extraction fields.

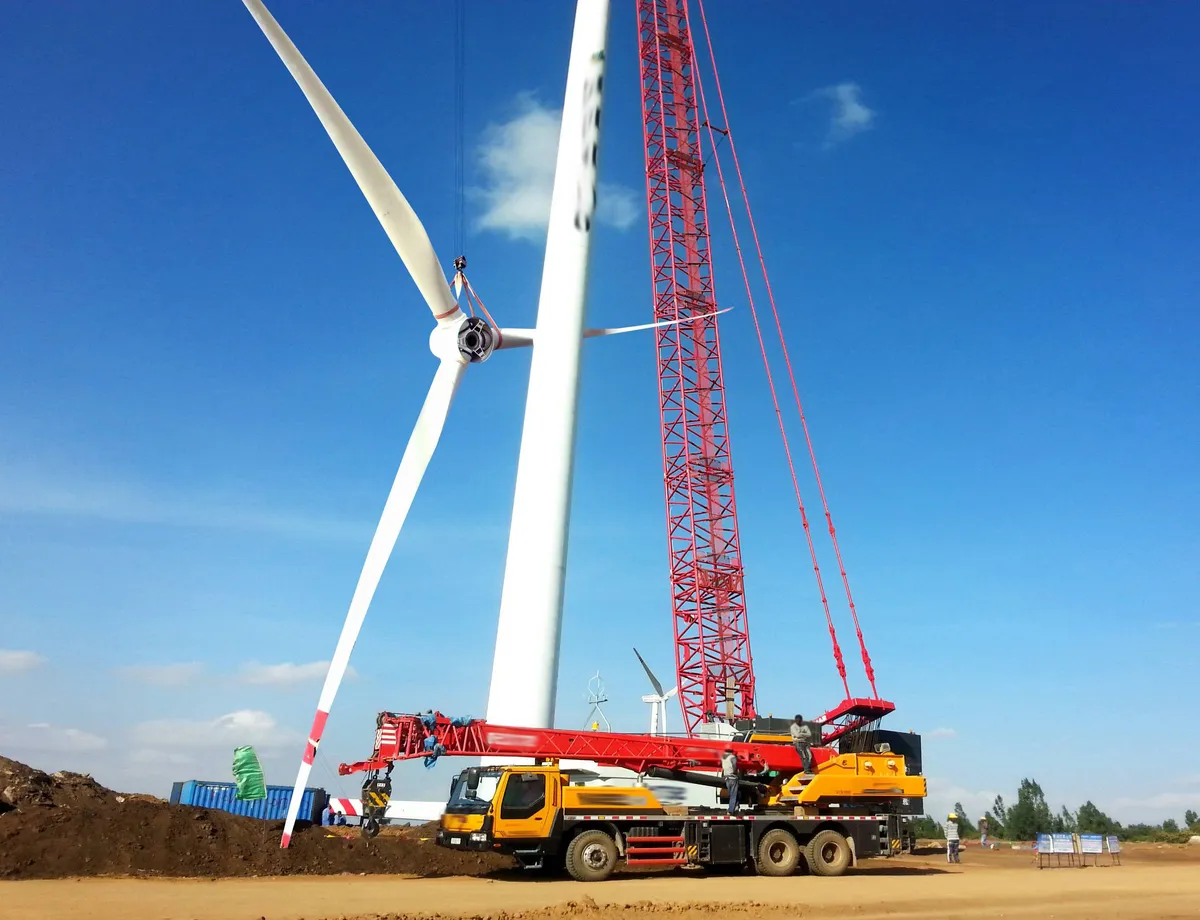

3. Wind Energy Sector
For turbine installation and maintenance, horizontal hydraulic cylinders extend support structures during blade assembly, allowing technicians to adjust positions accurately at great heights. This capability is essential for aligning components in windy conditions, where the cylinders provide lateral force to secure cranes against gusts, contributing to reliable setups in onshore or offshore wind farms across varying terrains.
4. Power Plant Industry
These cylinders are integral in handling large generators and turbines by providing horizontal thrust for positioning heavy machinery during assembly or repairs. In thermal or nuclear facilities, they enable precise adjustments in confined spaces, ensuring alignment of components like boilers without excessive vibration, which supports uninterrupted power generation and complies with stringent safety protocols in energy production sites.
5. Port Logistics Industry
At shipping terminals, hydraulic horizontal cylinders deploy in gantry cranes to extend booms horizontally for loading and unloading cargo containers from vessels. This function enhances reach over docks, allowing for swift handling of diverse shipments while adapting to tidal changes, thereby optimizing throughput in busy harbors and reducing delays in global supply chain operations.
6. Mining Industry
In underground and open-pit operations, these crane hydraulic cylinders support drilling equipment by offering horizontal extensions for stabilizing rigs on sloped or rocky surfaces. They assist in maneuvering heavy loaders or conveyors, providing the necessary force to navigate tight tunnels or haul ore efficiently, which boosts productivity while addressing challenges like ground instability in resource extraction environments.
 |
 |
| Construction | Port Logistics |
 |
 |
| Wind Energy | Power Plant |
Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., founded in May 1978, stands as a prominent high-tech enterprise dedicated to producing mid- to high-end hydraulic cylinders, with a particular emphasis on cylinders designed for heavy machinery applications. Situated in Ciudad de México, our expansive 103-acre facility accommodates over 400 skilled professionals, incorporating a dedicated research institute, advanced R&D center, and fully equipped testing laboratories. These resources enable rigorous development and validation processes, ensuring that every crane hydraulic cylinder adheres to stringent international standards for performance and safety. Our commitment extends to independent intellectual property rights in equipment design and manufacturing, which underpins the precision engineering of our products, making them ideal for demanding crane operations in construction and industrial settings.
In terms of quality and innovation, we maintain a robust assurance system that has earned trust from clients worldwide. Our cylinders are exported to more than 53 countries across six continents, including key markets in North America such as Mexico, the United States, and Canada, where they support engineering machinery, mining equipment, and tunnel boring systems. This global footprint reflects our ability to deliver durable, technology-driven solutions that prioritize efficiency and reliability. We continually invest in advancements, with plans for a "future factory" that integrates automation, intelligence, and customization to produce even more tailored hydraulic transmission systems.
For customized solutions and support, our approach is client-centered. We offer modifications such as specific stroke lengths, pressure ratings, and mounting configurations to align precisely with individual crane requirements, whether for truck-mounted or mobile units. Our global reliability is further strengthened by established partnerships in regions like Europe, Asia, and South America, where our cylinders have proven resilient in harsh environments. In Mexico's dynamic market, we focus on delivering components that enhance crane stability and productivity, backed by decades of expertise in heavy-duty applications. Selecting Mexico Ever-Power means committing to hydraulic solutions that combine proven durability, innovative design, and exceptional service, ultimately optimizing your crane fleet's performance and longevity in professional operations.
 |
 |
 |
 |
FAQs
Q: How does a horizontal hydraulic cylinder differ from a vertical one in crane applications?
A: Horizontal cylinders prioritize side-to-side steadiness by extending outriggers laterally, whereas vertical types manage upward boom adjustments for elevation control. Despite sharing fundamental hydraulic mechanics involving fluid pressure, their directional focus alters installation and function, with horizontals better suited for base widening on uneven grounds common in construction environments.
Q: Can I customize the bore and rod diameters for my hydraulic horizontal cylinder?
A: Certainly, bore sizes can vary between 63mm and 70mm, and rods from 45mm to 50mm, with further modifications available upon request to match precise specifications. Reaching out to our team allows for tailored adjustments that align with unique crane models, enhancing compatibility and performance in specialized applications.
Q: How to install a horizontal hydraulic cylinder on a truck crane safely?
A: Begin with thorough alignment verification of mounting points, followed by firm bolting and initial no-load testing to confirm functionality. Engaging qualified technicians is advisable to adhere to safety protocols, reducing risks of misalignment that could affect crane stability during subsequent use in fieldwork.
Q: What are common maintenance practices for hydraulic cylinder for crane longevity?
A: Routine checks of seals every three months, along with periodic fluid replacements and thorough cleaning to eliminate debris, are essential steps. These habits ward off contamination issues, preserving internal integrity and extending service intervals, which is crucial for maintaining peak efficiency in ongoing crane activities.
Q: Is the hydraulic horizontal cylinder suitable for uneven terrain in Mexico?
A: Yes, its design incorporates features that bolster equilibrium on irregular landscapes, making it well-adapted for hilly or rugged construction zones prevalent in Mexico. This adaptability minimizes tipping hazards, supporting secure operations in regions with variable ground profiles like mountainous or coastal project areas.
Q: How to troubleshoot leaks in a horizontal hydraulic cylinder?
A: Inspect all seals and fittings for signs of degradation, replacing any compromised parts promptly, while verifying the hydraulic fluid's condition and purity. This methodical approach identifies root causes like wear or improper assembly, restoring system tightness to avoid operational disruptions in crane environments.
Q: What materials are used in building a hydraulic cylinder for truck crane?
A: Primary construction involves high-tensile steel alloys, complemented by chrome-layered rods to resist environmental degradation and enhance durability. These selections provide robust protection against corrosion and mechanical stress, ideal for prolonged exposure in outdoor crane operations under diverse weather patterns.
Q: How long does a horizontal hydraulic cylinder last in daily use?
A: Under consistent maintenance regimens, it can endure beyond five years, influenced by factors like operational frequency and surrounding conditions. Proper handling extends this timeframe, offering dependable service in repetitive crane tasks where reliability is paramount for minimizing replacement costs.
Q: Can I use a hydraulic horizontal cylinder for other vehicles besides truck cranes?
A: Indeed, its versatile nature allows integration into trailers, aerial platforms, or fixed stabilizers within manufacturing facilities. This broad applicability stems from its lateral force delivery, making it a practical choice for equipment requiring horizontal support in logistics or heavy-duty mechanical systems.
