Hydraulic Luffing Cylinder for Arm Type Aerial Work Platforms
Explore the reliable hydraulic luffing cylinder for arm-type aerial work platforms from Mexico Ever-Power, with 21 MPa working pressure, 1458 mm stroke, and up to 997 kN thrust for precise boom control. Perfect for Mexico’s construction sites, offering durability, safety, and custom options to boost efficiency and reduce downtime.
Hydraulic Luffing Cylinder Overview
The hydraulic luffing cylinder serves as a pivotal element in arm-type aerial work platforms, facilitating the controlled pitching motion of the boom to reach elevated positions safely. In Mexico's bustling construction and maintenance sectors, where access to high structures is routine, this cylinder ensures operators can adjust the arm's angle with precision, minimizing risks and maximizing productivity. Built from robust materials to withstand harsh conditions, it integrates seamlessly with hydraulic systems, providing consistent force for lifting and lowering operations. Professionals in fields like building repairs and electrical installations rely on its stability to handle loads without compromising safety standards. Over time, advancements in cylinder design have incorporated features like enhanced seals to prevent leaks, making it a staple in modern equipment fleets across Mexico City and beyond.
Beyond basic functionality, the luffing hydraulic cylinder for aerial platforms offers versatility for various arm configurations, allowing customization based on specific project needs. For instance, in Mexico's diverse terrain from coastal areas to mountainous regions, operators appreciate its ability to adapt to uneven surfaces while maintaining smooth extension and retraction. This component not only extends the reach of the platform but also contributes to overall machine longevity by distributing stress evenly during operations.

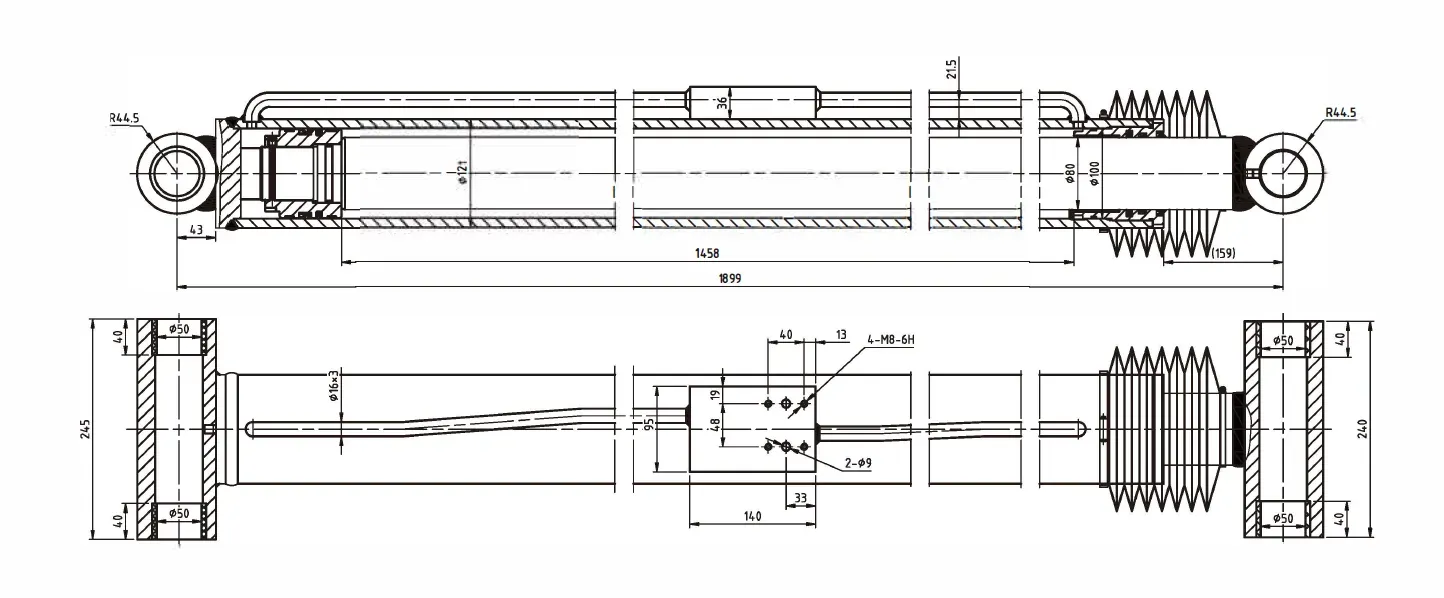

Hydraulic Luffing Cylinder Dimensions
Technical Specifications
If you have specific customization needs for your luffing hydraulic cylinder, such as adjusted stroke lengths or mounting options, please contact our team at Mexico Ever-Power for tailored solutions.
| Luffing Hydraulic Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| YY11112011 | Φ100xΦ80x1458 | 21 MPa | 32MPa | 1458 | 1899 | 137kg |
| Product Name: | Luffing Hydraulic Cylinder |
| Function: | Control the amplitude change angle action of the main arm. |
| Cylinder diameter: | 80mm-230mm |
| Rod diameter: | 40mm-135mm |
| Travel: | 1000mm-200mm |
| Maximum pressure: | 24MPa |
| Maximum thrust: | 997KN |
Key Features of Hydraulic Luffing Cylinder for Aerial Platforms
Design and Construction Features
Our hydraulic luffing cylinder boasts a robust design tailored for arm-type aerial work platforms, incorporating high-strength steel alloys that resist fatigue under repeated cycles. This ensures longevity in Mexico's variable climates, where equipment faces exposure to salt air in coastal zones or intense sun in inland areas. The cylinder's piston rod is chrome-plated for added corrosion resistance, preventing premature wear that could lead to operational failures. Seals made from advanced polymers maintain hydraulic integrity, reducing the risk of fluid leaks that might compromise safety on job sites.
In addition to material choices, the features include precise machining for smooth piston movement, which minimizes vibration during extension. This is particularly beneficial for operators working at heights, as it enhances stability and control. The cylinder supports variable mounting configurations, allowing integration into different boom designs without extensive modifications. Users in Mexico's construction industry value these attributes for their role in streamlining workflows and adhering to local safety protocols.
- Enhanced load-bearing capacity for heavy-duty tasks.
- Smooth operation to reduce operator fatigue.
- Versatile compatibility with various aerial platform models.
Performance Enhancements
Performance-wise, the luffing hydraulic cylinder excels in delivering consistent thrust, with ratings up to 997 kN, ideal for lifting substantial weights in urban development projects. Its quick response to hydraulic inputs allows for fine-tuned adjustments, crucial in tight spaces like Mexico City's high-rises. Overheating is mitigated through efficient heat dissipation designs, ensuring reliability during extended use.
Furthermore, built-in safety valves prevent over-pressurization, protecting both the equipment and personnel. This feature aligns with international standards, making it a preferred choice for export-oriented operations in Mexico. Regular users note improved uptime due to these enhancements, translating to cost savings in maintenance and repairs.
Working Principle of Luffing Hydraulic Cylinder in Arm Type AWPs
1. Hydraulic Fluid Introduction and Pressurization
The process begins when hydraulic oil is pumped into one side of the cylinder barrel through inlet ports. This creates pressure that acts on the piston surface, generating force according to Pascal's principle, where pressure applied to an enclosed fluid transmits equally in all directions. For extension in a luffing cylinder, the fluid enters the base end, pushing the piston outward and extending the rod to raise the boom arm on aerial platforms.
2. Piston and Rod Movement
As pressure builds, the piston slides along the barrel's inner walls, converting fluid energy into mechanical linear force. The rod, attached to the piston, extends or retracts depending on the fluid direction. Seals around the piston and rod prevent leaks, maintaining system efficiency and preventing contamination from external elements like dust or moisture common in outdoor work sites.
3. Conversion to Angular Motion
The linear extension of the rod connects to mechanical linkages or pivots on the arm-type platform's boom. This setup translates straight-line movement into rotational pitch adjustment, allowing the operator to tilt the arm upward or downward. Precise engineering ensures smooth pivoting, essential for stable positioning during tasks such as building maintenance or utility repairs.
4. Valve Control for Flow Regulation
Directional control valves manage the fluid's path, switching between extension and retraction modes. By modulating valve openings, operators achieve gradual speed control, avoiding abrupt shifts that could destabilize the platform. This is critical in confined urban environments where sudden movements risk collisions or worker injury.

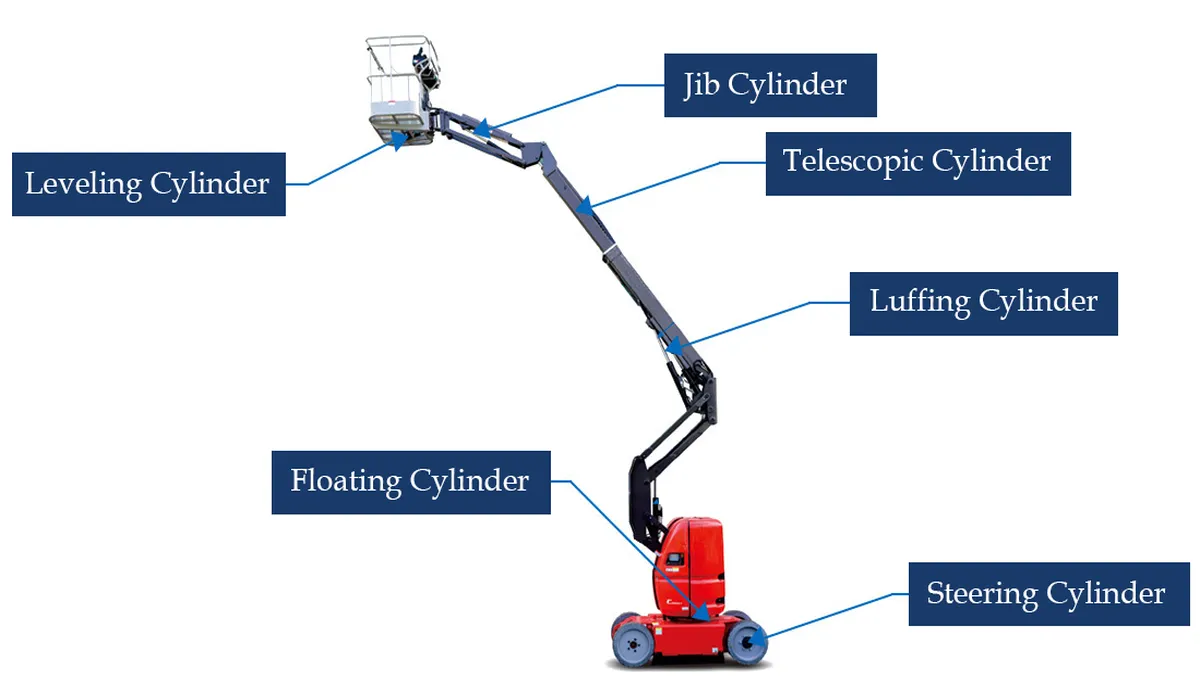

Hydraulic Cylinder for Arm Type Aerial Work Platforms
- Telescopic Hydraulic Cylinder
This type features multiple nested stages that extend sequentially to achieve greater reach in arm-type aerial work platforms, allowing operators to access elevated areas without increasing the base footprint. It operates by hydraulic fluid pushing inner sections outward, providing compact retraction for transport and enhanced stability during extension in construction or maintenance tasks. - Floating Hydraulic Cylinder
Designed to accommodate minor misalignments, the floating hydraulic cylinder incorporates flexible mounting that permits slight lateral movement, reducing stress on connections within aerial platforms. This setup ensures smooth operation over uneven terrain, absorbing vibrations and preventing premature wear in dynamic environments like urban utility repairs. - Leveling Hydraulic Cylinder
Essential for maintaining platform horizontality, the leveling hydraulic cylinder adjusts the arm's angle to counteract slopes or irregularities, ensuring worker safety at heights. By precisely controlling extension and retraction, it stabilizes the basket during operations such as window installation or electrical work on slanted surfaces. - Steering Hydraulic Cylinder
This cylinder facilitates directional control by actuating the turning mechanism of the aerial platform's chassis or arm, enabling precise navigation in confined spaces. It responds to operator inputs through hydraulic pressure, improving maneuverability for tasks in crowded job sites like building facades or warehouse interiors. - Jib Hydraulic Cylinder
Positioned at the arm's end, the jib hydraulic cylinder extends or angles the final boom section for fine-tuned reach over obstacles. It enhances versatility in aerial work by allowing horizontal outreach, ideal for applications involving overhead inspections or painting in areas inaccessible by straight booms.
Applications of Luffing Hydraulic Cylinders
Hydraulic luffing cylinders play a pivotal role in numerous sectors by enabling precise boom adjustments on arm-type aerial work platforms, ensuring safe and efficient access to elevated areas. In the construction industry, these cylinders are indispensable for operations such as installing steel frameworks or applying exterior finishes on high-rise structures. For instance, in Mexico's expanding metropolitan hubs like Monterrey, contractors depend on them to maneuver heavy materials into place during skyscraper developments, minimizing ground-level clutter and accelerating project timelines amid the country's ongoing urban growth.
Beyond construction, utility companies leverage hydraulic luffing cylinders for overhead power line installations and repairs, where accurate arm positioning is crucial to avoid outages affecting residential and commercial areas. In regions like Baja California, technicians use these systems to navigate challenging coastal terrains, performing tasks such as transformer replacements with reduced risk to personnel and equipment. Similarly, in telecommunications, the cylinders support antenna mounting on towers, facilitating network expansions that keep pace with Mexico's digital demands.
Maintenance applications extend to preserving cultural landmarks, including ancient ruins in Yucatan, where gentle boom control allows experts to conduct restorations without disturbing fragile stonework. In commercial settings, such as shopping malls in Puebla, they aid in routine upkeep like HVAC servicing or signage updates, promoting operational continuity. Additionally, in the agricultural domain, these cylinders assist with orchard management in valleys around Michoacan, enabling workers to prune tall trees or harvest fruits from platforms that adjust seamlessly to varying heights.
Environmental projects also benefit, with hydraulic cylinders powering platforms for solar panel installations on rooftops, contributing to Mexico's renewable energy initiatives. In emergency response scenarios, fire departments in cities like Tijuana employ them for high-reach rescues, where swift and stable arm extension can make the difference in critical situations. Overall, the adaptability of hydraulic luffing cylinders underscores their value across diverse fields, from industrial inspections in factories to event setup in stadiums, always prioritizing worker safety and productivity.
Why Choose Mexico Ever-Power's Hydraulic Luffing Cylinder?
Selecting Mexico Ever-Power as your supplier for hydraulic luffing cylinders means partnering with a company that has built a solid reputation over more than 40 years, starting from its establishment in 1978. Our expansive manufacturing base in Mexico features state-of-the-art production equipment, dedicated to crafting high-precision components such as luffing cylinders that address the unique challenges of local industries. We invest heavily in research and development through specialized centers, creating tailored solutions for sectors like construction, mining, and public utilities, all while adhering to stringent international quality certifications to guarantee product reliability.
Our international presence extends exports to over 34 nations, with a particular emphasis on North American markets, where we deliver responsive, localized support to meet Mexico's dynamic economic needs. Clients consistently select us due to our unwavering focus on operational safety, performance optimization, and flexible customization options, supported by advanced testing facilities that simulate real-world conditions. This approach not only enhances equipment durability but also minimizes long-term costs for users.
- Established expertise in hydraulic systems since the late 1970s.
- Bespoke design services to match exact project specifications.
- Comprehensive customer care, including on-site assistance throughout Mexico.
In terms of competitive advantages, we distinguish ourselves by delivering swift custom orders, often within days, thanks to our automated assembly processes that ensure unmatched accuracy. We also emphasize eco-friendly manufacturing methods, such as using recyclable materials and energy-efficient operations, appealing to businesses prioritizing sustainability in Mexico's regulatory landscape. Collaborations with top-tier equipment manufacturers further validate our standing, positioning us as a dependable source for robust hydraulic solutions that stand the test of time in demanding applications.
 |
 |
 |
 |
FAQs
Q: How does the luffing hydraulic cylinder improve safety on job sites?
A: By delivering consistent and predictable boom adjustments, it minimizes the chances of unexpected shifts or imbalances, which is vital in densely populated areas like Mexican cities where high-altitude work on skyscrapers demands unwavering stability to protect workers and bystanders.
Q: What are the key specifications to consider when buying a crane luffing hydraulic cylinder?
A: Essential factors include the operational pressure rating, often reaching 21 MPa for standard models, along with the extension range exemplified by 1458 mm strokes, and the force output up to 997 kN to ensure compatibility with the machinery's weight-bearing needs.
Q: How to maintain a luffing hydraulic cylinder for long-term use?
A: Routine checks should involve examining connections for fluid seepage, wiping down external surfaces to remove debris, and scheduling fluid changes approximately every 500 operational hours to sustain efficiency and avert component degradation over extended periods.
Q: What materials are used in manufacturing aerial work platform luffing cylinders?
A: Construction typically employs reinforced alloy steels for the main body and piston rod to withstand high stresses, complemented by synthetic polymer gaskets that offer resistance to environmental factors like moisture prevalent in Mexico's varied weather patterns.
Q: Can I customize the rod diameter in a hydraulic luffing cylinder?
A: Certainly, at Mexico Ever-Power, we accommodate adjustments in rod sizes ranging from 40 mm to 135 mm, allowing precise adaptations to match the unique mechanical requirements of different arm configurations in aerial equipment.
Q: What is the maximum pressure a luffing hydraulic cylinder can withstand?
A: Designed for demanding conditions, our units are capable of enduring pressures as high as 32 MPa, which supports reliable functionality in intensive scenarios such as overhead line maintenance or heavy-load positioning.
Q: How does the working principle of a luffing hydraulic cylinder differ from telescopic ones?
A: While luffing models emphasize rotational adjustments through connected mechanisms for boom angling, telescopic variants prioritize straightforward elongation along a single axis to increase overall length without angular changes.
Q: What applications suit the arm type aerial work platform with luffing cylinder?
A: These systems excel in scenarios like facade cleaning on commercial buildings, wiring setups in power grids, and vegetation management in rural landscapes across Mexico, where adaptable reach is essential for productivity.
Q: How to install a hydraulic luffing cylinder on existing equipment?
A: Begin by matching attachment brackets to the boom's framework, fasten with appropriate hardware, integrate fluid conduits securely, and conduct initial trials at reduced pressures to confirm absence of drips or irregularities.
Q: What are common issues with luffing hydraulic cylinders and how to fix them?
A: Frequent problems include seal deterioration leading to fluid loss, addressed by prompt part swaps, or irregular motion from trapped air, which can be corrected through systematic venting procedures to restore smooth functionality.
Q: How long does a hydraulic luffing cylinder typically last in daily use?
A: Under consistent care routines, these cylinders often surpass 10,000 usage repetitions, influenced by factors such as operational intensity and exposure to elements typical in Mexican work environments, promoting cost-effective longevity.
Customer Reviews
Maria Gonzalez, Maintenance Manager, Guadalajara
“The hydraulic luffing cylinder from Mexico Ever-Power completely transformed our daily operations. We've been running it on three arm platforms for 20 months straight, handling constant 21 MPa pressure in high-rise window installations without a single failure. The 1458 mm stroke gives us exactly the reach we need for Guadalajara's new towers, and when we asked for a special mounting bracket, their engineers delivered the modified unit in four days. Zero leaks, zero downtime—it's simply the most dependable cylinder we've ever used.”
Carlos Lopez, Construction Foreman, Monterrey
“We installed these luffing cylinders on our new fleet six months ago and immediately noticed the difference. Working in Monterrey's extreme heat and dust, they've never overheated or lost pressure. Delivery arrived two weeks ahead of schedule, which saved us from renting replacement equipment during peak season. The technical support team walked our mechanics through the first installation over video call—service like that is rare these days.”
Isabel Ramirez, Utility Supervisor, Mexico City
“For our electrical maintenance division in Mexico City, reliability is everything. These cylinders have been in service for 14 months across 12 vehicles, managing heavy baskets with technicians and tools at full extension. The 997 kN thrust capacity handles our maximum loads without hesitation, and the chrome plating has completely resisted the capital's pollution and humidity. Mexico Ever-Power's logistics team even arranged same-week delivery when we had an urgent breakdown.”
Jose Martinez, Site Engineer, Tijuana
“We specifically needed a custom rod diameter for our modified booms, and Mexico Ever-Power produced exactly what we required in under ten days. After 16 months of near-daily use near the coast, there's no visible corrosion despite constant salt air exposure. The smooth operation and precise control have reduced our operator fatigue noticeably—our guys actually prefer working with these platforms now.”
Ana Torres, Operations Coordinator, Puebla
“What impressed me most was how quickly they handled our emergency order. We discovered a damaged cylinder on Friday afternoon and received the replacement by Wednesday morning—complete with the exact installation distance we specified. The new unit has now been working flawlessly for nine months under heavy use, maintaining perfect pressure even during Puebla's rainy season.”
Ricardo Herrera, Project Lead, Cancun
“Coastal conditions in Cancun are brutal on equipment, but these luffing cylinders have exceeded all expectations. Eight months of constant exposure to salt air and we've had zero corrosion issues thanks to their superior sealing and plating. The smooth, jerk-free movement is particularly noticeable when working on hotel facades at 40 meters—our operators say it's the best controlling platform they've ever used.”
Luis Fernandez, Fleet Manager, Queretaro
“We standardized our entire fleet of 18 arm platforms with Mexico Ever-Power cylinders last year. The consistency between units is remarkable—every cylinder performs identically, which makes maintenance scheduling much easier. After 12 months of intensive use across central Mexico's varied climates, we're seeing significantly lower repair costs compared to our previous supplier.”
Sofia Castillo, Safety Director, Leon
“From a safety perspective, these cylinders have been outstanding. The controlled movement and built-in pressure relief have eliminated the sudden drops we occasionally experienced with other brands. We've recorded zero incidents related to boom control since switching 15 months ago, which has dramatically improved our insurance ratings and crew confidence.”
