Hydraulic Luffing Cylinder for Rotary Drilling Rigs

Rotary Drilling Rig Hydraulic Luffing Cylinder Overview

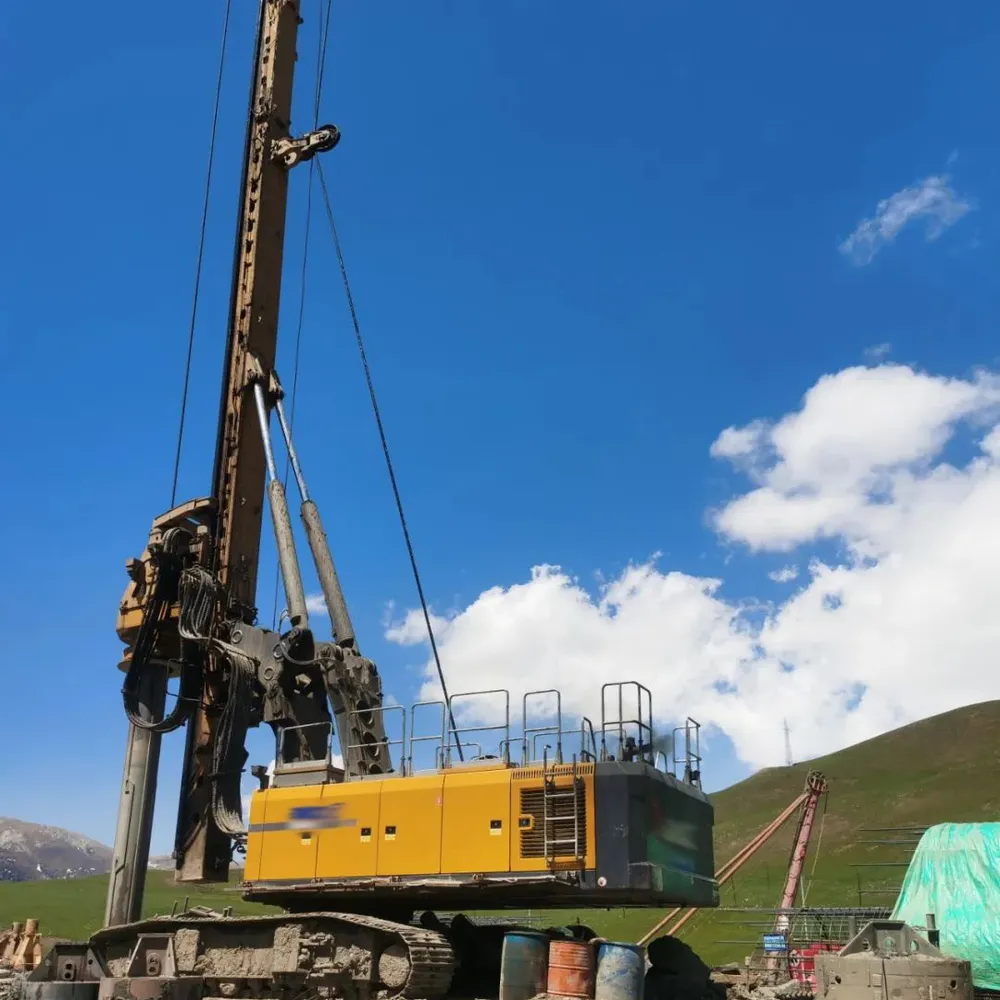

The hydraulic luffing cylinder serves as a critical element in rotary drilling rigs, enabling operators to adjust the mast's angle with precision and reliability. This component, often referred to as a luffing hydraulic cylinder or hydraulic cylinder for rotary drilling rigs, is built to handle the demanding conditions of mining and construction sites. By converting hydraulic energy into linear motion, it facilitates smooth tilting and positioning of the drill mast, which is essential for achieving optimal drilling angles in varied terrains. In Mexico's growing mining sector, where projects often involve challenging geological formations, such cylinders ensure operational continuity by providing the necessary force to counteract vibrations and external loads.

Manufactured with high-strength alloy steel, these cylinders resist corrosion and wear, extending their service life even in dusty or wet environments typical of open-pit mines. The luffing hydraulic cylinder integrates advanced sealing technologies to prevent fluid leaks, maintaining consistent pressure during extended operations. For industries like mining machinery hydraulic cylinder applications, this means reduced downtime and lower maintenance costs. Operators in Mexico can benefit from its compatibility with various rig models, allowing seamless integration into existing setups.

Technical Specifications

If your project requires custom bore sizes, strokes, or pressure ratings beyond these standards, our team at Mexico Ever-Power is ready to discuss tailored options to fit your mining machinery hydraulic cylinder needs.

Product Name:	Luffing Hydraulic Cylinder
Function:	Control the luffing angle, adjust the distance between the mast and the host.
Bore diameter:	125mm～250mm
Rod diameter:	90mm～160mm
Stroke:	≤1640 mm
Pressure:	up to 32MPa

Features of Hydraulic Luffing Cylinder for Rotary Drilling Rig

1. Robust Construction and Materials

One standout feature of the hydraulic luffing cylinder is its use of premium alloy steel, which provides exceptional strength against the abrasive forces encountered in rotary drilling rigs. This material choice ensures the cylinder can endure repeated cycles of extension and retraction without deformation, a common issue in less durable models. In mining hydraulic cylinder scenarios, where equipment faces constant exposure to dirt and moisture, the chrome-plated rod adds an extra layer of protection against rust, prolonging operational life.

2. Advanced Sealing and Precision Control

Equipped with polyurethane seals and nitrile rubber components, the luffing hydraulic cylinder minimizes the risk of hydraulic fluid contamination, which is crucial for maintaining system efficiency. These seals are designed to handle temperatures ranging from -40°C to 120°C, making them suitable for Mexico's diverse climates, from arid deserts to humid coastal areas. Precision control valves integrated into the design allow for fine-tuned adjustments, ensuring the mast positions accurately without overshooting.

3. High Load Capacity and Safety Enhancements

With a load-bearing capacity that supports heavy masts in demanding applications like hydraulic cylinders for mining, this cylinder incorporates safety features such as overload protection mechanisms. These prevent catastrophic failures during high-wind conditions or uneven ground, common in rotary drilling sites. The double-acting mechanism further enhances versatility, allowing bidirectional force application for smoother operations.

The features extend to customizable mounting options, enabling easy integration into various rig designs. For instance, operators can choose between trunnion or clevis mounts based on their setup. This flexibility is particularly beneficial in mining machinery hydraulic cylinder integrations, where space constraints vary.

Rotary Drilling Rig Luffing Hydraulic Cylinder Parts

• Cylinder Barrel
  Serving as the main housing for internal components, the barrel is typically crafted from seamless steel tubing to contain hydraulic fluid under pressure while resisting external impacts during rig operations. Its smooth interior surface facilitates piston movement, and reinforced walls prevent buckling in high-load scenarios common to drilling sites, ensuring the unit's structural integrity over numerous cycles.
• Piston Rod
  This elongated shaft connects the piston to the external load, extending and retracting to adjust the mast angle on rotary rigs. Made from hardened chrome-plated steel, it withstands tensile forces and environmental wear, with precise machining that maintains alignment and reduces friction against seals, crucial for smooth performance in dusty mining conditions.
• Piston
  Positioned inside the barrel, the piston divides the cylinder into two chambers and converts fluid pressure into mechanical force for mast tilting. Constructed with grooves for seal installation, it features durable materials like cast iron or aluminum alloys to handle repetitive stress, promoting efficient energy transfer without leakage in demanding excavation tasks.
• Seals and O-Rings
  These elements, including polyurethane wipers and nitrile rubber rings, prevent fluid escape and contaminant entry around the rod and piston. Placed strategically at dynamic interfaces, they endure temperature variations and pressure fluctuations, maintaining system hygiene and extending operational lifespan in variable climates encountered during rotary drilling.
• End Caps
  Secured at both ends of the barrel, these caps enclose the cylinder assembly and provide mounting points for integration with the rig frame. Often threaded or welded, they incorporate ports for fluid entry and incorporate cushioning features to absorb shocks at stroke limits, enhancing safety and reducing noise in active drilling environments.
• Hydraulic Ports
  Integrated into the end caps or barrel, these fittings allow connection to the rig's hydraulic lines for fluid inflow and outflow. Designed with threaded or flanged interfaces, they support high-flow rates without restrictions, ensuring responsive control over mast adjustments and compatibility with various pump systems in industrial setups.

Types of Rotary Drilling Rig Hydraulic Cylinders

1. Hydraulic Luffing Cylinder
This cylinder plays a key role in managing the tilt and alignment of the drill mast on rotary rigs, allowing operators to fine-tune angles for optimal penetration in varied soil conditions. Constructed with durable materials to handle high pressures up to 32 MPa, it ensures smooth extension and retraction, which is vital for maintaining stability during operations in challenging terrains like those found in mining sites. Its integration with control systems minimizes vibrations, enhancing overall rig performance and reducing the risk of structural strain over extended use.

2. Hydraulic Pressurized Cylinder
Designed to deliver the necessary thrust for advancing the drill bit into the ground, this cylinder operates under intense force to overcome resistance from dense rock or earth layers. It typically features robust seals and rods capable of withstanding pressures that drive efficient boring processes, making it essential for deep excavation tasks in oil and gas exploration. By providing consistent power application, it helps prevent equipment overloads and supports continuous drilling cycles, which is crucial for meeting project deadlines in demanding industrial settings.

3. Hydraulic Mast Cylinder
Responsible for elevating, lowering, and securing the drill mast, this cylinder, often called a correcting or stabilizing unit, supports vertical adjustments to align the rig properly before and during drilling. Built with high-strength components to manage substantial loads, it corrects deviations caused by uneven ground or operational shifts, ensuring precise positioning that boosts safety and accuracy in rotary applications. This functionality is particularly important in onshore and offshore environments where mast stability directly impacts the success of geotechnical surveys and resource extraction efforts.

Advantages of Luffing Hydraulic Cylinder in Rotary Drilling

• Rapid Mast Adjustments for Streamlined Operations
  The cylinder facilitates swift modifications to the mast position, which substantially shortens preparation periods at drilling locations. Within contexts involving hydraulic cylinders for rotary drilling rigs, this capability accelerates shifts between various boring sites, thereby elevating the volume of work completed each day in extraction activities. In contrast to traditional manual mechanisms, the hydraulic system removes inconsistencies stemming from operator variability, guaranteeing uniform results throughout multiple work periods.
• Minimized Component Wear and Reduced Maintenance Expenses
  Through effective stabilization of the mast, the luffing hydraulic cylinder lessens the strain on adjacent rig elements, leading to decreased expenditures on repairs over time. The sturdy engineering of this component results in extended intervals between part renewals, delivering substantial financial benefits for mining enterprises in Mexico operating under fiscal limitations. In challenging operational surroundings, such resilience averts abrupt equipment halts, thus upholding consistent timelines for ongoing initiatives.
• Vibration Reduction and Worker Protection
  Among the safety benefits, the cylinder's capacity to mitigate oscillations safeguards personnel from potential hazards associated with unstable machinery. In applications related to mining hydraulic cylinders, the integrated mechanisms for managing pressure avert abrupt descents, addressing a significant risk during extensive digging processes. Furthermore, the incorporation of seals that limit fluid emissions supports adherence to Mexico's standards for ecological preservation within the extraction industry.
• Long-Term Investment Value Through Extended Lifespan
  The design emphasizes materials and construction that endure prolonged exposure to rigorous conditions, translating into fewer instances of downtime and enhanced project continuity. For organizations in the mining field, this attribute fosters a favorable economic outcome by optimizing resource allocation and minimizing the frequency of capital outlays on replacements.
• Adaptation to Diverse Environmental Conditions
  Engineered to perform reliably across a spectrum of climatic variations prevalent in Mexico, from arid zones to moist locales, the cylinder maintains functionality without compromise. This versatility ensures that drilling endeavors proceed without interruptions due to weather-related factors, contributing to overall operational dependability in varied geographical settings.
• Precision in Pressure Management for Secure Excavations
  The system's ability to regulate internal forces precisely prevents equipment malfunctions during high-stress phases of deep penetration work. This feature not only bolsters site safety by reducing the likelihood of structural incidents but also aligns with regulatory expectations for risk mitigation in mining practices.

Applications of Mining Machinery Hydraulic Cylinders

1. Rotary Drilling Rig

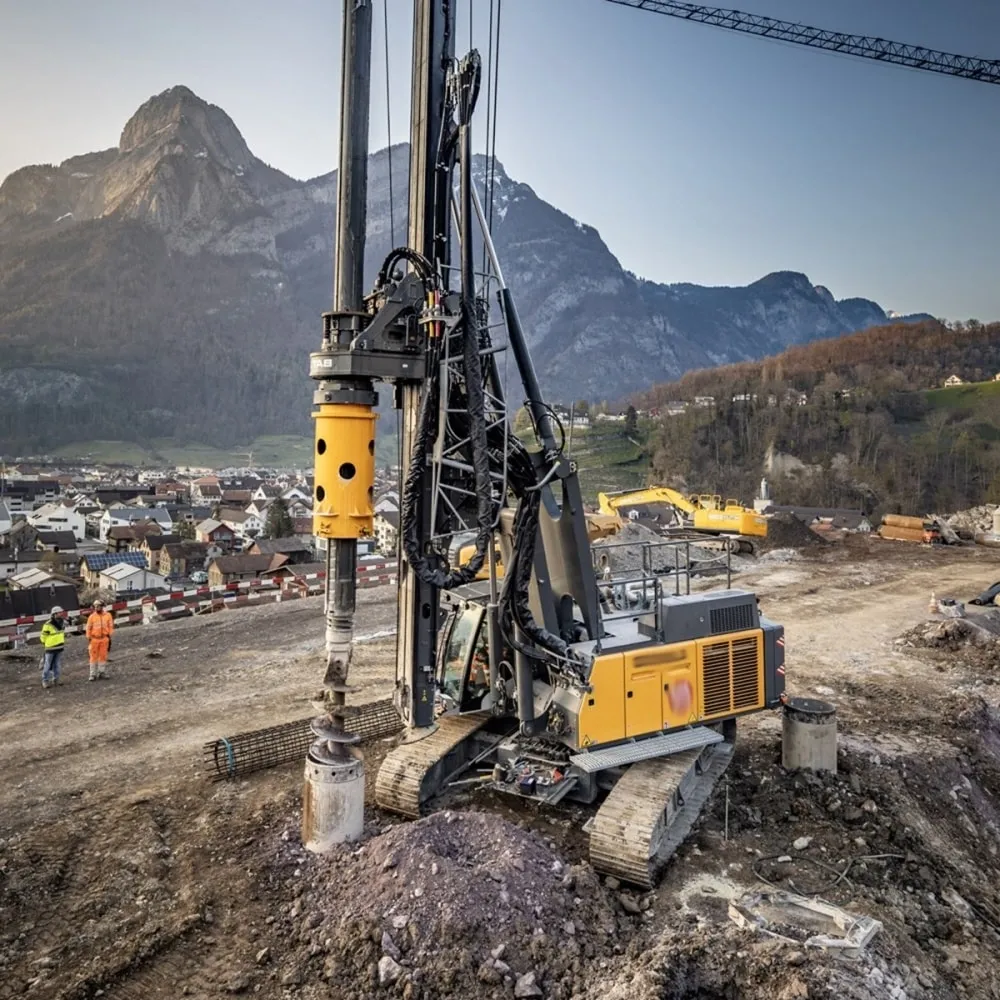

In rotary drilling rigs, hydraulic cylinders manage mast elevation and angle adjustments, enabling precise positioning for borehole creation in mineral exploration and extraction sites. These components deliver controlled force to penetrate hard rock layers, while their robust seals prevent fluid loss in dusty conditions, supporting extended operations in open-pit environments where accuracy directly influences resource recovery rates.

2. Mining Dump Truck
Hydraulic cylinders in mining dump trucks facilitate the lifting and tilting of massive cargo beds, allowing efficient unloading of ore and overburden materials at processing facilities. Constructed to handle extreme weights exceeding hundreds of tons, they incorporate pressure relief valves to avoid overloads, ensuring safe material discharge on uneven haul roads typical of large-scale surface mining projects.

3. Mining Motor Grader
For mining motor graders, hydraulic cylinders control blade movements for road leveling and surface preparation, creating stable pathways essential for vehicle transport in quarry areas. Their adjustable stroke lengths permit fine grading on sloped terrains, with corrosion-resistant coatings that withstand abrasive dust, contributing to maintained infrastructure that reduces equipment wear during continuous site development.

4. Mining Wheel Loader
Hydraulic cylinders equip mining wheel loaders to raise and lower buckets for scooping and transferring loose aggregates or blasted rock into transport vehicles. Designed with high-pressure capabilities to manage heavy payloads, they feature quick-response pistons for rapid cycles, enhancing productivity in stockpile management where swift loading minimizes downtime in high-volume extraction workflows.

5. Mining Underground Truck
In underground mining trucks, hydraulic cylinders assist in dumping mechanisms within confined tunnels, tilting beds to release loads without requiring excessive space. Built with reinforced rods to endure impacts from falling debris, they support ventilation-friendly operations by enabling compact maneuvers, vital for navigating narrow shafts where reliable material evacuation sustains steady ore flow to surface levels.

6. Mining Drilling Jumbo
Hydraulic cylinders on mining drilling jumbos position booms and feeds for accurate hole placement in tunnel advancement and rock bolting tasks. Their multi-stage extensions allow access to overhead or sidewall locations, incorporating vibration-dampening elements to protect operators, which is crucial in subterranean settings where precise blasting patterns determine the safety and efficiency of chamber expansion.

Mining Dump Truck	Mining Loader
Mining Drilling Jumbo	Motor Grader

Why Choose Mexico Ever-Power's Mining Hydraulic Cylinders?

FAQs

Customer Reviews

Maria Gonzalez, Mining Engineer, Mexico City, Mexico
“We've integrated this hydraulic luffing cylinder into our rotary drilling rigs for more than two years, and it performs reliably in tough, uneven ground. The 200mm bore paired with a 1500mm stroke manages our routine blasting tasks smoothly without any failures. Delivery came in just five days, and the team's email responses clarified all installation doubts. Absolutely no leaks or loss of pressure, plus it has slashed our mast adjustment periods significantly, making daily ops much easier.”

---

Liam Thompson, Site Foreman, Perth, Australia
“This luffing hydraulic cylinder has transformed how we handle our mining machinery hydraulic cylinder needs on site. Running it for 18 months now, the 32 MPa pressure capacity pushes through dense ore layers effortlessly. What stands out is the minimal upkeep required, thanks to its solid build. The support crew provided a detailed integration manual, and their follow-up calls ensured everything ran without hitches. Definitely a worthwhile addition to our fleet.”

---

Sophie Laurent, Equipment Technician, Toronto, Canada
“Impressed by the endurance of this hydraulic cylinder for rotary drilling rigs in our cold-weather operations. After 15 months of use, the seals remain intact despite dust and frost exposure, and the stroke fits our setups perfectly. Shipping arrived in under a week, well-protected against transit damage. The after-sales team checked in to confirm functionality, demonstrating real commitment to customer satisfaction in the mining sector.”

---

Diego Morales, Procurement Manager, Santiago, Chile
“Excellent bang for the buck with this mining hydraulic cylinder. It reached us faster than anticipated—in three days flat—and setup was simple with the included guidelines. Operational for 22 months without a single glitch, it handles heavy loads with ease. Logistics were flawless, avoiding any border hold-ups, which is crucial for our time-sensitive copper extraction projects using hydraulic cylinders for mining.”

---

Thabo Nkosi, Operations Supervisor, Johannesburg, South Africa
“The precision in this luffing hydraulic cylinder has ramped up our efficiency on high-vibration platinum sites. With a 160mm rod diameter, it keeps the mast steady like no other we've tried. In service for 13 months, and it's spotless. The service was top-tier; they adjusted specs minorly at no cost, tailoring it to our rotary drilling rigs' demands in mining machinery hydraulic cylinder applications.”

---

Ana Silva, Field Engineer, Belo Horizonte, Brazil
“Sturdy and dependable, this hydraulic luffing cylinder suits our rigs perfectly in humid jungle conditions. No issues after 17 months, especially with its corrosion-proof features. Quick phone assistance during initial fitting was a lifesaver, and the product lives up to its promises in hydraulic cylinders for mining, boosting our iron ore drilling output without extra hassle.”

---

Robert Hayes, Drilling Specialist, Denver, United States
“We've relied on this mining machinery hydraulic cylinder for our rotary setups over the past 19 months, and its 250mm bore option tackles rocky terrains head-on. Maintenance is low-key, with no pressure inconsistencies. Delivery logistics were efficient—four days door-to-door—and the team's proactive outreach on usage tips added real value to our operations.”

---

Ivan Petrov, Mine Coordinator, Moscow, Russia
“In our harsh Siberian climates, this luffing hydraulic cylinder holds strong for coal extraction. Operational for 11 months with a max 1640mm stroke, it adjusts masts flawlessly under extreme cold. Customer service excelled by sending customized diagrams promptly, ensuring seamless integration into our hydraulic cylinder for rotary drilling rigs without any downtime.”

---

Raj Patel, Technical Advisor, Mumbai, India
“This mining hydraulic cylinder delivers consistent results in our bustling quarry sites. After 21 months, the overload safeguards have prevented any mishaps, and its build resists constant dust buildup. Focus on service was evident through detailed email support for specs tweaks, making it a smart pick for enhancing efficiency in hydraulic cylinders for mining across diverse Indian landscapes.”
