Hydraulic Luffing Cylinder for Telescopic Crawler Cranes
Discover durable hydraulic luffing cylinders for telescopic crawler cranes, engineered with up to 32MPa pressure and 4000mm stroke for precise boom adjustments. As a trusted hydraulic cylinders supplier, we deliver high-strength solutions tailored for demanding construction sites, ensuring stability and efficiency in urban and industrial projects.

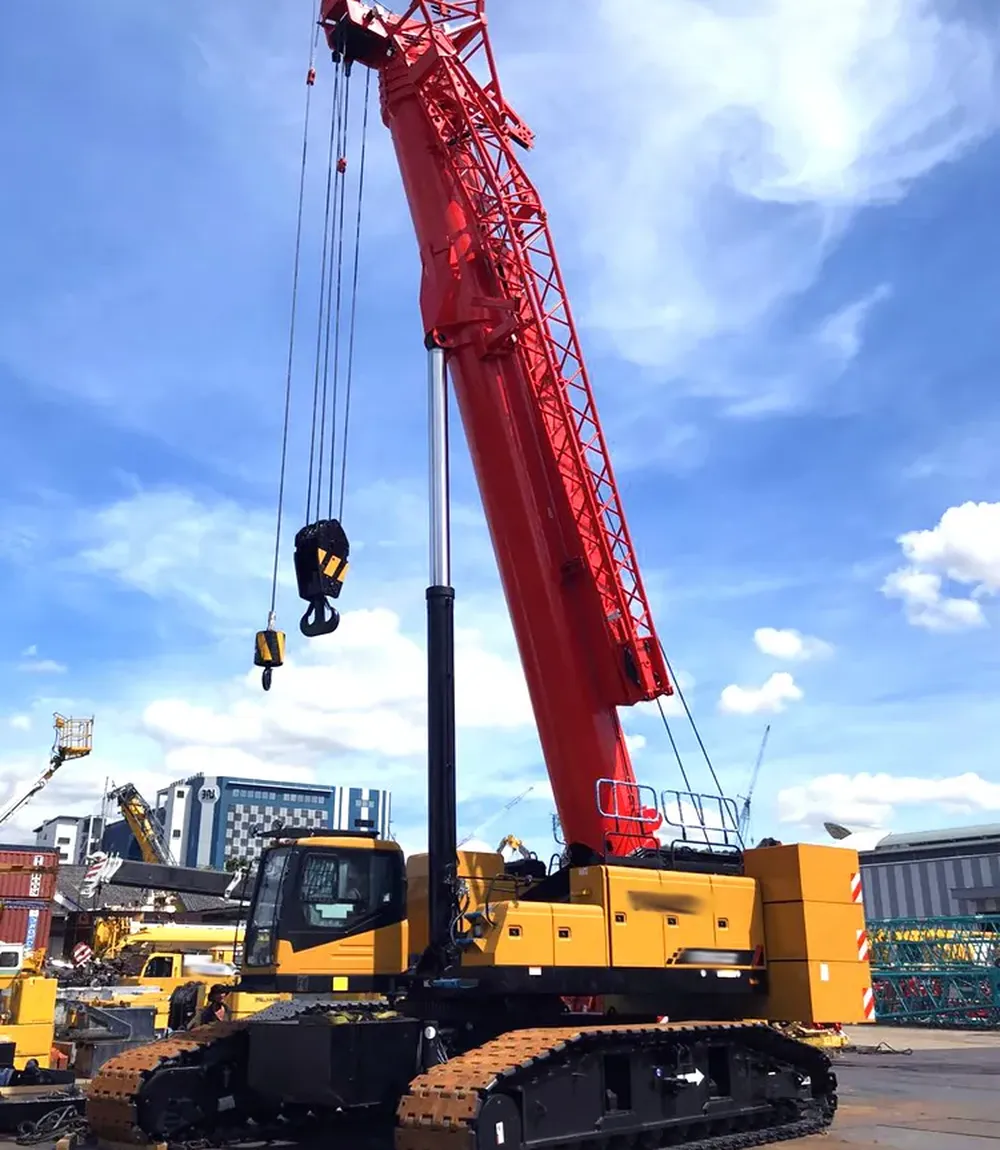

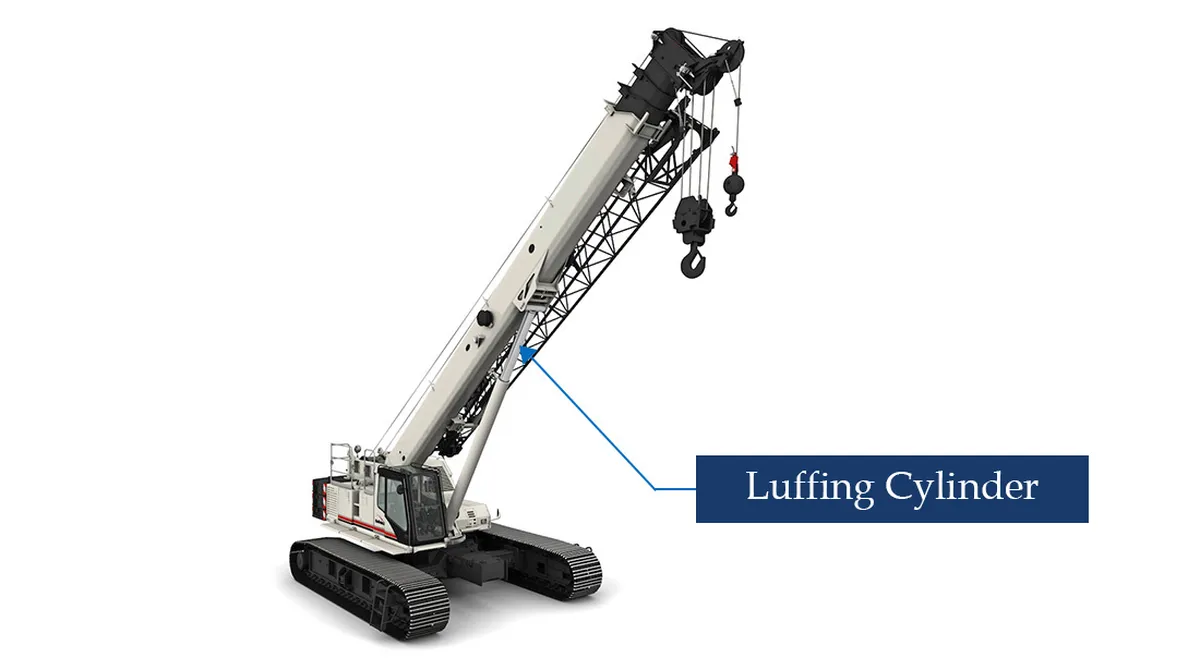

Overview of Hydraulic Luffing Cylinder for Telescopic Crawler Crane
In the demanding world of construction and heavy lifting across Mexico's bustling urban centers like Mexico City and Monterrey, the hydraulic luffing cylinder stands as a cornerstone component for telescopic crawler cranes. This specialized device manages the pivotal angular movements of the crane's boom, allowing operators to raise or lower it with exactitude. Crafted from robust high-strength steel, it converts hydraulic energy into mechanical force, enabling seamless adjustments that are vital for positioning heavy loads in confined spaces or over obstacles. For instance, in Mexico's growing infrastructure projects, such as bridge constructions along the Gulf Coast or high-rise developments in Guadalajara, these cylinders ensure operational safety by maintaining balance on uneven terrain.
The luffing hydraulic cylinder integrates advanced sealing technologies to prevent leaks under high pressures, supporting loads that can exceed several tons. In practical terms, this means crane operators in Mexico's mining regions, such as Sonora, can rely on consistent performance during extended shifts. The cylinder's compatibility with various crane models makes it adaptable for both new installations and retrofits, addressing the diverse needs of Mexican contractors who often work with imported equipment. By facilitating smooth boom articulation, it not only boosts efficiency but also minimizes wear on other crane parts, leading to lower long-term costs. This component's role extends to safety protocols, where precise control helps avoid accidents in crowded job sites, aligning with Mexico's stringent labor regulations.

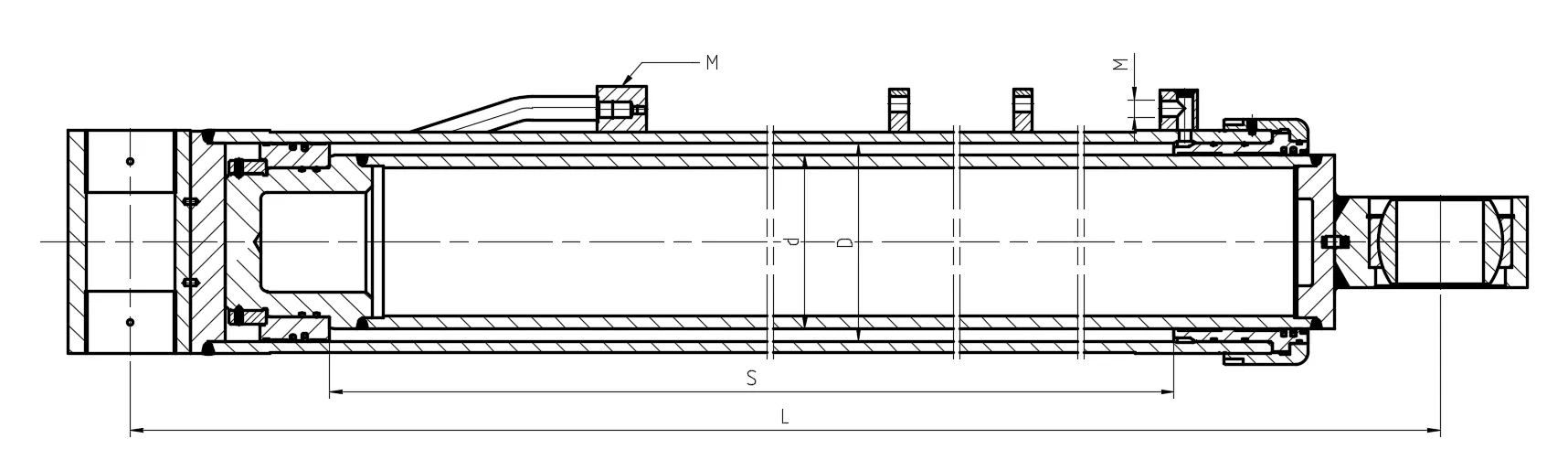

Hydraulic Luffing Cylinder Dimensions
Technical Specifications
If your project requires custom specifications beyond these standard ranges, such as adjusted stroke lengths or enhanced pressure ratings, feel free to contact our team at Mexico Ever-Power for tailored solutions that meet your exact needs.
| Hydraulic Luffing Cylinder |
|||||||
| Drawing number | Bore diameter (D) | Rod diameter (d) | Stroke (S) | Installation distance (L) | Working pressure | Interface dimensions (M) | Weight |
| ZXSTC1000S.2.5-00 | Φ320 | Φ280 | 4000 | 4750 | 32MPa | 2-M27*2;4-G1/4 | 1522kg |
| Product Name: | Luffing Hydraulic Cylinder |
| Function: | Control the movement of the main arm. |
| Cylinder diameter: | 220mm-320mm |
| Rod diameter: | 180mm-280mm |
| Travel: | 2000mm-4000mm |
| Maximum pressure: | 32MPa |
| Maximum thrust: | 2574KN |
Features of Luffing Hydraulic Cylinder for Crawler Cranes
Core Structural Features
The hydraulic luffing cylinder boasts a reinforced barrel made from high-tensile steel alloys, capable of enduring pressures up to 32MPa without deformation. This feature is particularly beneficial in Mexico's coastal areas, where salt exposure can accelerate corrosion—our cylinders include protective coatings to combat this. The piston rod, often chrome-plated for smoothness, ensures minimal friction during extension and retraction, extending the component's lifespan in repetitive cycles common to crane operations.
Advanced Sealing and Safety Elements
Incorporating multi-layer seals from premium materials like polyurethane and nitrile rubber, these cylinders prevent fluid leaks even under extreme loads. Safety valves integrated into the design automatically relieve excess pressure, a critical safeguard during overload scenarios in busy Mexican ports like Veracruz. This not only protects the equipment but also aligns with local safety standards, reducing the risk of hydraulic failures that could halt projects.
Customization and Compatibility Options
Our luffing hydraulic cylinders offer modular interfaces, such as threaded ports and flange mounts, making them compatible with a range of telescopic crawler cranes from various manufacturers. For Mexican users dealing with mixed fleets, this flexibility means easier integration without major modifications. Options for extended strokes up to 4000mm cater to cranes needing greater reach in urban high-rises or rural mining sites.
Crane Hydraulic Luffing Cylinder Advantages
Operational Efficiency Gains
One key advantage lies in the cylinder's ability to provide rapid yet controlled boom adjustments, cutting down setup times on job sites. In Mexico's fast-paced infrastructure boom, this translates to completing lifts faster, potentially increasing daily output by 20-30% based on field reports. The double-acting mechanism allows for bidirectional force, offering finer control than single-acting alternatives, which is invaluable for delicate operations like placing steel beams in skyscraper frames.
Cost-Effective Longevity
Built with wear-resistant components, these hydraulic cylinders for cranes reduce the frequency of replacements, lowering overall maintenance costs. Mexican contractors in regions like Baja California, where equipment transport is logistically challenging, appreciate the extended service intervals—often exceeding 5,000 hours before major servicing. This durability stems from precision machining that minimizes internal wear, ensuring consistent performance over years.
Safety and Stability Benefits
Enhanced stability during luffing motions prevents sway in heavy winds common to Mexico's Pacific coast, safeguarding workers and loads. The cylinder's high thrust capacity of up to 2574KN supports heavier payloads without compromising balance, a boon for mining operations in Chihuahua where oversized equipment is standard. Additionally, integrated sensors in advanced models provide real-time feedback, allowing operators to monitor pressure and avoid mishaps.
From an environmental standpoint, efficient hydraulic systems use less fluid and energy, aligning with Mexico's sustainability initiatives in construction. Users note reduced fuel consumption in crane engines due to optimized power delivery, contributing to greener practices without sacrificing power.
Working Principle of Hydraulic Cylinder for Crane
This fundamental mechanism relies on a sealed system where the incompressible nature of hydraulic fluid ensures uniform force distribution, allowing for powerful yet controlled movements essential in heavy-duty crane applications. Beyond the basic extension and retraction, the cylinder incorporates precision-engineered valves that modulate flow rates, enabling operators to fine-tune speed and force based on load requirements. For example, in telescopic crawler cranes used for urban infrastructure projects, such as erecting steel frameworks in high-rise buildings, this control prevents abrupt shifts that could compromise stability on uneven ground.
Key components include the piston, which divides the cylinder into two chambers, and the rod seals that maintain integrity under repeated cycles. The pump, often driven by the crane's diesel engine, generates the necessary pressure—typically ranging from 20 to 35 MPa in robust models—to overcome gravitational forces on booms extending up to 50 meters. During operation, sensors monitor internal pressure and position, feeding data back to the control cabin for real-time adjustments, which enhances precision in tasks like placing precast concrete elements in bridge construction.
Efficiency plays a critical role, as optimized fluid pathways minimize energy loss, reducing fuel consumption by up to 15% in prolonged use. In practical settings, like mining operations where cranes handle oversized loads, the double-acting design—where fluid powers both directions—ensures reliable performance even in dusty or humid conditions.
Application Areas

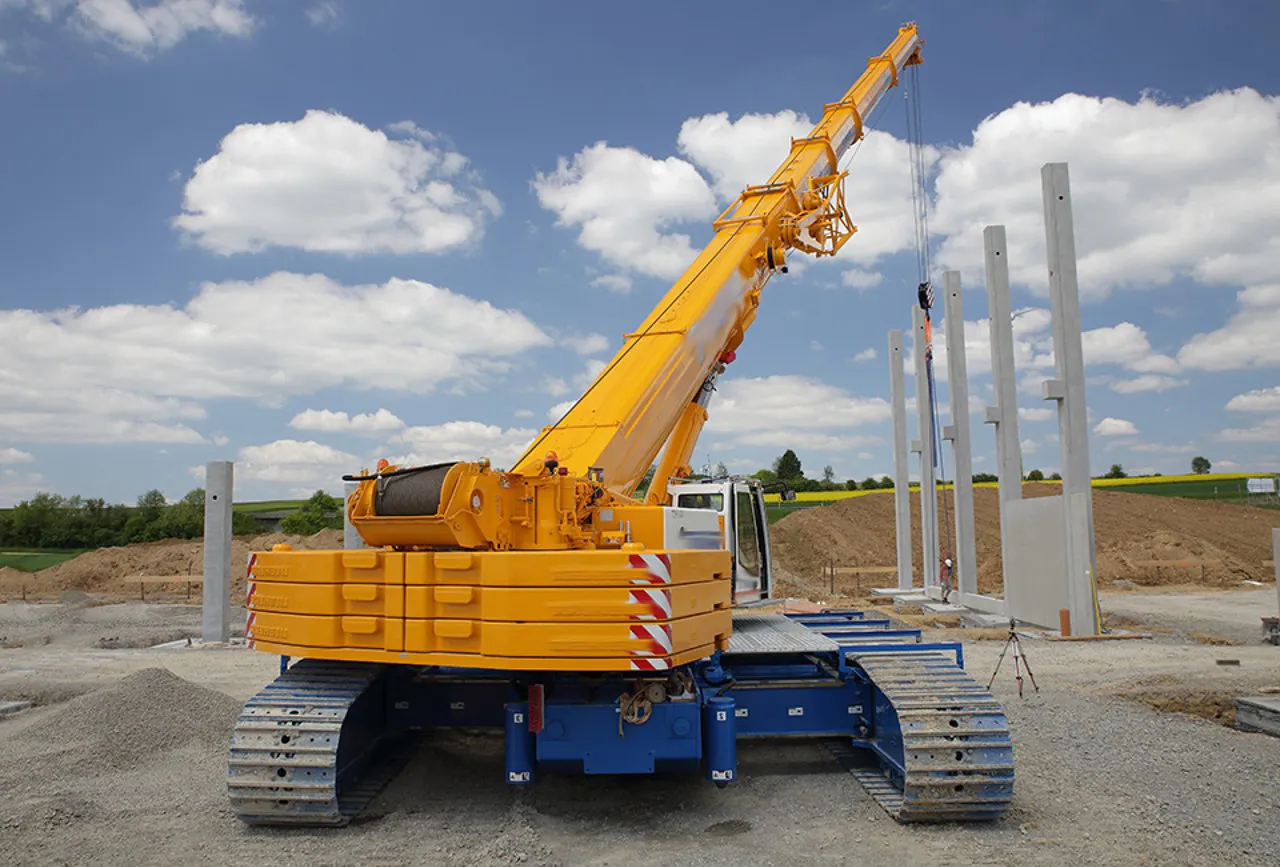

1. Construction and Urban Development
In Mexico's dynamic construction landscape, hydraulic luffing cylinders play a pivotal role in telescopic crawler cranes deployed for erecting skyscrapers in urban hubs such as Puebla and Mexico City. These cylinders facilitate accurate boom positioning, allowing cranes to maneuver through narrow streets and elevate construction materials to elevated levels with minimal interference to surrounding activities. Their capacity to maintain equilibrium on compacted city soils enhances operational safety, particularly during foundation work or facade installations where precision is paramount to avoid structural misalignments.
2. Mining and Resource Extraction
The mining sector in Mexico, especially in resource-rich areas like Zacatecas and Sonora, depends heavily on crane hydraulic cylinders to manage substantial ore extraction tasks. Integrated into crawler cranes, these cylinders enable boom extensions into deep excavations, balancing heavy payloads on irregular rocky terrains without compromising crane integrity. Resistance to abrasive particles and mechanical shocks ensures uninterrupted performance during extended mining cycles, supporting efficient material transport from pit bottoms to surface processing facilities.
3. Port and Maritime Operations
At key Mexican ports including Manzanillo and Veracruz, hydraulic luffing cylinders enhance cargo operations by enabling cranes to extend booms over ship hulls for seamless loading and unloading. Their design incorporates materials that withstand saline corrosion and high humidity, maintaining functionality in coastal settings where exposure to seawater is constant. This reliability aids in handling diverse shipments, from bulk commodities to containerized goods, optimizing turnaround times for vessels and bolstering trade efficiency.
4. Infrastructure and Energy Projects
For infrastructure developments across Mexico, such as wind energy farms in Oaxaca or petroleum platforms in the Gulf of Mexico, luffing cylinders provide essential adjustability in crawler cranes used for component assembly at significant heights. They adapt to dynamic conditions like ocean swells or remote rugged landscapes, ensuring stable boom control during the placement of turbine blades or pipeline sections. This adaptability also extends to highway expansions in isolated regions, where the cylinders' robust construction supports portable crane setups for bridge beam installations and earthmoving activities.
Why Choose Mexico Ever-Power's Hydraulic Cylinders?
Selecting Mexico Ever-Power as your supplier for hydraulic cylinders, particularly those designed for demanding applications like luffing in telescopic crawler cranes, offers distinct benefits rooted in a legacy of engineering excellence and market-specific adaptations. Established in 1978, our company has evolved into a high-tech enterprise dedicated to producing mid- to high-end hydraulic components, with a strong emphasis on cylinders that meet the rigorous needs of Mexico's diverse industries, from urban construction in bustling centers like Mexico City to resource extraction in remote mining areas such as Sonora. Our expansive facility, spanning 103 acres and supported by over 400 skilled professionals, includes a dedicated research institute and advanced testing laboratories, enabling us to develop products with independent intellectual property rights. This infrastructure ensures that each hydraulic luffing cylinder undergoes comprehensive quality checks, adhering to international standards and incorporating innovations that enhance performance under high pressures and extended strokes.
Our product expertise extends across a broad spectrum, including engineering machinery hydraulic cylinders tailored for telescopic crawler cranes, where precision in boom adjustments is critical for safety and efficiency. These cylinders are engineered with robust materials to withstand environmental challenges prevalent in Mexico, such as coastal humidity in ports like Veracruz or dusty conditions in arid mining sites. We prioritize durability, achieving thrust capacities up to 2574KN while maintaining compact designs that facilitate easy integration into existing crane fleets. Certifications under a stringent quality assurance system further validate our commitment to reliability, minimizing downtime and operational risks for clients in infrastructure projects, including renewable energy setups in Oaxaca or offshore operations in the Gulf.
Customer service forms the cornerstone of our approach, with responsive teams providing tailored solutions, from custom modifications to rapid prototyping completed in as little as two weeks. Our global reach, exporting to over 53 countries, underscores a proven track record of delivering cost-effective alternatives—often at 30% lower costs than comparable imports—without sacrificing quality. By choosing Mexico Ever-Power, you gain access to hydraulic cylinders that not only comply with local regulations but also incorporate eco-friendly features, like optimized fluid systems that reduce energy consumption, aligning with Mexico's sustainability goals in construction and energy sectors.
 |
 |
 |
 |
FAQs
A: In telescopic crawler cranes, a hydraulic luffing cylinder manages the boom's inclination, facilitating upward lifts and downward descents to position loads accurately across varied surfaces. This functionality proves vital in scenarios demanding flexibility, such as maneuvering heavy materials in confined construction zones or over irregular landscapes typical in Mexican infrastructure developments, where maintaining crane stability directly impacts project timelines and worker safety.
Q: How does a luffing hydraulic cylinder differ from a standard hydraulic cylinder for crane? A luffing hydraulic cylinder focuses A: on rotational adjustments to alter boom angles with dual-direction force application, contrasting with standard crane cylinders that primarily deliver straight-line extension for lifting tasks. This specialized design allows for nuanced control in angular movements, essential for cranes operating in tight urban environments or on sloped mining sites in Mexico, where precise boom pivoting prevents load swings and enhances overall operational control compared to linear-only mechanisms.
Q: What maintenance is required for a hydraulic cylinder for crane to ensure longevity?
A: To prolong the service life of a hydraulic cylinder for cranes, conduct weekly visual examinations for seal integrity and rod surface damage, alongside fluid replacements at 1,000-hour intervals using compatible oils. In Mexico's moisture-heavy regions like the Yucatan Peninsula, incorporate monthly exterior cleanings with non-abrasive agents to deter rust accumulation, and annually test pressure levels to catch early wear, thereby avoiding costly breakdowns during intensive use in construction or port activities.
Q: Can the hydraulic luffing cylinder be customized for specific crane models in Mexico?
A: Customization of hydraulic luffing cylinders is readily available, with options to modify stroke lengths, mounting configurations, and interface fittings to align with diverse crane models prevalent in Mexico's market. This tailored approach ensures seamless integration with both domestic and imported equipment, addressing unique territorial demands such as enhanced corrosion protection for coastal applications or reinforced structures for high-altitude projects in the Sierra Madre, supported by our engineering team's rapid prototyping capabilities.
Q: How to install a hydraulic luffing cylinder on a telescopic crawler crane?
A: Installation begins by verifying alignment of the cylinder's base with the crane's pivot brackets, followed by fastening with bolts tightened to specified torque values around 500-700Nm for secure attachment. Proceed to link hydraulic hoses to designated ports, purge air from the system to eliminate bubbles, and perform incremental pressure tests up to full capacity, ensuring no leaks occur— a process particularly crucial in Mexico's variable terrains to guarantee stable performance from the outset.
Q: What are common issues with hydraulic cylinders for cranes and how to fix them?
A: Frequent problems include fluid seepage due to deteriorated seals, which can be remedied by disassembling the unit and installing new seals matched to the cylinder's specifications, or reduced pressure from polluted oil, addressed through thorough filtration and complete fluid exchanges. In Mexican operations, vibrations from rocky sites may loosen fittings, so regular torque checks prevent this; additionally, overheating in warm climates like Baja California requires verifying cooling systems and using heat-resistant fluids for resolution.
Q: How long does a luffing hydraulic cylinder typically last?
A: Under standard conditions with consistent upkeep, a luffing hydraulic cylinder can endure 5 to 10 years, influenced by factors like load frequency and exposure intensity in high-throughput environments such as Mexican ports or construction hubs. Extending this lifespan involves adhering to service schedules, including seal inspections every six months, which has shown to push durability closer to the upper range in real-world applications across varied Mexican industrial landscapes.
Q: What safety features are in hydraulic cylinders for cranes?
A: Safety elements in hydraulic cylinders for cranes encompass built-in pressure-relief mechanisms that automatically discharge surplus buildup to avert ruptures, alongside position sensors that relay data for immediate operational tweaks. These features, combined with overload safeguards, minimize risks during lifts, aligning with Mexico's regulatory frameworks for worker protection in sectors like energy projects, where real-time monitoring helps prevent accidents from hydraulic imbalances or unexpected load shifts.
Q: Can I replace an existing hydraulic cylinder for crane with your model?
A: Our hydraulic cylinder models serve as direct substitutes for many existing setups, incorporating enhanced materials and refined tolerances that often surpass original specifications for improved efficiency. Compatibility assessments ensure a smooth swap, with adaptations available for older cranes common in Mexico's rental markets, providing upgrades like better thrust handling without necessitating extensive modifications to the crane's framework or hydraulic circuitry.
