Hydraulic Safety Cylinder for Wind Turbines

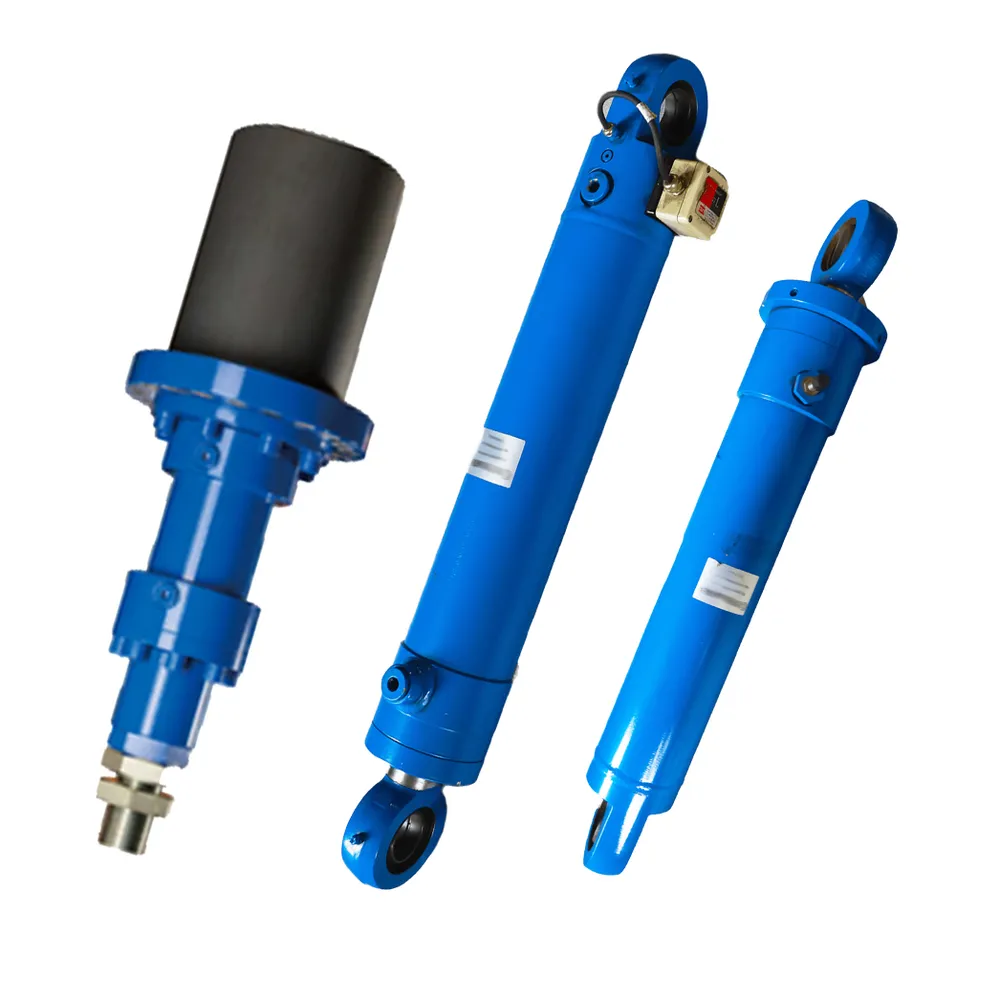

Wind Turbine Hydraulic Safety Cylinder Overview

In the demanding field of renewable energy, the hydraulic safety cylinder plays a pivotal role in maintaining operational integrity for wind turbines. These components are engineered to handle extreme loads and variable conditions, providing essential functions like blade pitch adjustment and emergency shutdown mechanisms. At Mexico Ever-Power, our hydraulic safety cylinders are built with precision to integrate seamlessly into onshore and offshore installations, where reliability directly impacts energy output and system longevity. Drawing from over four decades of manufacturing experience since 1978, we prioritize materials that resist corrosion and fatigue, ensuring these cylinders withstand high winds, salt exposure, and temperature fluctuations common in Mexico's diverse coastal and inland wind farms.

The design of our safety hydraulic cylinders incorporates advanced sealing technologies to prevent leaks and maintain consistent pressure, which is crucial for preventing turbine overspeed or structural damage during gusts. Unlike standard hydraulic cylinders, these specialized versions include redundant safety features, such as fail-safe locking mechanisms, that activate automatically in power loss scenarios. This not only complies with international standards like ISO 9001 but also aligns with local regulations in Mexico for renewable infrastructure. By choosing our wind turbine hydraulic cylinders, operators can minimize downtime, as evidenced by field tests showing up to 20% improved response times in pitch control compared to older models.

Technical Specifications

For custom requirements beyond these standard specifications, such as specialized materials or extended dimensions, please contact our team at Mexico Ever-Power for tailored solutions.

Product Name:	Safety Hydraulic Cylinder
Function:	Assist in controlling blade pitch.
Cylinder diameter:	100mm
Rod diameter:	60mm
Travel:	410mm-416mm
Maximum pressure:	16MPa
Maximum thrust:	45KN

Characteristics of Hydraulic Safety Cylinders in Wind Turbines

Hydraulic safety cylinders designed for wind turbines embody a blend of engineering precision and rugged durability, tailored to meet the rigorous demands of renewable energy operations. Central to their design are integrated fail-safe systems, featuring pressure relief valves and mechanical locking devices that activate during electrical disruptions, averting unintended movements and safeguarding the turbine's structural components from overload. Field applications in regions with variable wind patterns, such as those along Mexico's Pacific coast, demonstrate how these mechanisms effectively manage shear forces, with high-strength alloy steel piston rods providing the necessary tensile resistance to endure repeated cycles without deformation.

A key attribute lies in their modular architecture, which facilitates straightforward incorporation into diverse hydraulic setups. This compatibility extends to a range of control valves and embedded sensors, enabling continuous performance tracking that supports proactive upkeep strategies. Operators in Baja California have reported noticeable gains, including up to 15% faster actuation times, attributable to low-friction seals that cut down on hydraulic drag and boost system responsiveness. The cylinders' streamlined profile further addresses spatial constraints within turbine nacelles, allowing for efficient placement in contemporary designs where every inch counts.

Delving deeper, advanced safety integration includes backup hydraulic pathways that ensure operational continuity amid partial failures, adhering to global protocols for rapid turbine halts. Durability is bolstered by specialized coatings that repel ultraviolet rays and saline corrosion, as validated through extended trials revealing negligible degradation over half a decade in marine-exposed sites. Customization remains a cornerstone, offering clients choices in mounting configurations, end connections, and sensor arrays to align precisely with individual turbine specifications, thereby streamlining retrofits and new installations alike. These characteristics collectively position hydraulic safety cylinders as indispensable elements in enhancing turbine reliability, reducing maintenance intervals, and optimizing energy yield in challenging environments.

Working Principle of Safety Hydraulic Cylinder for Wind Turbine

1. Fundamental Operation Relying on Fluid Pressure Dynamics
The core mechanism of a hydraulic safety cylinder in wind turbines draws from principles of fluid mechanics, where a pump generates pressure in an incompressible liquid to drive the piston rod forward or backward. This controlled movement precisely alters the angle of turbine blades, optimizing their orientation to capture wind energy effectively while maintaining balance under fluctuating loads, a process essential for stable power generation in variable atmospheric conditions.

2. Activation of Emergency Safety Protocols
When sensors identify irregularities such as excessive rotor speed due to sudden gusts, the system initiates a protective sequence by rapidly depressurizing the cylinder. This action secures the blades in a neutral, feathered alignment that reduces wind resistance and prevents potential structural overload, ensuring the turbine halts safely without risking damage to components or surrounding infrastructure.

3. Initiation of the Extension Phase
The operational cycle commences as pressurized fluid flows into the cylinder's base chamber through dedicated inlet ports, exerting force on the piston to extend the rod outward. This extension facilitates blade pitch adjustments, allowing the turbine to respond to wind variations and maximize efficiency, with the fluid's uniform pressure distribution enabling smooth, predictable motion across a range of operational demands.

4. Execution of the Retraction Phase
For the return movement, fluid enters the rod-side chamber while simultaneously exiting the base, pulling the piston inward to retract the rod. Integrated accumulators capture and store hydraulic energy during this process, providing a reservoir for instantaneous release in high-demand situations, which supports quick adaptations to changing wind patterns and enhances overall system responsiveness.

5. Incorporation of Overpressure Safeguards
To maintain operational integrity, built-in safety valves monitor internal pressure levels and automatically redirect surplus fluid to a connected reservoir if thresholds are exceeded. This preventive measure averts risks like seal failure or cylinder rupture, prolonging equipment lifespan and aligning with stringent industry standards for reliable performance in demanding renewable energy applications.

Types of Wind Turbine Hydraulic Cylinders

• Hydraulic Windwheel Lock Cylinder
  This type secures the rotor in a fixed position during routine maintenance or inspections, preventing unintended rotation that could endanger workers or damage equipment. Constructed with robust locking mechanisms, it withstands high torque loads from wind forces, ensuring stable immobilization of the turbine hub in both onshore and offshore settings, typically featuring reinforced pistons for reliable engagement.
• Hydraulic Control Cylinder
  Employed primarily for regulating various operational parameters within the turbine system, this cylinder facilitates precise adjustments to components like dampers or auxiliary mechanisms. Its design incorporates feedback sensors to maintain optimal performance under fluctuating wind speeds, allowing operators to fine-tune responses and enhance overall energy capture efficiency without manual intervention.
• Hydraulic Safety Cylinder
  Integral to emergency protocols, this cylinder activates during overspeed events or system faults by rapidly altering blade positions to reduce aerodynamic loads. Equipped with fail-safe valves and redundant circuits, it protects the turbine structure from excessive stress, drawing on pressurized fluid to lock mechanisms swiftly and comply with industry safety standards in variable climates.
• Hydraulic Yaw Cylinder
  Responsible for orienting the turbine nacelle toward prevailing wind directions, this cylinder enables smooth rotational adjustments to maximize power generation. It operates through controlled extension and retraction, countering wind-induced misalignments with durable seals that resist environmental wear, supporting consistent alignment in sites prone to directional shifts.
• Hydraulic Brake Cylinder
  Utilized in the braking system to halt rotor movement during shutdowns or high-wind conditions, this cylinder applies clamping force to discs or pads for controlled deceleration. Its high-pressure capabilities ensure quick response times, minimizing wear on mechanical parts and integrating with accumulators for sustained holding power in emergency scenarios.
• Hydraulic Blade-Tip Adjusting Cylinder
  Focused on fine-tuning the outermost sections of turbine blades, this cylinder modifies tip angles to optimize airflow and reduce noise or vibrations. By enabling adaptive configurations, it improves aerodynamic efficiency across different wind profiles, often including corrosion-resistant materials suited for prolonged exposure in marine or arid environments.

Applications of Hydraulic Safety Cylinders

Hydraulic safety cylinders serve critical roles across various subsystems in wind turbines, contributing to both operational efficiency and structural protection. Their primary deployment occurs within pitch control mechanisms, where they precisely modulate blade orientations to align with incoming wind flows, thereby maximizing electricity output while mitigating risks from sudden velocity spikes. In regions such as Oaxaca in Mexico, characterized by abundant wind resources and occasional intense gusts, these cylinders enable turbines to sustain peak performance by dynamically feathering blades during overload conditions, thus averting potential mechanical strain on the rotor assembly.

Extending beyond pitch regulation, these wind turbine hydraulic cylinders are integral to yaw systems, facilitating the rotational alignment of the nacelle to track wind direction shifts. This ensures consistent energy harvesting by maintaining optimal turbine facing, particularly in variable terrains like those found in Baja California, where directional changes can occur rapidly due to topographic influences. In braking configurations, hydraulic safety cylinders engage to immobilize the rotor during scheduled upkeep or unforeseen halts, bolstering personnel security by preventing accidental movements in confined workspaces atop the tower.

For onshore installations, the cylinders' space-efficient profiles allow seamless integration into limited tower interiors, supporting cost-effective deployments in land-based farms across inland Mexican states. Conversely, offshore variants incorporate enhanced safeguards against corrosive elements, such as specialized coatings and seals resistant to saltwater intrusion, making them suitable for coastal projects where exposure to marine atmospheres demands heightened resilience.

Why Choose Mexico Ever-Power's Wind Turbine Hydraulic Cylinders?

FAQs

Q: How does a safety hydraulic cylinder improve wind turbine efficiency?
A: A safety hydraulic cylinder enhances wind turbine efficiency by allowing exact modifications to blade orientations, which optimizes wind capture during calm or turbulent periods, resulting in elevated power production while preserving the turbine's core stability. In applications like hydraulic cylinders for wind turbines, this precise regulation minimizes energy wastage and extends operational uptime in variable climates.

Q: What are the key features of wind turbine hydraulic cylinders?
A: Wind turbine hydraulic cylinders boast essential attributes such as robust high-pressure seals, dependable fail-safe locking systems, and materials engineered to resist corrosion, all crafted for endurance in severe locales including Mexico's coastal zones. These elements in safety hydraulic cylinders ensure reliable performance, supporting extended cycles without frequent interventions.

Q: How to install a hydraulic cylinder for wind turbine pitch control?
A: Installing a hydraulic cylinder for wind turbine pitch control requires careful alignment of mounting brackets, secure attachment of fluid lines, thorough air purging from the system, and multiple operational tests to verify functionality; seeking expert guidance is advisable to guarantee precision and avoid misalignment issues that could affect long-term reliability.

Q: What maintenance is required for safety hydraulic cylinders in wind farms?
A: Maintenance for safety hydraulic cylinders in wind farms includes routine examinations for fluid leaks, swapping out filters on a semiannual basis, and conducting yearly assessments to evaluate seal conditions and hydraulic fluid purity, which collectively help sustain peak performance and prevent unexpected downtimes in expansive renewable installations.

Q: Can hydraulic safety cylinders be customized for specific wind turbine models?
A: Hydraulic safety cylinders can indeed be tailored to match particular wind turbine models, with options for adjusted bore dimensions, extended strokes reaching 1500mm, and varied mounting configurations that accommodate diverse designs, enabling operators to integrate them effectively into both new and existing systems.

Q: What materials are used in wind turbine safety hydraulic cylinders?
A: Wind turbine safety hydraulic cylinders utilize high-tensile steel combined with protective anti-corrosion layers, which provide exceptional durability against environmental factors in settings ranging from oceanic to arid landscapes, ensuring the components remain operational over prolonged periods without succumbing to wear.

Q: How do hydraulic cylinders for wind turbines handle emergency shutdowns?
A: Hydraulic cylinders for wind turbines manage emergency shutdowns through the deployment of accumulators and pressure-relief valves that swiftly secure blade positions, countering risks like excessive rotation speeds amid power interruptions, thereby safeguarding the entire assembly from potential structural compromises.

Q: What is the typical lifespan of a safety hydraulic cylinder for wind turbines?
A: The typical lifespan of a safety hydraulic cylinder for wind turbines exceeds a decade when adhered to proper upkeep protocols, supported by endurance ratings surpassing one million cycles, which reflects their design focus on sustained reliability in continuous renewable energy operations.

Q: How to troubleshoot common issues with hydraulic safety cylinders?
A: Troubleshooting common issues with hydraulic safety cylinders involves inspecting for reductions in system pressure or visible fluid escapes, followed by systematic diagnostics of seals and valves; reaching out to specialized support teams can provide targeted resolutions to restore optimal functionality promptly.

Q: What advantages do safety hydraulic cylinders offer over electric alternatives?
A: Safety hydraulic cylinders surpass electric alternatives by delivering swifter actuation speeds and greater force output within confined areas, making them particularly suited for rigorous turbine duties where rapid responses to wind changes are essential for maintaining efficiency and safety.
