Hydraulic Steering Cylinder for Mast Type Aerial Work Platforms
In the demanding field of elevated operations, the hydraulic steering cylinder plays a pivotal role in ensuring safe and efficient navigation for mast-type aerial work platforms. These components are specifically designed to translate hydraulic pressure into controlled linear motion, enabling operators to direct the platform with accuracy even in confined areas.

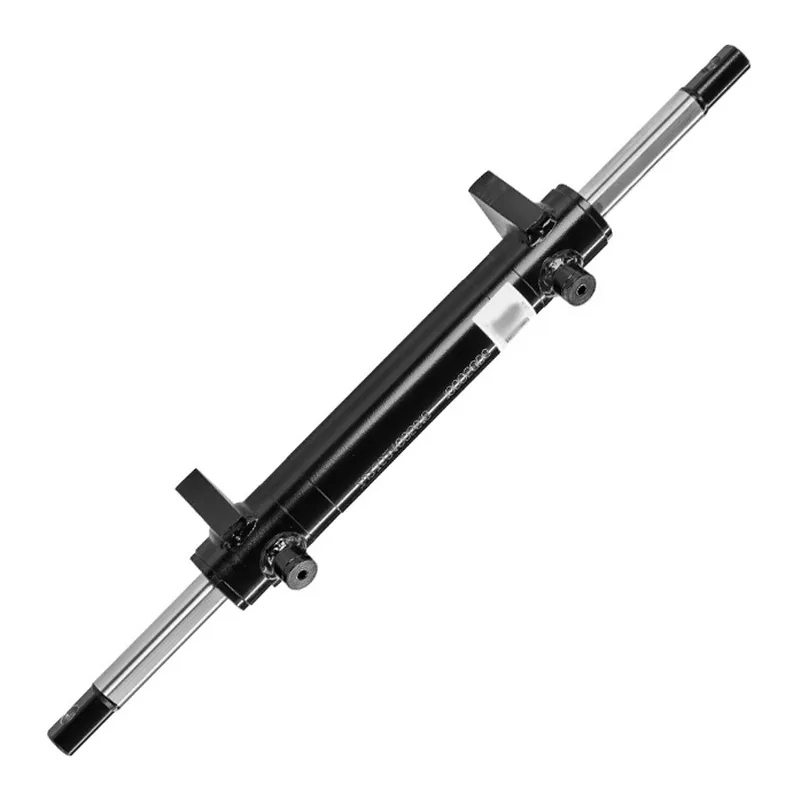

Mast Type Aerial Work Platform Hydraulic Steering Cylinder Overview
In the demanding field of elevated operations, the hydraulic steering cylinder plays a pivotal role in ensuring safe and efficient navigation for mast-type aerial work platforms. These components are specifically designed to translate hydraulic pressure into controlled linear motion, enabling operators to direct the platform with accuracy even in confined areas. Built from high-strength materials such as steel, they incorporate a piston, rod, and advanced sealing systems to handle the rigors of daily use in industries like construction and maintenance. The steering hydraulic cylinder not only supports the platform's directional adjustments but also contributes to overall stability, reducing the risk of accidents during maneuvers at height.
Beyond basic functionality, these cylinders are tailored for integration into mast-type systems, where space constraints and load demands require compact yet powerful designs. For instance, models with cylinder diameters ranging from 40mm to 50mm and rod diameters of 20mm to 30mm offer versatility across various platform sizes. Operators benefit from responsive steering that adapts to dynamic environments, such as urban job sites or indoor facilities.

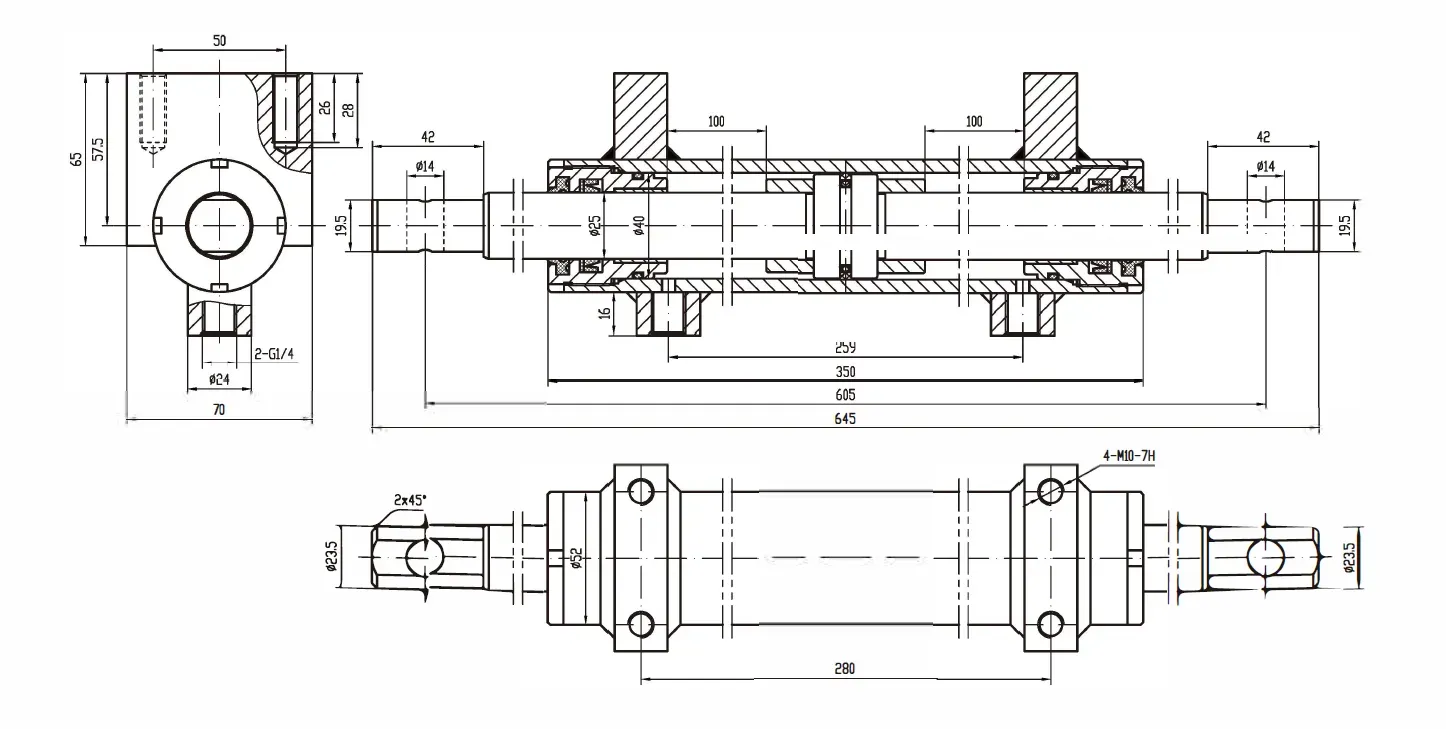

Hydraulic Steering Cylinder Dimensions
Technical Specifications
| Hydraulic Steering Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| CMNYY11112007 | Φ40xΦ25x100x2 | 10MPa | 15MPa | 100X2 | 645 | 7kg |
| Product Name: | Steering Hydraulic Cylinder |
| Function: | Implement steering axle action and tire steering. |
| Cylinder diameter: | 40mm-50mm |
| Rod diameter: | 20mm-30mm |
| Travel: | 140mm-250mm |
| Maximum pressure: | 20MPa |
| Maximum thrust: | 39KN |
Features of Hydraulic Steering Cylinders for Aerial Platforms
The features of a hydraulic steering cylinder define its suitability for mast-type aerial work platforms, where precision and durability are non-negotiable. These cylinders are engineered with a focus on seamless integration, providing operators with the control needed for intricate tasks. For example, the double-acting design allows for bidirectional force application, which is crucial for quick adjustments in direction without compromising stability. Materials selected for the cylinder body and rod emphasize resistance to fatigue, ensuring consistent performance over thousands of cycles in real-world applications.
Further enhancing their appeal, these steering hydraulic cylinders incorporate advanced sealing mechanisms that minimize fluid loss, even under high-pressure conditions up to 20MPa. This not only extends the service life but also reduces downtime associated with leaks. In practical terms, users in Mexico's construction industry have reported improved maneuverability in urban settings, where narrow aisles and obstacles demand responsive steering. The compact footprint, often with installation distances around 645mm, facilitates easy retrofitting into existing platforms, making upgrades straightforward and cost-effective.
- Precision-engineered piston for smooth linear motion.
- High-tensile steel construction to withstand dynamic loads.
- Integrated pressure relief valves for added safety.
Benefits of Using Steering Hydraulic Cylinders in AWPs
Adopting a high-quality steering hydraulic cylinder offers distinct advantages that directly impact productivity and safety on mast-type aerial work platforms. One primary benefit is the enhanced control it provides, allowing operators to execute precise turns with minimal effort, which is essential in environments with limited space. This reduces operator fatigue and lowers the likelihood of errors, contributing to fewer incidents on job sites. In Mexico's expanding infrastructure projects, such cylinders have proven instrumental in maintaining workflow efficiency during prolonged shifts, where crews often work long hours navigating crowded urban zones or uneven terrain.
Another advantage lies in their robustness, which translates to lower long-term costs through reduced replacement frequency. With maximum thrust capabilities of 39KN, these cylinders handle heavy-duty steering without strain, extending the overall lifespan of the platform. Users often note the economic savings from decreased maintenance intervals, as the design minimizes wear on connected components like axles and tires. This reliability is backed by rigorous testing, ensuring compliance with industry standards that prioritize worker protection, including those aligned with Mexican safety regulations for elevated equipment.
Beyond durability, these cylinders support better energy use by optimizing hydraulic flow, which helps platforms run longer on the same fuel or power supply—a practical edge in remote job sites across regions like Baja California or the Yucatán Peninsula. They also adapt well to different platform setups, fitting both compact indoor models and larger outdoor units without major modifications. This flexibility means fleets can upgrade older equipment affordably, avoiding full replacements. In practice, operators report steadier handling during wind gusts or on slopes, which builds confidence and cuts hesitation time.
Hydraulic Cylinder for Mast Type Aerial Work Platforms
- Hydraulic Steering Cylinder
This component facilitates precise directional control in mast-type aerial work platforms by converting hydraulic pressure into linear motion for axle adjustments. Operators benefit from responsive handling in confined spaces, such as urban construction sites, where quick maneuvers prevent collisions and enhance overall site safety. With robust construction using high-grade steel, it withstands pressures up to 20MPa, ensuring reliable performance during extended operations in Mexico's diverse industrial landscapes, from warehouses to high-rise maintenance tasks. - Hydraulic Lifting Cylinder
Designed for vertical elevation in mast-type platforms, this cylinder extends and retracts to raise or lower the work area with smooth, controlled motion. It supports heavy loads through reinforced pistons and seals that minimize fluid leaks, promoting stability at heights exceeding 10 meters. In applications like electrical installations or painting projects across Mexican regions, its integration reduces vibration, allowing workers to focus on tasks without concerns over equipment failure or uneven lifting. - Hydraulic Swing Rod Cylinder
This specialized cylinder enables rotational movements in the platform's arm or boom, providing angular adjustments essential for reaching awkward angles. Built with durable rods and anti-corrosion coatings, it operates under varying pressures to swing components accurately, which proves vital in scenarios like tree trimming or signage placement in coastal or mountainous areas of Mexico. The design emphasizes minimal backlash for precise positioning, thereby improving operational efficiency and reducing the time required for setup adjustments.
Applications of Steering Hydraulic Cylinders in Aerial Work
1. Construction Sector Applications
In Mexico's thriving construction industry, steering hydraulic cylinders are integral to mast-type aerial work platforms for tasks such as facade inspections and material handling on skyscrapers. They allow operators to make fine-tuned directional changes amid scaffolding and debris, minimizing risks of equipment damage or worker injuries on sites in cities like Mexico City. This precision supports faster project timelines, as seen in recent high-rise developments where platforms navigate narrow gaps effectively, contributing to safer and more streamlined building processes across urban expansions.
2. Warehouse and Logistics Operations
For warehouse management in Mexico's key ports such as Veracruz, these aerial work vehicle hydraulic cylinders enable aerial platforms to steer through densely packed storage areas, aiding in stock retrieval from high shelves. Their reliable control helps avoid collisions with inventory stacks, improving throughput during peak shipping seasons. Operators in distribution centers report enhanced maneuverability on uneven warehouse floors, which reduces operational delays and boosts inventory accuracy in facilities handling exports like automotive parts or agricultural goods.
3. Telecommunications Maintenance
In the telecommunications field, steering hydraulic cylinders support aerial platforms during antenna installations and cable repairs on towers throughout Mexico's rural and urban networks. They provide stable navigation against wind loads in exposed locations, ensuring technicians can position equipment precisely without service interruptions. This application has proven vital in expanding broadband coverage in regions like the Sierra Madre, where quick adjustments prevent downtime and facilitate rapid response to network outages.
4. Manufacturing and Assembly Lines
Within Mexican manufacturing plants, particularly in automotive hubs like Puebla, these cylinders facilitate overhead access for assembly and quality checks using mast-type platforms. They handle steering in confined factory spaces filled with machinery, allowing smooth transitions between workstations. This setup enhances productivity by enabling workers to reach elevated conveyor systems without halting production, as demonstrated in facilities producing vehicles where minimal vibration during movement preserves delicate component alignments.
Why Choose Mexico Ever-Power's Hydraulic Steering Cylinder?
As a leading manufacturer established in 1978, Mexico Ever-Power Hydraulic Cylinder Co., Ltd. distinguishes itself through unwavering dedication to superior craftsmanship and forward-thinking advancements in hydraulic systems. Our expansive 103-acre production site, supported by a team exceeding 400 skilled professionals, features a specialized research and development hub focused on creating bespoke answers for sectors including building projects and elevated access equipment. We distribute to 34 nations worldwide, with strong presence in North American regions, guaranteeing that our steering hydraulic cylinders adhere to rigorous international benchmarks through attributes such as exacting directional accuracy and sturdy engineering. This depth of knowledge results in dependable items that elevate the effectiveness of your daily workflows.
What truly differentiates our approach is the emphasis on client-oriented assistance, encompassing personalized configurations and thorough post-purchase guidance. Our adherence to ISO standards assures meticulous accuracy in every phase, and collaborations with global partners reinforce our standing as a trusted entity. Within Mexico, our streamlined local distribution channels enable swift shipments, curtailing interruptions for your mast-style aerial platforms. Opting for our products represents a commitment to long-lasting, high-performance cylinders underpinned by over four decades of operational insight and a supportive framework that places your achievements at the forefront.
Moreover, our state-of-the-art evaluation laboratories conduct exhaustive assessments to uphold quality benchmarks, identifying potential issues before products reach clients. This proactive stance has built lasting confidence among users in demanding fields. For those requiring unique adaptations, we deliver tailored modifications that align precisely with distinct platform specifications, whether adjusting for load capacities or environmental resilience in Mexico's varied climates from arid deserts to humid coastal zones. Our robust international shipping infrastructure ensures prompt availability, even for urgent needs in remote project sites, minimizing delays that could affect timelines.
 |
 |
 |
 |
FAQs
Q: What is a hydraulic steering cylinder used for in mast-type aerial work platforms?
A: A hydraulic steering cylinder is used to control the directional movement of the platform, enabling precise navigation in tight or elevated spaces for tasks like maintenance and construction. It facilitates axle adjustments through linear motion derived from pressurized fluid, ensuring operators can maneuver safely around obstacles in settings such as high-rise buildings or indoor warehouses, where space limitations demand accurate handling to maintain productivity.
Q: How does a steering hydraulic cylinder improve safety on AWPs?
A: It provides responsive control to avoid obstacles, reducing accident risks through stable, smooth steering under loads up to 39KN. By incorporating safety features like pressure relief mechanisms and robust seals, these cylinders prevent sudden failures during operation, allowing for consistent performance that aligns with standards such as ASC A92, which mandate devices to halt unintended motion in hydraulic systems.
Q: How to install a steering hydraulic cylinder on a mast-type AWP?
A: Align with the axle, secure mounts, connect hoses, bleed air, and test under load to ensure proper integration. Begin by verifying component cleanliness to avoid contamination, then torque bolts to manufacturer guidelines, typically 50-70 Nm, followed by a full system flush and pressure check to confirm no leaks before operational use in elevated settings.
Q: What maintenance is required for hydraulic steering cylinders?
A: Regular inspections for leaks, fluid changes every 2,000 hours, and seal checks to prevent wear and maintain efficiency. This includes monitoring for contamination in fluids, which can lead to failures, and applying anti-corrosion treatments in humid areas, while documenting all activities to comply with equipment safety protocols and extend component longevity.
Q: Can steering hydraulic cylinders handle high-pressure environments?
A: Yes, with maximum withstand pressures up to 15MPa and thrust of 39KN, they perform well in demanding conditions. Engineered for operations in diverse climates, including those with varying temperatures, these cylinders incorporate reinforced materials to sustain performance without degradation, making them suitable for prolonged use in industrial applications across regions.
Q: What are common issues with steering hydraulic cylinders and how to fix them?
A: Issues like leaks can be fixed by replacing seals; sluggish response often requires bleeding air from the system. Other problems, such as damaged lines or fluid contamination, are addressed through thorough inspections and line replacements, while equalizing systems in masts may need valve adjustments to restore balanced operation.
Q: Are custom hydraulic steering cylinders available for specific AWP models?
A: Yes, Mexico Ever-Power offers tailored designs to match unique platform requirements, including adjusted travel and diameters. These modifications consider exact equipment needs, such as double-acting telescopic options for boom lifts, ensuring seamless fit and enhanced functionality for specialized tasks in various sectors.
Q: How does a hydraulic steering cylinder work in tire steering for AWPs?
A: It converts fluid pressure into linear motion to actuate the steering axle, allowing controlled tire direction changes. Pressurized fluid enters the cylinder to extend or retract the rod, enabling bidirectional control that supports precise adjustments, essential for stability on uneven surfaces during platform movements.
Q: How to choose the right hydraulic steering cylinder for my aerial work platform?
A: Consider specs like pressure rating, travel length, and compatibility with your platform's load and space constraints. Evaluate factors such as cylinder type—whether double-acting for controlled movements—and ensure it aligns with hydraulic system PSI, typically around standard forklift levels, to optimize performance for your specific job requirements.
Customer Reviews
Juan R. – Guadalajara: I've been using these steering hydraulic cylinders on our warehouse platforms for over a year now, and they've held up remarkably well under daily heavy loads. The precision in tight turns has cut our maneuvering time by half, making shifts more productive. Great value from Mexico Ever-Power.
Maria L. – Monterrey: The customer service team at Ever-Power was outstanding—they helped customize the cylinder specs (40mm diameter, 200mm travel) for our specific AWP model. Delivery was prompt, arriving within a week, which kept our project on schedule. Highly satisfied with the support.
Pedro S. – Tijuana: Quality is top-notch; no leaks or wear after eight months of outdoor use in construction sites. The robust build handles our 15MPa pressure needs without issues, and the corrosion resistance is a lifesaver in humid conditions. Worth every peso.
Ana V. – Puebla: Logistics were seamless—ordered online and received the cylinders in perfect condition faster than expected. They've improved our platform's stability during high-altitude electrical work, with smooth steering that feels reliable. Excellent product and efficient shipping.
Carlos G. – Mexico City: These hydraulic steering cylinders have boosted our team's confidence on the job. The 7kg weight makes installation easy, and after six months, performance is still consistent with no downtime. Focus on durability really shows in demanding urban environments.
Sofia M. – Cancun: Impressed by the after-sales guidance on maintenance; their tips on fluid checks have prevented potential problems. The cylinders' compact design fits our mast-type platforms perfectly, and the responsive steering has enhanced safety for our tourism maintenance crews. Solid choice.
Luis T. – Veracruz: Our port operations rely on these steering cylinders for navigating heavy cargo zones, and after nine months, they've shown no signs of fatigue under constant 10MPa loads. The easy integration with existing axles has streamlined our daily routines, cutting repair costs noticeably. Mexico Ever-Power delivers dependable gear every time.
Elena P. – Querétaro: In our manufacturing setup, these hydraulic units have transformed how we handle overhead inspections, with seamless steering that adapts to tight factory layouts. We've used them for seven months without a single issue, appreciating the 250mm travel for reaching awkward spots. Their team ensured a perfect match for our needs.
