Hydraulic Steering Cylinder for Mining Dump Trucks

Mining Dump Truck Hydraulic Steering Cylinder Overview

Hydraulic steering cylinders play a critical role in the operation of mining dump trucks, providing the necessary force and precision for effective vehicle control in rugged terrains. These components, often referred to as steering hydraulic cylinders, are engineered to handle extreme loads and pressures typical in mining environments. By converting hydraulic fluid pressure into linear motion, they enable smooth articulation of the truck's wheels, ensuring stability and responsiveness during hauling and dumping operations.

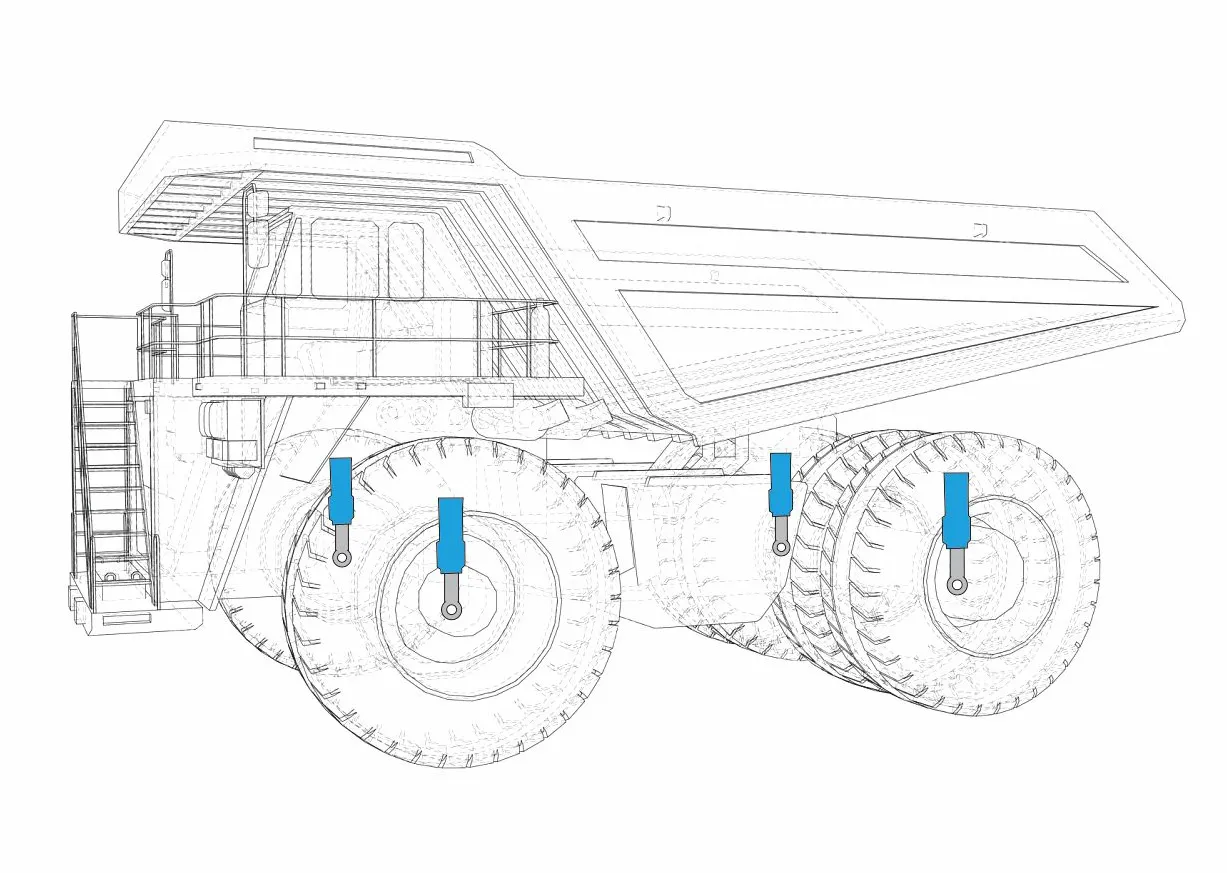

In the context of mining hydraulic cylinders, these units integrate seamlessly with other systems like suspension and lifting mechanisms to optimize overall vehicle performance. For instance, in heavy-duty applications such as those involving hydraulic cylinders for mining, the steering cylinder must withstand vibrations, dust, and temperature fluctuations without compromising functionality.

Technical Specifications

If your project requires custom specifications beyond these standards, such as adjusted stroke lengths or specialized materials for extreme environments, please contact our team at Mexico Ever-Power for personalized engineering support.

Product Name:	Steering Hydraulic Cylinder
Function:	Wheel steering provides assistance.
Bore diameter:	63mm～210mm
Rod diameter:	40mm～100mm
Stroke:	Stroke≤2000mm
Thrust force:	Maximum779KN (Bore diameter 210mm/pressure22.5MPa)

Features of Hydraulic Steering Cylinder for Mining Dump Truck

The features of our hydraulic steering cylinders are designed to excel in the harsh conditions of mining operations, where reliability is non-negotiable. One standout aspect is the built-in displacement sensor, which allows for real-time monitoring of the cylinder's position, ensuring accurate steering adjustments even under variable loads. This technology integrates well with mining machinery hydraulic cylinders, providing feedback that helps prevent overextension or misalignment. Additionally, the use of high-strength materials in the cylinder barrel and rod enhances resistance to fatigue, a common issue in hydraulic cylinders for mining where cycles can number in the thousands daily.

Another important feature is the specialized surface treatment on the piston rod, which offers superior wear and corrosion resistance. In environments filled with abrasive dust and moisture, this treatment extends the lifespan of the component, reducing downtime for maintenance. Compared to standard steering hydraulic cylinders, our models include heavy-duty seal rings that provide excellent dustproofing and sealing performance, crucial for maintaining hydraulic integrity in mining hydraulic cylinders. These seals are engineered to withstand lateral forces, supported by wide-series integral guide rings that distribute stress evenly across the assembly.

Furthermore, the modular design facilitates easy integration with existing systems, such as those in hydraulic cylinder for mining dump truck setups. This adaptability means operators can upgrade without extensive modifications, saving time and costs. For applications involving hydraulic cylinder for mining excavator or similar equipment, the cylinders' compact yet robust build ensures they fit within space constraints while delivering powerful thrust.

Benefits of Steering Hydraulic Cylinder for Mining Dump Truck

1. Enhanced Maneuverability and Operator Safety
These steering hydraulic cylinders deliver thrust forces reaching up to 779kN, enabling precise control of large dump trucks over rough mining terrain. This capability minimizes operator strain during extended shifts and supports rapid adjustments to avoid obstacles, thereby reducing accident risks and improving overall site productivity in demanding hydraulic systems for mining equipment.

2. Long-Term Cost Savings Through Durability
Constructed with advanced heat-treated materials and robust welding techniques, these cylinders exhibit low failure rates, which decreases the need for frequent replacements. In mining operations, this translates to sustained fleet availability, helping managers meet tight production schedules while cutting down on repair expenses associated with traditional mining hydraulic components.

3. Superior Resistance to Harsh Environments
Engineered to operate reliably in extreme temperatures ranging from sub-zero quarries to scorching desert sites, these mining machinery hydraulic cylinders prevent hydraulic fluid breakdown and maintain consistent performance. Such adaptability suits international mining projects, including those with excavators, by extending component life in corrosive or dusty conditions and lowering unplanned downtime.

4. Improved Integration with Mining Machinery
These cylinders seamlessly connect with various dump truck systems, enhancing directional stability and reducing wear on associated parts like tires and axles. For operators handling rotary drilling rigs or similar gear, this integration fosters smoother workflows, boosts fuel efficiency, and aligns with modern safety standards in global mining fleets.

5. Customizable Features for Specific Needs
Offering options for tailored bore sizes and stroke lengths, these steering cylinders address unique requirements in mining dump trucks, such as high-pressure demands in underground settings. This flexibility allows equipment managers to optimize vehicle handling, resulting in fewer operational interruptions and greater alignment with site-specific challenges.

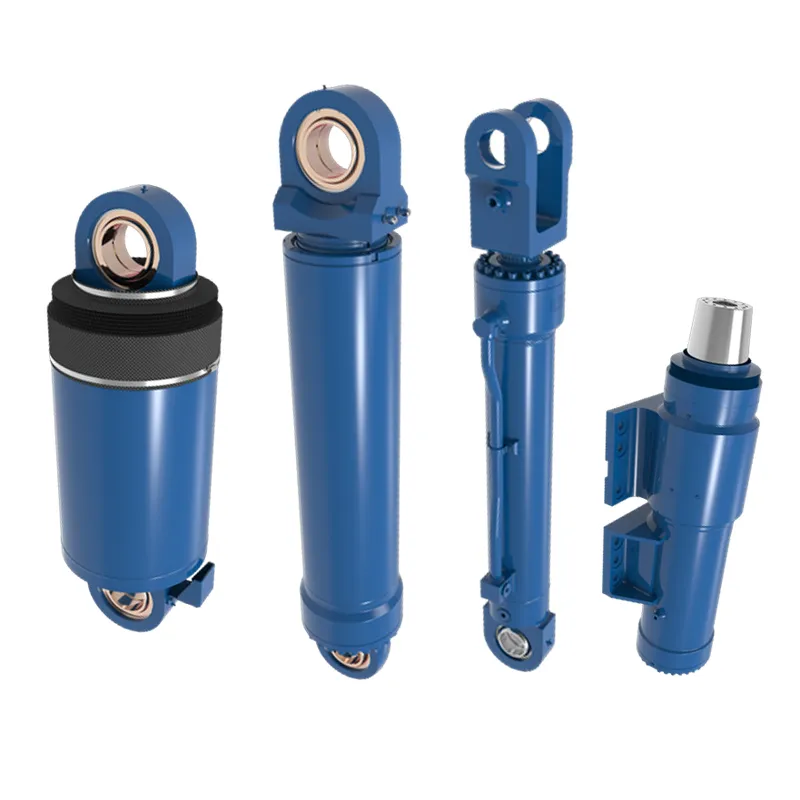

Types of Mining Dump Truck Hydraulic Cylinder

• Steering Hydraulic Cylinder
  This component facilitates precise directional control in mining dump trucks by converting hydraulic pressure into linear motion that articulates the wheels. Designed for high-load environments, it incorporates robust seals and piston rods to withstand dust and vibrations, ensuring stable handling on uneven terrain and enhancing operator safety during material transport operations. Professionals in the field often select models with integrated sensors for real-time feedback, which aids in preventing misalignment under extreme pressures typical of quarry sites.
• Rear Suspension Hydraulic Cylinder
  Positioned at the back of the vehicle, this cylinder absorbs shocks from heavy loads and rough surfaces, maintaining chassis stability during hauling. It features adjustable damping mechanisms to distribute weight evenly, reducing frame stress and extending tire life in prolonged mining cycles. Engineers prioritize variants with corrosion-resistant coatings for wet conditions, allowing consistent performance in underground or open-pit settings where frequent impacts could otherwise lead to mechanical failures.
• Front Suspension Hydraulic Cylinder
  Located at the forward axle, this unit cushions frontal impacts and supports smooth navigation over obstacles in mining environments. It employs high-strength materials to handle dynamic forces from acceleration and braking, promoting vehicle balance and minimizing downtime from component wear. Field technicians recommend options with variable stroke lengths for customization to specific truck models, ensuring optimal ride quality in diverse geological terrains encountered during extraction processes.
• Lifting Hydraulic Cylinder
  Essential for elevating the dump body to unload materials, this cylinder delivers powerful thrust to manage substantial payloads efficiently. Constructed with reinforced barrels and precision valves, it enables controlled tilting actions that prevent spillage and structural strain. Industry experts favor designs incorporating safety locks and pressure regulators to comply with operational standards, facilitating reliable dumping in high-volume mining operations where speed and durability are critical factors.

Applications of Hydraulic Steering Cylinder in Mining

1. Mining Dump Truck
Hydraulic steering cylinders in mining dump trucks provide essential control for navigating large vehicles through challenging terrains, enabling precise wheel articulation under heavy loads. These components integrate with the truck's hydraulic system to ensure responsive handling during material transport, reducing the risk of operational delays in surface or open-pit environments. Engineered for durability, they withstand vibrations and extreme pressures, supporting efficient hauling cycles that maintain productivity in demanding quarry operations.

2. Mining Motor Grader
In mining graders, hydraulic steering cylinders facilitate accurate blade positioning and vehicle direction on uneven ground, crucial for leveling haul roads and preparing sites. This setup allows operators to maintain straight paths while grading, minimizing material displacement errors in both surface and preparatory mining phases. With robust construction to handle abrasive conditions, these cylinders contribute to smoother infrastructure development, enhancing overall site accessibility for other equipment.

3. Mining Wheel Loader
Hydraulic steering cylinders equip wheel loaders in mining with the ability to maneuver swiftly around loading zones, directing the front wheels for efficient bucket filling and material relocation. They support articulated frames that enable tight turns in confined spaces, vital for transferring ore or waste to trucks without excessive repositioning. Designed to endure constant cycles in dusty settings, these cylinders promote reliable performance, aiding in the seamless flow of extraction processes.

4. Mining Drilling Jumbo
For mining drilling jumbos, hydraulic steering cylinders direct the boom and chassis movements, allowing precise alignment during borehole creation in underground tunnels. This precision ensures stable positioning against rock faces, facilitating controlled drilling operations that avoid deviations in confined spaces. Built to resist high-impact forces from rock interactions, they enable consistent progress in exploration and development drilling, supporting safe and effective tunnel advancement.

5. Mining Scaling Machine
Hydraulic steering cylinders in mining scaling machines guide the equipment through narrow passages to remove loose rock from tunnel walls and ceilings, ensuring operator-directed paths for safety inspections. They provide the necessary torque for arm extensions and vehicle adjustments, critical in post-blasting cleanup to prevent roof falls. Reinforced for underground hazards like moisture and debris, these cylinders sustain operational integrity, contributing to hazard mitigation in active mining zones.

6. Mining Underground Truck
In mining underground trucks, hydraulic steering cylinders manage navigation in low-visibility tunnels, articulating axles to follow curved haulage routes without structural interference. This functionality supports load-carrying stability during inclines and declines, essential for transporting ore from deep excavations to surface points. Constructed with seals resistant to subterranean contaminants, they deliver dependable control, facilitating uninterrupted material evacuation in complex below-ground networks.

Mining Dump Truck	Mining Loader
Mining Drilling Jumbo	Motor Grader

Maintenance Tips for Dump Truck Hydraulic Steering Cylinder

Implementing a structured maintenance regimen for dump truck hydraulic steering cylinders is essential to prolong their operational lifespan and ensure consistent performance in rigorous mining conditions. Begin with routine daily checks, focusing on visible signs of fluid leakage around connections, surface scratches on the piston rod, or deterioration in sealing elements, which are frequently exposed to abrasive particles and mechanical stress. Addressing these early prevents minor issues from escalating into major failures that could halt vehicle operations. To maintain cleanliness, regularly remove built-up dirt and residues from the cylinder exterior using manufacturer-recommended cleaning agents that are compatible with rubber and polymer seals, thereby avoiding chemical reactions that might compromise integrity.

Establish a schedule for hydraulic fluid replacement based on the truck's workload, typically ranging from 500 to 1,000 hours of use. During this process, sample the fluid to examine for metal shavings or contaminants that signal internal component erosion within the steering mechanism. Concurrently, inspect and swap out filtration units to uphold fluid quality, as clogged filters can lead to pressure imbalances and reduced efficiency in the overall hydraulic network. For vehicles in mining applications, incorporate ongoing pressure monitoring through gauges or diagnostic tools during shifts to identify subtle drops that might indicate seal fatigue or valve malfunctions before they affect steering responsiveness.

Conduct comprehensive yearly inspections, which should encompass disassembling the cylinder for thorough evaluation, replacing worn seals, and refinishing the rod if any pitting or gouges are present to restore smooth movement. Align these overhauls with the broader maintenance timetable of associated equipment, such as excavators or loaders, to streamline downtime and resource allocation. By adhering to these practices, operators can mitigate unexpected breakdowns, optimize fuel consumption through efficient steering, and extend the service interval of hydraulic steering cylinders in dump trucks, contributing to sustained productivity in mining environments.

Why Choose Mexico Ever-Power's Mining Hydraulic Cylinders?

FAQs

Customer Reviews

Liam Thompson, Operations Foreman, Perth, Australia
"I've got these hydraulic steering cylinders fitted on our mining dump trucks down in the iron ore pits, and after 14 months of non-stop runs, the 1800mm stroke versions are still going strong without a single glitch. They handle the rough outback tracks like champs, cutting our steering issues by half compared to the old mining hydraulic cylinders we used—real game-changer for keeping the fleet moving."

---

Sophie Leclerc, Equipment Specialist, Toronto, Canada
"As someone overseeing gold extraction sites, the steering hydraulic cylinders from Mexico Ever-Power have impressed me with their build quality; we installed models with 150mm bore on our heavy haulers last year, and they've resisted corrosion from the snowy winters perfectly. No more frequent swaps like with basic hydraulic lift cylinders—solid reliability that fits our cold-weather mining machinery hydraulic cylinder needs just right."

---

Marcus Johnson, Fleet Manager, Denver, USA
"Running copper mines here, we've relied on these mining hydraulic cylinders for over two years now, especially the hydraulic cylinder for mining dump truck variants with built-in sensors that make tight maneuvers a breeze on steep inclines. The thrust holds up under max loads, and we've seen less wear on tires—worth it for the efficiency boost in our operations."

---

Thabo Nkosi, Site Supervisor, Johannesburg, South Africa
"In our platinum digs, the hydraulic steering cylinders have been a reliable pick; opted for the 210mm bore ones on excavators six months back, and they've cut down on vibrations during shifts. Service team walked us through custom specs over calls—quick and helpful, unlike some competitors' mining machinery hydraulic cylinder suppliers."

---

Diego Rivera, Maintenance Lead, Santiago, Chile
"We've equipped our lithium haul trucks with these steering hydraulic cylinders, using the 2000mm stroke models for about 20 months, and they've stood up to the dusty Andean routes without leaks or drops in pressure. Focus on durability pays off in harsh spots where standard hydraulic cylinders for mining just don't last—thumbs up for the engineering."

---

Isabel Gomez, Procurement Officer, Lima, Peru
"Sourcing for silver mining ops, what stood out was the logistics; our order of hydraulic cylinder for mining excavator units arrived in under a week, complete with detailed install guides. Been using them for nine months on loaders, and the corrosion resistance in humid conditions beats out other mining hydraulic cylinder options we've tried—efficient and budget-friendly."

---

Alexei Ivanov, Engineering Coordinator, Moscow, Russia
"In Siberian coal fields, these hydraulic steering cylinders handle the freeze-thaw cycles like pros; installed 100mm rod versions on rotary drilling rigs last winter, and after 15 months, minimal maintenance needed. The team's support in tweaking for our specs was spot-on—better than generic hydraulic cylinder for rotary drilling rig setups we've dealt with before."

---

Felipe Santos, Technical Advisor, Belo Horizonte, Brazil
"Managing iron ore transports, I'm all about the service attitude; when we needed custom hydraulic cylinders for mining on our haulers, the Mexico Ever-Power folks responded fast with advice on 779kN thrust options. Been operational for 16 months with fewer breakdowns—stands out among steering hydraulic cylinder providers for attention to detail and follow-through."
