Hydraulic Stick Cylinder for Mini/Small Excavators
Explore durable hydraulic stick cylinders for mini excavators from Mexico Ever-Power, engineered for precision with bore sizes up to 100mm and pressures reaching 21MPa. Ideal for compact machinery, these cylinders ensure smooth operation and longevity, backed by custom manufacturing and reliable support to keep your projects on track.

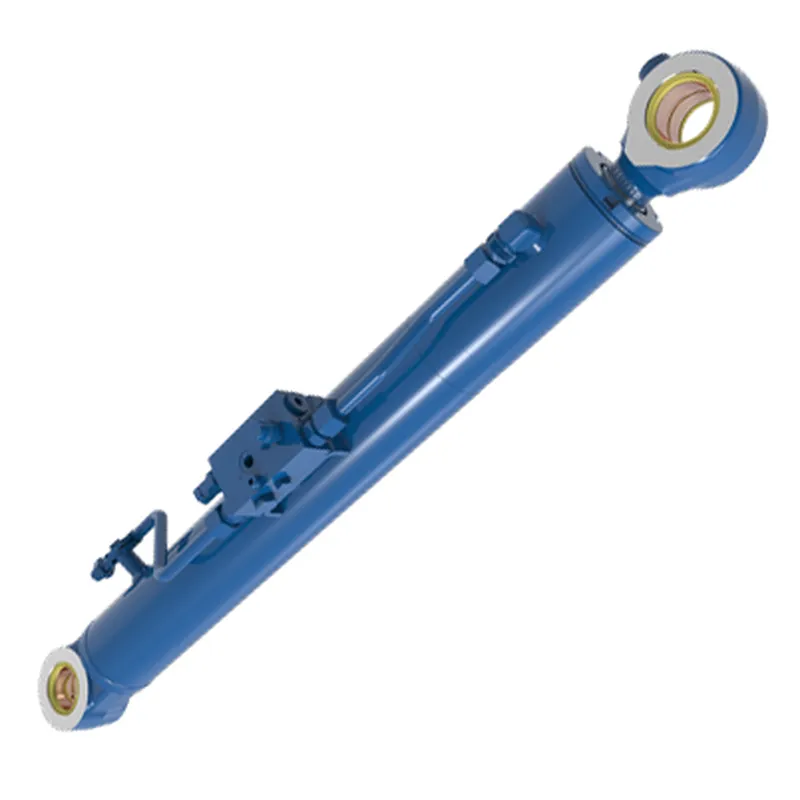

Mini Excavator Hydraulic Stick Cylinder Overview
In the field of compact construction equipment, the hydraulic stick cylinder plays a central role in enabling precise arm movements for mini and small excavators. This component, often referred to as a dipper hydraulic cylinder or arm hydraulic cylinder, is essential for extending and retracting the dipper arm, allowing operators to perform digging, lifting, and positioning tasks with accuracy. Manufactured by Mexico Ever-Power, our hydraulic cylinder for excavator models focuses on robustness to withstand the demands of daily fieldwork. It integrates high-grade materials that resist wear and corrosion, ensuring consistent performance even in challenging environments like urban construction sites or agricultural settings. The design prioritizes compatibility with various mini excavator brands, making it a versatile choice for equipment upgrades or replacements.
This hydraulic cylinder for mini excavator thumb attachments enhances overall machine efficiency by providing smooth hydraulic flow and minimal backlash. Operators benefit from reduced downtime due to its sealed construction that prevents fluid leaks and contamination. At Mexico Ever-Power, we emphasize engineering that aligns with industry standards, incorporating features like chrome-plated rods for added durability. This approach not only extends the service life but also lowers maintenance costs over time. Whether used in landscaping, utility work, or light demolition, the cylinder's compact size fits seamlessly into smaller excavator frames without compromising power output.
Technical Specifications
For custom configurations beyond these standard specs, such as adjusted stroke lengths or specialized mounting, contact our team at Mexico Ever-Power for tailored solutions.
| Product Name: | Mini Excavator Stick Hydraulic Cylinder |
| Function: | Control the movement of the forearm. |
| Bore Diameter: | 50mm-115mm |
| Rod diameter: | 25mm-70mm |
| Stroke: | ≤1000 mm |
| Maximum pressure MPa: | 29.4MPa |
| Thrust Force: | 305KN |
Characteristics of Stick Hydraulic Cylinder for Excavator
1. Robust Construction for Durability
The stick hydraulic cylinder features a seamless steel tube body engineered to withstand significant deformation under heavy operational loads, making it ideal for compact mini excavators where limited space requires strong yet lightweight parts. Polyurethane seals effectively block fluid leaks, preserving consistent pressure levels during prolonged use, while the hard chrome-plated piston rod guards against scratches and wear from environmental contaminants like soil and gravel commonly found on job sites. This setup ensures the cylinder remains operational in demanding conditions without early failure.
2. Precision Engineering for Smooth Operation
Through careful machining processes, the cylinder achieves exact tolerances that facilitate effortless extension and retraction, reducing unwanted vibrations that could tire out machine operators or cause imprecise movements in excavator tasks. Built-in cushioning mechanisms at stroke endpoints absorb shocks, safeguarding the cylinder itself and connected machinery from damage. In mini excavator setups, these attributes support dependable performance day after day, minimizing the need for constant tweaks and allowing focus on core work activities.
3. Adaptable Configurations for Versatility
Mexico Ever-Power provides multiple choices in port layouts and mounting styles, enabling the hydraulic stick cylinder to integrate seamlessly with a variety of excavator manufacturers and models. This adaptability proves essential for operations involving diverse equipment fleets, where uniform parts simplify maintenance routines. Optional anti-corrosion layers protect against rust in tough settings such as seaside projects or factory environments, thereby prolonging service life and reducing replacement costs over time.
4. Enhanced Safety and Reliability Features
Incorporating pressure relief systems, the cylinder prevents overload situations that might compromise excavator stability during high-stress digs or lifts. This design prioritizes user safety by maintaining controlled hydraulic flows, even under variable loads. For professionals handling mini excavators in urban or rural sites, such reliability translates to fewer unexpected breakdowns, fostering confidence in equipment that performs consistently across different soil types and weather conditions.
5. Material Selection for Long-Term Performance
High-grade steel components combined with specialized coatings resist fatigue from repetitive cycles, ensuring the cylinder holds up in intensive applications like trenching or material handling. The choice of nitrile rubber in secondary seals adds resilience against temperature fluctuations, common in outdoor excavator work. Operators benefit from this thoughtful material approach, as it leads to extended intervals between servicing, ultimately supporting efficient project timelines and budget management.
Advantages of Using Hydraulic Stick Cylinder in Mini Excavator
Employing a hydraulic stick cylinder in mini excavators delivers substantial benefits, starting with its superior durability that surpasses many conventional alternatives available today. Constructed from high-tensile steel alloys, this component endures the stresses of continuous operation in rigorous settings, including crowded city digs where equipment faces constant vibration and impact. Such resilience extends the operational lifespan, thereby decreasing the need for frequent part swaps and yielding notable long-term financial savings. For operators relying on hydraulic cylinders for excavators, this translates to reduced equipment downtime and more stable financial planning, allowing teams to allocate resources toward project execution rather than unexpected repairs.
A further key advantage resides in the optimized power delivery system, which streamlines hydraulic fluid circulation to achieve rapid actuation speeds. This proves particularly valuable in scenarios demanding fine-tuned maneuvers, such as precise earth shaping in garden projects or careful trench work for underground utilities. Users report diminished response delays, which in turn boost overall job site output by enabling quicker cycle times. When benchmarked against rival products, the inclusion of refined sealing mechanisms curtails hydraulic inefficiencies, leading to measurable reductions in fuel consumption for the entire excavator unit and supporting more sustainable practices in field operations.
Customization stands as another critical strength, with Mexico Ever-Power capable of adjusting cylinder specifications like bore size, rod length, and mounting configurations to align precisely with individual machine requirements. This bespoke approach resolves typical integration challenges in excavator hydraulic cylinder installations, such as incompatible dimensions that could otherwise impair arm extension or retraction. By facilitating a perfect fit, it enhances machine harmony and operational safety, minimizing risks of mechanical strain during use.
Types of Mini Excavator Hydraulic Cylinders
- Boom Hydraulic Cylinder
Positioned at the base of the main arm, the boom hydraulic cylinder handles the vertical lifting and lowering of the excavator's primary boom structure, enabling operators to reach elevated or deeper excavation points with substantial force. This component, often one of the largest on the machine, generates significant power to manage heavy loads in confined spaces typical of urban or landscaping projects, ensuring stability and control during operations that demand precise height adjustments without compromising the equipment's compact footprint. - Blade Hydraulic Cylinder
Attached to the front dozer blade assembly, the blade hydraulic cylinder controls the up-and-down or angling movements of the blade used for leveling ground, backfilling trenches, or pushing debris. In mini excavators, this cylinder provides essential support for site preparation tasks, allowing for efficient material displacement in tight areas like residential yards or utility digs, where its robust design withstands soil resistance and contributes to overall machine versatility in grading applications. - Swing Hydraulic Cylinder
Located at the pivot point of the upper superstructure, the swing hydraulic cylinder facilitates the rotational movement of the cab and arm assembly, permitting a full 360-degree swing for repositioning without relocating the tracks. This functionality proves critical in mini excavators for navigating crowded job sites, such as construction zones or forestry clearings, by enabling quick directional changes that enhance productivity and reduce the need for excessive maneuvering in limited spaces. - Bucket Hydraulic Cylinder
Connected directly to the bucket attachment at the end of the arm, the bucket hydraulic cylinder manages the curling and uncurling actions necessary for scooping, dumping, or gripping materials during digging operations. For mini excavators, this cylinder delivers the precise force required to handle soil, gravel, or rubble in applications like trenching or foundation work, with its durable construction ensuring reliable performance even under repetitive stress from varying load weights. - Stick Hydraulic Cylinder
Mounted along the dipper arm or extension beyond the boom, the stick hydraulic cylinder extends and retracts the arm to adjust digging depth and reach, allowing the bucket to crowd in or pull away from the machine body. In compact mini excavators, this cylinder plays a key role in achieving accurate excavation in restricted environments, such as pipeline installations or basement digs, by providing controlled linear motion that balances power with the need for maneuverability in diverse terrain conditions.
Excavator Hydraulic Cylinder Applications
1. Construction Sector
Hydraulic stick cylinders play a pivotal role in construction environments, empowering mini excavators to perform foundation excavations in confined urban locales with exceptional precision. Their streamlined profile supports easy navigation through residential zones, proving essential for tasks involving hydraulic cylinders for mini excavator thumb attachments that secure and manipulate debris during site clearances. This capability minimizes disruption to surrounding structures, while the cylinder's sturdy build handles repetitive stresses from concrete and rebar encounters, ensuring project timelines remain intact and safety standards are upheld in bustling city builds.
2. Landscaping Field
In landscaping operations, these cylinders facilitate detailed soil contouring and vegetation placement, allowing mini excavators to execute tasks like grading lawns or installing drainage systems with minimal ground disturbance. The stick mechanism's extended reach aids in planting trees or shaping terrain features without requiring frequent machine relocations, which is crucial for maintaining aesthetic integrity in parks or private estates. Operators value the cylinder's resistance to moisture and organic matter buildup, promoting consistent functionality that accelerates site readiness for subsequent planting or hardscaping phases.
3. Utility Maintenance Domain
For utility services, the excavator hydraulic cylinder enables efficient trenching for installing or repairing underground conduits like water pipes and electrical cables, with the stick extension offering ample coverage without shifting the excavator base. This feature reduces traffic interruptions in suburban or roadside repairs, enhancing worker safety by limiting exposure to hazards. The component's sealed design withstands exposure to varying soil compositions, from clay to gravel, ensuring reliable performance that supports swift restoration of essential services in community infrastructures.
4. Agricultural Operations
Agricultural settings benefit from hydraulic stick cylinders in activities such as forming irrigation channels or plowing furrows, where mini excavators must endure abrasive soil conditions without compromising output. The cylinder's adaptability allows for attachments that handle crop residue or fertilizer distribution, optimizing land preparation for planting seasons. Farmers appreciate the durability against dust and chemical residues, which extends equipment uptime during critical harvest periods and contributes to sustainable farming practices by enabling precise resource application.
5. Demolition Activities
In light demolition projects, mini excavator hydraulic cylinders extend versatility to safely dismantle small edifices or clear wreckage, with the stick function providing controlled reach for breaking down walls or removing rubble in restricted areas. This precision prevents collateral damage to adjacent properties, making it suitable for urban renewal or renovation works. The cylinder's robust internals manage impact forces from materials like brick or metal, fostering efficient debris management that aligns with regulatory guidelines for waste handling and site reclamation.
 |
 |

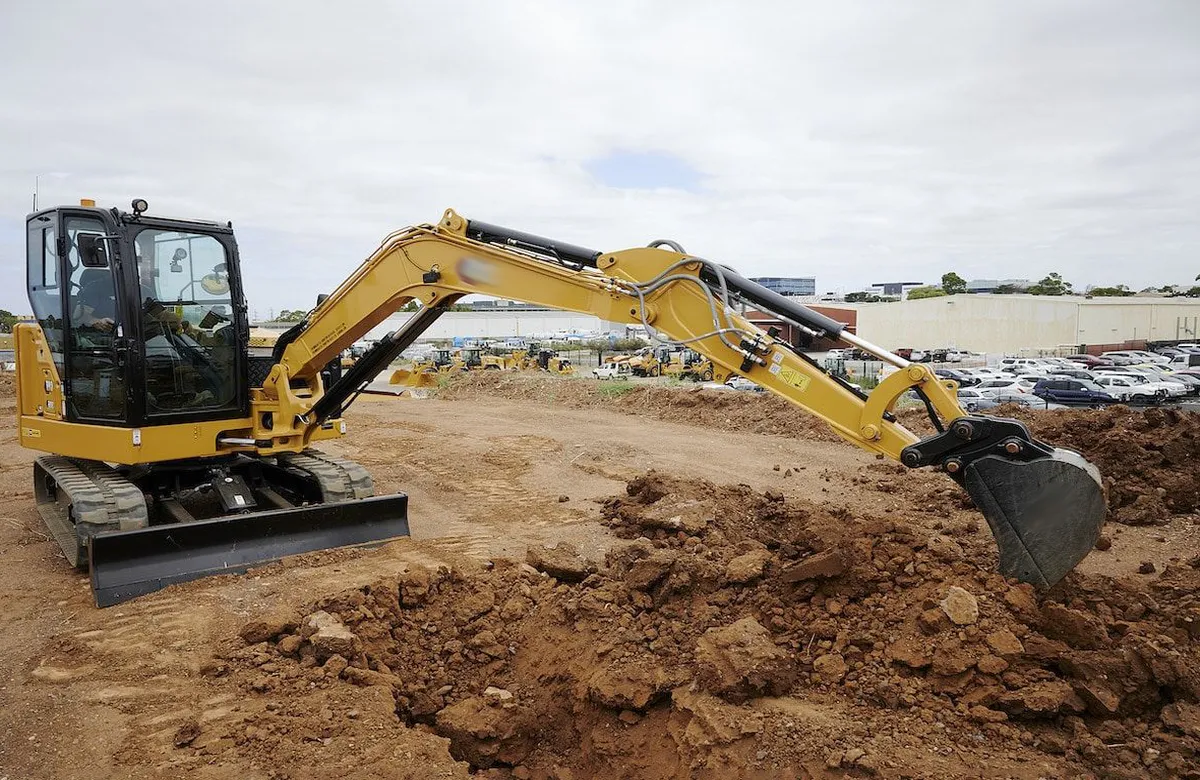

| Construction Industry | Mining Industry |
 |
 |

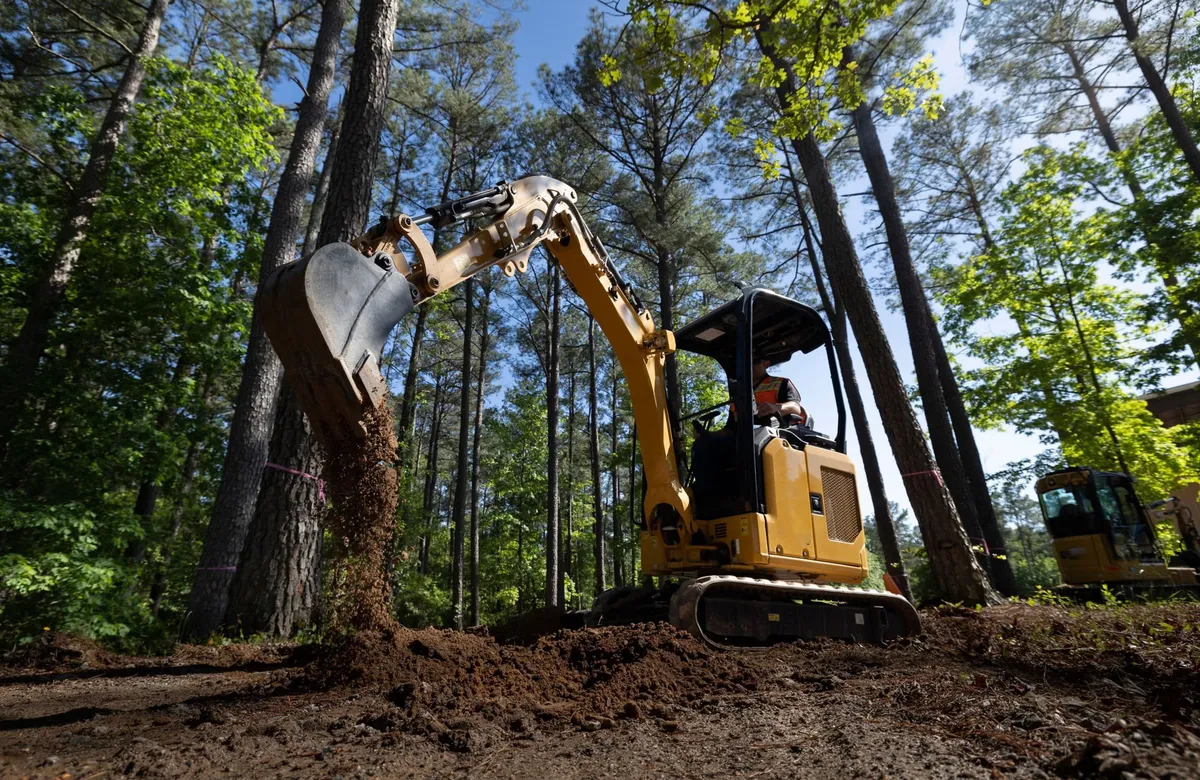

| Forestry and Logging | Marine and Port |
Mini Excavator Hydraulic Cylinder Parts
- Cylinder Barrel
The cylinder barrel serves as the primary housing for the hydraulic fluid and internal components in mini excavators, constructed from seamless steel tubing to endure high internal pressures during arm extensions. This tubular structure maintains alignment for the piston and rod, preventing leaks under operational stress in compact digging applications, and its honed interior surface ensures minimal friction for efficient energy transfer. - Piston
Positioned within the barrel, the piston divides the cylinder into two chambers and converts hydraulic pressure into linear force for precise movements in mini excavator operations. Equipped with wear rings and seals, it withstands repeated cycles in tasks like trenching, providing reliable thrust while accommodating varying load demands without compromising structural integrity. - Piston Rod
Extending from the piston through the cylinder head, the piston rod transmits mechanical force to the excavator's arm or bucket, featuring chrome plating to resist corrosion and abrasion from environmental debris. In mini excavators, this component enables controlled reach in confined spaces, with its polished finish reducing seal wear and supporting smooth retraction during utility installations. - Seals and Gaskets
Seals, including O-rings and wipers, prevent hydraulic fluid leakage and contaminant ingress around the rod and piston in mini excavator cylinders. These elements, often made from polyurethane or nitrile, maintain system pressure integrity under dynamic loads, extending component lifespan and minimizing downtime in fieldwork such as landscaping or foundation preparation. - End Caps
The base and head end caps enclose the cylinder barrel at both ends, with the base anchoring to the machine frame and the head allowing rod passage in mini excavators. Threaded or welded for secure attachment, they incorporate ports for fluid entry and incorporate mounting points, ensuring stable operation during high-force applications like material handling. - Hydraulic Ports
Hydraulic ports, integrated into the end caps or barrel, facilitate fluid inflow and outflow to control cylinder extension and retraction in mini excavators. Designed with threaded connections for secure hose attachment, they support rapid response times in precision tasks, allowing operators to manage flow rates effectively without risking system contamination.
Why Choose Mexico Ever-Power's Excavator Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., founded in May 1978, stands as a prominent high-tech entity dedicated to producing premium hydraulic cylinders, particularly cylinders tailored for engineering equipment such as excavators. Our core objective revolves around pioneering advancements to supply secure, streamlined, and dependable hydraulic systems, cultivating enduring confidence among international clientele. Spanning 103 acres in Mexico City, our operations employ more than 400 dedicated experts and feature cutting-edge amenities, including a proprietary research institute, specialized testing facilities, and a sophisticated R&D hub. These resources empower us to craft bespoke hydraulic stick cylinders that align exactly with customer demands, guaranteeing flawless compatibility with compact excavators in diverse operational contexts.
Our dedication to excellence aligns with rigorous global benchmarks, incorporating thorough evaluation protocols and proprietary technologies in essential machinery. When it comes to hydraulic cylinders for excavators, we emphasize exacting craftsmanship and resilience, employing robust materials capable of enduring severe environments encountered in construction or mining. Our expansive international footprint covers exports to more than 53 nations across continents like Asia, Europe, North America, South America, Africa, and Oceania, bolstered by solid alliances in key areas including the United States, Canada, Germany, and beyond. This network facilitates prompt assistance and efficient shipments, ensuring minimal disruptions for users worldwide.
Distinguishing factors encompass personalized configurations that address unique project requirements, superior post-purchase assistance that resolves issues swiftly, and an emphasis on automated processes to maintain uniform quality. Professionals select us due to our established history of delivering solutions that prioritize value, where our proficiency in stick hydraulic cylinders boosts equipment efficacy and curtails maintenance expenses. We differentiate ourselves via relentless enhancement initiatives, positioning us as a go-to provider for those in pursuit of robust hydraulic frameworks that support long-term productivity and operational reliability in demanding fields.
 |
 |
 |
 |
FAQs
Q: What are the key specifications to consider when selecting a hydraulic cylinder for excavator?
A: When choosing a hydraulic cylinder for excavator applications, focus on bore diameter ranging from 50 to 100mm for adequate force generation, stroke length up to 800mm to match arm reach requirements, and operating pressure capabilities reaching 21MPa for handling demanding loads. These parameters ensure the stick hydraulic cylinder aligns with your mini excavator's overall power setup, promoting efficient performance and preventing overload issues in various fieldwork scenarios.
Q: How does a hydraulic cylinder for mini excavator thumb differ from standard models?
A: A hydraulic cylinder for mini excavator thumb typically incorporates reduced stroke lengths and custom mounting brackets optimized for attachment gripping functions, contrasting with standard hydraulic stick cylinder designs that emphasize broader arm extensions for digging depth. Both variants, however, stress robust construction to endure compact environments, with the thumb version prioritizing quick, precise clamping actions while maintaining the durability seen in general mini excavator hydraulic cylinders.
Q: What maintenance is required for mini excavator hydraulic cylinders to ensure longevity?
A: To prolong the service life of mini excavator hydraulic cylinders, conduct routine checks on seals for potential leaks, replace hydraulic fluid at 500-hour intervals to avoid contamination, and wipe down rods regularly to ward off rust buildup. This preventive approach minimizes operational interruptions in hydraulic cylinder excavator tasks, safeguarding components like the stick hydraulic cylinder against premature wear from dirt or fluid degradation in daily use.
Q: Can I customize a hydraulic cylinder for mini excavator based on specific needs?
A: Yes, customization options for a hydraulic cylinder for mini excavator are available through Mexico Ever-Power, including adjustments to bore dimensions, stroke variations, and specialized mounting features to suit unique equipment configurations. This flexibility ensures the excavator hydraulic cylinder fits precisely, enhancing compatibility and performance for specialized applications without compromising the reliability of standard hydraulic stick cylinder models.
Q: What advantages does a stick hydraulic cylinder provide in urban construction?
A: A stick hydraulic cylinder delivers fine-tuned control within narrow urban confines, helping mini excavators avoid unintended damage to nearby structures while sustaining strong force for productive excavation. This makes it particularly effective for tasks requiring the hydraulic cylinder excavator to operate efficiently in high-density areas, where its compact integration supports swift maneuvers and consistent output without escalating risks.
Q: How to troubleshoot slow movement in an excavator hydraulic cylinder?
A: To address sluggish performance in an excavator hydraulic cylinder, first examine fluid levels for deficiencies, inspect the system for trapped air that disrupts flow, and evaluate seals for deterioration. Bleeding the lines and replenishing fluid frequently corrects these problems in mini excavator hydraulic cylinders, restoring normal speed to the stick hydraulic cylinder and preventing further complications during routine digging activities.
Q: What materials are used in hydraulic cylinder excavator components for durability?
A: Hydraulic cylinder excavator parts often utilize high-strength steel bodies paired with chrome-coated rods to resist scratches and fatigue, alongside polyurethane seals that block leaks under pressure. These choices bolster the stick hydraulic cylinder's ability to tolerate abrasive conditions and temperature shifts, ensuring long-term resilience in mini excavator hydraulic cylinders across challenging job sites.
Q: How often should I replace seals in a hydraulic cylinder for mini excavator thumb?
A: Seals in a hydraulic cylinder for mini excavator thumb should be swapped out every 1,000 to 2,000 operating hours or upon detecting early signs of fluid seepage to uphold internal pressure and avert breakdowns. Regular replacement preserves the integrity of mini excavator hydraulic cylinders, particularly in thumb attachments where the stick hydraulic cylinder faces frequent stress from gripping and releasing actions.
Q: What is the typical lifespan of mini excavator hydraulic cylinders under normal use?
A: Under standard conditions with diligent upkeep, mini excavator hydraulic cylinders typically endure between 5 and 10 years, influenced by factors like usage intensity and environmental exposure. This timeframe applies to components such as the hydraulic stick cylinder, where consistent care helps mitigate wear, supporting reliable service in hydraulic cylinder excavator roles over extended periods.
Customer Reviews
Maria Gonzalez, Landscaping Contractor, Guadalajara
"I've been relying on this hydraulic stick cylinder for my mini excavator over the past eight months, and it handles daily soil tasks without breaking a sweat. The 600mm stroke is perfect for our trenching work, pushing through at 18MPa even in compacted dirt. Mexico Ever-Power's team responded fast to my installation queries, making the whole setup straightforward and stress-free. Overall, the stick hydraulic cylinder's build quality has kept our projects moving smoothly."
Carlos Mendoza, Utility Foreman, Monterrey
"The excavator hydraulic cylinder we installed has a rock-solid construction that's proven itself on our small rigs for pipe laying jobs. No signs of leaks after racking up 500 hours, and the custom clevis mount slotted right in without issues. Delivery from Mexico Ever-Power arrived right on schedule, saving our team from any lost time on site. For a hydraulic cylinder for excavator like this, the durability stands out and makes it a smart pick for ongoing utility work."
Ana Lopez, Farm Equipment Manager, Puebla
"Switching to Mexico Ever-Power's mini excavator hydraulic cylinder transformed our irrigation system maintenance—it's been flawless for a full year now. With a 50mm bore, it manages lighter loads easily without any strain, fitting our needs just right. Their customer service really impressed me with the follow-up calls to check if everything was operating well. This hydraulic cylinder excavator component offers top-notch quality at a fair cost, far better than overpriced options we've tried before."
Diego Rivera, Construction Owner, Tijuana
"Logistics from Mexico Ever-Power were spot on—they shipped this stick hydraulic cylinder in less than a week, keeping our urban projects from stalling. We've put it through tests at 21MPa on busy sites, and it performs without a glitch, with the chrome rod holding up against all the scrapes. For anyone needing a reliable hydraulic cylinder for mini excavator thumb setups, this one's efficient and built to last in tough conditions."
Sofia Ramirez, Demolition Specialist, Mexico City
"This hydraulic cylinder for mini excavator thumb attachment has been a tough performer in our light demolition tasks for six months straight, with seals staying secure through constant use. Mexico Ever-Power tailored the stroke to 450mm based on our exact specs, and their patient handling of the details made the process easy. The focus on customization and performance gives great value, especially when compared to generic mini excavator hydraulic cylinders that wear out faster."
Javier Torres, Maintenance Supervisor, Veracruz
"We're thoroughly impressed by the longevity of these mini excavator hydraulic cylinders from Mexico Ever-Power—ours has logged 1,200 hours with zero problems, thanks to the heavy-duty materials. The smooth logistics ensured quick arrival, and the pricing undercuts imported alternatives without skimping on quality. Operators have nothing but praise for how the hydraulic stick cylinder maintains steady operation, making maintenance routines simpler and more predictable in our daily fleet management."
Luis Hernandez, Site Engineer, Cancun
"After fitting the stick hydraulic cylinder into our coastal projects, it's endured salty air and sandy digs for ten months without corrosion issues. The 700mm stroke provides the reach we need for foundation work, operating reliably at high pressures. Mexico Ever-Power's after-sales support was proactive, guiding us through minor adjustments—definitely a step above in service for hydraulic cylinder excavator needs."
Elena Vargas, Rental Fleet Operator, Hermosillo
"Managing a rental fleet, the excavator hydraulic cylinder's quick turnaround from order to delivery by Mexico Ever-Power has been a lifesaver, often arriving in days. We've seen no failures after 800 hours across multiple units, with the robust design suiting varied customer jobs. Their attention to detail in matching specs like bore size boosts our confidence in recommending these mini excavator hydraulic cylinders to clients."
