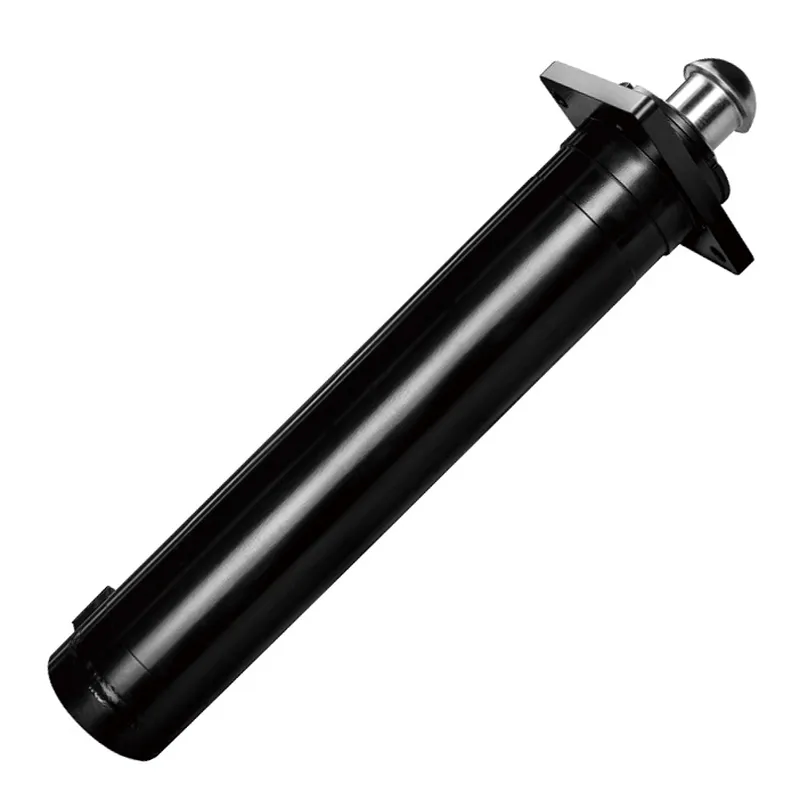

Hydraulic Support Leg Cylinder for Truck Cranes

Truck Crane Hydraulic Support Leg Cylinder Overview

The hydraulic support leg cylinder serves as an essential component in truck cranes, providing the necessary stability for safe and effective lifting operations. Designed specifically for extending and retracting outriggers, this support leg hydraulic cylinder ensures that the crane maintains balance on various terrains, from urban construction zones to remote industrial sites in Mexico. Manufactured with precision engineering, it utilizes high-strength materials to withstand extreme pressures and loads, making it ideal for heavy-duty applications.

In the context of Mexico's growing infrastructure projects, where truck cranes are frequently deployed for building bridges, high-rises, and mining operations, this hydraulic cylinder for crane plays a pivotal role in preventing accidents and enhancing productivity. Its seamless integration with existing crane systems allows operators to deploy support legs quickly, reducing setup time and increasing overall efficiency. With a focus on reliability, the cylinder incorporates advanced sealing technology to minimize fluid leaks, ensuring consistent performance even under prolonged use.

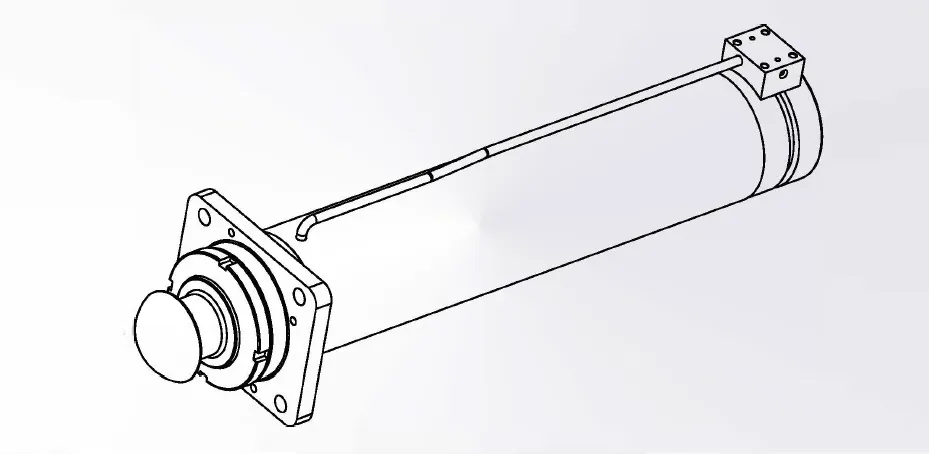

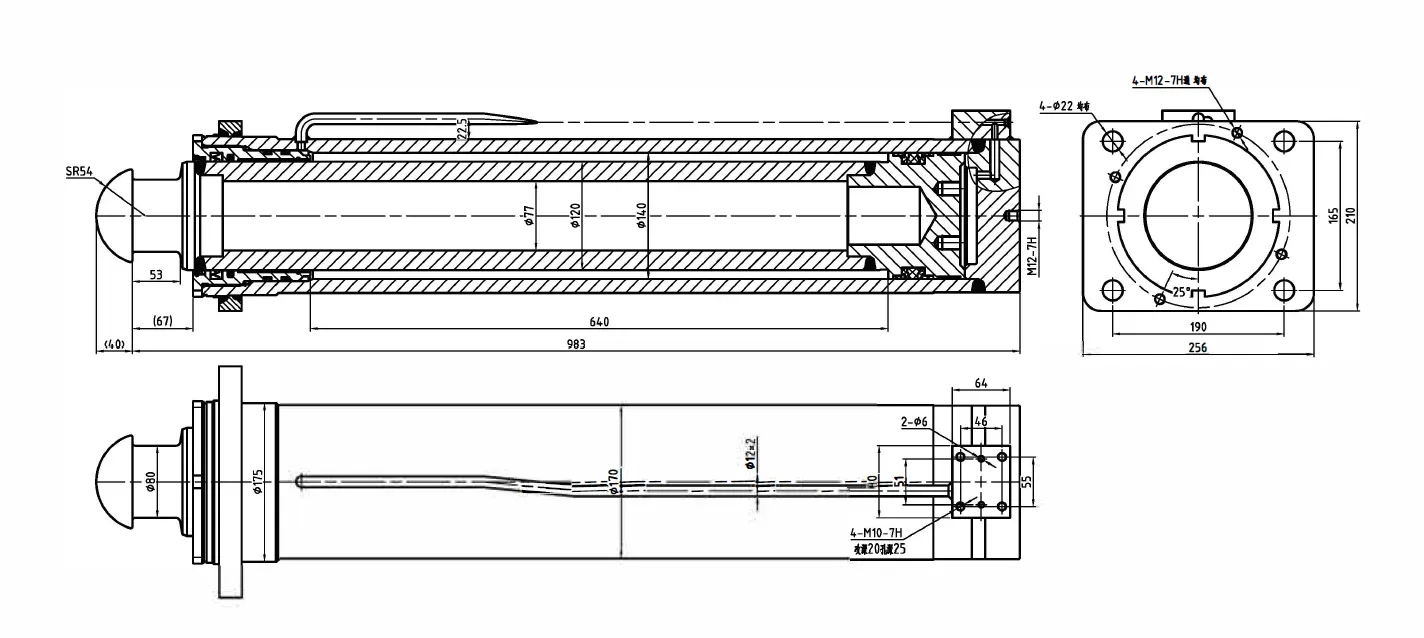

Hydraulic Support Leg Cylinder Dimensions

Technical Specifications

If you have specific customization needs beyond these standard specifications, such as adjusted stroke lengths or pressure ratings for unique truck crane setups, please contact our team at Mexico Ever-Power for tailored solutions.

Hydraulic Support Leg Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112025	Φ80XΦ60X790	18MPa	27MPa	790	1112	45kg

Product Name:	Support Leg Hydraulic Cylinder
Function:	Supporting function.
Cylinder diameter:	63mm-150mm
Rod diameter:	45mm-120mm
Travel:	600mm-200mm
Maximum pressure Mpa:	20MPa
Maximum thrust KN:	353KN

Features of Hydraulic Support Leg Cylinder for Truck Crane

Our hydraulic support leg cylinder stands out in the truck crane market through a combination of durable engineering and practical innovations tailored for demanding environments. Its core structure relies on high-strength steel alloys, selected for their ability to resist fatigue and deformation under constant stress from elements such as persistent rainfall in Mexico's tropical regions or abrasive sand in arid zones like Baja California. The piston and rod undergo meticulous machining processes to achieve seamless movement, which not only curbs unwanted vibrations but also preserves the accuracy required for precise crane maneuvers in tight urban spaces. Complementing this, the sealing mechanisms employ multi-layer gaskets and O-rings designed to retain hydraulic fluid effectively, ensuring steady pressure levels even during extended shifts on construction sites across Mexico, where operational continuity is paramount to meeting project deadlines.

Exploring further, the modular architecture of this support leg hydraulic cylinder enables straightforward compatibility with a broad spectrum of truck crane configurations, allowing operators to adapt it for specialized tasks without extensive modifications. This flexibility proves invaluable in Mexico's varied sectors, including skyscraper erections in bustling metropolises like Mexico City and ore handling in remote mining operations in Chihuahua. Protective layers of epoxy-based corrosion inhibitors safeguard the unit against rust and degradation, thereby prolonging its operational lifespan and offering long-term savings on replacements. Safety features, such as built-in pressure relief valves, automatically vent excess force to avert system failures, fully compliant with Mexico's national standards for workplace hazard prevention, which emphasize equipment reliability to protect crews.

Advanced Material and Design Elements

Beneath the surface, the support leg hydraulic cylinder integrates chrome-plated rods engineered to withstand the abrasion from thousands of extension cycles, making it ideal for intensive applications in high-traffic logistics centers such as those along the Tijuana border. This plating technique enhances surface hardness while reducing friction, contributing to smoother performance over time.

• High-tensile barrel for superior pressure containment, capable of handling loads without compromising structural integrity.
• Optimized port placements that promote rapid and even fluid distribution, minimizing energy loss in hydraulic circuits.
• Integrated mounting brackets crafted for robust attachment, ensuring stability during crane deployments on uneven terrain common in Mexico's highlands.

Advantages of Support Leg Hydraulic Cylinder in Truck Crane

Adopting our hydraulic support leg cylinder brings clear benefits to truck crane users, particularly in Mexico's diverse landscapes where reliable equipment is essential. Built with sturdy materials and precise engineering, it enhances overall job site efficiency while addressing common challenges faced by operators in construction, mining, and logistics sectors.

• Superior Stability and Safety Enhancement
  This cylinder delivers exceptional balance by firmly extending outriggers, effectively countering the risks of crane overturns on Mexico's uneven grounds like mountainous regions or coastal plains. By distributing weight evenly during lifts, it safeguards workers against accidents, aligns with national safety protocols such as those from the Secretariat of Labor and Social Welfare, and lowers potential liability costs for companies, fostering a secure environment that allows teams to focus on tasks without constant worry about structural failures.
• Faster Setup and Increased Productivity
  With its powerful yet responsive hydraulic mechanism, the support leg cylinder enables rapid deployment of stabilizers, cutting down preparation time from minutes to seconds on busy Mexican project sites in cities like Monterrey or Guadalajara. This speed-up supports tighter deadlines in infrastructure developments, such as bridge constructions or urban expansions, allowing crews to handle more loads per shift and ultimately driving higher output rates for contractors managing multiple operations across the country.
• Low Maintenance Needs and Durability
  Constructed from resilient alloys that resist wear from daily exposure to dust, humidity, and temperature swings common in Mexico's climates—from arid deserts in Sonora to humid tropics in Veracruz—the cylinder requires minimal upkeep. This reduces the frequency of part replacements and service calls, helping fleet owners avoid unexpected expenses and maintain consistent uptime, which is crucial for long-term profitability in competitive industries.
• Cost Savings Through Efficient Operations
  By streamlining hydraulic fluid circulation with refined internal designs, this cylinder cuts energy use in crane systems, leading to noticeable reductions in fuel consumption during extended runs on Mexican highways or remote sites. For businesses, this means lower running costs over time, better budget allocation toward growth, and an edge in bidding for large-scale projects where operational efficiency directly impacts the bottom line.
• Broad Compatibility and Versatility
  Engineered to fit seamlessly with various truck crane models from leading manufacturers, this support leg hydraulic cylinder offers flexibility for mixed fleets common among Mexican contractors handling diverse jobs from port loading in Manzanillo to high-rise builds in Mexico City. Such adaptability minimizes adaptation downtime, simplifies inventory management, and allows for quick swaps in the field, enhancing overall operational agility.

Types of Hydraulic Cylinder for Truck Cranes

Truck cranes rely on specialized hydraulic cylinders to manage lifting, balancing, and stabilization tasks effectively. These components convert fluid pressure into mechanical force, enabling precise control in various operational scenarios.

1. Hydraulic Counterweight Cylinder
This cylinder manages the positioning and adjustment of counterweights on truck cranes, ensuring optimal balance during heavy lifts to prevent tipping on uneven surfaces common in construction sites. By extending or retracting, it allows operators to fine-tune weight distribution based on load requirements, enhancing overall crane stability and compliance with safety standards in demanding environments like urban developments or industrial yards.

2. Hydraulic Horizontal Cylinder
Employed primarily for extending and retracting horizontal outriggers or telescopic sections in truck cranes, this cylinder provides lateral support and leveling on varied terrain. Its design facilitates quick adjustments to maintain crane alignment during operations, reducing stress on the main structure and improving efficiency in tasks such as material handling in logistics hubs or bridge maintenance projects where precise horizontal movements are essential for safe execution.

3. Hydraulic Luffing Cylinder
Responsible for controlling the boom's angle in truck cranes, this cylinder enables raising or lowering the arm to achieve desired reach and height for lifting operations. It operates through controlled hydraulic pressure to handle variable loads smoothly, making it vital for applications in high-rise construction or mining where boom positioning directly impacts productivity and worker safety by allowing accurate load placement without excessive manual intervention.

4. Hydraulic Support Leg Cylinder
Designed to deploy and secure vertical support legs or outriggers on truck cranes, this cylinder creates a stable base by extending downward to distribute weight evenly across the ground. In regions with irregular surfaces, such as rural excavation sites or port facilities, it minimizes the risk of overturning during heavy-duty lifts, while its robust seals and materials ensure reliable performance over extended use, supporting compliance with occupational regulations.

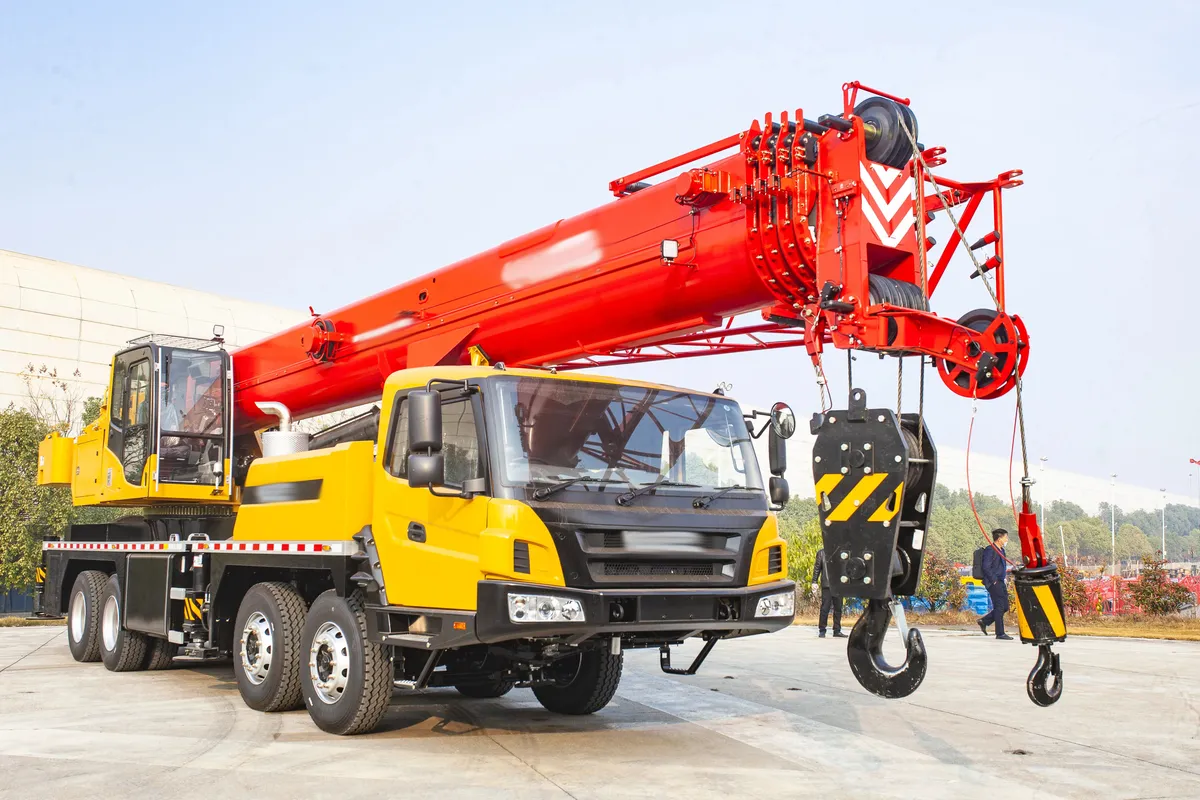

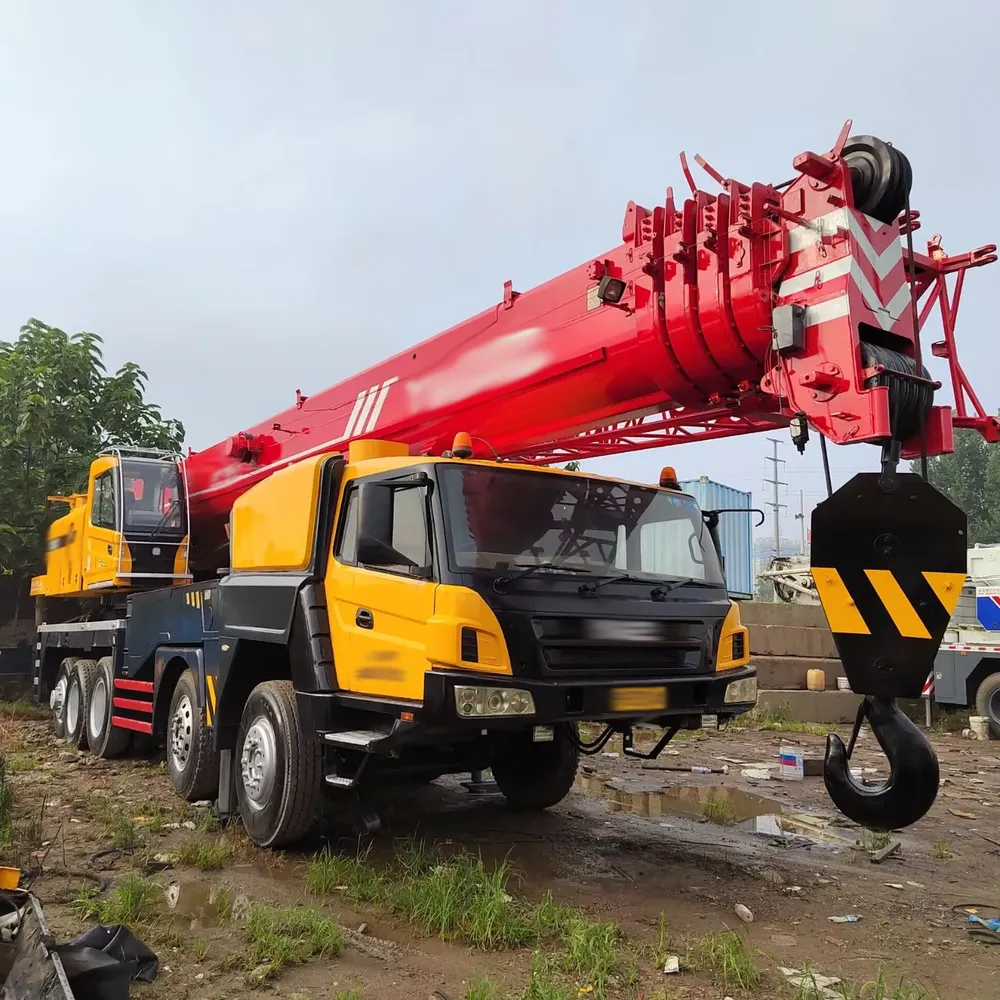

Truck Crane Hydraulic Support Leg Cylinder Applications

Construction Industry
In building projects, this cylinder extends outriggers to create a firm base for truck cranes lifting steel beams or concrete panels on uneven lots. It prevents shifts during high-rise pours or bridge assemblies, allowing crews to work safely amid urban sprawl or rural developments where soil conditions fluctuate daily.

Power Plant Industry
For maintenance and installation at thermal or nuclear facilities, the cylinder stabilizes cranes hoisting turbines or piping sections in confined yards. Its reliable extension handles vibrations from nearby equipment, supporting precise placements that minimize downtime in energy generation sites where operational continuity is non-negotiable.

Wind Energy Industry
On wind farm sites, it deploys to steady cranes erecting tower sections or blades in open fields with gusty winds. The cylinder's quick setup counters ground instability from loose soil, facilitating safe assembly of tall structures and reducing risks during component lifts in remote renewable energy installations.

Port Logistics Industry
At docks and container terminals, this cylinder levels cranes for loading or unloading vessels with heavy cargo. It provides solid footing on paved or soft quays, enabling smooth handling of shipping containers and ensuring steady operations in high-volume hubs where time-sensitive transfers demand uninterrupted stability.

Mining Industry
In open-pit or underground-adjacent operations, the cylinder anchors truck cranes moving ore haulers or drilling rigs over rocky terrain. Its robust extension distributes weight to avoid collapses, supporting extraction tasks that involve lifting heavy machinery in harsh, variable environments where equipment failure could halt production.

Oil and Gas Industry
During rig setup or pipeline projects, it stabilizes cranes lifting drill pipes or platform modules on offshore-adjacent land sites. The cylinder manages soft or sandy ground, allowing controlled lifts in exploration areas where precision prevents spills and maintains safety amid volatile extraction processes.

Construction Industry	Power Plant Industry
Wind Energy Industry	Port Logistics Industry

Choose the Right Support Leg Hydraulic Cylinder for Truck Crane

Selecting an appropriate support leg hydraulic cylinder demands careful evaluation of operational needs, equipment specifications, and environmental factors to ensure reliable performance in truck crane setups. Factors such as pressure handling, material quality, and compatibility play key roles in this decision process.

• Assess Load Capacity and Pressure Ratings
  Begin by reviewing the cylinder's working pressure, typically around 18MPa for standard models, and its maximum withstand pressure up to 27MPa to match the crane's lifting demands. This step prevents overload failures during heavy operations on Mexican construction sites, where varying loads from materials like steel beams require cylinders capable of sustaining consistent force without compromising structural integrity over time.
• Consider Stroke Length and Dimensions
  Examine the stroke, such as 790mm in common configurations, alongside bore and rod diameters like Φ80xΦ60 to fit the crane's outrigger extension requirements. Proper sizing ensures full deployment on uneven terrain found in Mexico's rural mining areas, allowing stable positioning that avoids partial extensions leading to imbalance during lifts of up to several tons.
• Evaluate Material Quality and Corrosion Resistance
  Prioritize cylinders constructed from high-strength steel with protective coatings to resist rust in humid coastal regions like Veracruz or dusty interiors. This choice extends service life by countering environmental wear, reducing the need for frequent replacements and maintaining operational reliability in Mexico's diverse climates where exposure to salt or sand could otherwise accelerate degradation.
• Check Compatibility with Existing Crane Models
  Verify mounting distances, such as 1112mm, and bracket designs to integrate seamlessly with specific truck crane brands used in Mexican fleets. This compatibility minimizes installation challenges and downtime, ensuring the cylinder aligns with hydraulic systems for smooth retraction and extension in logistics operations at ports or urban builds.
• Review Built-in Safety Features
  Look for elements like pressure relief valves and robust seals that protect against sudden failures under load. These features align with Mexico's occupational safety guidelines, safeguarding workers by automatically managing excess pressure during crane stabilizations in high-risk environments such as wind energy installations or oil field setups.
• Factor in Maintenance and Weight Considerations
  Opt for lighter models around 45kg with low-maintenance seals to simplify handling and upkeep on job sites. This reduces labor costs for Mexican fleet managers, as durable components mean fewer inspections and fluid changes, supporting long-term efficiency in continuous use across construction or power plant projects.

Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?

FAQs

Q: What is a hydraulic support leg cylinder and how does it work in truck cranes?
A: A hydraulic support leg cylinder acts as the primary mechanism for deploying outriggers on truck cranes, creating a solid foundation to counterbalance loads during lifts. It functions by channeling pressurized oil through ports to drive the piston forward or backward, generating the thrust needed for leg extension and retraction, which maintains equilibrium on job sites and averts potential overturns in varied setups.

Q: What are the key technical specs of the hydraulic cylinder for crane support legs?
A: Essential specifications for our hydraulic cylinder include a bore and rod setup of Φ80xΦ60x790 for balanced force delivery, an 18MPa standard working pressure suited to routine crane tasks, a 790mm travel length for full outrigger deployment, and a compact 45kg mass that eases handling without sacrificing strength, making it well-suited for intensive applications in heavy equipment.

Q: How to install a hydraulic support leg cylinder on a truck crane safely?
A: Safe installation starts with clearing the workspace and fully releasing system pressure to avoid hazards, followed by aligning the cylinder precisely with mounting points, fastening brackets with appropriate torque, linking hydraulic lines securely to prevent leaks, and conducting a full cycle test under no-load conditions to confirm smooth operation and stability before actual use.

Q: What maintenance is required for long-lasting hydraulic cylinder for truck crane performance?
A: To sustain performance, perform visual checks for fluid seepage every week, replace hydraulic oil at six-month intervals to preserve system integrity, and apply lubricant to exposed rods regularly to combat friction. These routines guard against degradation in Mexico's dusty or humid settings, prolonging component life and minimizing unexpected breakdowns during critical lifts.

Q: Can I get custom hydraulic support leg cylinders for specific crane models in Mexico?
A: Absolutely, Mexico Ever-Power specializes in tailoring support leg hydraulic cylinders, modifying aspects like extension ranges, attachment fixtures, and pressure tolerances to match particular crane designs. This service caters to unique operational demands in Mexico, ensuring the final product integrates flawlessly and boosts efficiency in local construction or industrial environments.

Q: What advantages does the support leg hydraulic cylinder offer over manual systems?
A: Compared to hand-operated alternatives, this hydraulic version delivers swift leg positioning with minimal effort, precise control for even weight spread, and enhanced safeguards against errors, which collectively lessen physical strain on operators during prolonged Mexican ventures like infrastructure builds or resource handling, leading to safer and more streamlined workflows.

Q: How does the working principle of hydraulic cylinder for crane ensure stability?
A: The core mechanism involves transforming hydraulic fluid under pressure into straight-line motion via the piston, which evenly allocates the crane's mass across support points to counteract tipping forces. This process guarantees a steady platform for lifting, adapting to load changes and ground irregularities to uphold secure conditions throughout the operation.

Q: Are there applications for hydraulic support leg cylinders beyond truck cranes in Mexico?
A: Certainly, these cylinders extend to stabilizing machinery in Mexico's mining sectors for ore transport rigs, port operations for container loaders, and broader construction equipment like mobile platforms, where they provide essential footing on unstable surfaces to facilitate safe, heavy-duty maneuvers in these industries.

Q: How to troubleshoot common issues with support leg hydraulic cylinders?
A: Begin by examining fluid reservoirs for adequate levels, inspecting gaskets for cracks that might cause pressure drops, and clearing any obstructions in lines; for persistent problems, enlist Mexico Ever-Power's technicians who can diagnose and repair with specialized tools to restore full capability swiftly.

Q: Why is corrosion resistance important in hydraulic support leg cylinders for Mexican climates?
A: Corrosion protection is vital as it shields the cylinder from moisture-laden air in coastal zones like Baja California or salty mists near ports, as well as arid dust in inland areas, thereby preserving material strength, curbing repair needs, and extending usability in Mexico's wide-ranging weather patterns.

Customer Reviews

Maria Gonzalez, Crane Operator, Monterrey
"I've been running this hydraulic support leg cylinder on my truck crane for a solid six months, and let me tell you, it's as reliable as they come. That 790mm stroke deals with our bumpy construction spots without a hitch, holding steady at 18MPa every single time we extend the outriggers. Mexico Ever-Power nailed the delivery—showed up in less than two weeks, which meant no delays on our tight schedules. Haven't spotted a single leak or glitch; this thing's built like a tank and keeps performing day in, day out. Totally worth it for keeping things safe and smooth on site. "

---

Carlos Lopez, Fleet Manager, Mexico City
"Couldn't be happier with the service from Mexico Ever-Power. We picked up a batch of these support leg hydraulic cylinders for our city fleet, and their team customized the mounting brackets exactly how we needed in just a few days—no fuss at all. The build quality shines through, easily managing that 27MPa max pressure under full load without breaking a sweat. Shipping was a breeze, beating our expected arrival by a couple of days, which helped us stay ahead on multiple jobs. If you're in construction, I'd say go for these; they're a game-changer for reliability."

---

Ana Rivera, Site Engineer, Guadalajara
"Over the past year-plus, this hydraulic cylinder for truck crane has been our go-to for those demanding high-rise gigs here in Guadalajara. The Φ80xΦ60 specs line up perfectly with our setup, handling back-to-back heavy lifts like it's nothing. Mexico Ever-Power's crew was spot-on with support; they walked me through installation queries in no time flat. Durability is off the charts—barely any signs of wear after all that constant action. It's delivered real value, cutting down on worries and letting us focus on getting the job done right. "

---

Javier Torres, Mining Supervisor, Sonora
"Keeping it straightforward: this hydraulic support leg cylinder has cut our setup time way down in the Sonora mines. It extends fast and holds firm even with loads pushing 353KN, no wobbles or hesitations. When we hit a snag and needed a rush shipment to our out-of-the-way spot, Mexico Ever-Power's service team pulled through with quick delivery that kept us rolling. Durability? It's acing the test against all that constant dust and grit—no breakdowns yet. Solid pick for tough mining work."

---

Sofia Martinez, Logistics Coordinator, Veracruz
"Really taken with how well this whole setup works from Mexico Ever-Power. The cylinder's 45kg weight made swapping it in super easy, and once up and running in our port ops, it's been flawless—no hiccups at all. Zero downtime since we made the switch, which is huge for keeping cargo moving on schedule. They paid close attention to packing, so everything arrived in perfect shape despite the bumpy transit. And that follow-up call from their service folks? It showed they actually care about how it's performing for us. Five stars all around."

---

Diego Ramirez, Construction Foreman, Tijuana
"We've had these hydraulic cylinders for crane plugged into our Tijuana border projects for around eight months now, and they're absolute winners. They take on 20MPa max pressure without flinching, ideal for our fast-paced sites. Loved how Mexico Ever-Power jumped on our maintenance questions with quick, helpful tips that saved us time. Delivery timing was perfect—right when we needed them, no holdups. Overall, the dependability has slashed our fix-up expenses big time. If you're looking for something that just works, this is it. "
