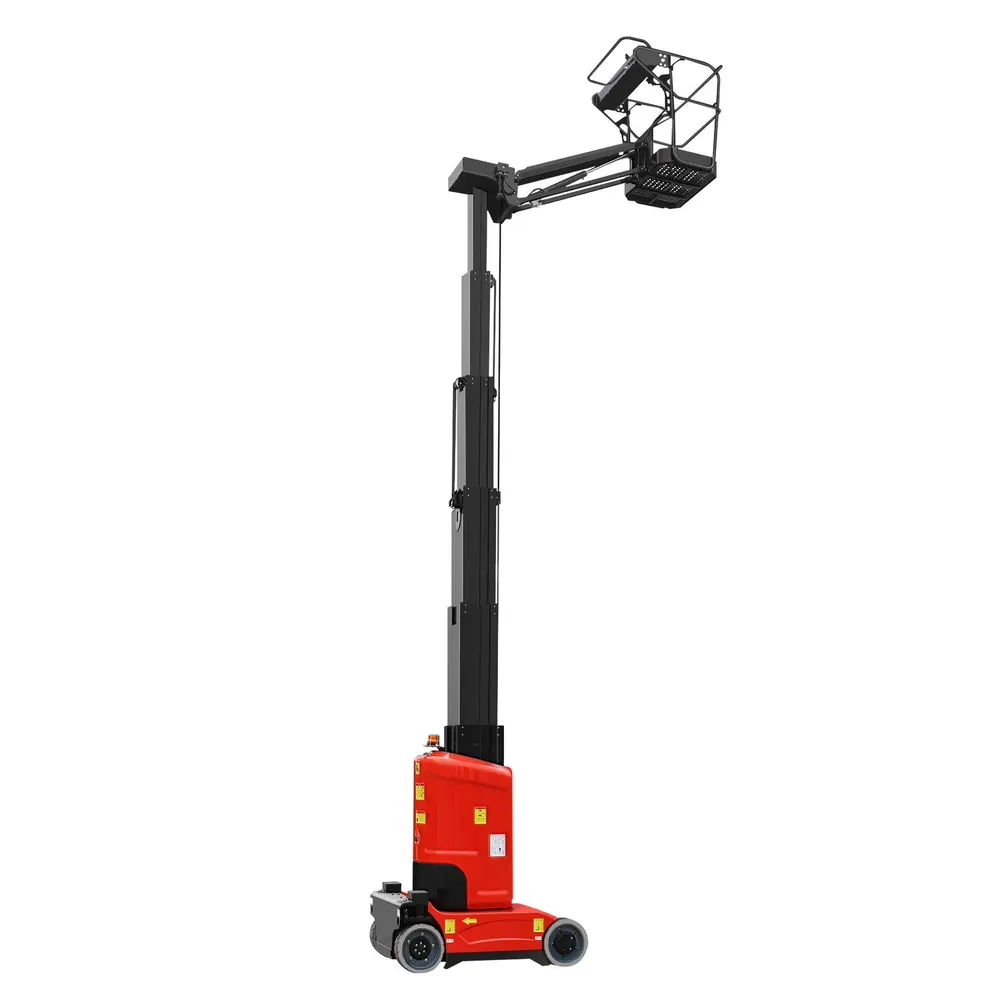

Hydraulic Swing Rod Cylinder for Mast Type Aerial Work Platforms
In the realm of elevated operations, the hydraulic swing rod cylinder stands out as a pivotal component for mast-type aerial work platforms. This device, often referred to as a swing rod hydraulic cylinder, facilitates controlled rotational movements essential for positioning the platform accurately during tasks at height.
Hydraulic Swing Rod Cylinder Overview
In the realm of elevated operations, the hydraulic swing rod cylinder stands out as a pivotal component for mast-type aerial work platforms. This device, often referred to as a swing rod hydraulic cylinder, facilitates controlled rotational movements essential for positioning the platform accurately during tasks at height. Engineered with high-strength materials, it withstands rigorous conditions common in construction sites, industrial maintenance, and warehouse environments. The cylinder's design incorporates a robust piston rod and sophisticated sealing mechanisms to prevent leaks and ensure consistent performance under pressure.
Operators in Mexico benefit from its adaptability, as it can be customized to fit specific platform dimensions and load requirements, making it a versatile choice for local industries facing diverse challenges. Beyond basic functionality, this hydraulic lifting cylinder variant integrates seamlessly with existing hydraulic systems, providing smooth pivoting that enhances overall machine efficiency. Its role in stabilizing the mast during swings reduces the risk of accidents, promoting safer work practices. With a focus on durability, the cylinder resists corrosion and wear, extending service life and lowering long-term costs for businesses.

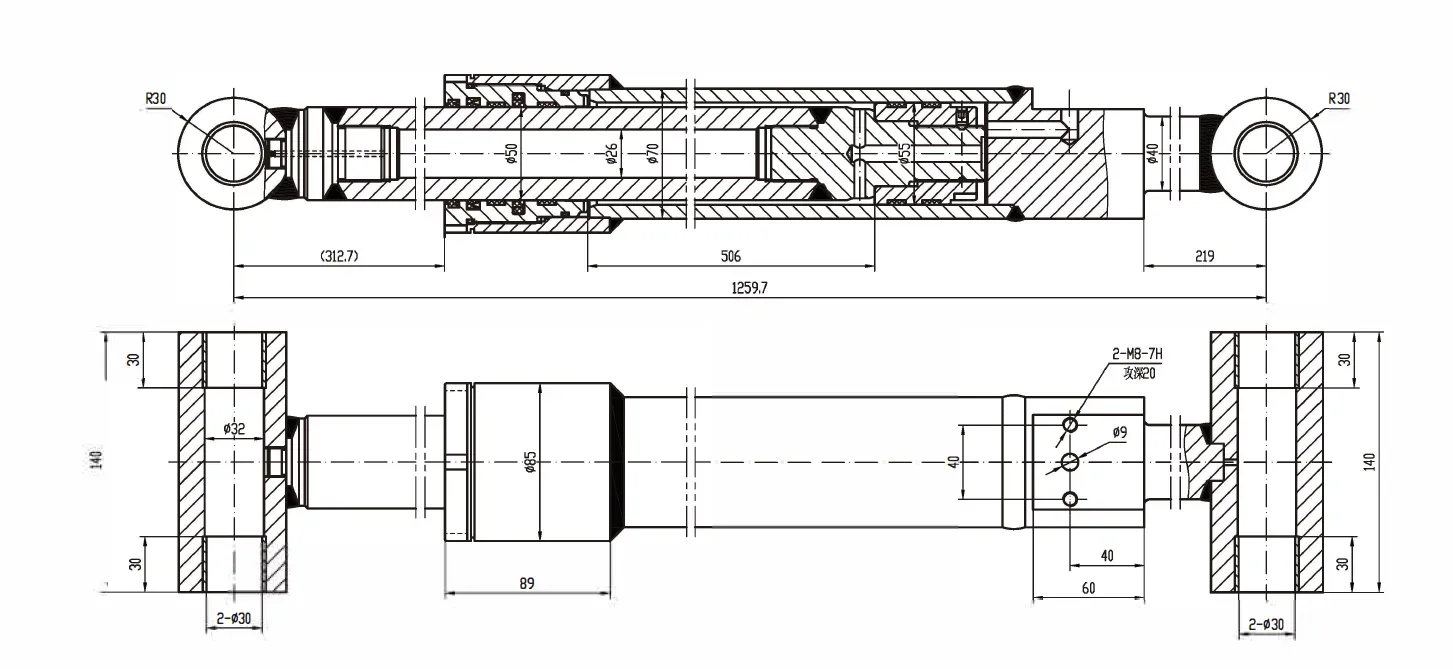

Swing Rod Hydraulic Cylinder Dimensions
Technical Specifications
If you have specific customization needs beyond these standard specifications, such as adjusted stroke lengths or mounting configurations, please contact our team at Mexico Ever-Power for tailored solutions.
| Main Boom Angle Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| YY11112005 | Φ55xΦ50x506 | 21 MPa | 26.5 MPa | 506 | 1259.7 | 32kg |
| Product Name: | Swing Rod Hydraulic Cylinder |
| Function: | To achieve boom lifting and lowering with variable amplitude. |
| Cylinder diameter: | 55mm-65mm |
| Rod diameter: | 40mm-60mm |
| Travel: | 300mm-500mm |
| Maximum pressure: | 21MPa |
| Maximum thrust: | 70KN |
Features of Hydraulic Swing Rod Cylinder for Mast Type AWPs
Key Design Elements
The hydraulic swing rod cylinder boasts several standout features that set it apart in the market for aerial work platforms. One primary aspect is its precise swing control, which allows for accurate angular adjustments essential in tight spaces. This is achieved through a double-acting mechanism that ensures smooth extension and retraction of the piston rod. Materials like high-grade steel contribute to its resistance against bending or deformation under load, a common issue in less robust models. Seals made from advanced polymers prevent hydraulic fluid leakage, maintaining system integrity over thousands of cycles. The cylinder's compact dimensions facilitate easy integration into existing mast structures without requiring major modifications. Operators value the low-friction surfaces that reduce energy consumption during operation, leading to more efficient hydraulic systems overall.
Performance Enhancements
Further enhancing its appeal, the swing rod hydraulic cylinder includes features focused on safety and longevity. Built-in pressure relief valves protect against overloads, safeguarding both the equipment and personnel. Its corrosion-resistant coating suits outdoor use in Mexico's varied climates, from humid coastal areas to arid interiors. Customizable rod ends allow for various attachment points, adapting to different platform designs. The unit's high thrust output supports heavier loads, making it suitable for industrial-grade tasks. Maintenance-friendly access points simplify inspections, and the overall design minimizes vibration transmission to the platform, improving user comfort during prolonged sessions at height.
Advantages of Swing Rod Hydraulic Cylinders
1. Enhanced Operational Efficiency
The swing rod hydraulic cylinder facilitates rapid and precise adjustments in mast positioning, significantly reducing the time required for setup and repositioning during operations. This capability is especially valuable in bustling construction sites across Mexico, where swift task completion directly contributes to meeting tight project deadlines and optimizing workforce productivity without relying on outdated manual methods.
2. Superior Load-Bearing Capacity
Designed to manage substantial weights and forces, this cylinder supports demanding applications in aerial work platforms, eliminating the need for frequent component upgrades. By handling high loads reliably, it cuts down on equipment expenses over time, allowing operators to focus on core tasks rather than dealing with limitations imposed by weaker alternatives.
3. Exceptional Durability
Constructed with high-quality materials that withstand repeated stress cycles, the cylinder extends its operational life far beyond typical expectations. This resilience ensures consistent performance in rigorous environments, reducing the likelihood of breakdowns and providing long-term value for businesses investing in reliable hydraulic systems.
4. Integrated Safety Features
With stable motion control mechanisms, the cylinder minimizes risks of sudden shifts or instabilities during use, promoting a safer environment for workers at elevated heights. Such features align with industry standards, helping to prevent workplace incidents and supporting compliance with safety regulations in Mexican industrial settings.
5. Optimized Energy Efficiency
By streamlining hydraulic fluid flow, the cylinder lowers overall power or fuel consumption for the hosting machinery, leading to cost savings on energy bills. This efficient design not only benefits operational budgets but also contributes to more sustainable practices in energy-intensive sectors like construction and maintenance.
6. Customization and Versatility
Mexico Ever-Power offers models that can be precisely adapted to individual requirements, including modifications to stroke lengths or pressure capabilities, ensuring seamless integration into varied equipment fleets. This adaptability proves advantageous for Mexican enterprises managing multiple types of aerial platforms, enabling tailored solutions that enhance overall system compatibility.
7. Quiet Operation
The cylinder's design incorporates elements that dampen noise during hydraulic actions, creating a less disruptive work atmosphere on job sites. This reduction in sound levels is particularly appreciated in urban areas or near residential zones in Mexico, where minimizing noise pollution supports better community relations and worker comfort.
Hydraulic Cylinder for Mast Type Aerial Work Platforms
1. Hydraulic Steering Cylinder
In mast-type aerial work platforms, the hydraulic steering cylinder facilitates precise directional control by converting hydraulic pressure into linear motion that adjusts the platform's orientation. This component ensures smooth maneuvering in confined spaces, enhancing operator safety during navigation around obstacles on construction sites or maintenance areas. Its robust construction withstands high pressures, typically up to 21 MPa, while integrating seamlessly with the platform's hydraulic system to provide reliable performance over extended operational periods.
2. Hydraulic Lifting Cylinder
The hydraulic lifting cylinder serves as the primary mechanism for vertical extension in mast-type aerial work platforms, enabling controlled elevation of the working basket to desired heights. Engineered for heavy-duty loads, it delivers consistent thrust forces exceeding 70 KN, which supports stable lifting operations essential for tasks such as electrical installations or building inspections. Customization options allow adjustments in stroke length and bore diameter to match specific project demands, thereby optimizing efficiency and reducing strain on associated machinery components.
3. Hydraulic Swing Rod Cylinder
Designed specifically for rotational adjustments, the hydraulic swing rod cylinder in mast-type aerial work platforms allows for angular pivoting of the mast structure, improving access to hard-to-reach areas. This cylinder operates through a double-acting system that ensures bidirectional movement under pressures reaching 26.5 MPa, promoting accuracy in positioning without excessive vibration. Its durable seals and corrosion-resistant materials extend service life in diverse environmental conditions, making it a vital element for versatile applications in industrial and urban settings.
Hydraulic Swing Rod Cylinder Application Industry

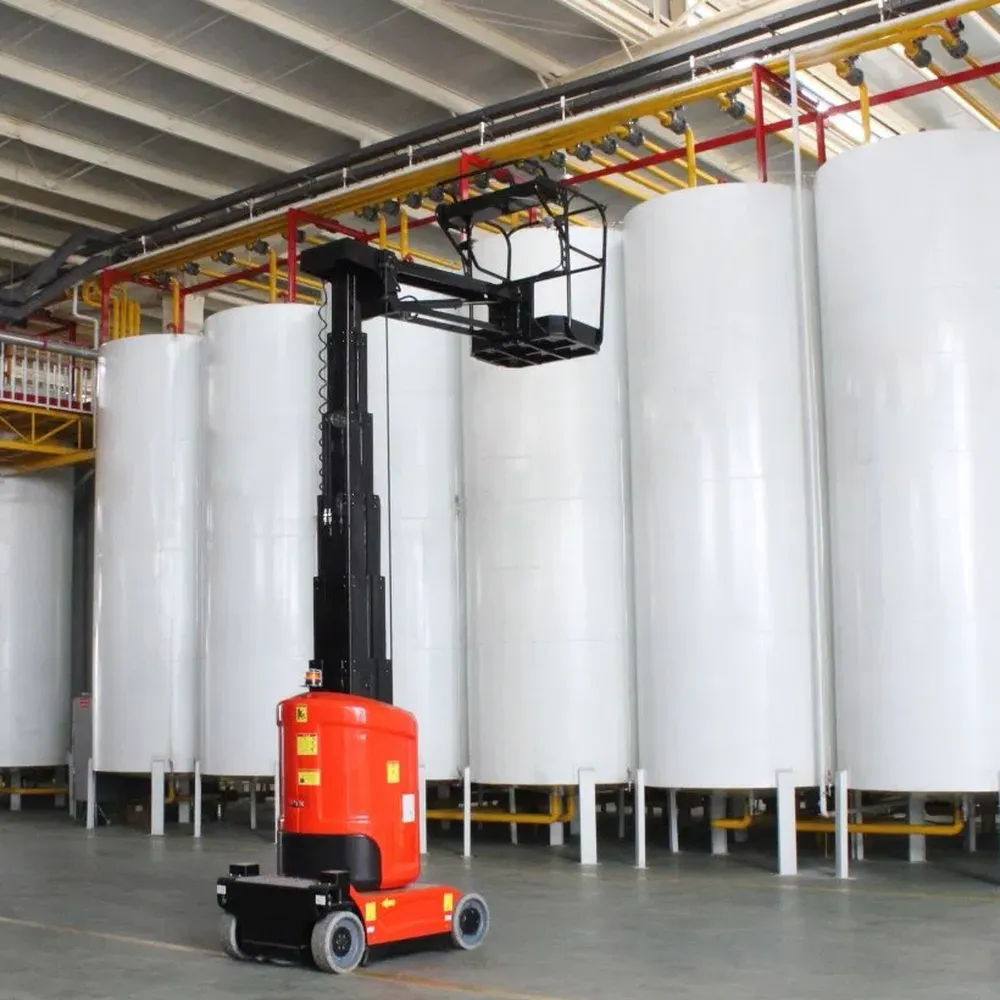

The hydraulic swing rod cylinder plays a pivotal role in numerous industries, especially when integrated into mast-type aerial work platforms, where its pivoting capabilities enhance operational reach and precision. In the construction sector, this component supports detailed work on tall structures, such as aligning scaffolding for exterior painting or installing signage on commercial buildings, allowing operators to adjust angles with minimal effort and maintain stability amid wind or uneven loads. For industrial maintenance, it proves indispensable in facilities like manufacturing plants, enabling technicians to swing the platform around machinery for inspections of conveyor systems or HVAC units mounted at height, thereby reducing the need for extensive shutdowns and improving workflow safety.

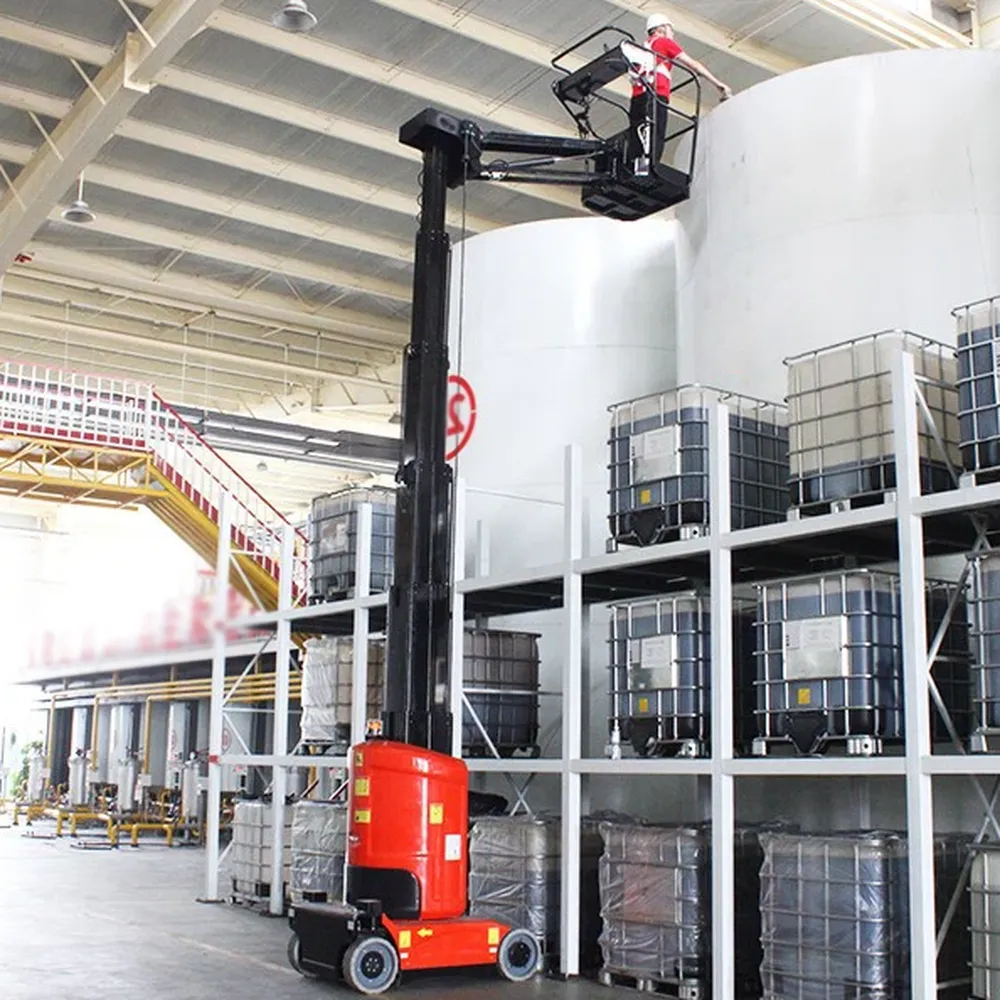

In warehouse management, the cylinder facilitates efficient inventory handling by permitting controlled tilts that access upper storage racks, which is crucial for logistics hubs managing high-volume goods distribution in regions with space constraints. Infrastructure development in Mexico benefits greatly from its application in projects like highway overpass repairs or utility pole installations, where the cylinder's robust design handles rugged landscapes and ensures consistent performance during prolonged use. Environmental management tasks, including urban forestry operations, rely on its smooth rotational function to prune branches or inspect canopies without damaging surrounding areas, promoting sustainable practices in city planning.
Beyond these, the swing rod hydraulic cylinders extend to emergency services, where it aids rescue teams in rapidly positioning platforms for building evacuations or fire suppression at elevated points, often under time-sensitive conditions. In the events industry, it supports the setup of temporary structures, such as concert lighting rigs or exhibition displays, by providing the necessary swing to align elements precisely overhead. Agricultural applications, particularly in expansive greenhouse complexes, utilize it for maintenance of irrigation systems or crop monitoring at various heights, adapting to the enclosed environments typical of modern farming. In resource extraction fields like mining operations or offshore oil platforms, its durability against corrosive elements and extreme pressures makes it suitable for customized rigs that inspect equipment or extract materials safely. Additionally, at Mexican seaports, the cylinder is employed in crane systems for maneuvering booms during container loading, optimizing cargo throughput and minimizing delays in international trade routes.
Why Choose Our Hydraulic Swing Rod Cylinder?
When selecting a supplier for hydraulic swing rod cylinders in Mexico, partnering with Mexico Ever-Power represents a strategic decision rooted in decades of proven performance. Established in 1978, our company has accumulated more than 45 years of specialized knowledge in producing mid- to high-end hydraulic components, with a particular emphasis on swing rod designs that prioritize both precision engineering and long-lasting durability. Our expansive 103-acre manufacturing facility, staffed by over 400 dedicated professionals, supports a rigorous quality management framework alongside advanced research and development initiatives. This infrastructure enables us to create innovative products that address evolving industry demands, from enhanced load capacities to seamless integration with mast-type aerial work platforms.
Our international footprint further underscores our dependability, with exports reaching 34 countries worldwide and a robust presence in North America. For clients in Mexico, we deliver localized advantages, including rapid response times for inquiries and access to state-of-the-art testing laboratories that facilitate bespoke customizations. Whether adjusting stroke parameters or incorporating specific mounting configurations, our team ensures solutions align precisely with regional operational challenges, such as varying terrain in construction or industrial sites.
What truly distinguishes Mexico Ever-Power is our unwavering dedication to operational safety and efficiency. We extend comprehensive after-sales services, encompassing detailed installation instructions, ongoing maintenance consultations, and prompt troubleshooting to prevent costly interruptions. All our hydraulic swing rod cylinders adhere to stringent ISO and CE certifications, making them suitable for a wide array of sectors, including construction, aerial maintenance, and infrastructure projects. Clients consistently praise our balanced pricing strategy, which maintains superior material standards and craftsmanship without unnecessary premiums, supported by our proprietary advancements in manufacturing technology. By choosing Mexico Ever-Power secure not just a product but an enduring collaboration that fosters reliability, cost-effectiveness, and sustained success in hydraulic applications.
 |
 |
 |
 |
FAQs
Q: What is a hydraulic swing rod cylinder used for in mast-type aerial work platforms?
A: A hydraulic swing rod cylinder primarily facilitates controlled pivoting or tilting of the mast structure in aerial work platforms, enabling operators to achieve accurate positioning for elevated activities such as structural inspections or equipment installations in construction and maintenance fields. This function supports safe access to otherwise challenging angles, reducing manual adjustments and enhancing overall job site productivity.
Q: How does a swing rod hydraulic cylinder differ from a standard hydraulic lifting cylinder?
A: Unlike a standard hydraulic lifting cylinder, which concentrates on straight-line vertical extension to raise platforms, the swing rod type prioritizes rotational capabilities, delivering angular shifts that are critical for navigating around obstacles and fine-tuning orientations in confined or complex work environments.
Q: What are the key specifications to consider when buying a hydraulic swing rod cylinder?
A: When purchasing, focus on bore diameter ranging from 55 to 65 millimeters, rod diameter between 40 and 60 millimeters, stroke lengths of 300 to 500 millimeters, and a maximum operating pressure of 21 megapascals, ensuring alignment with your platform's weight capacity and movement requirements for optimal integration and performance.
Q: Can the hydraulic swing rod cylinder be customized for specific applications in Mexico?
A: Certainly, customization options include modifications to stroke lengths, mounting styles, or pressure tolerances to address unique demands in Mexican industries like urban development or rural infrastructure; reach out to our local team for consultations on adapting units to regional standards and site-specific conditions.
Q: How to maintain a swing rod hydraulic cylinder for long-term reliability?
A: To ensure enduring performance, conduct routine seal inspections every few months, replace hydraulic fluid on an annual basis, and perform thorough cleanings to eliminate debris buildup, all while verifying the unit's ability to endure pressures up to 26.5 megapascals without compromising structural integrity.
Q: What pressure range does the hydraulic swing rod cylinder operate in?
A: The cylinder functions effectively within a standard working pressure of 21 megapascals, complemented by a maximum tolerance of 26.5 megapascals, making it well-suited for intensive aerial tasks that demand consistent force application in heavy-duty scenarios.
Q: Is the swing rod hydraulic cylinder suitable for outdoor use in varying Mexican climates?
A: Yes, its construction incorporates corrosion-resistant alloys and durable sealing elements that withstand exposure to moisture in coastal regions or dryness in desert areas throughout Mexico, ensuring reliable operation regardless of environmental fluctuations.
Q: How to install a hydraulic swing rod cylinder on an existing aerial platform?
A: The process entails firmly anchoring the cylinder base to the frame, linking the rod to the designated pivot joint, fastening hydraulic lines securely, and conducting operational tests to confirm functionality; adhere to provided guidelines to guarantee a secure and efficient assembly.
Q: What advantages does a double-acting hydraulic swing rod cylinder offer?
A: A double-acting design delivers force in both directions for fluid extension and retraction movements, which improves precision in adjustments, accelerates response times during pivots, and bolsters overall control in dynamic operational settings.
Q: How often should I replace seals in a hydraulic swing rod cylinder?
A: Seals ought to be swapped out every one to two years, or sooner if visible deterioration like cracks or fluid seepage appears, to preserve a seal against leaks and prolong the component's operational lifespan in demanding applications.
Customer Reviews
Juan Ramirez, Construction Site Supervisor, Mexico City
“We've been relying on the hydraulic swing rod cylinder for our mast platforms in busy urban builds for well over a year. That 506mm stroke fits our needs exactly, and it manages 21MPa pressure flawlessly every time. The team at Mexico Ever-Power jumped on our custom mount request and had it ready in less than a week, which kept our schedule on track. Quality-wise, no issues at all—it's built solid and holds up against daily wear like a champ.”
Maria Lopez, Maintenance Technician, Guadalajara
“Really impressed with this swing rod hydraulic cylinder—it's transformed how our platforms pivot, making jobs smoother overall. No downtime in the past six months, and at just 32kg, it's straightforward to handle during swaps. The Mexico-based Mexico Ever-Power folks were quick to respond to my installation queries, walking me through everything patiently. I'd definitely suggest it for anyone prioritizing dependable gear in tough settings.”
Carlos Mendoza, Warehouse Manager, Monterrey
“The logistics from Mexico Ever-Power stood out—our order arrived on site in only three days, which was a huge plus for our tight operations. This cylinder's 70KN max thrust handles our heaviest loads without strain, perfect for daily access to high storage in the onion section. The control precision has changed how we operate, and their support staff was approachable and sorted out a minor query right away.”
Ana Torres, Industrial Engineer, Tijuana
“This hydraulic swing rod cylinder has gone beyond what we hoped for in our setups. Two years in, and the 55mm bore is still delivering top-notch performance without any drop-off. The improved swing control has shaved about 20% off our task durations, boosting efficiency across the board. Mexico Ever-Power's proactive after-sales team even forwarded us some handy maintenance pointers, showing they care about long-term success.”
Pedro Gonzalez, Aerial Platform Operator, Puebla
“Solid bang for the buck with this one—the installation distance matched our existing rig spot on, and the 26.5MPa withstand pressure offers real reassurance on demanding jobs. Nine months of use now, and it's held strong against all the dust and grit from our sites. Durability shines through, and the professional vibe from the Mexico office made dealing with them straightforward and effective.”
Sofia Herrera, Project Coordinator, Cancun
“Shipping and packaging from Mexico Ever-Power were spot on—fast and secure, which mattered for our coastal location. The cylinder's smooth motion features have upped safety in our hotel upkeep routines noticeably. We've run the Φ50 rod model for more than a year with zero leaks or breakdowns, proving its reliability in humid conditions. Their focus on customization details really sets them apart in a crowded market.”
Luis Fernandez, Mining Equipment Specialist, Chihuahua
“Switched to Mexico Ever-Power's hydraulic swing rod cylinder for our mining platforms about eight months back, and it's tackled the rough terrain here without skipping a beat. The customizable options let us tweak the stroke to 450mm for better reach in tight shafts, and it supports our 60KN loads steadily. Service was attentive; they followed up post-delivery to ensure everything integrated well, which built a lot of trust.”
Miguel Santos, Bridge Inspector, Oaxaca
“For bridge work in varying weather, this hydraulic swing rod cylinder from Mexico Ever-Power has been a reliable pick for the last ten months. Its 32kg weight eases transport, and the precise angular control under 26.5MPa keeps inspections accurate and safe. Quality feels premium, with no corrosion issues yet, and their Mexico support team provided clear guidance on maintenance, emphasizing preventive steps that have paid off.”
