Hydraulic Boom Cylinder for Medium/Large Excavators

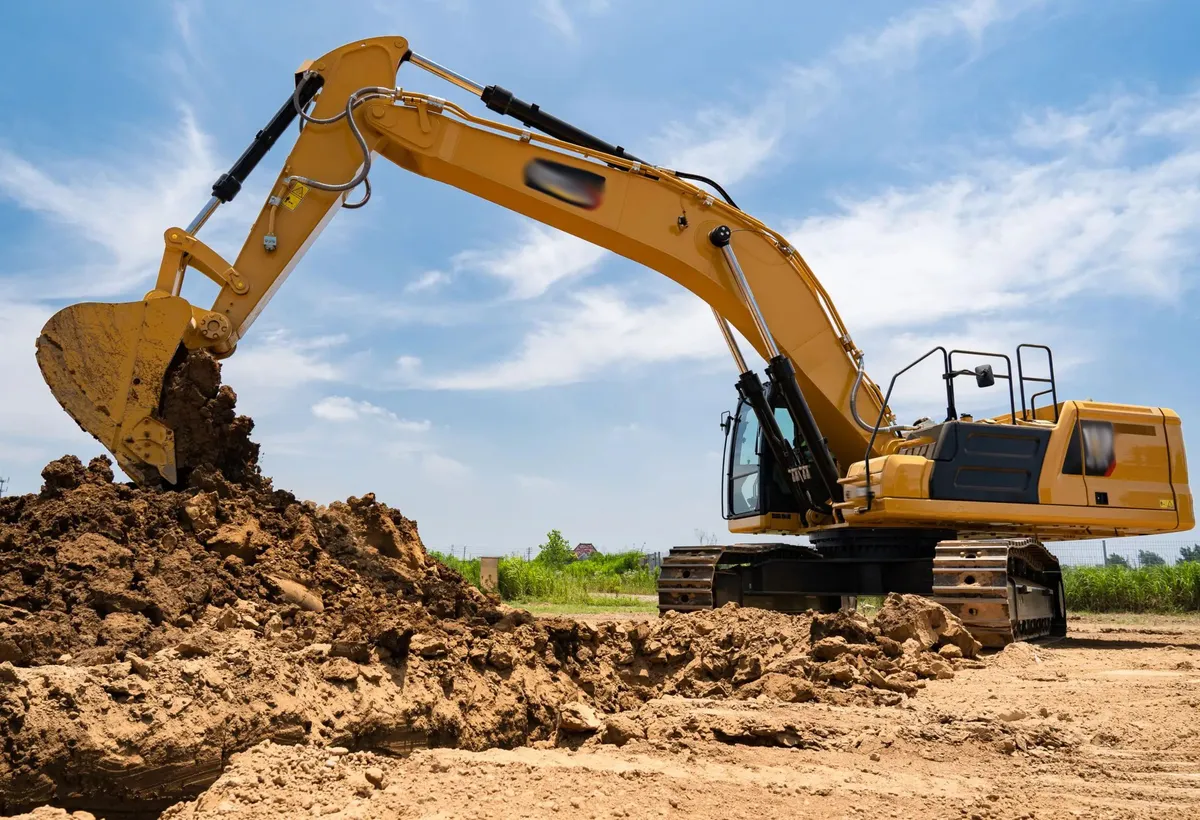

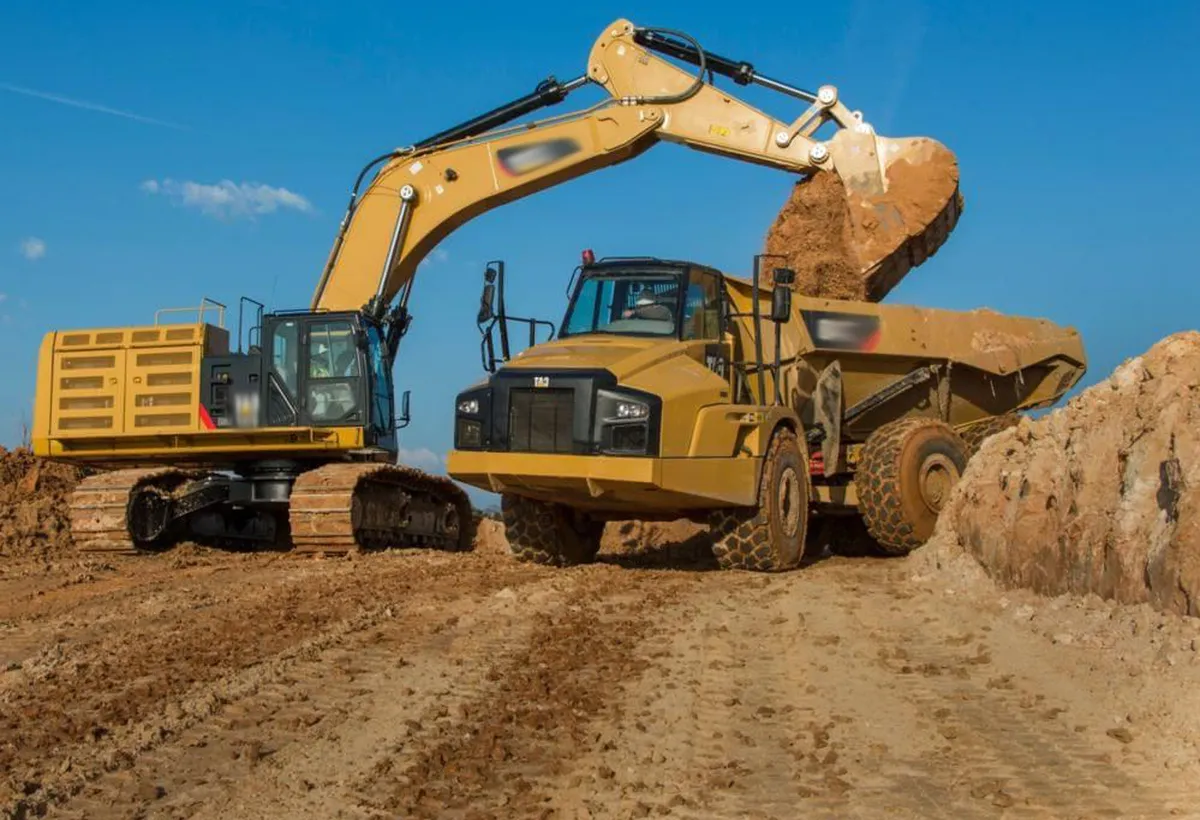

Large Excavator Hydraulic Boom Cylinder Overview

In the realm of heavy machinery, the hydraulic boom cylinder serves as a pivotal component for excavators, enabling precise control over the boom's lifting and lowering actions. This double-acting cylinder harnesses hydraulic pressure to extend and retract, providing the necessary force for handling substantial loads in diverse environments. Built with high-strength materials, it withstands rigorous operational demands, ensuring stability during excavation, lifting, and positioning tasks.

For medium and large excavators, these boom hydraulic cylinders are engineered to integrate seamlessly with the machine's structure, enhancing overall productivity while reducing wear on other components. Operators appreciate their role in maintaining smooth movements, which is crucial for safety and efficiency on job sites ranging from urban construction to remote mining operations.

Technical Specifications

If your project demands custom configurations beyond these standard specifications, such as adjusted stroke lengths or specialized mounting options, please contact our team at Ever-Power for tailored solutions to fit your exact needs.

Product Name:	Large Excavator Boom Hydraulic Cylinder
Function:	Control the lifting motion of the big arm.
Bore Diameter:	200mm-420mm
Rod diameter:	140mm-300mm
Stroke:	≤3500mm
Maximum pressure MPa:	35MPa
Thrust Force:	4846.6KN

Key Features of Excavator Hydraulic Boom Cylinder

• Robust Construction
  The excavator hydraulic boom cylinder boasts a sturdy build with a finely honed steel barrel that cuts down on internal friction, promoting extended service life in tough job sites. This solid foundation uses premium materials to handle intense pressures and repetitive cycles without deformation, making it a go-to for contractors facing daily heavy-duty demands.
• Precision-Engineered Pistons and Rods
  Crafted with exacting standards, the pistons and rods in these cylinders often feature chrome plating to fend off corrosion from exposure to elements like rain or chemicals. This setup guarantees fluid motion even when loads fluctuate, supporting operators in achieving accurate digs and lifts on varied terrains without hitches.
• Dual-Acting Design
  This configuration enables precise control over both extension and retraction movements through hydraulic fluid flow in two directions. It provides the flexibility needed for smooth boom operations, allowing excavators to perform tasks like loading trucks or clearing debris with minimal effort and enhanced safety for the crew.
• Integrated Mounting Brackets
  Designed to fit seamlessly onto a range of excavator frames, these brackets simplify the setup process, reducing installation time on the field. They ensure a secure attachment that withstands vibrations and shocks, helping maintain structural integrity during prolonged use in construction or mining environments.
• Safety Features Including Overload Protection
  Built-in valves guard against excessive pressure buildup, averting potential system breakdowns that could lead to accidents. This protective measure not only safeguards the equipment but also prioritizes operator well-being, complying with industry standards for reliable performance in high-risk settings.
• High-Quality Seals for Hydraulic Integrity
  Advanced sealing mechanisms keep contaminants out, preserving the hydraulic fluid's purity in dusty or moist conditions common to outdoor projects. This results in fewer leaks and consistent pressure levels, extending the cylinder's operational reliability and cutting down on unexpected repair needs.
• Customization Options for Specific Needs
  Users can select from adjustable bore and rod sizes to tailor thrust output precisely to their excavator's requirements, whether for compact mini models or larger units. This adaptability ensures optimal power delivery without unnecessary bulk, fitting diverse applications from urban landscaping to large-scale earthmoving.

Large Excavator Hydraulic Cylinder Parts

Cylinder Barrel
This robust tube forms the main body of the large excavator hydraulic cylinder, containing the pressurized fluid that drives movement. Crafted from seamless steel for strength, it withstands extreme forces during digging operations, ensuring the internal piston glides smoothly without leaks or structural failure in harsh construction environments.

Piston
Positioned inside the barrel, the piston divides the cylinder into two separate chambers, allowing hydraulic fluid to push it back and forth. Made from durable materials like cast iron or steel, it generates the linear force needed for lifting heavy loads, with grooves for seals that prevent fluid crossover and maintain consistent pressure in demanding excavation tasks.

Piston Rod
Extending from the piston through one end of the cylinder, this chrome-plated shaft transfers the generated force to the excavator's boom or arm. Engineered to resist bending and corrosion from exposure to dirt and moisture, it features precise threading for attachments, enabling reliable extension and retraction over thousands of cycles in rugged fieldwork.

Cylinder Head
Located at the rod end, this component seals the cylinder while guiding the piston rod's movement to prevent wobbling. Often equipped with bushings and wipers to keep contaminants out, it bolts securely to the barrel, supporting high-pressure operations and contributing to the overall stability of the hydraulic system in large-scale earthmoving projects.

Cylinder Cap or Base
At the opposite end from the head, the cap encloses the barrel and provides a mounting point for attachment to the excavator frame. Reinforced with thick walls to handle thrust loads, it includes ports for hydraulic fluid entry, ensuring efficient flow and pressure buildup necessary for powerful digging actions without compromising structural integrity.

Seals and O-Rings: These critical elements, including piston seals and rod seals made from rubber or polyurethane, prevent hydraulic fluid leakage between chambers or to the outside. Designed to endure friction and temperature variations, they maintain system efficiency by minimizing energy loss, which is vital for sustaining performance during prolonged use in mining or construction sites.

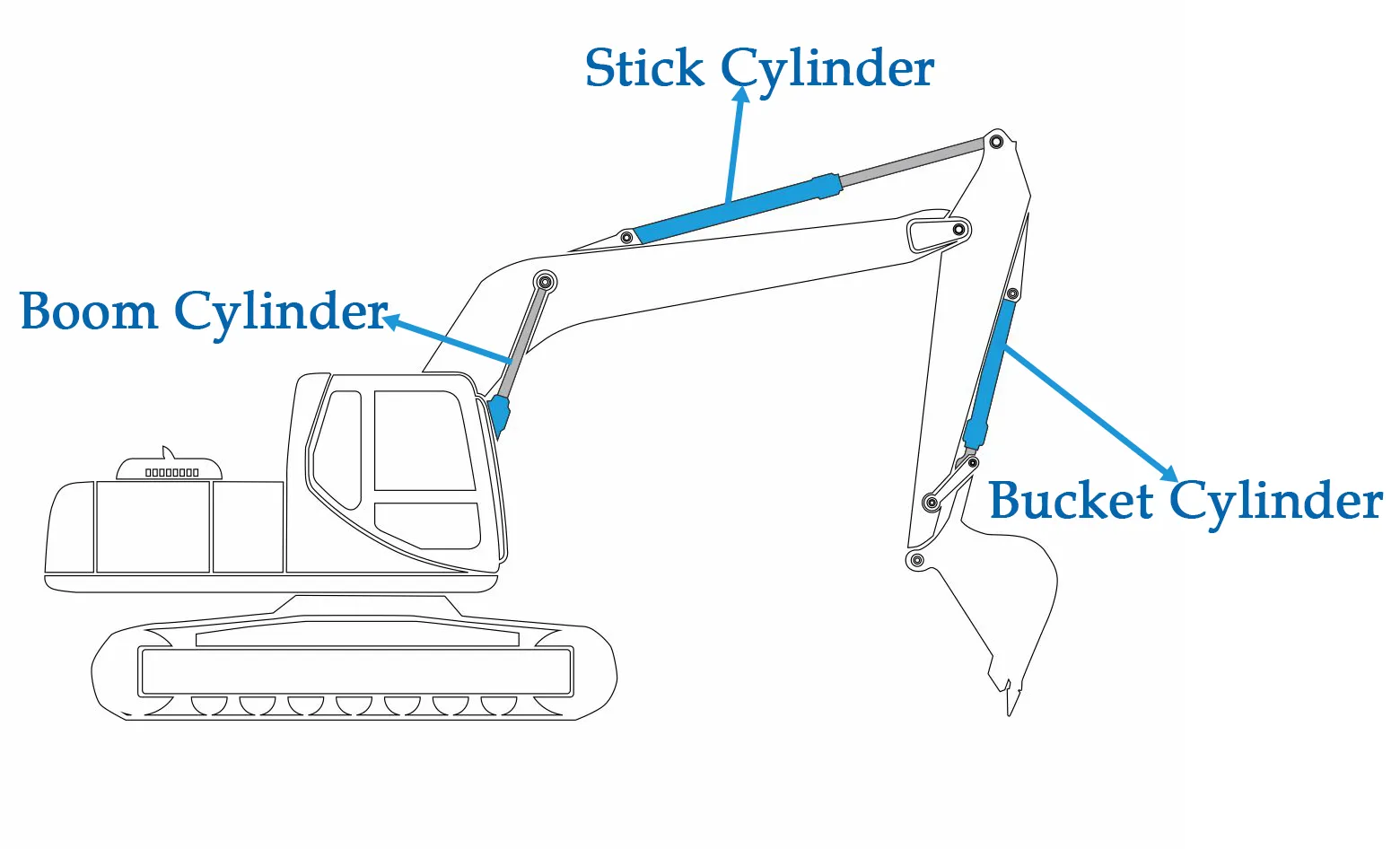

Types of Large Excavator Hydraulic Cylinders

1. Hydraulic Bucket Cylinder
Positioned at the end of the dipper arm, this cylinder drives the bucket's curling and uncurling actions essential for scooping materials during digging operations. In large excavators, it handles precise adjustments to the bucket's tilt, enabling efficient loading of trucks or precise placement of soil, with designs that incorporate reinforced rods to endure repetitive stress from rocky or compacted grounds without compromising hydraulic efficiency.

2. Hydraulic Stick Cylinder
Also referred to as the arm or dipper cylinder, it extends and retracts the stick section that supports the bucket assembly on large excavators. This component delivers the reach needed for deep trenching or high-reach demolition tasks, featuring oversized pistons that generate substantial force to push through dense earth, while its mounting ensures stability against lateral forces encountered in uneven job sites.

3. Hydraulic Swing Cylinder
Known alternatively as a slew cylinder, it facilitates the rotational movement of the excavator's upper structure around its vertical axis, allowing operators to redirect the boom swiftly. In large models, this cylinder supports quick pivots in confined areas like urban construction zones, built with durable seals to resist oil contamination from dust, ensuring consistent torque for repeated directional changes without mechanical strain.

4. Hydraulic Boom Cylinder
Responsible for raising and lowering the primary boom arm, this powerful cylinder in large excavators produces immense lifting capacity to manage heavy attachments over extended heights. Engineered with high-pressure capabilities, it counters gravitational pull during overhead operations such as material stacking, incorporating safety valves to prevent overloads and maintain operational control in demanding environments like quarries.

5. Track Adjuster Cylinder
Integrated into the undercarriage, this hydraulic unit regulates track tension by extending or contracting via grease injection, preventing slack that could lead to derailment on large excavators. It plays a crucial role in maintaining traction over soft or uneven surfaces, with a compact yet robust construction that allows for on-site adjustments, reducing wear on track components and enhancing machine mobility during prolonged fieldwork.

Working Principle of Boom Hydraulic Cylinder for Excavator

The working principle of a boom hydraulic cylinder in an excavator centers on the fundamental concept that pressure applied to a confined fluid spreads equally in all directions, a key insight from fluid mechanics. In practice, this means that when the machine's hydraulic pump delivers oil under high pressure into the cylinder's base chamber—often called the cap end—the force pushes against the piston's larger surface area, causing it to slide forward and extend the attached rod. This extension raises the excavator's boom arm, providing the upward lift needed for tasks such as reaching over obstacles or positioning for digging. To lower the boom, the system redirects the fluid flow to the rod end chamber, where the pressure acts on the smaller annular area around the rod, retracting the piston in a controlled manner to avoid sudden drops that could damage equipment or pose safety risks.

The cylinder consists of a sturdy barrel housing the piston, which acts as a movable barrier separating the two fluid chambers. High-quality seals around the piston and rod prevent oil from leaking between these sections or escaping externally, maintaining the system's integrity even under vibrations from rough terrain. The generated force follows a straightforward relationship: it equals the applied pressure multiplied by the effective piston area. For instance, in larger excavators, cylinders with bore diameters exceeding 200mm can produce thrust forces up to several thousand kilonewtons, enabling the handling of massive loads like boulders in quarry operations. Control valves, typically solenoid-operated or pilot-controlled, manage the fluid's direction and rate, allowing operators to achieve gradual accelerations and decelerations for precise maneuvers, such as aligning the bucket in narrow trenches without overshooting.

Applications of Excavator Hydraulic Cylinders

• Construction Industry
  In the construction sector, excavator hydraulic cylinders enable precise earthmoving for building foundations, road grading, and utility trenching, where their robust force allows machines to handle concrete debris or compacted soil efficiently. Operators rely on these components for controlled boom and bucket movements, facilitating tasks like site preparation in urban developments or high-rise projects, reducing manual labor while enhancing safety through stable load management on uneven grounds.
• Mining Industry
  Excavator hydraulic cylinders play a critical role in mining operations by powering the extraction of ores and overburden removal in open-pit or underground settings, with their high-thrust capabilities enduring abrasive materials like rock and gravel. They support continuous digging cycles in harsh environments, aiding in the loading of haul trucks and maintaining productivity during long shifts, while specialized seals protect against dust ingress to minimize downtime in remote quarry locations.
• Oil and Gas Industry
  Within oil and gas exploration, these cylinders facilitate drilling site preparations and pipeline installations by driving excavator arms to dig trenches for laying conduits or clearing vegetation around rigs. Their pressure-resistant design handles volatile terrains, such as muddy fields or frozen tundra, ensuring reliable performance in hydraulic fracturing support or offshore platform assembly, where quick adjustments prevent delays in time-sensitive energy projects.
• Marine and Port Industry
  For marine and port activities, excavator hydraulic cylinders assist in dredging channels, loading cargo ships, and constructing breakwaters, leveraging corrosion-resistant materials to withstand saltwater exposure. They enable precise material handling in tidal zones, such as relocating sediments or installing pilings, contributing to efficient harbor maintenance and expansion efforts that require minimal interruption to shipping traffic.
• Forestry and Logging
  In forestry and logging operations, these cylinders power excavators equipped with grapples or saws for felling trees, skidding logs, and clearing brush in dense woodlands. Their durable construction supports heavy lifting over rough, sloped terrain, allowing for selective harvesting that preserves ecosystems while boosting output, with features like extended strokes aiding in reaching high branches or maneuvering in confined forest paths.
• Agriculture Industry
  Excavator hydraulic cylinders find extensive use in agriculture for land leveling, irrigation ditch creation, and drainage system installations, where their adjustable force helps in tilling hard-packed fields or relocating boulders. Farmers benefit from their integration in compact models for vineyard maintenance or large-scale farm expansions, ensuring soil conservation through gentle yet effective movements that adapt to seasonal crop cycles.
• Demolition Industry
  In demolition work, these cylinders provide the controlled power needed for breaking down structures, such as dismantling buildings or bridges with shear attachments, focusing on safety by allowing operators to work from a distance. Their high-impact tolerance manages debris fallout, supporting urban renewal projects where precision prevents damage to adjacent properties, and quick retraction speeds up clearance for redevelopment.

Construction Industry	Mining Industry
Oil and Gas Industry	Marine and Port Industry

Large Excavator Hydraulic Boom Cylinder Maintenance

1. Regular Visual Inspections
Conduct thorough checks of the hydraulic boom cylinder on large excavators every shift for signs of oil leaks, rod scratches, or mounting wear, using a flashlight in low-light areas to spot early issues. This practice helps identify problems like cracked welds before they escalate, preventing costly breakdowns and ensuring safe operation in construction zones where downtime impacts project timelines.

2. Hydraulic Fluid Management
Replace the hydraulic oil in the boom cylinder system according to the manufacturer's schedule, typically every 1,000 operating hours, while filtering out contaminants like dirt or water from site conditions. Monitoring fluid levels daily and testing viscosity with a kit maintains optimal pressure, avoiding cavitation that could damage internal components during heavy lifting tasks.

3. Seal and Wiper Replacement
Examine seals and wipers quarterly for cracks or hardening due to exposure to extreme temperatures or chemicals on job sites, replacing them with OEM parts to maintain a tight fit. This step blocks debris entry, preserving the cylinder's internal cleanliness and extending its lifespan in abrasive environments like mining pits.

4. Rod Lubrication and Protection
Apply a thin layer of approved grease to the exposed piston rod after each use, especially in dusty or wet settings, to reduce friction and guard against rust formation. Covering the rod with protective sleeves during storage further shields it from environmental damage, supporting smooth extension and retraction over prolonged periods.

5. Pressure and Alignment Checks
Perform annual pressure tests using calibrated gauges to verify the cylinder operates within specified limits, such as 35MPa for large models, and adjust as needed to prevent overloads. Ensuring proper alignment with the boom linkage minimizes side loading, which otherwise accelerates wear on bushings and pins in rugged terrains.

6. Cleaning Protocols
After operations in muddy or salty areas, rinse the cylinder exterior with low-pressure water, avoiding high blasts that might force contaminants inside, and dry thoroughly to inhibit corrosion. This routine upkeep sustains the chrome plating on rods, keeping performance reliable for tasks involving frequent boom movements.

Why Choose Mexico Ever-Power's Excavator Hydraulic Cylinders?

FAQs

Q: How do I select the right excavator hydraulic boom cylinder size for my machine?
A: Begin by aligning the bore diameter range of 200-420mm and maximum stroke of 3500mm with your excavator's original equipment specs, while evaluating expected loads and attachment types to ensure the hydraulic cylinder for excavator delivers adequate thrust without compromising stability.

Q: What causes leaks in a boom hydraulic cylinder and how to prevent them?
A: Common culprits include degraded seals from prolonged use or rod surface damage from impacts; mitigate risks through scheduled visual checks, selecting fluids matched to system requirements, and monitoring pressure to stay below limits that could strain the excavator hydraulic cylinder.

Q: Is a hydraulic cylinder for excavator compatible with aftermarket attachments?
A: Our designs adhere to industry-standard mounting and interface protocols, making them suitable for various add-ons, though it's essential to confirm the thrust capacity up to 4846.6KN matches the attachment's mass and operational demands for secure integration in large setups.

Q: How to maintain large excavator hydraulic cylinders in humid climates?
A: In moist environments, wipe down exposed rods post-operation to remove water buildup, apply protective coatings resistant to oxidation, and inspect seals every three months to address potential corrosion early, preserving the large excavator hydraulic cylinders' functionality over time.

Q: What are signs of failure in an excavator hydraulic cylinder?
A: Indicators include delayed response during boom lifts, audible hissing from escaping fluid, or noticeable oil puddles beneath the machine; immediate investigation prevents escalation, safeguarding the overall hydraulic cylinder excavator system from broader mechanical issues.

Q: Can I customize a hydraulic cylinder for large excavator thumb applications?
A: We provide bespoke options for hydraulic cylinder for large excavator thumb setups, adjusting parameters like stroke length and pressure tolerances based on your detailed requirements; reach out to our team for a personalized assessment and pricing.

Q: How does pressure rating affect hydraulic cylinder excavator performance?
A: Elevated ratings around 35MPa empower the unit to tackle denser substrates in sectors like quarrying or building demolition, boosting digging force and cycle speed, which in turn elevates the efficiency of the entire excavator hydraulic boom cylinder assembly.

Q: What maintenance tools are needed for boom hydraulic cylinder care?
A: Essential items encompass adjustable wrenches for fitting adjustments, grease applicators for lubrication points, and calibrated pressure meters for system diagnostics; for in-depth evaluations, hydraulic flow testers can pinpoint inefficiencies in large excavator applications.

Q: Are replacement parts available for hydraulic cylinder for excavator models?
A: Our inventory in Mexico includes readily accessible components such as seals, replacement rods, and pistons tailored for various excavator hydraulic cylinder configurations, facilitating swift shipments to reduce equipment idle time on job sites.

Q: How to install a new large excavator hydraulic cylinder safely?
A: Adhere to specified bolt torque values during mounting, purge air from hydraulic lines to avoid cavitation, and conduct initial tests without applied loads to verify smooth function, minimizing risks associated with the large excavator hydraulic cylinders' integration.

Q: What advantages do double-acting hydraulic boom cylinders offer over single-acting?
A: Double-acting models allow for regulated push and pull actions, granting finer control in operations requiring exact boom placement, unlike single-acting variants that rely on gravity for return, thus improving accuracy in demanding large excavator tasks.
