Hydraulic Bucket Cylinder for Mini/Small Excavators

Mini Excavator Hydraulic Bucket Cylinder Overview

In the demanding field of construction and earthmoving, the hydraulic bucket cylinder serves as a pivotal component for mini and small excavators. This essential device facilitates the controlled movement of the bucket, enabling operators to perform tasks such as digging, lifting, and dumping materials with exceptional accuracy. Engineered specifically for compact machinery, the bucket hydraulic cylinder integrates seamlessly into mini excavators, where space constraints require components that deliver high power without excessive bulk.

Constructed from high-strength steel, these bucket hydraulic cylinders withstand the rigors of daily operations, including exposure to abrasive soils, gravel, and varying environmental conditions. Their double-acting mechanism allows for both extension and retraction powered by hydraulic fluid, ensuring responsive and precise bucket adjustments. For professionals in Mexico's construction sector, where urban projects often involve tight workspaces, this cylinder enhances productivity by providing consistent force output, typically up to 255KN of thrust, making it indispensable for tasks ranging from trenching to landscaping.

Technical Specifications

For customized specifications beyond these standards, such as adjusted stroke lengths or specialized mounting options, please contact our team at Mexico Ever-Power for tailored solutions.

Product Name:	Mini Excavator Bucket Hydraulic Cylinder
Function:	Control the action of the bucket.
Bore Diameter:	50mm-105mm
Rod diameter:	25mm-70mm
Stroke:	≤1000 mm
Maximum pressure MPa:	29.4MPa
Thrust Force:	255KN

Features of Hydraulic Bucket Cylinder for Mini Excavator

The hydraulic bucket cylinder designed for excavators distinguishes itself through a robust double-acting system that drives extension and retraction via hydraulic fluid, delivering exacting control over bucket movements. This capability proves essential in scenarios demanding subtle maneuvers, like navigating crowded city job sites in Mexico, where limited room calls for careful handling. Built from durable high-grade steel, the cylinder resists the constant strain of excavation and material transfer, averting early breakdowns and supporting steady performance across long shifts.

Precision engineering in the pistons, fitted with advanced seals crafted from resilient compounds such as polyurethane, effectively curbs fluid seepage, preserving system pressure even under intense loads. This design allows reliable operation amid dusty or humid settings, common in Mexico's diverse regions from arid deserts to coastal zones. The streamlined profile of these mini excavator hydraulic cylinders enables straightforward fitting into tight equipment chassis, all while maintaining substantial force delivery, ideal for various compact operations.

Furthermore, specialized anti-corrosion treatments shield the outer surfaces, prolonging usability in Mexico's fluctuating weather patterns that include heavy rains and high humidity, thereby cutting down on replacement cycles. Operators gain from enhanced command during activities like precise soil displacement or debris clearance, which boosts site productivity and minimizes errors. Additional attributes include integrated cushioning at stroke ends to soften impacts, reducing wear on connected parts and extending overall machinery life. Compatibility with standard hydraulic setups ensures seamless upgrades for existing fleets, while low-friction components promote energy efficiency, aligning with sustainable practices in modern construction. In practical terms, these features translate to fewer interruptions and safer workflows, making the bucket hydraulic cylinder a preferred choice for professionals tackling urban infrastructure, landscaping, or utility projects in demanding environments.

Working Principle of Excavator Hydraulic Cylinder for Buckets

The fundamental operation of a bucket hydraulic cylinder in mini or small excavators relies on transforming pressurized hydraulic fluid into linear mechanical motion to manipulate the bucket attachment. At its core, the system begins with a hydraulic pump that draws fluid from a reservoir and compresses it to generate high pressure, typically ranging from 20 to 30 MPa in compact machinery applications. This pressurized oil is then directed through control valves operated by the excavator's joystick or levers, allowing selective flow into one of the cylinder's two chambers.

In a double-acting configuration, which is standard for bucket cylinders, the fluid enters the base chamber to extend the piston rod, forcing the bucket to curl inward for digging or scooping tasks. Conversely, when fluid is routed to the rod-end chamber, it retracts the piston, enabling the bucket to open or dump materials. The piston itself divides the cylinder barrel into these two sealed compartments, with robust seals—often made from nitrile rubber or polyurethane—preventing leaks and maintaining pressure integrity under load. The rod, chrome-plated for corrosion resistance and reduced friction, connects directly to the bucket linkage, transmitting force efficiently to achieve precise movements.

This bidirectional control is crucial for the versatility of mini excavators, where operators must handle confined spaces and varied terrains, such as urban construction sites or landscaping projects. The principle leverages Pascal's law, where pressure applied to an enclosed fluid is transmitted undiminished in all directions, amplifying the input force from the pump to deliver substantial output thrust—up to 255 kN in some models—far exceeding what mechanical linkages alone could provide. Safety features, like integrated relief valves, protect against over-pressurization, while the compact design of these cylinders ensures they fit seamlessly within the excavator's arm assembly without adding excessive weight.

Types of Mini Excavator Hydraulic Cylinders

1. Hydraulic Stick Cylinder
Positioned along the dipper arm, this cylinder manages the extension and retraction of the stick, allowing operators to reach deeper into excavation sites or adjust arm length for precise material handling. In compact mini excavators, its robust design handles pressures up to 30 MPa, ensuring smooth operation in confined urban areas while minimizing structural strain during repetitive digging cycles, which enhances overall machine stability and reduces maintenance needs over time.

2. Hydraulic Boom Cylinder
Responsible for lifting and lowering the main boom arm, this component delivers powerful vertical articulation essential for loading trucks or clearing debris at varying heights. Tailored for mini excavators, it incorporates double-acting mechanisms to provide controlled force output, often exceeding 200 kN in thrust, which supports efficient workflow in landscaping or foundation work where space limitations demand reliable, leak-resistant performance to prevent hydraulic fluid loss.

3. Hydraulic Blade Cylinder
Integrated with the dozer blade attachment, this cylinder facilitates pushing, leveling, or backfilling soil by extending and retracting the blade for ground preparation tasks. In smaller excavator models, its compact build accommodates auxiliary functions without adding excess weight, operating under high pressures to achieve uniform surface grading, thereby improving site preparation accuracy and aiding in tasks like trench refilling or minor earthmoving in residential projects.

4. Hydraulic Swing Cylinder
This cylinder controls the rotational movement of the upper superstructure relative to the undercarriage, enabling 360-degree swings for versatile positioning during operations. For mini excavators used in tight spaces, such as pipeline installations, it ensures quick pivots with minimal backlash, leveraging sealed pistons to maintain hydraulic integrity and support continuous rotation without overheating, which is critical for productivity in dynamic job environments.

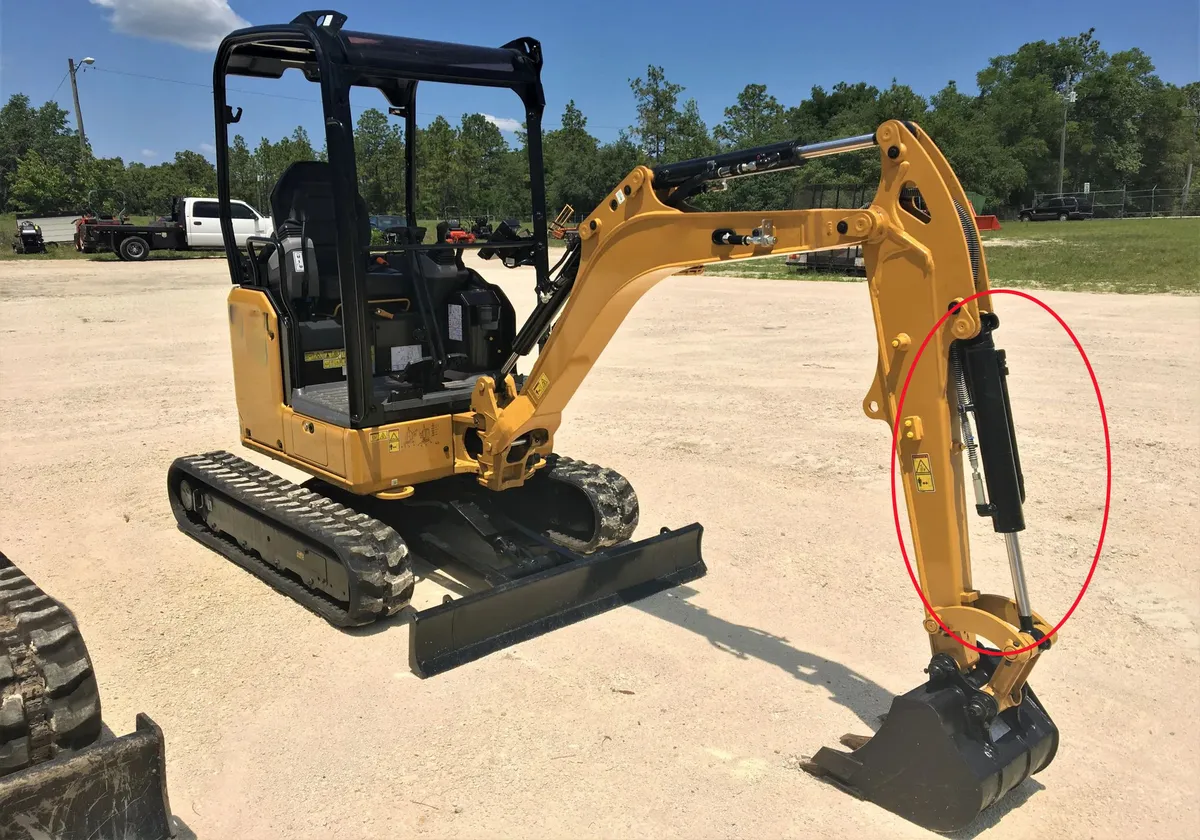

5. Hydraulic Bucket Cylinder
Directly linked to the bucket linkage, it governs the curling and dumping actions, allowing precise scooping and release of materials like gravel or sand. In mini excavator applications, its stroke lengths up to 1,000 mm combined with corrosion-resistant materials provide enduring service in moist or abrasive conditions, optimizing load cycles and reducing operator effort while ensuring consistent bucket tilt for efficient excavation in utility or agricultural settings.

Applications of Bucket Hydraulic Cylinder for Excavator

• Construction Industry
  In construction settings, the bucket hydraulic cylinder enables precise excavation for building foundations, trenching utility lines, and grading surfaces on urban or rural sites. Its robust extension and retraction capabilities handle dense soils and debris, supporting tasks like demolition debris removal or backfilling, which ensures project timelines are met while maintaining equipment stability under varying loads, often in confined spaces typical of Mexican infrastructure developments.
• Forestry and Logging
  Within forestry operations, this cylinder facilitates log handling, stump removal, and terrain clearing by providing controlled bucket movements for gripping and lifting timber. It withstands rugged woodland environments, aiding in efficient harvesting processes where operators must navigate uneven ground, thereby reducing manual labor risks and enhancing productivity during seasonal logging activities in dense forests.
• Marine and Port
  For marine and port applications, the bucket hydraulic cylinder supports dredging channels, loading cargo ships, and maintaining dock structures through reliable scooping of sediments or bulk materials. Its corrosion-resistant design endures saltwater exposure, allowing seamless operation in harbor environments where high-pressure performance is essential for managing tidal variations and ensuring safe, uninterrupted material transfer.
• Mining Industry
  In mining contexts, the cylinder drives bucket actions for extracting ores, overburden removal, and site reclamation, delivering substantial force to penetrate hard rock formations. It operates effectively in underground or open-pit scenarios, minimizing downtime by resisting abrasive particles, which is critical for sustaining output in resource-intensive operations across varied geological terrains.
• Agricultural Industry
  Agricultural uses involve the bucket hydraulic cylinder in land preparation, irrigation ditch digging, and crop residue management, where it provides accurate soil manipulation for planting or harvesting support. Adapted for farm machinery, it handles moist or compacted earth without excessive wear, promoting efficient field operations that align with seasonal demands and contribute to higher yields in rural farming regions.
• Utility Maintenance
  Utility sectors rely on this cylinder for installing or repairing underground pipes, cables, and conduits through targeted excavation and backfilling. Its precision control prevents damage to existing infrastructure, making it suitable for urban utility upgrades where minimal disruption is required, thus ensuring reliable service continuity in densely populated areas.

Construction Industry	Forestry and Logging
Mining Industry	Marine and Port

Maintenance Tips for Mini Excavator Hydraulic Cylinder

1. Regular Inspection of Hydraulic Fluid Levels and Quality
Operators should check the hydraulic fluid reservoir daily before starting work to ensure levels remain within manual specifications, typically between the minimum and maximum marks on the dipstick. Contaminated or degraded fluid, often indicated by discoloration or particles, must be replaced promptly with the recommended viscosity grade to prevent internal wear and maintain smooth piston movement, especially in Mexico's dusty construction environments where debris ingress is common, thus avoiding costly downtime from component failures.

2. Cleaning External Surfaces to Prevent Contamination
Wipe down the cylinder body, rod, and mounting points after each shift using a soft cloth and mild solvent to remove accumulated dirt, grease, or residues that could lead to corrosion or seal abrasion. In regions with high humidity like coastal Mexico, this practice extends the cylinder's lifespan by inhibiting rust formation on chrome-plated rods, ensuring consistent performance during extended operations and reducing the risk of hydraulic system blockages.

3. Monitoring for Leaks and Seal Integrity:
Conduct visual inspections weekly around seals, fittings, and hose connections for any signs of oil seepage, which might appear as wet spots or drips under pressure. Addressing minor leaks early by tightening connections or replacing worn O-rings prevents fluid loss and pressure drops, crucial for mini excavators handling repetitive cycles in urban projects, where maintaining hydraulic efficiency directly impacts productivity and safety on site.

4. Lubrication of Pivot Points and Connections
Apply appropriate grease to bushings, pins, and linkage joints every 100 operating hours or as per the equipment manual to minimize friction and wear between moving parts. This step is vital for cylinders exposed to abrasive materials in mining or agricultural applications, as proper lubrication ensures fluid extension and retraction without binding, thereby preserving the structural integrity of the excavator arm assembly over time.

5. Temperature Management During Operation
Keep an eye on system temperatures using built-in gauges, aiming to stay below 80°C to avoid fluid breakdown or seal hardening that could cause inefficiencies. In hot climates prevalent in parts of Mexico, incorporating cooling periods during intense use or installing auxiliary coolers helps sustain optimal viscosity, supporting reliable bucket control and preventing overheating-related failures in demanding tasks like trenching or loading.

Why Choose Mexico Ever-Power's Excavator Hydraulic Cylinders?

FAQs

Customer Reviews

Maria Gonzalez, Site Manager, Guadalajara
"We've integrated the bucket hydraulic cylinder into our mini excavators for more than two years, and its 70mm rod diameter excels in managing daily trenching demands without faltering under 29.4MPa pressure. The hydraulic bucket cylinder's sturdy construction has shown no signs of rust even through persistent rainy periods in our region, while Mexico Ever-Power's installation guidance from their support staff streamlined our setup process, preserving valuable on-site hours and ensuring operational continuity."

Carlos Mendoza, Equipment Operator, Monterrey
"This mini excavator hydraulic cylinder has significantly refined our bucket maneuvers, leading to superior control in various tasks. After accumulating over 1,500 hours of use, we've encountered zero maintenance disruptions, highlighting the reliability of the excavator hydraulic cylinder. Mexico Ever-Power's logistics efficiency delivered the unit in just three days, and its competitive pricing positions it as an exceptional value for such high-caliber performance in demanding fieldwork."

Ana Lopez, Construction Foreman, Tijuana
"The durability of our bucket hydraulic cylinder stands out in urban excavation projects, where the 1000mm stroke perfectly accommodates tight-space digs. In six months of intensive application, we've seen no leaks or operational breakdowns, thanks to the robust design of this hydraulic cylinder for excavator. The professional team at Mexico Ever-Power expedited our request for custom mounts, demonstrating their commitment to tailored solutions that align with site-specific requirements."

Jose Ramirez, Landscaping Business Owner, Mexico City
"Our excavator hydraulic cylinders have markedly increased efficiency in landscaping endeavors, particularly with the 255KN thrust force that simplifies soil relocation. As a reliable component, the hydraulic cylinder excavator integration has minimized effort in garden installations, and Mexico Ever-Power's responsive after-sales support via chat addressed our concerns within hours, reflecting their dedication to customer satisfaction and ongoing assistance."

Elena Vargas, Farm Supervisor, Puebla
"Adopting this hydraulic cylinder for mini excavators has transformed our approach to irrigation channel creation, blending a space-saving design with formidable power output. Delivery from Mexico Ever-Power arrived in under a week, and compared to prior suppliers, we've experienced notably reduced interruptions, underscoring the superiority of the mini excavator hydraulic cylinders in agricultural settings where consistent functionality is paramount."

Miguel Torres, Demolition Specialist, Cancun
"These mini excavator hydraulic cylinders demonstrate exceptional toughness and accuracy when confronting demolition debris, with superior seals preventing any fluid leakage over a full year of service. The bucket hydraulic cylinder maintains its condition as if new, even in abrasive conditions, and Mexico Ever-Power's handling of our large-volume order included detailed tracking, ensuring smooth procurement and integration into our equipment fleet."
