Hydraulic Grab Bucket Cylinder for Garbage Crane

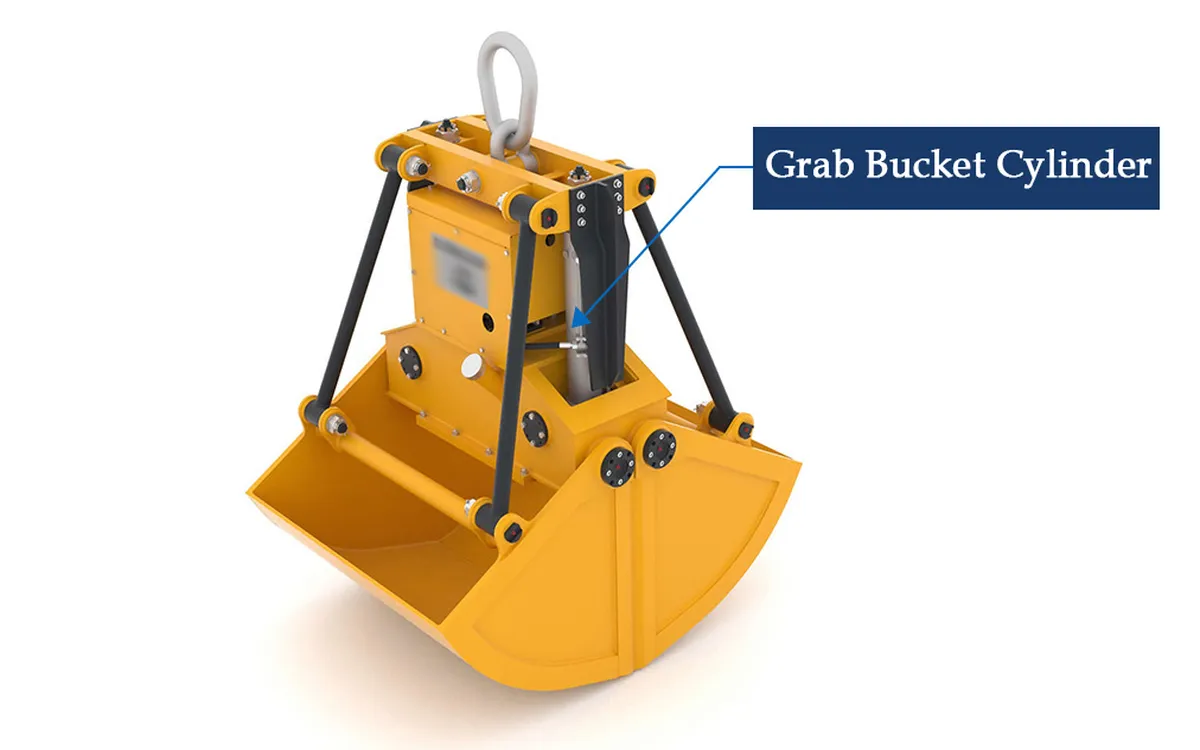

Hydraulic Grab Bucket Cylinder Overview

The hydraulic grab bucket cylinder serves as an essential element in material handling systems, particularly those integrated with garbage cranes. This specialized cylinder facilitates the controlled opening and closing of grab buckets, enabling efficient collection and transfer of waste materials in demanding industrial settings. Built to endure high pressures and repetitive cycles, it incorporates robust materials that resist corrosion and wear, making it suitable for operations in waste management facilities where exposure to moisture, debris, and varying temperatures is common. Engineers often select this cylinder for its ability to deliver consistent force, ensuring that the grab bucket grips securely without slippage, which is crucial for maintaining productivity and safety on site.

The grab bucket hydraulic cylinder integrates seamlessly with crane mechanisms, providing the linear motion needed to manipulate heavy loads of garbage or recyclables. Its design emphasizes precision, allowing operators to adjust the grip based on material density, from loose refuse to compacted waste. This versatility extends its use beyond standard garbage cranes to similar applications in recycling plants and construction zones. By focusing on reliability, the cylinder minimizes downtime, contributing to overall operational efficiency.

Technical Specifications

For custom requirements beyond these standard specifications, such as adjusted bore diameters from 100mm to 300mm or working pressures up to 350 bar, please contact our team at Mexico Ever-Power. We offer tailored solutions to fit specific garbage crane configurations, ensuring compatibility and optimal functionality.

Product Name:	Grab Bucket Hydraulic Cylinder
Function:	Control the action of the grab bucket.
Cylinder diameter:	63mm-260mm
Rod diameter:	40mm-140mm
Travel:	250mm-2030mm
Maximum pressure:	30MPa
Maximum thrust:	1593KN

Features of Hydraulic Grab Bucket Cylinder for Garbage Crane

One prominent feature of the hydraulic grab bucket cylinder is its high load-bearing capacity, which allows it to manage substantial weights encountered in waste handling tasks. Constructed from alloy steel, the cylinder body provides exceptional strength, while the piston rod is chrome-plated to enhance resistance against scratches and corrosion. This design choice ensures longevity in environments where exposure to abrasive materials like garbage debris is routine. Operators benefit from the cylinder's ability to maintain steady performance, even under continuous use, which is vital for high-volume operations in municipal waste facilities.

Another key aspect involves the precision seals made from polyurethane or nitrile rubber, which prevent fluid leaks and maintain hydraulic integrity. These seals are engineered to withstand pressures up to 30MPa, contributing to smooth piston movement and reliable grab bucket control. In addition, the compact footprint of the cylinder facilitates easy integration into existing crane systems without requiring extensive modifications. This feature is particularly advantageous for retrofitting older equipment, allowing facilities to upgrade efficiency without major overhauls.

Furthermore, the cylinder incorporates advanced bearings that reduce friction during extension and retraction, leading to energy savings over time. Custom options, such as varying rod diameters from 40mm to 120mm, enable adaptation to specific crane models, ensuring that the grab bucket hydraulic cylinder aligns perfectly with operational needs. This flexibility makes it a preferred choice for professionals seeking durable solutions in demanding sectors.

Advantages of Using the Grab Bucket Hydraulic Cylinder

• Enhanced Operational Efficiency
  The grab bucket hydraulic cylinder delivers high thrust output, reaching up to 1593KN, which supports rapid extension and retraction movements. This capability shortens cycle times during waste loading and unloading, allowing cranes to process larger volumes of material in less time. In busy recycling centers or municipal waste facilities, this speed directly boosts daily throughput and overall productivity while reducing operator fatigue from prolonged tasks.
• Improved Safety Through Precise Control
  Precise hydraulic regulation enables smooth, incremental pressure changes that prevent abrupt motions of the grab bucket. This controlled operation maintains stability when handling irregular or heavy loads, significantly lowering the risk of sudden drops or equipment swings that could harm personnel or damage surrounding structures. Operators benefit from greater confidence during lifts, contributing to safer working conditions across the site.
• Superior Durability in Demanding Environment
  Constructed from robust alloy steel with corrosion-resistant coatings, the cylinder withstands exposure to moisture, abrasive debris, and temperature fluctuations common in garbage handling. Its resilient design minimizes wear on internal components, resulting in extended service intervals and fewer unplanned stoppages. Facilities experience reliable performance over years of continuous use, even under heavy daily cycles.
• Cost Savings Over Time
  By optimizing energy use through efficient fluid dynamics and reducing the need for frequent repairs, the hydraulic cylinder lowers overall operating expenses. Its long lifespan and minimal downtime translate into fewer replacement parts and labor costs. Operators also avoid losses from halted operations, making it a practical choice for budget-conscious waste management operations seeking sustainable returns.
• Versatile Load Handling Capabilities
  The cylinder adapts to varying waste densities, from loose refuse to compacted materials, ensuring secure grip without slippage. Customizable stroke lengths and bore sizes allow integration with different crane models, supporting diverse applications in municipal collection, industrial recycling, or construction debris removal. This flexibility helps facilities handle a broader range of tasks without additional equipment investments.
• Reduced Environmental Impac
  Efficient hydraulic performance minimizes energy consumption compared to older mechanical systems, leading to lower fuel or power usage during crane operations. The cylinder’s reliable sealing prevents fluid leaks that could contaminate soil or water in waste sites. This cleaner operation aligns with modern sustainability goals in waste management, helping organizations meet regulatory standards more effectively.

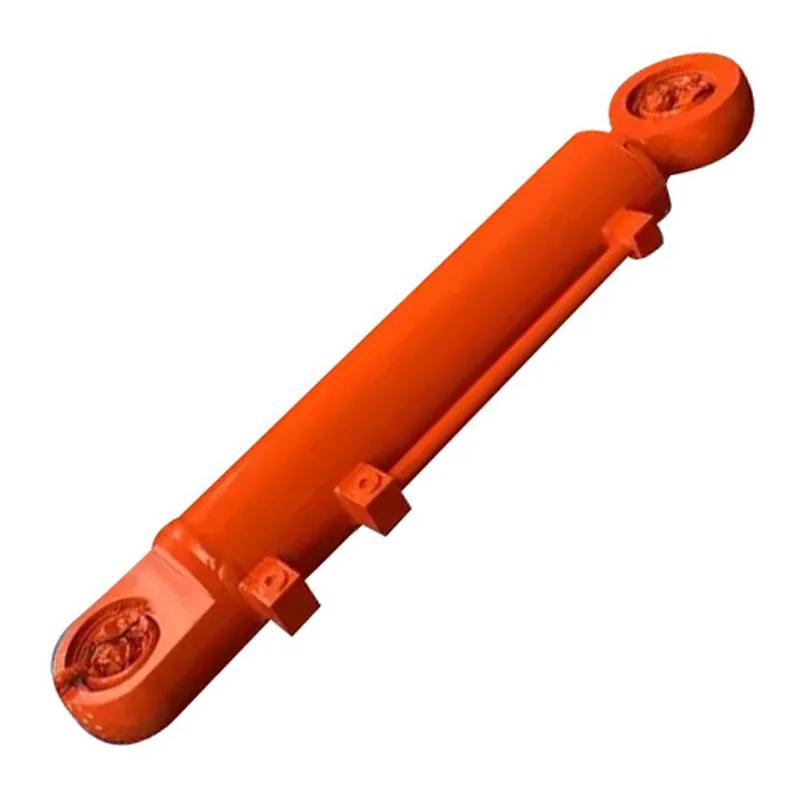

Grab Bucket Hydraulic Cylinder Components

• Cylinder Barrel
  The cylinder barrel serves as the main body of the hydraulic cylinder, housing the piston and hydraulic fluid. It is constructed from high-strength materials to withstand extreme pressures, ensuring durability and resistance to deformation. The inner surface is precision-machined and polished to reduce friction, enhance sealing performance, and improve the efficiency of the hydraulic operation. This tube forms the core structure that enables smooth and reliable motion.
• Piston
  The piston is a critical component that transfers hydraulic pressure into mechanical force. It is located inside the cylinder tube and moves back and forth as hydraulic fluid is pressurized. The piston is typically made from hardened steel or alloy materials, designed to endure constant motion and high loads. Equipped with seals to prevent fluid leakage, it ensures efficient energy transfer and precise movement of the grab bucket.
• Piston Rod
  The piston rod connects the piston to the external mechanism, transmitting the mechanical force generated inside the cylinder. Manufactured from high-tensile steel with a chrome-plated surface, it resists wear, corrosion, and bending under heavy loads. The rod's surface finish ensures smooth operation, reducing friction and extending the service life of both the rod and the cylinder.
• End Caps
  End caps are fixed to both ends of the cylinder tube, sealing the hydraulic system and providing structural support. The head end cap allows the piston rod to pass through while maintaining a tight seal, while the tail end cap encloses the opposite side of the cylinder. These caps are designed with ports for hydraulic fluid entry and exit, ensuring efficient fluid flow and pressure distribution.
• Seals and Wipers
  Seals and wipers are essential components that prevent hydraulic fluid leakage and protect the internal parts from contamination. Multiple seals are used throughout the cylinder, including piston seals, rod seals, and static seals, to ensure airtight operation. Wipers are installed on the rod to prevent dirt and debris from entering the cylinder, maintaining system cleanliness and performance.
• Hydraulic Ports
  Hydraulic ports are entry and exit points for the hydraulic fluid, enabling the flow of pressurized fluid into and out of the cylinder. These ports are precision-engineered and designed to be compatible with various hydraulic fittings. Their proper alignment and sizing ensure optimal fluid flow, contributing to the cylinder’s overall efficiency and performance.

Working Principle of Hydraulic Cylinder for Garbage Crane Grab Bucket

The working principle of the hydraulic cylinder for garbage crane grab bucket centers on transforming pressurized fluid energy into linear mechanical motion to operate the bucket mechanism. At its core, a pump delivers hydraulic fluid, often a specialized oil, into the cylinder's barrel via inlet ports. This influx builds pressure against the piston, a sealed disc that divides the barrel into two chambers. As pressure accumulates on one side, it propels the piston forward or backward, driving the attached rod to extend or retract. The rod connects directly to the grab bucket's linkages, enabling precise manipulation of the bucket jaws.

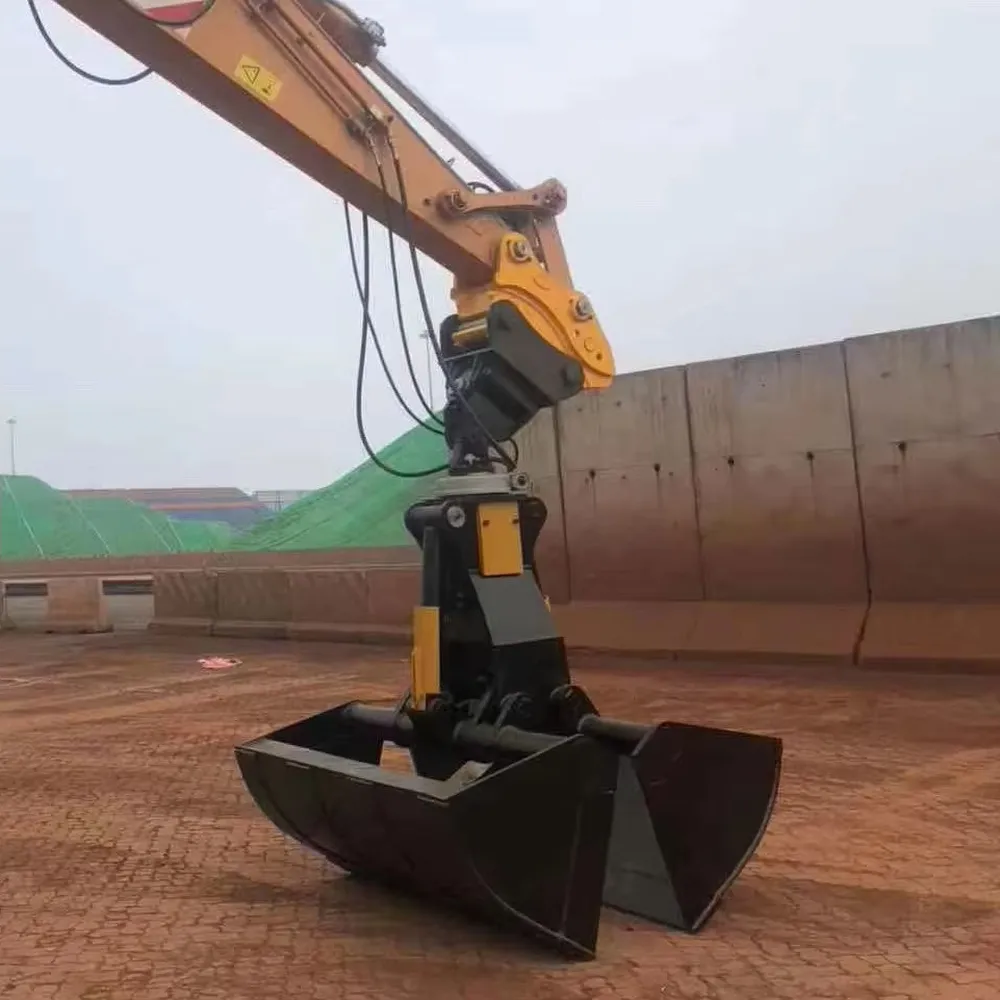

In practical use within garbage cranes, extension of the cylinder rod spreads the bucket arms apart, allowing it to hover over waste piles for collection. Once positioned, the operator reverses the fluid flow through control valves, retracting the rod and clamping the jaws shut to grasp materials securely. These valves, typically solenoid or manual types, modulate flow rates and pressure levels, permitting adjustments for different load weights—such as loose debris or dense compactors—without overwhelming the system. End caps at both barrel extremities incorporate robust seals, like O-rings or piston rings made from durable elastomers, to contain the fluid and prevent contamination or loss, which could compromise efficiency.

This bidirectional functionality relies on the fluid's near-incompressible nature, ensuring force transmission remains consistent despite external vibrations or temperature shifts common in waste handling environments. Additional components, including pressure relief valves, safeguard against overloads by venting excess pressure, thus protecting the cylinder from damage during heavy lifts. In garbage crane setups, the principle integrates with the crane's hydraulic circuit, often powered by diesel or electric pumps, to deliver reliable performance cycle after cycle. Operators monitor gauges for optimal pressure, usually up to 30 MPa, to maintain smooth operations and extend component life.

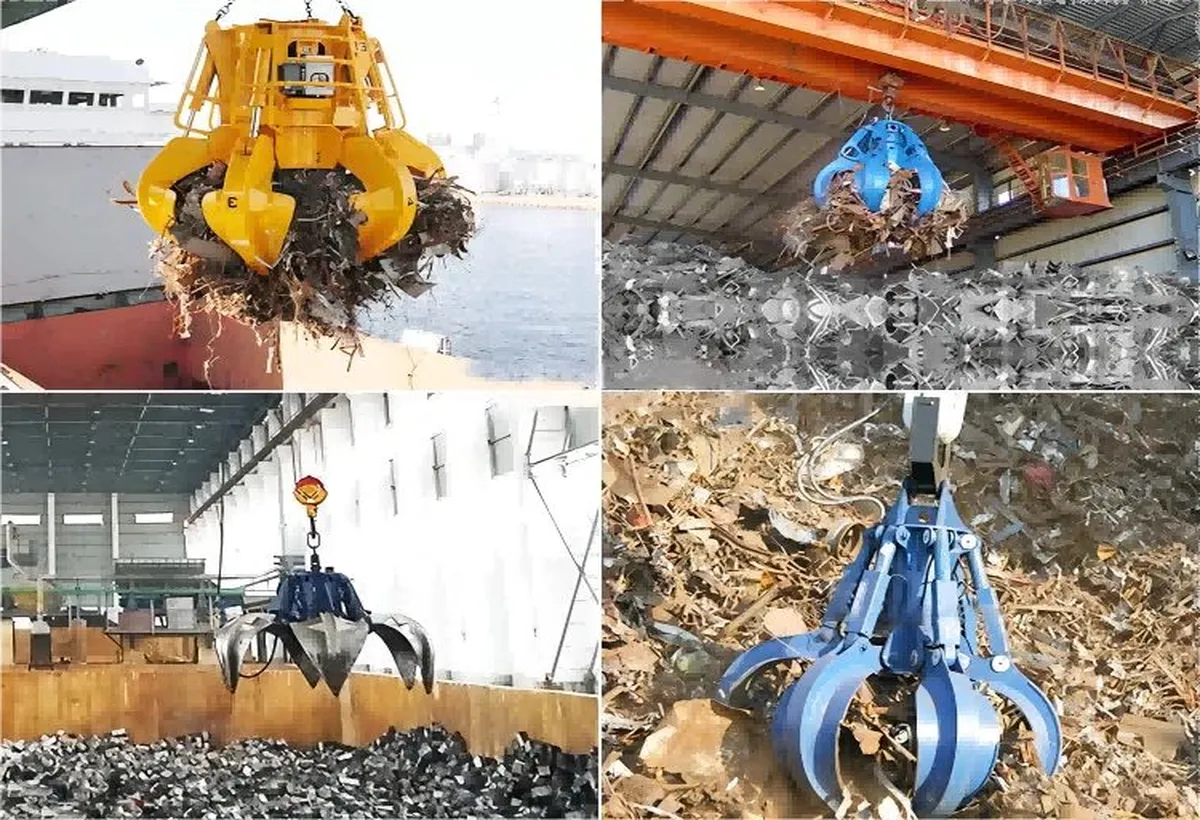

Applications of Grab Bucket Hydraulic Cylinders

1. Municipal Waste Management Facilities
In urban waste collection centers, grab bucket hydraulic cylinders drive the crane mechanisms to lift and sort household garbage, enabling operators to move tons of refuse daily into compactors or trucks. Their adjustable pressure settings handle varying load sizes, from light plastics to dense organics, integrating well with automated sorting lines to boost efficiency in city sanitation efforts and reduce overflow issues during peak collection periods.

2. Recycling and Material Recovery Plants
These cylinders equip cranes in recycling operations to securely grasp and separate metals, papers, and plastics without causing tears or compression damage. Custom stroke lengths allow for gentle handling of fragile recyclables, supporting high-speed conveyor feeds that process hundreds of kilograms per hour, which helps facilities meet recovery targets and comply with environmental regulations for sustainable resource reuse.

3. Construction and Demolition Sites
On building projects, the hydraulic cylinders power grab buckets to clear rubble, concrete fragments, and metal scraps swiftly, minimizing manual sorting and accelerating site preparation for new phases. Their robust build withstands impacts from heavy debris, allowing cranes to operate in confined spaces and transport materials directly to dumpsters, thereby shortening project timelines and enhancing worker safety by limiting exposure to hazardous piles.

4. Port and Maritime Bulk Handling Operations
At shipping docks, these cylinders facilitate the transfer of bulk waste or cargo residues from vessels to storage areas, with corrosion-resistant materials enduring saltwater exposure and humid conditions. They enable precise control for unloading mixed loads, such as container overflows or ship-generated trash, ensuring quick turnaround times for vessels and maintaining clean port environments to avoid regulatory fines.

5. Landfill and Disposal Site Management
In landfill environments, grab bucket hydraulic cylinders assist cranes in spreading and compacting incoming waste layers, promoting even distribution to extend site lifespan. Their high-thrust capabilities manage dense, uneven loads like industrial sludge or construction waste, while weatherproof seals prevent failures during rain or dust storms, aiding operators in maintaining organized dumps and facilitating methane capture systems for energy recovery.

6. Industrial Waste Processing Yards
Within manufacturing complexes, these cylinders support cranes in handling chemical residues, scrap metals, or production byproducts, with customizable bore sizes adapting to toxic or abrasive materials. This setup streamlines internal logistics, directing waste to incinerators or treatment units efficiently, which cuts down on contamination risks and helps industries adhere to strict disposal protocols while optimizing space usage in crowded factory settings.

Why Choose Mexico Ever-Power's Hydraulic Cylinders?

FAQs

Q: How does the grab bucket hydraulic cylinder ensure durability in waste management?
A: The grab bucket hydraulic cylinder incorporates high-strength alloy steel bodies and specialized corrosion-resistant finishes to resist damage from abrasive particles, moisture, and environmental stressors typical in waste handling. These design elements promote extended operational life, reducing the frequency of replacements and supporting consistent performance in challenging conditions encountered by refuse equipment.

Q: What are the key specifications of a custom grab bucket hydraulic cylinder?
A: Custom grab bucket hydraulic cylinders feature bore diameters ranging from 100mm to 300mm, rod diameters between 40mm and 120mm, stroke extensions up to 2000mm, and a maximum thrust capacity of 1593KN. These parameters allow for tailored configurations that align with specific crane requirements, ensuring optimal force delivery and adaptability in various waste processing setups.

Q: Can the hydraulic cylinder for garbage crane be customized for different pressures?
A: Yes, the hydraulic cylinder for garbage crane supports pressure customizations from 160 to 350 bar, accommodating the diverse demands of different crane models and operational scenarios. This flexibility improves system efficiency and safety by matching the cylinder's output to the precise needs of waste lifting and gripping tasks.

Q: How to install a hydraulic grab bucket cylinder on an existing crane?
A: Installation of a hydraulic grab bucket cylinder on an existing crane requires careful alignment of mounting brackets, fastening with appropriate torque-rated bolts, secure attachment of hydraulic hoses, and thorough leak testing under controlled pressure. Professional guidance ensures compatibility, with options for modifications to achieve a secure fit that maintains crane stability during waste management activities.

Q: What maintenance is required for a garbage truck hydraulic cylinder equivalent in cranes?
A: Maintenance for a garbage truck hydraulic cylinder equivalent in cranes includes routine exterior cleaning to remove contaminants, periodic checks of fluid levels and quality, and inspections of seals every three to six months. Employing manufacturer-specified lubricants helps preserve smooth functionality, preventing breakdowns in rigorous waste collection environments.

Q: What advantages does the hydraulic cylinder for garbage truck offer over mechanical alternatives?
A: The hydraulic cylinder for garbage truck provides superior precision in force application, greater power generation for heavy loads, and improved energy utilization compared to mechanical systems. These benefits lead to lower long-term expenses through reduced wear and enhanced capability in managing substantial waste volumes without the limitations of gear-based mechanisms.

Q: Are custom grab bucket hydraulic cylinders suitable for recycling applications?
A: Custom grab bucket hydraulic cylinders are well-suited for recycling applications, as they can be modified with features like enhanced seals and variable stroke options to gently manage materials such as metals, plastics, or papers. This customization prevents material degradation while supporting high-volume sorting in recycling facilities.

Q: What should I do if my hydraulic grab bucket cylinder shows signs of leakage?
A: If a hydraulic grab bucket cylinder exhibits leakage, promptly examine the seals for wear or damage, assess the fluid condition for contamination, and replace affected parts as needed. Reaching out to technical support facilitates proper diagnostics and repairs, helping to restore functionality and avoid extended interruptions in crane operations.

Q: How long does a typical hydraulic cylinder for garbage crane last?
A: A typical hydraulic cylinder for garbage crane can endure over a decade with diligent upkeep, influenced by factors like operational frequency and exposure to harsh elements. Adherence to quality benchmarks from established manufacturers contributes to this longevity, ensuring reliable service in demanding waste management roles.

Q: Can the cylinder handle extreme temperatures in outdoor garbage operations?
A: Yes, the cylinder is engineered with temperature-resistant materials and seals capable of functioning across broad thermal ranges, from sub-zero cold to elevated heat levels prevalent in outdoor settings. This resilience maintains steady performance during garbage operations, regardless of seasonal weather variations.
