Hydraulic Grain Tank Lifting Cylinder for Corn Harvesters
The hydraulic grain tank lifting cylinder represents a critical component in modern corn harvesting equipment, designed specifically to handle the demands of efficient grain management in agricultural operations. This specialized hydraulic cylinder facilitates the lifting and positioning of grain tanks on corn harvesters, ensuring smooth transitions during unloading processes. Built with precision engineering, it integrates seamlessly into harvester systems, providing the necessary force to elevate heavy loads of harvested corn without compromising stability or safety.
Hydraulic Grain Tank Lifting Cylinder Overview
The hydraulic grain tank lifting cylinder represents a critical component in modern corn harvesting equipment, designed specifically to handle the demands of efficient grain management in agricultural operations. This specialized hydraulic cylinder facilitates the lifting and positioning of grain tanks on corn harvesters, ensuring smooth transitions during unloading processes. Built with precision engineering, it integrates seamlessly into harvester systems, providing the necessary force to elevate heavy loads of harvested corn without compromising stability or safety.
In the context of Mexican agriculture, where corn production is a cornerstone of the economy, this cylinder addresses the unique challenges posed by diverse terrains and high-volume harvests. Its construction from high-grade steel alloys resists corrosion and wear, making it suitable for prolonged use in humid or dusty environments typical of regions like Sinaloa or Jalisco. By incorporating advanced sealing technologies, the cylinder minimizes fluid leaks, which not only extends its operational life but also reduces environmental impact through better hydraulic fluid containment. Operators benefit from its consistent performance, which helps maintain harvest schedules even during peak seasons when downtime can lead to significant losses.

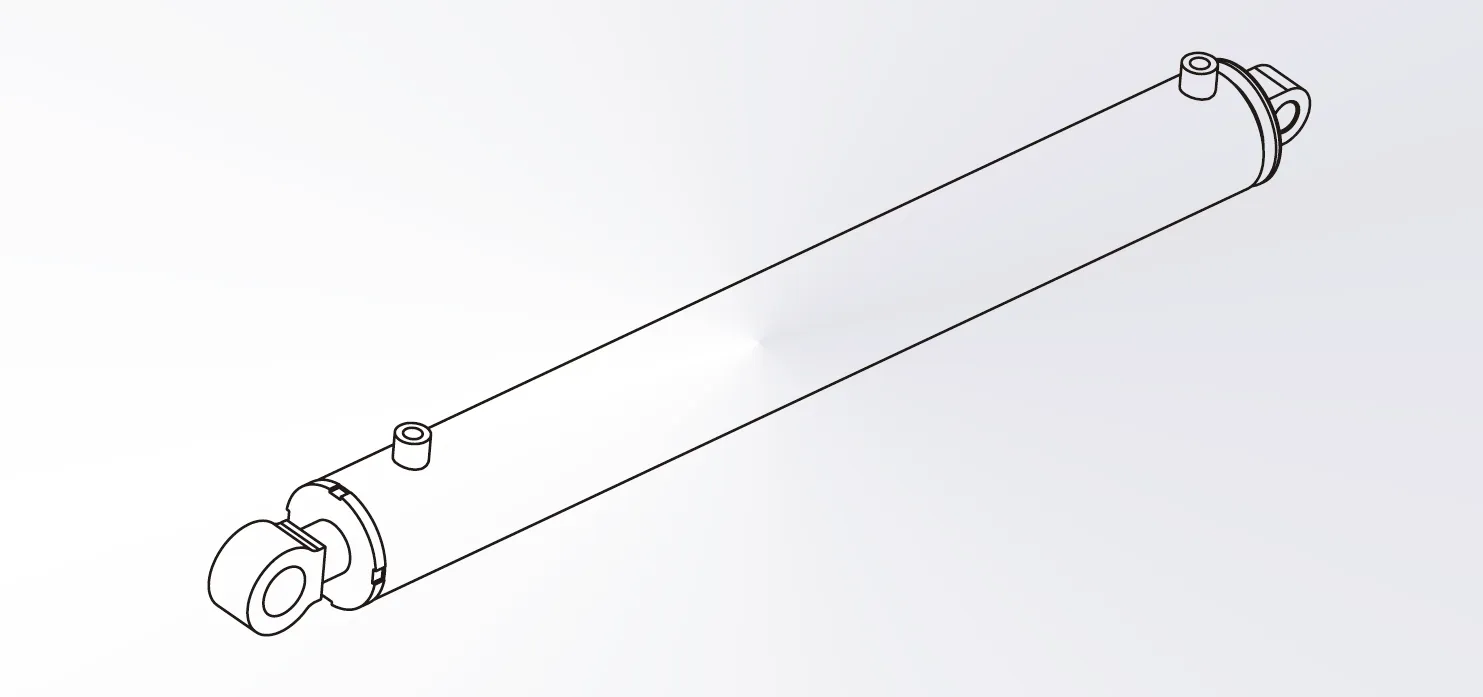

Hydraulic Grain Tank Lifting Cylinder Dimensions
Technical Specifications
For any custom requirements beyond these standard specifications, such as adjusted stroke lengths or specialized mounting options, please contact our team at Mexico Ever-Power for tailored solutions.
| Hydraulic Grain Tank Lifting Cylinder | ||||||
| Cylinder model | Specifications | Working pressure |
Maximum withstand pressure |
Trip | Installation distance |
Weight |
| YY11112016 | Φ65XΦ35X607 | 16.7MPa | 24.SMPa | 607 | 823 | 18kg |
| Product Name: | Grain Tank Lifting Hydraulic Cylinder |
| Function: | Grain bin flipping oil cylinder. |
| Cylinder diameter: | 30mm-65mm |
| Rod diameter: | 18mm-45mm |
| Travel: | 181mm-607mm |
| Maximum pressure: | 20MPa |
| Maximum thrust: | 66KN |
Features of Hydraulic Grain Tank Lifting Cylinder for Corn Harvesters
1. Robust Durability in Harsh Agricultural Environments
Crafted from premium high-strength steel alloys, this hydraulic grain tank lifting cylinder excels in withstanding daily rigors of corn harvesting in Mexico's varied climates, from arid plains to humid coastal areas. Its advanced polymer seals block out contaminants like dust and moisture, while chrome-plated rods combat corrosion effectively, ensuring operations continue smoothly for extended periods without frequent replacements.
2. Precision Control for Optimal Grain Handling
With meticulously engineered tolerances, the cylinder delivers exact lifting motions that prevent spillage during unloading on corn harvesters. Variable bore dimensions ranging between 30mm and 65mm allow seamless fitting into different machine setups, supporting everything from compact family farms to expansive commercial operations across Mexican regions like Chiapas or Sonora.
3. Integrated Safety and Reliability Mechanisms
Built-in overload valves protect against pressure surges, maintaining steady performance under loads reaching 66KN. The compact design saves valuable space on equipment, and easy-to-connect threaded ports speed up assembly, making it a dependable choice for farmers who prioritize safety amid intensive harvest demands.
4. High-Pressure Capability for Demanding Tasks
Handling pressures up to 20MPa, this cylinder supports heavy-duty lifting without compromising speed or efficiency, ideal for managing full grain tanks in high-yield corn fields. Such strength reduces strain on the harvester's overall system, leading to fewer breakdowns during critical planting and reaping cycles.
5. Flexible Stroke Adjustments for Versatility
Offering stroke lengths from 181mm to 607mm, it adapts effortlessly to various harvester models, enabling customized setups that match specific field requirements in Mexico's diverse agricultural landscapes. This flexibility enhances productivity by allowing quick adjustments without halting operations.
6. Corrosion-Resistant Finishes for Longevity
Specialized coatings shield the cylinder from rust and wear caused by exposure to fertilizers, rain, or salty air in coastal farming zones. This protection extends service intervals, helping operators maintain consistent output through multiple seasons with minimal intervention.
7. Low-Maintenance Design to Minimize Downtime
Featuring self-lubricating components and durable seals, the cylinder requires less frequent servicing, which is crucial for remote Mexican farms where access to parts might be limited. This approach keeps costs down and equipment running during peak times.
Types of Hydraulic Cylinders for Corn Harvesters
Working Principle of Grain Tank Lifting Cylinder Hydraulic for Corn Harvester
At the core of the hydraulic cylinder's operation in corn harvesters lies the fundamental concept from fluid mechanics, where force exerted on a confined liquid spreads uniformly throughout the system. This allows a modest input from a pump to generate substantial output force at the cylinder. In a typical setup, pressurized oil enters one end of the sealed tube, driving the internal piston forward and extending the attached rod to raise the grain tank. To lower it, the flow reverses, directing fluid to the rod side and contracting the assembly through controlled release.
Within corn harvesting machinery, this mechanism integrates into a self-contained hydraulic circuit linked directly to the engine-driven pump. Valves regulate the direction and rate of fluid movement, while pressure gauges or electronic monitors track system levels to match the load of filled grain compartments. Such oversight prevents excessive strain, especially when tanks hold varying amounts of corn kernels, safeguarding both the equipment and operators from potential failures during extended field runs.
Practical adaptations in these hydraulic cylinders include cushioning features at stroke ends to soften impacts, reducing wear on components like piston rings and cylinder walls. In Mexican farming contexts, where fields often feature irregular surfaces in areas such as the Bajío region, this setup ensures steady lifting even under shifting weights, minimizing vibrations that could scatter harvested material. The rod's chrome finish further aids by limiting friction, allowing smoother cycles that conserve energy and extend intervals between servicing.
This hydraulic approach outperforms mechanical alternatives by offering proportional control—operators can fine-tune lift speed via joystick inputs connected to solenoid valves. For instance, during unloading at collection points, the cylinder maintains precise positioning to align with trailers, enhancing throughput in large-scale operations. Reliability stems from robust seals that contain fluid despite exposure to dust or moisture, common in tropical growing zones. Maintenance involves regular checks of hose connections and fluid purity to uphold performance, with systems often incorporating filters to trap contaminants before they reach critical parts.
Maintenance Tips for Hydraulic Grain Tank Lifting Cylinder
- Regular Visual Inspections for Wear and Damage
Operators should examine the hydraulic grain tank lifting cylinder weekly for signs of surface cracks, rod bends, or mounting looseness, especially after use in dusty Mexican fields like those in Sonora. Catching early issues prevents costly breakdowns, and using a flashlight in low-light conditions helps spot subtle corrosion from moisture exposure during rainy seasons. - Hydraulic Fluid Level and Quality Checks
Maintain optimal fluid levels by topping up monthly with manufacturer-recommended oil, while testing for contamination through simple sampling kits available at local suppliers. In hot climates such as Baja California, degraded fluid can cause overheating, so replace it every 500 hours to ensure smooth piston movement and avoid internal scoring. - Seal and Gasket Replacement Schedules
Replace worn seals annually or after noticing minor leaks, sourcing parts from trusted vendors to match the cylinder's 30mm-65mm bore specs. For farms in humid areas like Tabasco, this step guards against fluid loss that could lead to environmental spills, extending the unit's life by keeping pressure consistent at up to 20MPa. - Cleaning to Remove Debris and Contaminants
After each harvest day, wipe down the rod and barrel with a soft cloth and mild solvent to clear away corn residue or soil buildup common in Central Mexican plateaus. This practice reduces abrasion on chrome surfaces, ensuring the stroke from 181mm to 607mm remains unrestricted and reliable for ongoing operations. - Pressure Testing and Calibration Routines
Conduct bi-annual pressure tests using a gauge to verify the cylinder holds 66KN thrust without drops, adjusting valves as needed for corn harvester compatibility. In varied terrains of states like Michoacán, proper calibration minimizes vibrations, enhancing safety and preventing premature failures during heavy lifting tasks. - Storage and Off-Season Protection Measures
When not in use, store the cylinder in a dry, covered area retracted fully to protect rods from rust, applying a light anti-corrosive spray suited for agricultural tools. For extended downtime in coastal regions, this method preserves integrity, allowing quick reactivation for the next planting cycle without extensive repairs.
Why Choose Mexico Ever-Power's Agricultural Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., founded in May 1978, stands as a prominent high-tech firm dedicated to producing mid- to high-end hydraulic components, with a primary emphasis on hydraulic cylinders suited for demanding applications. Over the decades, the company has expanded significantly, now occupying 103 acres and employing more than 400 skilled professionals. This growth supports an integrated setup featuring a proprietary research institute, a specialized testing laboratory for hydraulic products, and a cutting-edge R&D center. These resources enable the development of proprietary technologies for essential manufacturing equipment, fostering designs that directly address the practical requirements of sectors like agriculture, including components for corn harvesters.
A rigorous quality management framework underpins all operations, complemented by thorough production and inspection protocols that align with global benchmarks. This commitment ensures that items such as the hydraulic grain tank lifting cylinder deliver exceptional reliability and longevity, even in challenging field environments across Mexico and beyond. The firm's export footprint spans more than 53 nations, encompassing major regions in Asia, Europe, North America, South America, Africa, and Oceania—countries like the United States, Canada, Germany, and Brazil rely on these products for their consistent output. Through longstanding collaborations with renowned international clients, Mexico Ever-Power has cultivated a reputation for supplying performance-oriented solutions that enhance operational dependability.
Opting for this company grants access to bespoke adaptations, for instance, modifying stroke ranges to fit particular corn harvester configurations, thereby optimizing functionality for local farming conditions. Furthermore, the organization's forward-thinking approach emphasizes sustainable practices, integrating energy-saving features into cylinders that lessen fuel demands and curb ecological footprints in contemporary agricultural workflows. Exceptional post-purchase assistance, including prompt technical guidance, reinforces customer confidence, positioning Mexico Ever-Power as a preferred partner for those seeking durable, innovative hydraulic systems. In an industry where precision and endurance matter most, this blend of heritage, technical prowess, and client-centric innovation distinguishes the company, delivering tangible advantages in efficiency and cost management for users worldwide.
 |
 |
 |
 |
FAQs
Q: What is the maximum pressure rating for the hydraulic grain tank lifting cylinder in corn harvesters?
A: Operators can count on this cylinder to withstand pressures reaching 20MPa, which provides the necessary power for elevating substantial grain loads without faltering amid intensive harvesting tasks in diverse Mexican landscapes, where consistent force application is essential for uninterrupted productivity.
Q: How does the grain tank lifting hydraulic cylinder improve efficiency in Mexican corn fields?
A: By facilitating swift tank elevation for unloading, this component cuts back on idle periods, empowering growers to cover greater field areas each day, particularly in fertile zones like the Bajío, where rapid cycles directly boost overall output and resource management.
Q: What stroke lengths are available for the hydraulic cylinder for corn harvesters?
A: Available extensions span from 181mm up to 607mm, with provisions for tailoring to match distinct harvester setups, allowing seamless adaptation across a range of machinery types used in Mexican agriculture, from compact units to larger commercial models.
Q: How to maintain the seals in a hydraulic grain tank lifting cylinder for long-term use?
A: Conduct inspections every three months to detect any degradation, remove accumulated particles with care, and swap out seals using matching replacements to avert fluid escapes, thereby prolonging functionality in challenging environments like dusty or wet farming regions.
Q: Is the grain tank lifting hydraulic cylinder compatible with older corn harvester models?
A: Certainly, its flexible attachment points enable straightforward incorporation into vintage as well as contemporary machines, ensuring farmers with legacy fleets in areas such as Sonora can upgrade without extensive modifications or compatibility concerns.
Q: What materials are used in constructing the hydraulic cylinder for corn harvesters to resist corrosion?
A: The build incorporates resilient steel bases enhanced by chrome layers on rods and durable synthetic seals, offering strong defense against oxidation and weathering effects prevalent in Mexico's humid coastal farms, thus supporting sustained operation over years.
Q: How often should hydraulic fluid be changed in a grain tank lifting hydraulic cylinder?
A: Perform replacements after accumulating 500 hours of activity or once yearly based on workload demands, which helps preserve system integrity and prevents breakdowns during critical harvest windows in high-intensity operations across varied terrains.
Q: Can the hydraulic grain tank lifting cylinder handle uneven terrain in corn harvesting?
A: With its sturdy framework and dependable force delivery, the unit performs effectively on irregular grounds typical of Mexican highlands, maintaining balance during lifts to avoid disruptions and safeguard both equipment and harvested crops from potential harm.
Q: What is the thrust capacity of the hydraulic cylinder for corn harvesters under full load?
A: It generates force up to 66KN when managing maximum weights, adequate for securely raising packed grain compartments without overloading the harvester, a feature that proves invaluable in large-scale fields where heavy yields are commonplace.
Q: How to troubleshoot leaks in a grain tank lifting hydraulic cylinder?
A: Begin by examining fittings for tightness, substitute any deteriorated seals promptly, and purge air from lines to restore pressure; if problems linger, reach out to technical assistance for specialized diagnostics to resolve issues efficiently.
Q: What customization options are available for the hydraulic grain tank lifting cylinder?
A: Tailoring includes variations in internal diameters from 30mm to 65mm, rod thicknesses, and bracket styles to suit particular requirements, enabling precise fits for diverse corn harvester variants employed in Mexico's regional farming practices.
Q: How does regular maintenance affect the lifespan of a hydraulic cylinder for corn harvesters?
A: Ongoing evaluations and upkeep routines can extend durability by twofold, lowering replacement expenses and guaranteeing reliable service, which is crucial for operators in remote Mexican locales aiming to maximize equipment value over multiple seasons.
