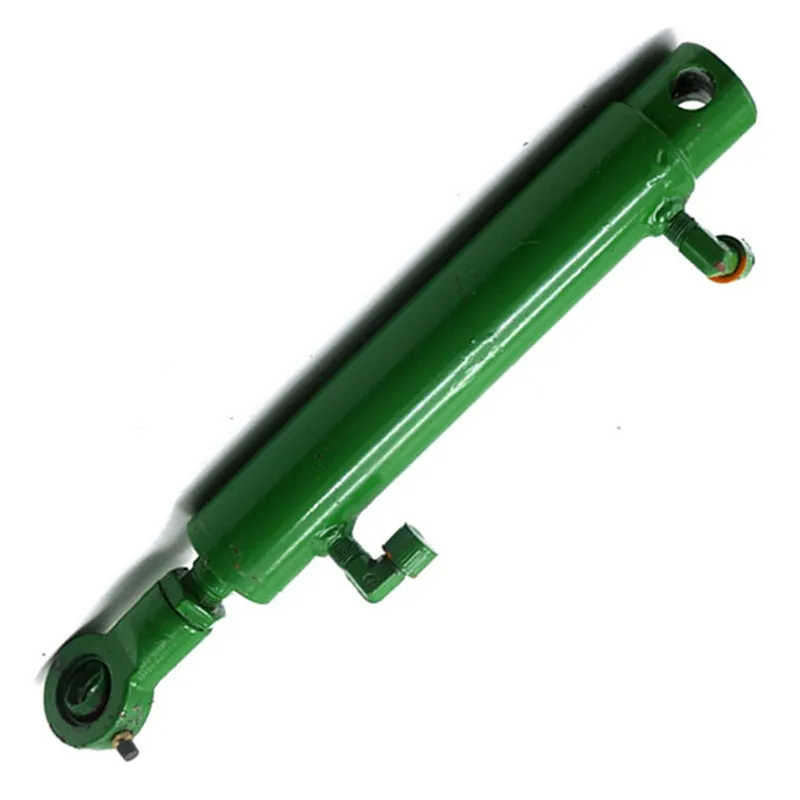

Hydraulic Grain Unloading Cylinder for Rice Harvesters

Rice Harvester Hydraulic Grain Unloading Cylinder Overview

In the demanding world of rice harvesting, equipment reliability directly impacts productivity and operational costs. The hydraulic grain unloading cylinder serves as a pivotal component in modern rice harvesters, facilitating the seamless transfer of harvested grains from the machine's storage to transport vehicles or storage facilities. This cylinder operates by converting hydraulic energy into linear motion, enabling the tilting or opening of grain compartments with precision and control. For farmers in regions like Mexico, where rice cultivation often involves challenging terrains and high humidity, such a cylinder must withstand environmental stresses while maintaining consistent performance. By integrating advanced sealing technologies, our hydraulic grain unloading cylinders minimize leaks and extend service life, ensuring that rice harvesters can operate through extended seasons without interruptions.

The grain unloading hydraulic cylinder for rice harvesters enhances overall machine efficiency by reducing manual intervention and speeding up unloading processes. Traditional methods might involve mechanical linkages prone to wear, but hydraulic systems offer smoother operation and greater force output. In practical terms, this means quicker turnaround times at the field edge, allowing operators to cover more acreage daily. Furthermore, compatibility with various harvester models ensures easy integration, whether upgrading older equipment or outfitting new fleets.

Technical Specifications

If your application requires custom modifications beyond these standard specifications, such as adjusted stroke lengths or specialized mounting options, please contact our team at Mexico Ever-Power for tailored solutions.

Product Name:	Grain Unloading Hydraulic Cylinder
Function:	Flip the granary.
Cylinder diameter:	35mm
Rod diameter:	22mm
Travel:	230mm
Maximum pressure:	16MPa
Maximum thrust:	15.3KN

Features of Hydraulic Grain Unloading Cylinder for Rice Harvester

In the realm of agricultural equipment, the hydraulic grain unloading cylinder stands out due to its robust engineering tailored for rice harvesters. One primary attribute is its streamlined profile, which enables effortless incorporation into machinery frameworks without imposing excess mass, essential for navigating saturated paddy terrains. The utilization of high-grade polymer seals guards against wear from fluid interactions and external pollutants, guaranteeing consistent, sealed performance across extensive operational periods. Furthermore, the chrome-coated piston rod provides superior protection against rust, particularly beneficial in the moist climates prevalent in Mexican rice production zones. Integrated damping mechanisms at stroke extremities mitigate mechanical jolts, thereby extending the durability of associated parts.

A further distinguishing element involves adaptable attachment configurations, such as pin-eye or pivot mounts, simplifying adaptation to diverse harvester designs. Safety is enhanced through embedded overpressure safeguards that avert system strain under intense workloads. This component reliably functions across a broad thermal spectrum, from sub-zero conditions to elevated heat levels, accommodating fluctuating weather patterns throughout the year. Maintenance efficiency is bolstered by rapid-release connectors that expedite hydraulic oil replacements, minimizing equipment idle time. Together, these characteristics streamline the discharge procedure, transforming it into a dependable, expedited phase within the overall harvesting workflow.

Delving deeper, the cylinder incorporates strengthened tube structures capable of resisting lateral forces encountered on irregular ground. Meticulously crafted internal surfaces reduce resistance during movement, promoting fluid motion and curbing thermal accumulation that might otherwise impair functionality.

Emphasizing delivery aspects, the calibrated inner diameter and shaft proportions ensure even power allocation throughout the extension, which proves invaluable for managing fluctuating cargo weights and averting operational halts or imbalances. Such optimizations reflect a commitment to practical reliability in field settings, where consistent output directly influences productivity. Operators in regions like Veracruz or Sinaloa, facing variable soil and moisture challenges, benefit from these tailored adaptations that align with local farming demands.

Types of Hydraulic Cylinders for Rice Harvesters

1. Hydraulic Steering Cylinder
This component plays a critical role in directing the rice harvester through fields, enabling operators to make precise turns with minimal effort. It typically features a compact design with a cylinder diameter around 25mm and a rod of similar size, allowing for a short travel distance such as 24mm under pressures up to 8MPa. Such specifications ensure responsive handling in uneven or muddy terrains common in rice cultivation areas, reducing operator fatigue and improving overall maneuverability during long harvesting sessions. By integrating with the machine's hydraulic system, it supports smooth axle rotation, which is essential for navigating tight spaces between crop rows without damaging plants.

2. Hydraulic Pulling Wheel Cylinder
Designed to regulate the positioning and rotational speed of the harvester's pulling wheels or reel mechanisms, this cylinder helps in gathering rice stalks efficiently into the machine. It adjusts the reel's height and angle to match varying crop densities, often operating with strokes up to 300mm and handling pressures of 16MPa for thrusts around 31KN. This functionality prevents crop loss by ensuring consistent feeding into the threshing unit, particularly useful in fields with inconsistent plant heights or in regions prone to lodging due to weather conditions.

3. Hydraulic Header Cylinder
Responsible for lifting, lowering, and tilting the cutting header assembly, this cylinder allows the harvester to adapt to ground contours and crop variations during operation. It controls the header's elevation for optimal cutting height, typically involving robust builds that manage significant loads in demanding agricultural environments. With precise hydraulic control, it minimizes damage to the soil and remaining stubble, supporting cleaner cuts and higher yields in rice paddies where terrain irregularities are frequent.

4. Hydraulic Grain Unloading Cylinder
This type facilitates the discharge of collected rice grains by flipping or extending the granary or auger system, ensuring quick and controlled emptying into transport vehicles. It often includes a 35mm cylinder diameter with a 22mm rod and 230mm stroke, capable of 16MPa pressure for thrusts up to 15.3KN. Such capabilities reduce downtime at the field edge, allowing continuous harvesting cycles and preventing grain spillage in humid conditions that could lead to spoilage or waste.

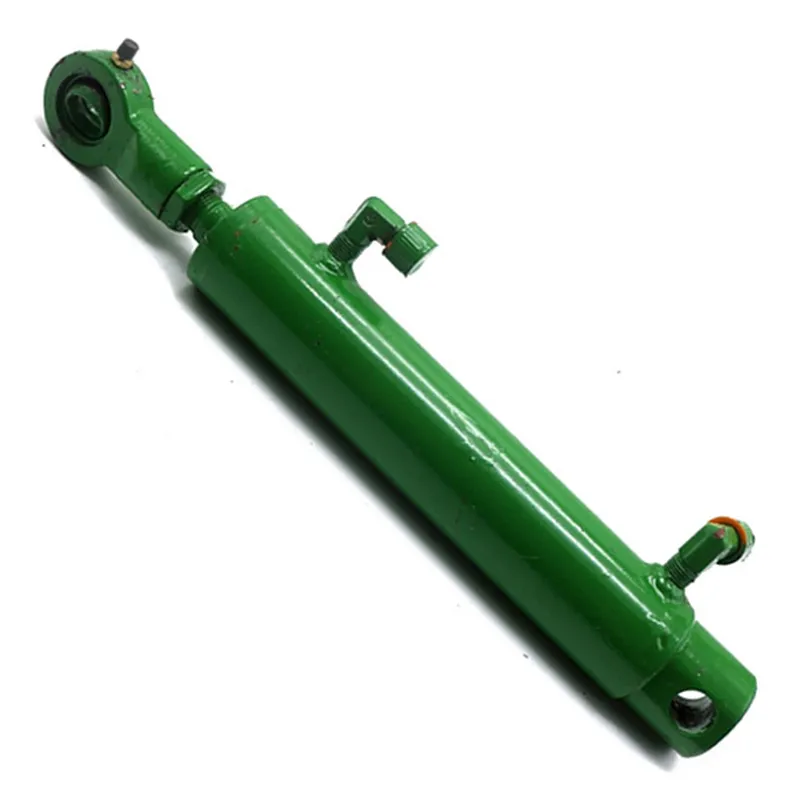

Grain Unloading Hydraulic Cylinder Components

• Cylinder Barrel
  This tubular structure forms the main body of the hydraulic grain unloading cylinder, containing the pressurized fluid that drives the mechanism to flip the granary in rice harvesters. Constructed from durable steel to withstand pressures up to 16MPa, it ensures stable operation during repeated unloading cycles in humid field conditions, preventing deformation under loads like 15.3KN thrust.
• Piston
  Positioned inside the barrel, the piston divides the internal space into two chambers, allowing hydraulic fluid to push it back and forth for extending or retracting the rod. In rice harvesting applications, this component enables precise control over the granary tilt, handling strokes of around 230mm to facilitate efficient grain discharge without spillage.
• Piston Rod
  Extending from the piston through one end of the cylinder, this chrome-plated shaft transmits force to the unloading mechanism, such as lifting or rotating the grain tank. Its 22mm diameter provides strength against bending in rough terrains, ensuring reliable performance during high-volume rice unloading tasks.
• Seals and Gaskets
  These essential elements, often made from polymer materials, prevent fluid leaks between the piston, rod, and barrel while maintaining pressure integrity. For harvesters operating in moist environments, they resist contamination from dust or water, extending the cylinder's service life beyond thousands of cycles.
• End Caps
  Secured at both ends of the barrel, the base cap and rod cap enclose the assembly, with the rod cap featuring a gland to guide the piston rod smoothly. In grain unloading setups, these caps incorporate mounting points for attachment to the harvester frame, supporting stable flips of the granary under varying loads.
• Hydraulic Ports
  Located on the end caps or barrel, these inlet and outlet fittings connect to the harvester's hydraulic lines, directing fluid flow to actuate the cylinder. Designed for quick connections, they allow pressures up to 16MPa, enabling rapid response times during unloading to minimize downtime in the field.
• Mounting Hardware
  Including clevis pins, brackets, or flanges, this hardware affixes the cylinder to the rice harvester's chassis and granary linkage. It accommodates vibrations from uneven paddy fields, ensuring secure positioning for thrusts exceeding 15KN while allowing slight flexibility to avoid stress fractures over time.

Maintenance Tips for Grain Unloading Hydraulic Cylinder

1. Regular Inspections for Leaks and Rod Integrity
Conduct thorough visual checks on the hydraulic grain unloading cylinder every month to identify any signs of fluid seepage or surface wear on the piston rod, which could compromise performance in rice harvesting operations. This proactive approach helps detect minor issues early, preventing costly breakdowns during peak field activities and ensuring the unit handles pressures up to 16MPa without failure.

2. Monthly Fluid Level Monitoring
Verify the hydraulic fluid levels in the cylinder on a monthly basis, topping up with the recommended oil type to maintain optimal lubrication and pressure stability. In humid environments like Mexican rice paddies, consistent monitoring avoids contamination from moisture ingress, which might otherwise lead to reduced thrust efficiency or internal corrosion over time.

3. Scheduled Seal Replacements
Replace the polymer seals in the grain unloading hydraulic cylinder after approximately 2,000 operating hours or sooner if degradation is observed during routine checks. This interval accounts for the demanding cycles in rice harvesters, where exposure to dust and vibrations accelerates wear, thereby preserving leak-free functionality and extending the overall service lifespan.

4. External Surface Cleaning Protocols
Wipe down the exterior of the agricultural hydraulic cylinders regularly using a soft cloth and mild detergent to remove accumulated dirt, crop residue, or mud that accumulates during harvesting. Such cleaning prevents abrasive buildup that could scratch the chrome-plated rod or barrel, ultimately safeguarding against premature rust formation in variable weather conditions.

5. Proper Storage in Dry Environments
When the rice harvester is not in use, store the equipment in a covered, dry area to shield the hydraulic cylinder from excessive humidity or direct rainfall, which are common in tropical rice-growing regions. This practice minimizes the risk of corrosion on metal components, ensuring the cylinder remains ready for reliable grain discharge in subsequent seasons.

6. Lubrication of Pivot Points and Mounts
Apply appropriate grease to the mounting hardware and pivot joints of the grain unloading cylinder quarterly, focusing on areas prone to friction from repetitive motions. This maintenance step reduces wear on connections, enhances smooth extension during unloading, and supports the cylinder's ability to manage 230mm strokes without binding or excessive noise.

Why Choose Mexico Ever-Power's Agricultural Hydraulic Cylinders?

FAQs

Q: How does the grain unloading hydraulic cylinder improve efficiency in rice harvesting?
A: By delivering regulated, strong extension to tilt the storage area, it cuts down unloading duration significantly compared to older methods, allowing operators to resume cutting sooner. This reduces idle time at field edges, boosts daily output, and lessens physical strain on workers, particularly in humid climates where manual efforts can lead to fatigue or errors.

Q: What common issues arise with grain unloading hydraulic cylinders and how to fix them?
A: Frequent problems include gradual movement from insufficient oil or trapped air, addressed by replenishing levels and purging lines; seepage often stems from worn gaskets, requiring prompt swaps; overheating might signal blocked strainers, cleared through cleaning; and erratic action could indicate pump wear, fixed via inspections and part replacements to restore steady function.

Q: Is the hydraulic cylinder for rice harvesters customizable for specific models?
A: Certainly, modifications cover altered extension ranges, varied attachment designs like pin or bracket styles, and adjusted force limits to suit different equipment brands and usage scenarios. This flexibility allows integration with older or unique setups, ensuring optimal fit and performance without necessitating full system overhauls.

Q: How does the working principle of a hydraulic grain unloading cylinder differ from mechanical alternatives?
A: It operates via fluid under force to create even, potent shifts, contrasting with gear-based setups that depend on physical connections susceptible to breakdown and inconsistent power. The liquid medium provides finer control and greater output, reducing vibration and extending component life in repetitive tasks like bin tipping.

Q: What advantages does using a grain unloading hydraulic cylinder offer over manual unloading?
A: It lowers workforce demands by automating the dump process, cuts down on spilled produce through accurate control, and accelerates operations for better throughput and reduced expenses. In comparison to hand-operated methods, it enhances safety by limiting exposure to heavy lifting and supports larger-scale farming with reliable, repeatable actions.

Q: How to install a hydraulic grain unloading cylinder on an existing rice harvester?
A: Start by matching fixing points to the frame, fasten with appropriate hardware tightened to specs, link fluid conduits securely, and run initial tests under empty conditions to confirm fluid flow and eliminate bubbles. This method guarantees safe attachment and avoids strains during use in varied terrains.

Q: What materials are used in hydraulic cylinders for rice harvesters to ensure durability?
A: Robust alloys form the main tube and shaft, with chrome layers on the extension arm to fend off scratches and oxidation, while synthetic rings seal against leaks and wear in tough settings. These choices bolster resistance to field abrasives and dampness, supporting extended use without frequent fixes.

Q: Can the hydraulic grain unloading cylinder handle varying grain loads in rice harvesting?
A: Absolutely, its build supports forces reaching 15.3KN, accommodating shifts from partial to maximum bin fills without stalling, thanks to balanced sizing and pressure handling. This adaptability proves useful in uneven yields, maintaining steady dumps even under fluctuating weights common in diverse crop conditions.

Q: How often should I inspect the grain unloading hydraulic cylinder during harvest season?
A: Carry out checks every seven days for signs of deterioration, oil amounts, and system force to catch problems before they escalate amid heavy usage. This frequency aligns with operational intensity, helping avert interruptions when machinery runs extended hours in demanding environments.

Q: What safety features are built into hydraulic cylinders for rice harvesters?
A: Incorporated overflow mechanisms release excess buildup to avoid bursts, while end buffers soften stops to cut shocks on parts and users. These elements promote secure handling, reducing accident risks during high-force tasks like grain release in active field operations.

Customer Reviews

Maria Gonzalez, Farm Owner, Veracruz
"We've been relying on this hydraulic grain unloading cylinder in our rice harvesters for over two full seasons, and it truly transformed our operations. That 230mm stroke manages heavy loads effortlessly, with no leaks despite constant downpours here in Veracruz. The folks at Mexico Ever-Power answered all our setup queries right away, making the whole switch smooth. Overall, the sturdy construction has cut our repair headaches big time."

---

Carlos Mendoza, Equipment Mechanic, Sinaloa
"From a mechanic's viewpoint, the maintenance on these cylinders is straightforward and hassle-free. Ours has been chugging along at 16MPa pressure every day for more than a year without skipping a beat, fitting our older harvester model perfectly after some custom tweaks. It saved us from shelling out for a replacement machine, and the value is unbeatable—definitely a smart pick for long-haul reliability in the field."

---

Ana Rivera, Agricultural Supervisor, Tabasco
"Mexico Ever-Power's service stands out; they got our order to us in less than a week, keeping our harvest timeline intact during a busy season. The cylinder's powerful thrust handles unloading hefty rice batches without any hitches, and we've experienced no downtime at all in our tough, humid fields. I'd highly suggest it for anyone needing dependable gear that performs under pressure."

---

Pedro Sanchez, Rice Farmer, Morelos
"This grain unloading hydraulic cylinder slotted right into our setup, with its 35mm diameter delivering exactly the power we need for quicker dumps. We've shaved hours off daily labor thanks to faster unloading, though we made a couple of small tweaks during installation. It's weathered muddy conditions for months now without issues—really pleased with how it holds up."

---

Isabel Torres, Operations Manager, Chiapas
"Logistics from Mexico Ever-Power were spot-on; the package arrived promptly even to our out-of-the-way spot in Chiapas. The corrosion-resistant build has shown no wear after six months of steady use, and their support team guided us through a custom mounting adjustment seamlessly. It's been a worthwhile investment, focusing on quality that matches our remote farming demands."

---

Juan Lopez, Harvest Crew Lead, Guerrero
"We've tested this cylinder rigorously through consecutive harvests, and it nails the 15.3KN thrust every time without fluid loss, thanks to those tough seals—way better than what we had before. Packaging and instructions from Ever-Power made installation a snap, no fuss at all. After a year of hard use, its longevity has us coming back for more parts."

---

Elena Vargas, Field Technician, Nayarit
"As someone who handles daily checks, I love how this hydraulic cylinder simplifies our routine—quick fluid top-ups and no major overhauls needed yet after eight months. It integrates well with our rice harvester, boosting unloading speed and reducing team fatigue in the heat. Mexico Ever-Power's responsive chat support sorted a minor query fast, adding to the positive experience."

---

Roberto Diaz, Agribusiness Owner, Sonora
"The focus on durable materials in this grain unloading cylinder pays off; ours has endured extreme dust and heat without faltering, maintaining consistent performance at full stroke. Delivery was swift, arriving in just four days, which helped us gear up ahead of schedule. Solid product from Mexico Ever-Power that aligns perfectly with our large-scale operations."
