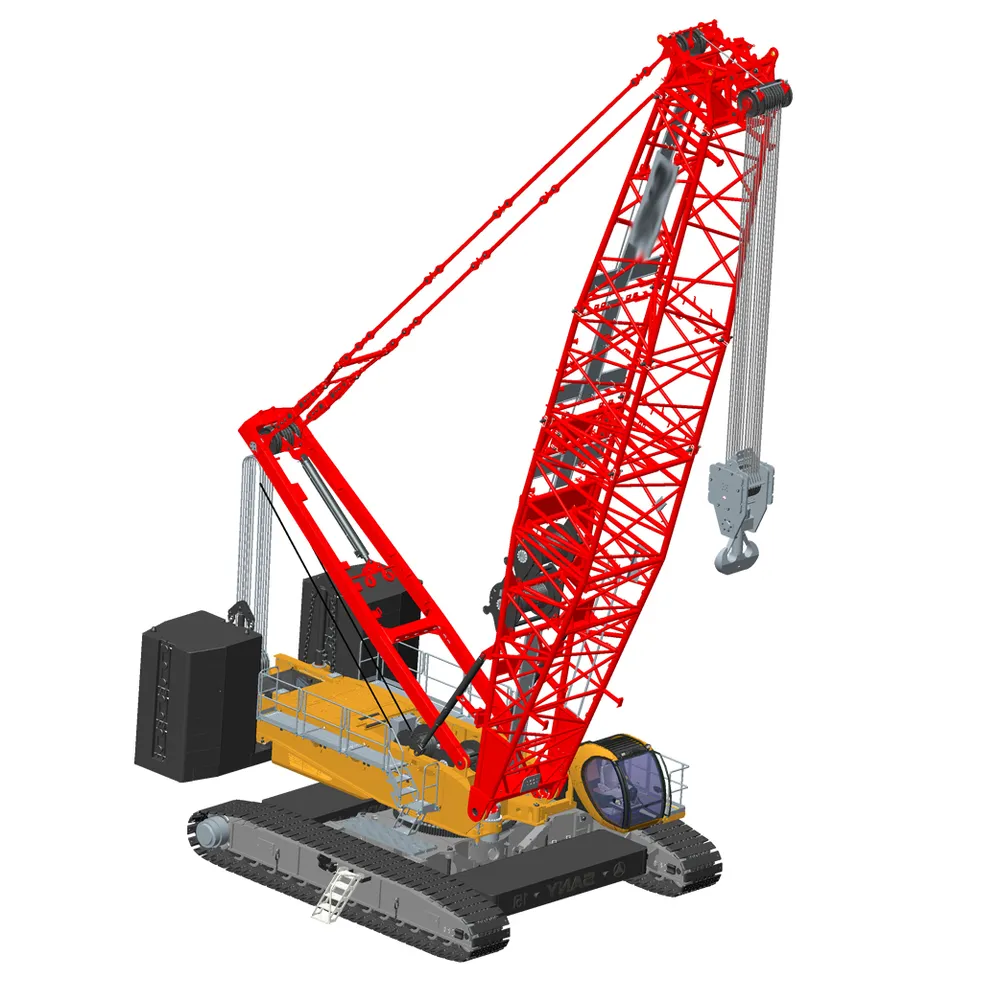

Hydraulic Lift Cylinder for Truss Arm Crawler Cranes

Overview of Hydraulic Lift Cylinder for Truss Arm Crawler Crane

In the demanding world of construction and heavy lifting, hydraulic lift cylinders serve as critical components in truss arm crawler cranes, enabling precise vertical movements and stable load handling. These cylinders convert hydraulic fluid pressure into linear force, allowing the crane's truss arm to extend or retract smoothly during operations such as building erection or material transport. Built with high-strength steel and advanced sealing systems, they withstand extreme pressures and environmental conditions common in Mexico's diverse construction sites. The design emphasizes durability, with features like chrome-plated rods to resist corrosion and integrated cushions to minimize shock loads, ensuring operational reliability over extended periods.

These lift hydraulic cylinders incorporate engineering tailored for crawler crane specifics, such as compact mounting flanges that fit standard truss arm interfaces. Operators benefit from consistent performance across varying loads, with pressure ratings that support up to 21MPa without compromising speed or precision. In Mexico's growing construction sector, where efficiency directly impacts project timelines, these cylinders reduce downtime by offering easy integration with existing hydraulic systems.

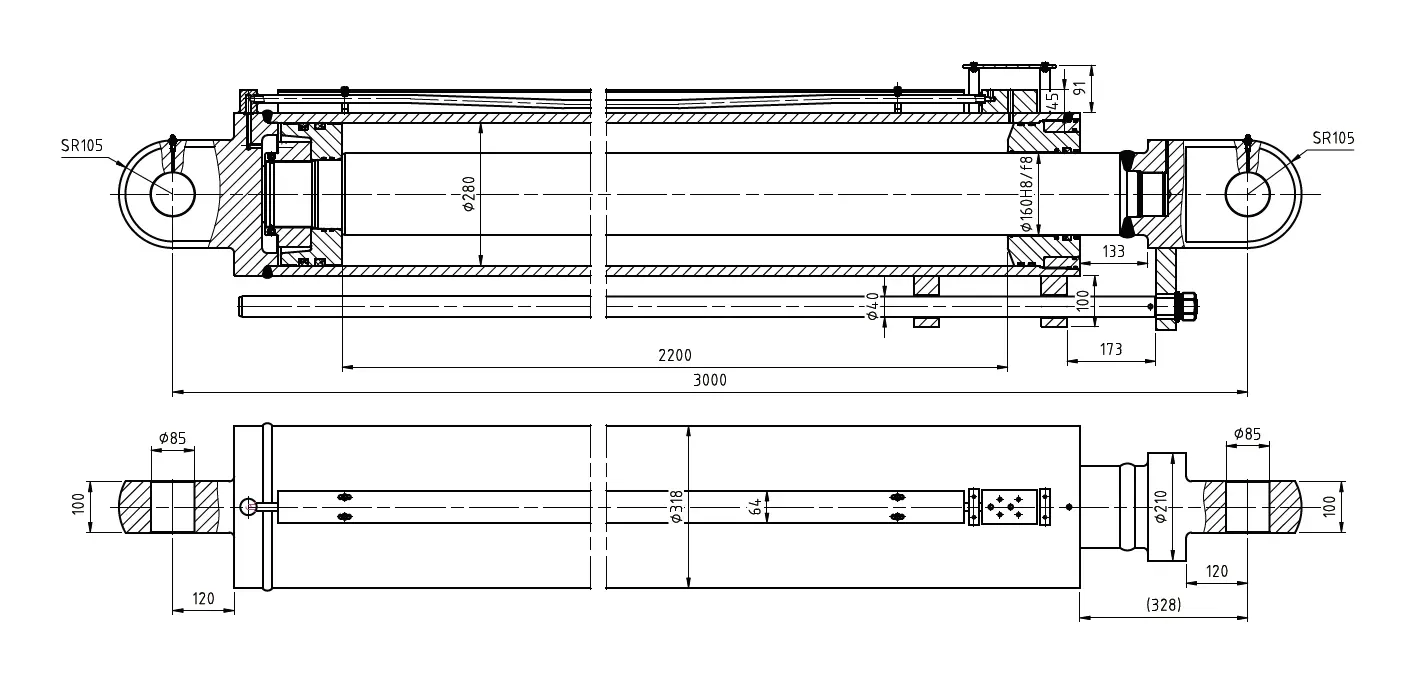

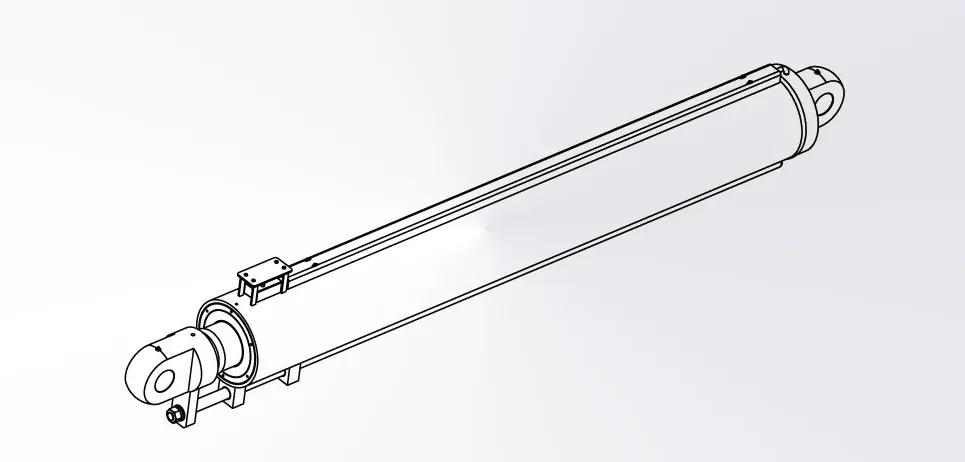

Crane Hydraulic Lift Cylinder Dimensions

Technical Specifications

If your project requires custom specifications beyond these standards, such as adjusted stroke lengths or specialized mounting, contact our team at Mexico Ever-Power for tailored solutions.

Hydraulic Lift Cylinder
Cylinder model	Specifications	Working pressure	Maximum withstand pressure	Trip	Installation distance	Weight
YY11112018	Φ280XΦ160X2200	31.5MPa	40MPa	2200	3000	1003kg

Product Name:	Lift Hydraulic Cylinder
Function:	Control the movement of the main arm.
Cylinder diameter:	280mm-400mm
Rod diameter:	160mm
Travel:	1800mm-3000mm
Maximum pressure:	31.5MPa
Maximum thrust:	3958KN

Characteristics of Hydraulic Lift Cylinders in Crane

Hydraulic lift cylinders for truss arm crawler cranes stand out due to their robust construction, which includes precision-machined components that ensure minimal wear over time. One primary characteristic is the use of hardened steel barrels, which provide exceptional resistance to bending under heavy loads, a common challenge in crane operations. This material choice, combined with advanced welding techniques, results in cylinders that maintain structural integrity even in Mexico's humid coastal regions or dusty inland sites. Additionally, the cylinders feature double-acting designs, allowing for controlled extension and retraction, which enhances operational flexibility. Safety elements like overload protection valves are integrated to prevent system failures, making them ideal for high-risk environments.

Another notable characteristic is the thermal management system, where cylinders are designed to operate efficiently in temperatures ranging from -20°C to 80°C, accommodating Mexico's varied climates from the arid north to tropical south. The rod surfaces are treated with hard chrome plating, reducing friction and extending seal life, which translates to lower maintenance costs for operators. In terms of performance, these cylinders offer high piston speeds without sacrificing accuracy, supported by cushioning mechanisms that absorb end-of-stroke impacts. This not only prolongs the life of the cylinder but also protects the crane's truss arm from undue stress.

• Durability Enhancements: Incorporates anti-corrosion coatings for prolonged exposure to elements.
• Precision Engineering: Tight tolerances in piston and rod alignment for smooth motion.
• Customization Options: Available in various bore sizes to match specific crane models.

Benefits of Using Lift Hydraulic Cylinders for Truss Arm Crawler Cranes

• Enhanced Productivity in Operations
  These cylinders boost overall crane efficiency by enabling rapid truss arm adjustments, which accelerate task completion on construction sites. In Mexico's expanding infrastructure projects, this capability minimizes downtime, allowing teams to manage multiple lifts in a single shift without relying on slower mechanical methods, ultimately streamlining workflows and increasing daily output rates.
• Superior Force-to-Weight Ratio
  Hydraulic systems excel over traditional mechanical setups by delivering high power in a compact form, permitting truss arm crawler cranes to lift substantial loads while maintaining a lighter overall structure. This design reduces the crane's footprint on job sites, making it easier to maneuver in confined urban areas like those in Mexico City, where space constraints often challenge equipment deployment.
• Significant Cost Savings
  With optimized fluid paths and low-friction seals, these crane hydraulic cylinders lower fuel usage during extended operations, directly cutting operational expenses for contractors. In regions with fluctuating energy prices, such as parts of Mexico, this efficiency translates to long-term financial benefits, as maintenance intervals extend due to reduced wear on components, preserving budget for other project needs.
• Improved Safety Features
  Built-in pressure relief valves prevent over-extension risks, safeguarding operators and bystanders on busy sites by automatically managing hydraulic loads. For Mexican firms adhering to rigorous guidelines from the Secretariat of Labor and Social Welfare, this integration helps avoid accidents, fostering a secure environment that complies with national standards and reduces liability concerns.
• Ease of Compliance with Local Regulations
  The cylinders' reliable performance supports adherence to Mexico's safety and environmental rules, including those governing equipment in high-risk zones. Contractors benefit from documented testing protocols that align with federal requirements, simplifying audits and certifications while ensuring uninterrupted project progress in regulated industries like mining or port development.
• Modular Design for Adaptability
  The flexible construction allows straightforward upgrades or modifications without overhauling the entire crane system, accommodating changes in project scopes or technological advancements. In dynamic markets like Mexico's, where infrastructure demands evolve rapidly, this adaptability extends equipment lifespan and enables quick responses to new operational challenges, enhancing long-term investment value.

Hydraulic Cylinder for Truss Arm Crawler Cranes

Hydraulic Support Cylinder
These cylinders provide essential stability by extending support legs on truss arm crawler cranes, distributing weight evenly across uneven terrain to prevent tipping during heavy lifts. In construction settings, they handle pressures up to 21MPa, ensuring firm grounding that complies with safety protocols in projects involving elevated structures.

Hydraulic Lift Cylinder
Designed for vertical extension, hydraulic lift cylinders power the truss arm's upward movement, enabling precise load elevation in crane operations. With stroke lengths reaching 3000mm, they facilitate efficient material handling in infrastructure builds, reducing manual adjustments and enhancing speed on job sites.

Hydraulic Pin Shaft Cylinder
Incorporating buffering mechanisms, these cylinders connect pivotal points like pins and shafts, absorbing shocks from dynamic motions in truss arm assemblies. Typically featuring an 80mm cylinder diameter, they maintain alignment under load variations, extending component life in rigorous crane usage scenarios.

Hydraulic Spring Cylinder
Equipped with internal springs for assisted retraction, these cylinders support controlled arm positioning, countering gravitational pull after extension in crawler crane tasks. This setup improves response times in repetitive lifting cycles, making them suitable for operations requiring frequent adjustments without external aids.

Hydraulic Oil Cylinder
Serving as a core component for fluid-based force transmission, hydraulic oil cylinders manage pressure distribution across the crane's hydraulic system, supporting various motions like tilting or rotating. Built with durable seals, they ensure leak-free performance, vital for sustained efficiency in long-duration construction environments.

Hydraulic Power Pin Cylinder
These cylinders drive power pins for secure locking and unlocking of truss arm sections, providing robust mechanical engagement during assembly or disassembly. Capable of high-force outputs, they enhance operational reliability, particularly in modular crane designs where quick reconfiguration is necessary.

Hydraulic Arm Anti-Backtilt Cylinder
Focused on preventing unintended backward tilting of the truss arm, these cylinders apply counterforce to maintain balance under uneven loads. Integrated with relief valves for safety, they protect against overloads, ensuring stable performance in high-stakes applications like urban building erection.

Applications of Hydraulic Lift Cylinders in Truss Arm Crawler Cranes

• Construction Sector in Urban Developments
  In bustling cities like Guadalajara, hydraulic lift cylinders play a key role in high-rise building projects by enabling truss arm crawler cranes to achieve accurate elevations for installing steel beams at heights over 50 meters. This precision supports complex structural assemblies, where the cylinders' robust stroke capabilities handle varying loads, ensuring steady progress amid tight schedules and spatial limitations typical of Mexican metropolitan areas.
• Mining Operations in Challenging Terrains
  Across Sonora's rugged landscapes, these cylinders enhance crane stability on irregular ground, allowing for the secure lifting of ore containers with extensions up to 3000mm. Their design withstands persistent dust exposure and mechanical vibrations from drilling activities, which helps mining teams maintain consistent extraction rates while reducing equipment strain in remote, resource-intensive sites.
• Port and Maritime Logistics Facilities
  At key harbors such as Manzanillo on Mexico's Pacific coastline, hydraulic lift cylinders facilitate efficient cargo operations by extending crane arms over vessels to manage heavy shipments under swaying conditions caused by waves. This functionality streamlines unloading processes for containers and bulk goods, improving turnaround times in high-volume trade hubs that connect global supply chains.
• Infrastructure and Bridge Construction Projects
  In regions like Veracruz, where bridge building demands reliable material transport over water or elevated spans, the cylinders' high-pressure endurance—often at 21MPa—ensures safe handling of girders and components. Operators rely on this strength to navigate environmental factors like humidity and wind, contributing to durable public works that bolster regional connectivity and economic growth.

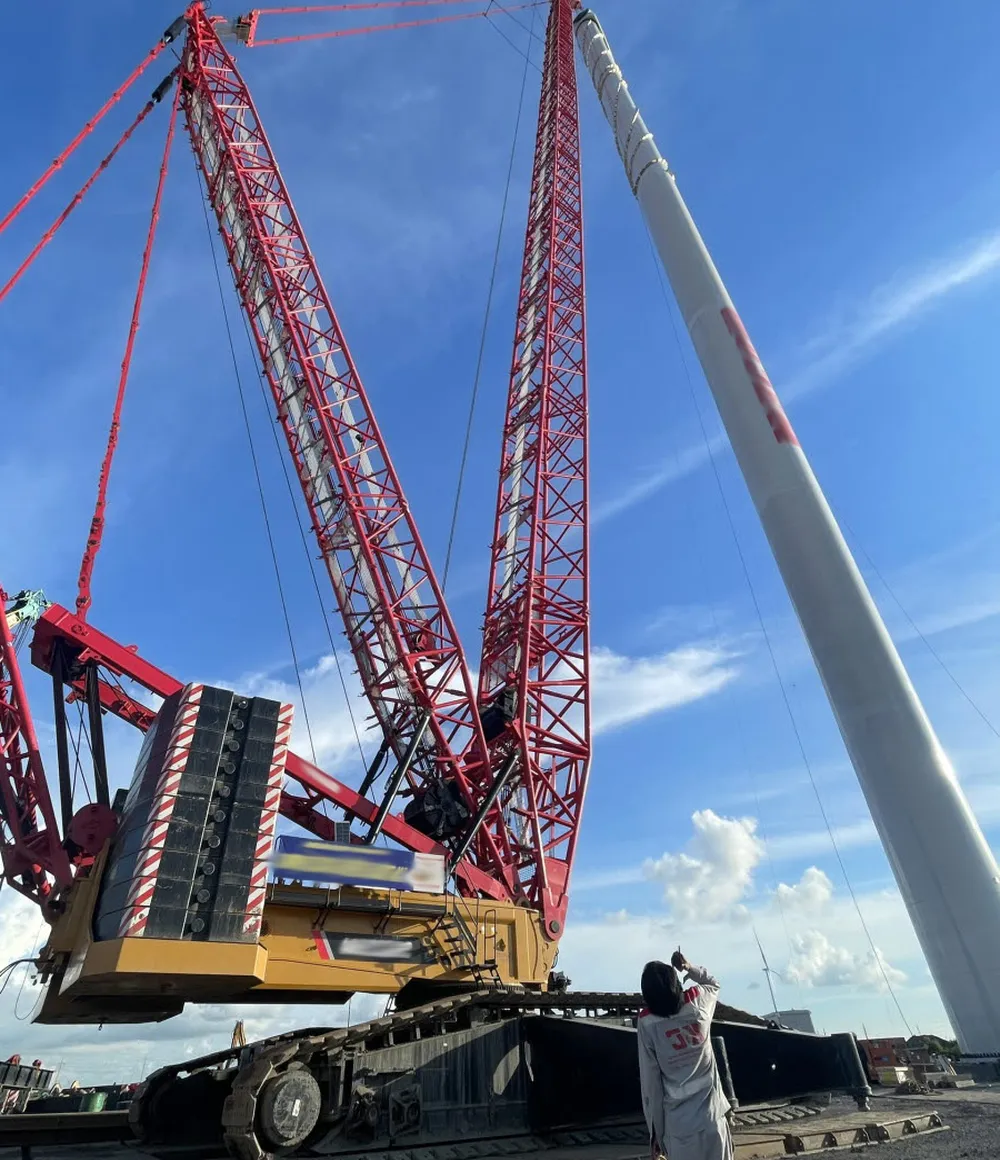

• Renewable Energy Installations
  For wind farm developments in areas like Oaxaca, hydraulic lift cylinders enable cranes to position turbine blades and towers at significant heights, managing the delicate balance required for such oversized elements. Their consistent performance in variable weather conditions supports the expansion of sustainable energy initiatives, aligning with national goals for cleaner power generation.

Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?

FAQs

Customer Reviews

Maria Gonzalez, Project Manager, Guadalajara
"We have successfully incorporated these hydraulic lift cylinders into our truss arm crawler cranes for more than two years, managing routine elevations in dense urban construction zones. The 2000mm stroke length combined with a 21MPa pressure capacity has precisely met our operational demands, and the expedited delivery of our customized flange ensured no delays in deployment. To date, there have been zero failures, underscoring the exceptional construction that has consistently supported our crew's efficiency and safety protocols."

Carlos Mendoza, Equipment Foreman, Monterrey
"Last year, we transitioned to Ever-Power's lift hydraulic cylinders for our mining cranes, and the improvement has been substantial in environments prone to persistent dust and mechanical vibrations. Compared to prior options, these units have demonstrated superior resistance, remaining leak-free after 18 months of intensive use. The support staff provided detailed guidance during installation via telephone, which effectively reduced our equipment downtime and allowed us to resume operations swiftly."

Ana Rivera, Logistics Coordinator, Veracruz Port
"In our port activities, the hydraulic lift cylinders featuring 150mm bore diameters have optimized cargo management on crawler cranes by enhancing arm extension reliability amid marine conditions. The shipment arrived in under seven days to our Mexican location, and their steadfast operation in saline atmospheres has proven dependable. As a result, we have experienced a notable decrease in service requirements, leading to considerable reductions in overall expenses for our handling processes."

Luis Hernandez, Site Engineer, Mexico City
"The resilience of these hydraulic cylinders has left a strong impression in our high-rise endeavors, where the chrome-plated rods effectively counter abrasion, and the 3000mm stroke accommodates extensive truss arm reaches with ease. Ever-Power's customer service addressed our technical inquiry within hours, facilitating a seamless procurement experience that aligned perfectly with our project timelines and quality expectations."

Sofia Lopez, Maintenance Supervisor, Baja California
"Our personnel depend on these cylinders for infrastructure cranes in arid, elevated-temperature rural settings, where they have surpassed initial projections by maintaining performance under prolonged exposure. Maintenance remains straightforward, with seals exhibiting extended durability beyond standard estimates. The logistics process was handled proficiently, ensuring timely arrival and secure packaging that prevented any transit-related complications."
