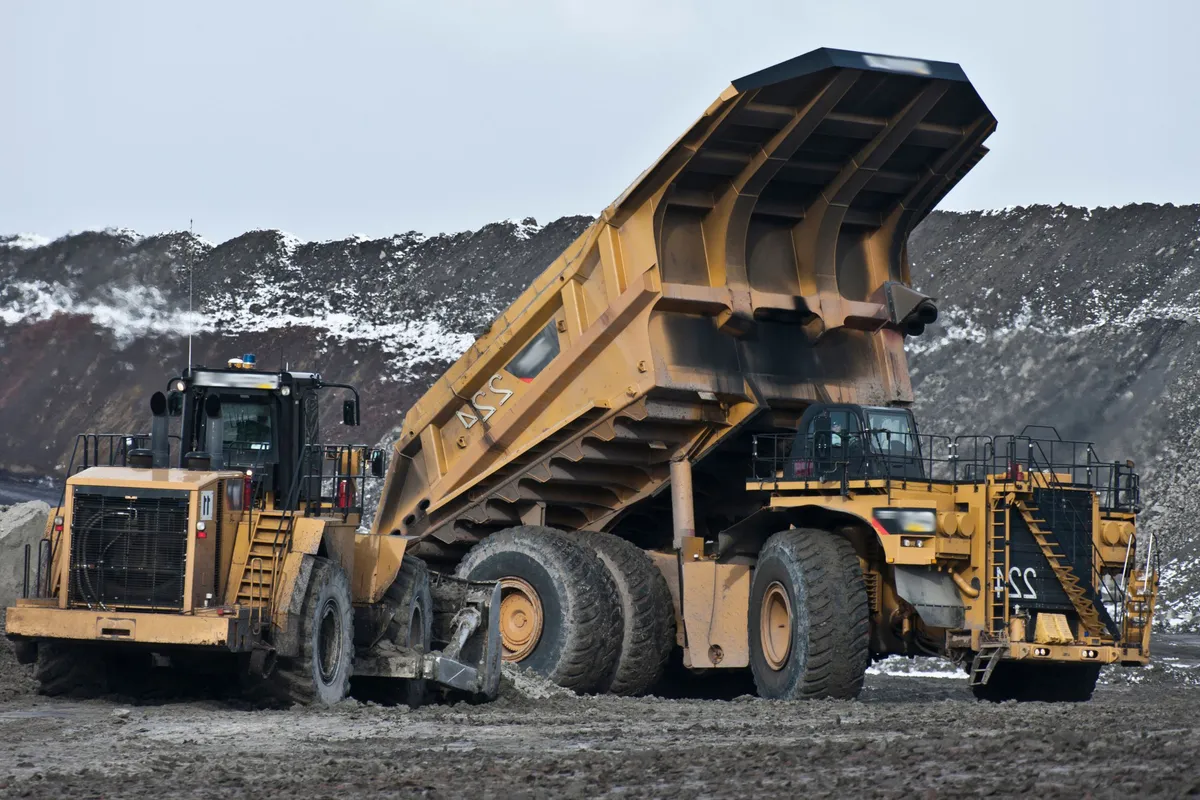

Hydraulic Lifting Cylinder for Mining Dump Trucks
Explore durable hydraulic lifting cylinders for mining dump trucks from Mexico Ever-Power, with bore diameters of 120mm to 380mm and rod sizes up to 350mm for reliable cargo dumping. Our two or three-stage designs handle extreme conditions, offering customization for extended strokes or protective coatings to boost efficiency and reduce downtime in demanding mining operations. Contact us for tailored, high-performance solutions that prioritize safety and longevity.
Mining Dump Truck Hydraulic Lifting Cylinder Overview
In the rigorous environment of mining operations, where heavy loads and harsh terrains demand equipment that performs without fail, the hydraulic lifting cylinder stands as a critical component for dump trucks. This specialized cylinder, often referred to as a lifting hydraulic cylinder or hydraulic lift cylinder, is engineered to facilitate the smooth elevation and lowering of the truck bed, enabling efficient unloading of materials like ore, rock, or overburden.
At Mexico Ever-Power Hydraulic Cylinder Co., Ltd., we focus on producing these cylinders with precision to meet the unique needs of mining machinery hydraulic cylinders, ensuring they integrate seamlessly into large-scale dump trucks used in open-pit or underground extraction sites. Our designs incorporate robust materials that resist corrosion and abrasion, which are common challenges in mining settings, thereby extending the operational life of the equipment and minimizing maintenance interruptions.
Technical Specifications
For any additional customization needs, such as extended stroke lengths or specialized coatings for extreme environments, please contact our team at Mexico Ever-Power for tailored solutions.
| Product Name: | Lifting Hydraulic Cylinder |
| Function: | Lift/lower the body for cargo dumping. |
| Bore diameter: | 120mm～380mm |
| Rod diameter: | 90mm～350mm |
| Cylinder Type: | two-stage or three-stage cylinder |
Features of Hydraulic Lifting Cylinder in Mining Dump Truck
Hydraulic lifting cylinders designed for mining dump trucks exhibit several key attributes that make them indispensable in heavy-duty operations. Central to their performance is the use of high-strength alloy steel in the barrel and rod construction, which provides exceptional resistance to impacts and corrosion from mineral-laden debris commonly found in extraction zones. This material choice ensures the cylinder can handle repeated cycles of high-pressure loading without deformation, extending service intervals and reducing the need for frequent replacements in remote mining locations.
A defining characteristic is the double-acting configuration, which enables both powered extension and retraction through hydraulic fluid control on either side of the piston. This setup delivers precise movement, critical for tilting dump truck beds at controlled angles to avoid spillage or instability on uneven terrain. Operators benefit from smoother transitions during dumping, which minimizes mechanical stress on the vehicle's chassis and improves overall workflow efficiency in large-scale haulage tasks.
Sealing technology plays a pivotal role, with multi-layer seals made from durable elastomers that maintain integrity across a wide temperature range, from sub-zero conditions in high-altitude mines to intense heat in desert quarries. These seals effectively block contaminants like fine dust or water ingress, preserving fluid purity and preventing operational failures that could halt production. In comparison to older designs, this advancement supports uninterrupted use in environments where exposure to harsh elements is unavoidable.
Customization options further enhance adaptability, allowing for varied mounting styles such as spherical bearings or pinned connections that align with specific truck models from manufacturers worldwide. This flexibility facilitates integration into existing fleets without extensive modifications, catering to diverse mining setups including open-pit and underground applications.
Safety features are integrated thoughtfully, incorporating pressure relief mechanisms and cushioning at stroke ends to absorb shocks from abrupt load changes. These elements protect against over-pressurization, which might otherwise lead to structural damage or hazards to nearby workers. For instance, in scenarios involving overloaded hauls, the cylinder's built-in safeguards automatically vent excess pressure, ensuring compliance with industry safety standards and promoting a secure working environment.
Advantages of Lifting Hydraulic Cylinder for Mining Dump Truck
- Superior Load Handling Capability
These cylinders enable mining dump trucks to manage substantial payloads with greater ease, boosting overall material transport rates in quarries and pits. Unlike rigid mechanical lifts, the hydraulic approach delivers fluid motion that cuts down on jolts and strains, preserving the integrity of axles, frames, and other structural elements over prolonged fieldwork, ultimately leading to fewer breakdowns and safer daily routines for operators. - Long-Term Cost Savings
Built with durable alloys and protective coatings, lifting hydraulic cylinders demand minimal upkeep and infrequent part swaps, which translates to reduced expenses in isolated mining areas where technicians and spares are hard to source quickly. This reliability also supports budget control by lowering unplanned halts in production, allowing companies to allocate resources more effectively toward expansion rather than constant repairs. - Improved Energy Utilization
Through refined internal flow paths and pressure management, these cylinders consume less power from the truck's engine during raise and lower actions, contributing to fuel conservation across extended shifts. In energy-conscious mining operations, this efficiency not only curbs operational bills but also aligns with environmental guidelines by decreasing exhaust outputs from heavy machinery fleets. - Flexible Customization Options
Manufacturers can adjust cylinder dimensions, stroke ranges, and attachment points to match exact truck specifications, offering an advantage over off-the-shelf parts that might not fit perfectly. Such precise tailoring ensures even stress spread across components, averting premature erosion and enhancing the vehicle's performance in varied terrains like steep inclines or muddy sites. - Enhanced Safety Measures
Incorporating built-in pressure controls and damping features, lifting hydraulic cylinders help prevent sudden failures or overloads that could endanger crew members during dumping sequences. This focus on secure functionality reduces accident risks in high-stakes environments, fostering compliance with regulatory standards and building confidence among teams handling massive earth-moving tasks.
Working Principle of Hydraulic Lift Cylinder for Dump Truck
1. Fluid Pressurization and Piston Activation
The process begins with the truck's engine powering a hydraulic pump that draws oil from a reservoir and forces it into the cylinder's base chamber at high pressure. This action, guided by control valves, propels the piston upward along the cylinder barrel, extending the connected rod to raise the dump bed steadily, allowing for efficient material discharge in rugged mining settings without relying on mechanical linkages.
2. Application of Pascal's Principle
At the core of the mechanism is Pascal's law, which states that pressure exerted on a confined fluid distributes uniformly throughout the enclosure. In practice, this enables the compact hydraulic system to generate immense lifting force from modest input, making it ideal for handling massive ore loads in dump trucks where space and weight constraints demand efficient energy transfer.
3. Controlled Extension for Load Elevation
As pressurized fluid accumulates behind the piston, it overcomes gravitational and payload resistance, resulting in smooth linear extension of the rod. This controlled motion is crucial for mining operations, preventing abrupt shifts that could destabilize the vehicle on uneven terrain, and typically involves multi-stage telescopic designs in larger cylinders to achieve greater lift heights while maintaining structural stability.
4. Retraction Phase via Fluid Redirection
To lower the bed, the system redirects hydraulic fluid through valves to the rod-side chamber while venting the base side, creating a pulling force that retracts the piston safely. This reversible operation ensures precise descent rates, minimizing impact on the truck frame and allowing operators to manage variable loads, such as partially filled beds, with reduced risk of hydraulic strain or component fatigue.
5. Overall Energy Conversion and System Efficiency
The cylinder converts hydraulic energy into mechanical work by balancing fluid volume and pressure across chambers, optimizing for low-speed, high-force applications typical in mining. This efficiency stems from sealed components that recycle fluid with minimal loss, supporting extended duty cycles and aligning with the demands of heavy-haul vehicles where consistent power delivery directly impacts throughput and maintenance schedules.
Types of Mining Dump Truck Hydraulic Cylinder
- Hydraulic Steering Cylinder
This cylinder facilitates precise vehicle maneuvering by converting hydraulic pressure into rotational force for the steering linkage, essential for navigating tight turns and uneven surfaces in mining environments. Its robust design incorporates hardened piston rods to withstand lateral stresses from heavy loads, ensuring responsive control that enhances operator safety and reduces tire wear during prolonged hauls over rocky terrain. - Hydraulic Rear Suspension Cylinder
Positioned at the rear axle, this component absorbs shocks from payload impacts and road irregularities, maintaining chassis stability and preventing excessive bouncing that could lead to structural fatigue. By utilizing nitrogen-charged accumulators alongside hydraulic fluid, it provides adjustable damping for varying load conditions, which supports smoother rides and protects drivetrain elements in high-volume ore transport operations. - Hydraulic Front Suspension Cylinder
Installed on the front axle assembly, it cushions frontal impacts from obstacles like boulders or potholes, improving overall vehicle balance and driver comfort in demanding quarry settings. The cylinder's telescopic structure allows for extended travel ranges, adapting to dynamic weight shifts during acceleration or braking, thereby minimizing frame distortions and extending the lifespan of front-end components under constant heavy-duty use. - Hydraulic Lifting Cylinder
Primarily responsible for elevating the dump bed to discharge materials, this large-bore cylinder generates substantial upward thrust through pressurized fluid, enabling quick and controlled unloading of massive tonnages. Engineered with multi-stage extensions for greater reach, it integrates safety valves to manage pressure spikes, ensuring reliable performance in repetitive cycles while reducing the risk of hydraulic failures in remote mining sites.
Applications of Hydraulic Lift Cylinders in Mining
Hydraulic lift cylinders play a pivotal role in various mining operations, particularly in enhancing the functionality of dump trucks used for material transport. In open-pit mining environments, these cylinders are essential for elevating truck beds to discharge ore, rock, or overburden swiftly and securely, allowing vehicles to handle payloads often exceeding 100 tons without compromising structural stability. Their design accommodates the relentless demands of repetitive loading and unloading cycles, where exposure to abrasive particles and extreme weather requires components built from hardened steel with protective coatings to prevent premature failure. This application not only accelerates turnaround times at extraction sites but also integrates with truck hydraulics to provide controlled tilting, minimizing spillage and improving safety for operators working on sloped or unstable ground. For instance, in large-scale quarries, the cylinders ensure precise bed angles during dumping, which supports seamless integration with conveyor systems downstream, ultimately boosting daily output and reducing equipment downtime.
Extending beyond dump trucks, hydraulic lift cylinders find critical use in rotary drilling rigs, where they deliver the necessary vertical force to advance drill bits into hard rock formations, enabling efficient borehole creation for exploration or blasting preparations. In underground mining scenarios, they assist in adjusting conveyor heights or tilting specialized vehicles to navigate narrow tunnels and steep inclines, ensuring smooth material flow in confined spaces with limited visibility. Additionally, in front-end loaders and similar auxiliary machinery, these cylinders facilitate bucket elevation and manipulation for scooping and transferring loose aggregates, enhancing precision in stockpile management or backfilling tasks. This versatility across equipment types contributes to overall site productivity by allowing for modular adaptations, such as custom stroke lengths tailored to specific geological conditions, thereby fostering operational resilience and cost-effective resource utilization in diverse mining contexts worldwide.
 |
 |
| Mining Dump Truck | Mining Dozer |
 |
 |
| Mining Loader | Mining Excavator |
Why Choose Mexico Ever-Power's Mining Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., established in May 1978, has developed into a prominent manufacturer specializing in high-end hydraulic cylinders, with a primary emphasis on hydraulic lifting cylinders tailored for demanding industrial sectors. Occupying a 103-acre facility in Mexico City, the company employs over 400 skilled professionals and maintains a state-of-the-art research institute, alongside a dedicated hydraulic product testing laboratory. This infrastructure supports the creation of robust lifting hydraulic cylinders, incorporating proprietary technologies that guarantee superior precision and endurance in applications such as mining dump trucks. By focusing on comprehensive quality control measures, the firm ensures that each hydraulic lift cylinder meets stringent international criteria, delivering reliable performance under extreme operational stresses encountered in mining environments.
With an expansive international footprint covering more than 53 countries across Asia, Europe, North America, South America, Africa, and Oceania, Mexico Ever-Power exports mining machinery hydraulic cylinders to key markets including the United States, Canada, Germany, and Australia. This global reach is underpinned by strategic partnerships that highlight the company's expertise in mining hydraulic cylinders, offering solutions for equipment like excavators and rotary drilling rigs. Clients value the firm's dedication to innovation, evidenced by ongoing initiatives toward an automated, intelligent production facility that enhances customization options for hydraulic cylinders for mining. Such advancements facilitate safer and more efficient hydraulic transmission, reducing downtime in critical operations.
Furthermore, the selection of Mexico Ever-Power stems from its proven track record in providing hydraulic cylinders for mining dump trucks, where components like the hydraulic cylinder for mining excavator demonstrate exceptional load-bearing capacity and resistance to abrasive conditions. The organization's responsive after-sales support, combined with a commitment to technological progress, positions it as a trusted partner for enterprises seeking durable hydraulic cylinder for rotary drilling rig integrations. Through consistent delivery of performance-oriented products, the company fosters long-term client relationships, ensuring operational reliability and cost-effective solutions in the competitive mining sector.
 |
 |
 |
 |
FAQs
Q: What are the key specifications to consider for mining hydraulic cylinders?
A: Essential specifications for mining hydraulic cylinders include bore sizes ranging from 100mm to 300mm, stroke extensions up to 5000mm, and pressure capacities reaching 250 bar, all tailored to withstand substantial weights effectively. When selecting a hydraulic lift cylinder, factors like rod diameter and seal materials also play a vital role in ensuring compatibility with hydraulic cylinders for mining, providing the necessary robustness for prolonged use in abrasive conditions.
Q: Can hydraulic cylinders for mining be customized for specific dump truck models?
A: Yes, hydraulic cylinders for mining offer extensive customization, such as modified lengths, diameters, and attachment methods to align perfectly with diverse dump truck designs, improving overall system integration. This adaptability is particularly beneficial for the hydraulic cylinder for mining dump truck, allowing operators to address unique operational demands and enhance efficiency without compromising on durability or performance standards.
Q: What maintenance is required for hydraulic lift cylinders in mining environments?
A: Maintenance for hydraulic lift cylinders involves routine checks on seals and connections, along with oil replacements every six to twelve months and regular rod greasing to combat erosion from particulate matter and moisture. In the context of mining machinery hydraulic cylinders, these practices help mitigate failures caused by environmental stressors, ensuring reliable functionality and extending the operational life of equipment in high-dust areas.
Q: How do mining machinery hydraulic cylinders withstand harsh conditions?
A: Mining machinery hydraulic cylinders endure severe settings through features like hard chrome-coated rods and resilient polyurethane gaskets, which offer strong defense against rust and wear in fluctuating climates and under intense forces. For applications involving the hydraulic cylinder for mining excavator, this construction maintains operational integrity, preventing breakdowns that could arise from exposure to corrosive elements or extreme thermal variations common in extraction zones.
Q: What is the typical lifespan of a hydraulic cylinder for mining dump truck?
A: Under consistent upkeep, a hydraulic cylinder for mining dump truck generally endures between five and ten years, influenced by factors such as load frequency and site-specific hazards. This longevity applies similarly to related hydraulic cylinders for mining, where adherence to service schedules can significantly prolong usability, minimizing replacement needs and supporting cost-effective fleet management in demanding industrial contexts.
Q: Are hydraulic cylinders for mining excavators compatible with rotary drilling rigs?
A: Numerous hydraulic cylinders for mining excavators share foundational architectures that permit interoperability with rotary drilling rigs, often requiring minor modifications for thrust alignment in drilling tasks. The hydraulic cylinder for rotary drilling rig, for example, benefits from this shared versatility, enabling cross-utilization in multifaceted mining projects to optimize equipment versatility and reduce inventory requirements across operations.
Q: How to troubleshoot leaks in hydraulic cylinders for mining?
A: Troubleshooting leaks in hydraulic cylinders for mining starts with examining gaskets and fittings for damage, followed by part substitutions and verification of oil suitability to swiftly address the issue. This approach is critical for maintaining the efficiency of a mining hydraulic cylinder, as undetected seepage can lead to pressure loss and operational halts, necessitating prompt intervention to restore full functionality in field conditions.
Q: What advantages do hydraulic cylinders offer over pneumatic ones in mining?
A: Hydraulic cylinders surpass pneumatic alternatives in mining by delivering superior power density and finer regulation for substantial elevating tasks, making them preferable for handling extreme weights. Unlike air-based systems, the hydraulic lifting cylinder provides consistent force without compression losses, ideal for the rigorous demands of hydraulic cylinders for mining where precision and strength directly impact safety and output rates.
Q: How often should pressure tests be conducted on mining hydraulic cylinders?
A: Pressure evaluations on mining hydraulic cylinders ought to occur yearly, with increased frequency in intensive usage settings to identify weaknesses before they escalate into major problems. For the lifting hydraulic cylinder in particular, this regimen helps safeguard against failures, ensuring sustained performance in hydraulic systems for mining dump trucks and aligning with industry protocols for equipment reliability.
Customer Reviews
Liam O'Sullivan, Operations Foreman, Western Australia, Australia
I've put these hydraulic lifting cylinders through the wringer on our dump trucks in the Pilbara region for the last 14 months, and they've held up amazingly well against the red dust and heat. The 2500mm stroke version we went with has boosted our unloading efficiency by about 20%, and Mexico Ever-Power's team was spot on with their recommendations for our specific ore hauls—no regrets on switching suppliers.
Sophie Leclerc, Equipment Manager, Quebec, Canada
The mining hydraulic cylinders from Ever-Power have been a solid addition to our fleet; we've used them on excavators for over a year now, and the chrome-plated rods really stand up to the freezing winters here. Delivery came faster than quoted, just eight days, which kept our project timelines intact, and their support chat resolved a minor spec question in no time.
Marcus Johnson, Maintenance Lead, Nevada, USA
As someone who's dealt with plenty of hydraulic cylinders for mining over the years, I can say Mexico Ever-Power's lifting hydraulic cylinder outperforms the competition in durability—ours with a 180mm bore has been running flawlessly on dump trucks for 22 months without any leaks. The price was fair, and the quick turnaround on custom orders made all the difference for our tight schedules.
Thabo Nkosi, Site Supervisor, Gauteng, South Africa
Mexico Ever-Power's hydraulic lift cylinders have proven their worth in our platinum mines; the model for rotary drilling rigs we installed nine months ago handles the vibrations and depths without issue, cutting downtime noticeably. Their service reps were attentive, walking us through integration details, which was a big plus compared to local options.
Ivan Petrov, Engineering Coordinator, Siberia, Russia
In the harsh cold of our coal operations, these mining machinery hydraulic cylinders shine—the 300 bar pressure rating on our dump truck units has kept things reliable for 16 months straight. Logistics were efficient, arriving in two weeks despite the distance, and the build quality justifies the investment every shift.
Rafael Silva, Procurement Officer, Minas Gerais, Brazil
We've integrated Mexico Ever-Power's hydraulic cylinder for mining dump truck into our iron ore haulers, and after 10 months, the extended stroke has improved load handling significantly without any fatigue signs. The team's proactive follow-up on delivery status was impressive, ensuring no delays in our expansion plans.
Isabel Gonzalez, Fleet Technician, Antofagasta, Chile
The hydraulic cylinders for mining excavators from Mexico Ever-Power have been tough performers in our copper pits; with a 1200mm stroke, they've endured constant use for over a year, resisting corrosion from the salty air better than before. Quick shipping—just 12 days—and competitive pricing sealed the deal for us.
Ahmad Rahman, Operations Specialist, Sumatra, Indonesia
Mexico Ever-Power's mining hydraulic cylinder lineup has transformed our nickel mining efficiency; the unit for our dump trucks, rated for heavy loads, has operated without hitches for 13 months, even in the humid tropics. Their customer service excelled in customizing the fittings, and arrival was prompt at 11 days.
Diego Morales, Maintenance Engineer, Arequipa, Peru
For our gold extraction rigs, the hydraulic cylinder for rotary drilling rig from Mexico Ever-Power has been dependable, with its robust seals holding up through 19 months of high-altitude work. The focus on safety features stands out, and their responsive support team handled our queries professionally, making the whole process smooth from order to installation.
