Hydraulic Pressurized Cylinder for Rotary Drilling Rigs

Rotary Drilling Rig Hydraulic Pressurized Cylinder Overview

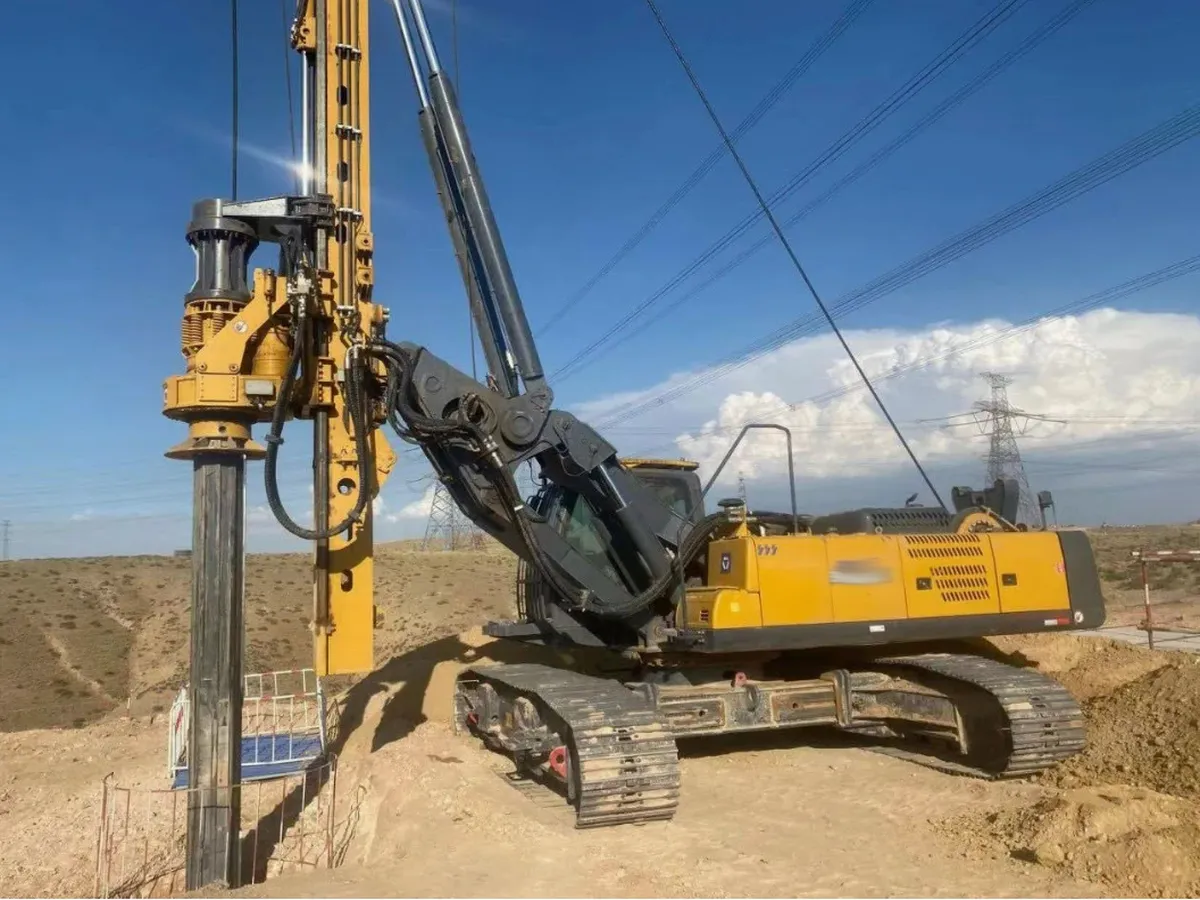

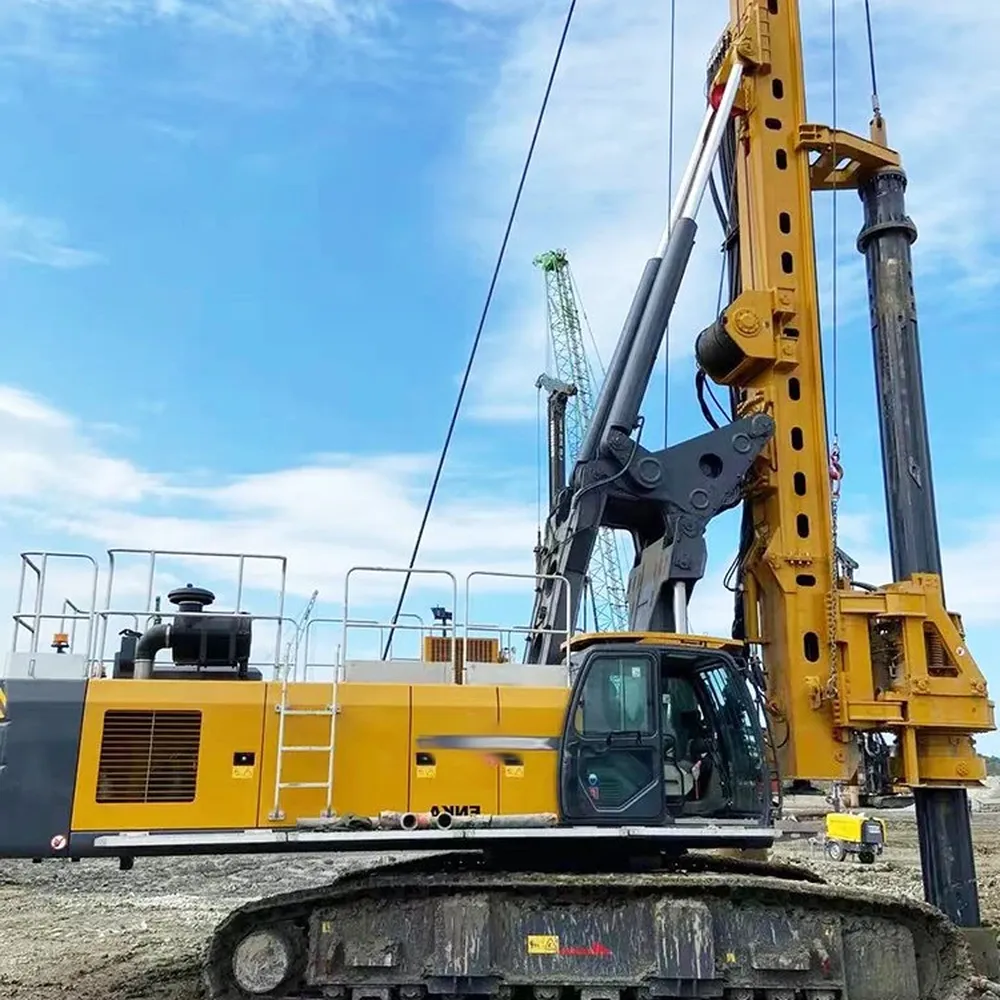

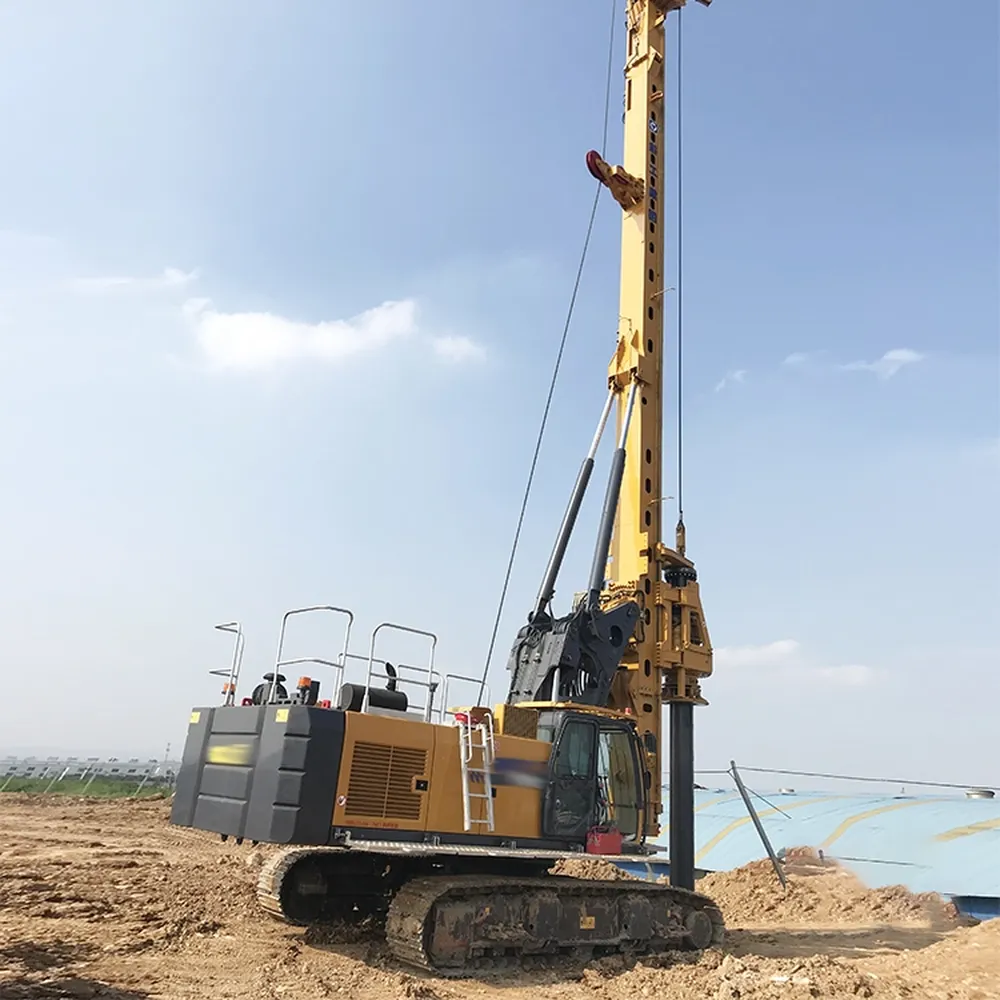

The hydraulic pressurized cylinder for rotary drilling rigs serves as a vital component in heavy-duty mining and construction equipment, where consistent downward force is essential for penetrating tough geological formations. These cylinders convert hydraulic energy into mechanical thrust, allowing operators to maintain precise control over the drill string during operations. Built to withstand extreme pressures and vibrations, they are commonly used in mining machinery hydraulic cylinders to support tasks like borehole creation and resource extraction. With a focus on durability, these units incorporate high-strength materials that resist corrosion and wear, making them suitable for prolonged use in harsh outdoor settings.

In Mexico, where mining activities span diverse terrains from arid deserts to mountainous regions, such cylinders ensure that rotary drilling rigs operate efficiently without frequent interruptions. The pressurized hydraulic cylinder integrates seamlessly with other rig systems, such as masts and luffing mechanisms, to optimize overall performance. For instance, in mining hydraulic cylinder applications, they help regulate the power head's movement, transmitting force directly to the drill bit for effective cutting or grinding. This design not only boosts productivity but also reduces the risk of equipment failure, which is critical in remote mining sites.

Technical Specifications

For customized configurations beyond these standard specifications, such as extended strokes or specialized materials for enhanced corrosion resistance, please contact our technical team at Mexico Ever-Power to discuss your specific needs and ensure optimal performance for your rotary drilling operations.

Product Name:	Pressurized Hydraulic Cylinder
Function:	Control the lifting and lowering of the power head.
Bore diameter:	125mm～210mm
Rod diameter:	90mm～150mm
Stroke:	≤8500mm
Pressure:	up to 35MPa

Characteristics of Hydraulic Pressurized Cylinder for Rotary Drilling Rig

Hydraulic pressurized cylinders stand out in the realm of mining equipment due to their robust construction, which includes a high-strength cylinder barrel that houses the piston and withstands pressures up to 35MPa. This feature is particularly beneficial for rotary drilling rigs, where consistent force application is needed to handle dense rock layers. The piston rod, often coated with corrosion-resistant materials, extends and retracts smoothly, minimizing friction and extending the unit's lifespan. Seals around the piston and rod prevent fluid leaks, ensuring that the system maintains optimal pressure without contamination from dust or debris common in mining sites. In addition, the end caps provide secure attachment points, allowing easy integration with rig structures like power heads.

Another notable aspect is the precision-engineered hydraulic ports, which facilitate efficient fluid flow from the rig's pump system. These ports are designed to handle high-volume inputs, reducing response times during operation. For mining machinery hydraulic cylinders, this means quicker adjustments to drilling depth or angle, which can save valuable time on site. The overall design emphasizes modularity, so components like the piston can be replaced individually if needed, cutting down on maintenance costs. Users in Mexico's mining industry often highlight how these features contribute to fewer breakdowns, especially in high-vibration environments where lesser cylinders might fail prematurely.

To enhance usability, these cylinders incorporate wear-resistant materials in critical areas, such as the piston, which helps in managing the repetitive cycles of extension and retraction. This is crucial for hydraulic cylinders for mining, as it prevents premature degradation from abrasive particles. Furthermore, the compact yet sturdy build allows for installation in space-constrained rigs without sacrificing power output. Operators can expect reliable performance across a range of temperatures, from scorching heat in desert mines to cooler underground settings, making them a versatile choice for diverse applications.

Benefits of Pressurized Hydraulic Cylinder in Rotary Drilling

ne primary advantage of the pressurized hydraulic cylinder lies in its ability to deliver high thrust forces efficiently, which translates to faster drilling rates in challenging terrains. For hydraulic cylinder for rotary drilling rigs, this means penetrating hard substrates like granite or limestone with less energy consumption compared to mechanical alternatives. The system's hydraulic nature allows for fine-tuned control, enabling operators to adjust pressure in real-time based on geological feedback, thus avoiding unnecessary wear on the drill bit. In Mexico's competitive mining sector, this efficiency can lead to substantial cost savings over time, as rigs spend less idle time waiting for adjustments.

Durability is another key benefit, with these cylinders engineered to endure extreme conditions, including high impacts and corrosive elements found in mining hydraulic cylinder setups. Unlike pneumatic systems, hydraulic ones provide consistent power without the compressibility issues, ensuring steady force application. This reliability reduces the frequency of replacements, which is especially advantageous in remote Mexican mining locations where logistics can be challenging. Moreover, the integration of safety features, such as overload protection, helps prevent accidents by automatically relieving excess pressure.

From a maintenance perspective, the advantages include easier diagnostics through visible indicators like fluid levels, allowing teams to address issues before they escalate. For mining machinery hydraulic cylinder users, this proactive approach minimizes downtime, keeping projects on schedule. The cylinders also support scalability; they can be customized for larger rigs handling deeper bores, providing long-term value as operations expand.

Types of Rotary Drilling Rig Hydraulic Cylinders

1. Hydraulic Luffing Cylinder
This type of cylinder facilitates precise adjustment of the boom angle in rotary drilling rigs, enabling operators to position the mast effectively for optimal drilling alignment. Typically double-acting, it operates under pressures up to 32 MPa with bore diameters ranging from 100 mm to 580 mm and rod sizes from 60 mm to 440 mm, supporting extended strokes up to 5635 mm. Such design ensures controlled extension and retraction, making it essential for heavy machinery in construction and offshore applications where stability during elevation changes is critical.

2. Hydraulic Mast Cylinder
Designed primarily for correcting and stabilizing the mast in drilling rigs, this cylinder maintains vertical alignment during operations on uneven terrain. It integrates seamlessly with rig structures to handle lateral adjustments, often featuring robust construction to withstand high loads in urban or remote sites. With applications extending to sanitation and land clearing equipment, it provides reliable force for mast positioning, reducing setup time and enhancing safety in tasks like borehole creation or infrastructure preparation.

3. Hydraulic Pressurized Cylinder
Essential for applying downward force on the power head in rotary drilling rigs, this cylinder controls the lifting and lowering of drill strings to penetrate tough geological layers. It boasts bore diameters between 125 mm and 210 mm, rod diameters from 90 mm to 150 mm, and strokes up to 8500 mm at maximum pressures of 35 MPa. This configuration supports efficient force transmission, minimizing energy use in mining and exploration activities while ensuring consistent performance in demanding environments.

Applications of Mining Machinery Hydraulic Cylinders

1. Mining Dump Truck
   Hydraulic cylinders in mining dump trucks primarily manage the tipping mechanism for unloading heavy loads of ore or overburden, ensuring controlled elevation of the dump body to angles up to 60 degrees. This application demands robust designs capable of handling payloads exceeding 300 tons, with cylinders featuring high-pressure seals to prevent leaks during repetitive cycles in rugged open-pit environments, thereby maintaining operational continuity and safety standards.
2. Mining Motor Grader
   In mining motor graders, hydraulic cylinders control the blade's height, angle, and side shift for precise earth leveling and road maintenance within mine sites. These components operate under pressures around 250 bar, allowing operators to adjust grading paths efficiently on uneven terrain, which supports haul road construction and reduces vehicle wear by creating smoother surfaces essential for high-volume transport activities.
3. Mining Dozer
   Mining dozers utilize hydraulic cylinders to manipulate the front blade for pushing large volumes of soil, rock, or debris during site preparation or reclamation tasks. With bore sizes often over 200 mm, these cylinders provide the force needed to move materials weighing thousands of tons, incorporating cushioning features to absorb shocks from impacts, thus extending equipment life in abrasive conditions typical of surface mining operations.
4. Mining Excavator
   Hydraulic cylinders in mining excavators drive the boom, stick, and bucket movements, enabling deep digging and material loading in both open-pit and underground settings. Engineered for strokes up to 5 meters and forces surpassing 500 kN, they facilitate rapid cycle times, with integrated position sensors for accurate control that minimizes over-digging and enhances fuel efficiency in large-scale extraction processes.
5. Mining Underground Truck
   Hydraulic cylinders in mining underground trucks facilitate the ejection or tipping of loads in confined tunnels, where space constraints require compact yet powerful designs. Operating at depths with limited ventilation, these cylinders ensure reliable discharge of fragmented rock, often incorporating corrosion-resistant materials to withstand moisture and dust, thereby supporting continuous haulage in subterranean networks without frequent downtime.
6. Mining Drilling Jumbo
   In mining drilling jumbos, hydraulic cylinders position and stabilize booms equipped with drill rigs for blasting hole creation in rock faces. With multiple cylinders coordinating extensions up to 10 meters, they allow for precise alignment in both development and production drilling, featuring quick-response valves to adapt to geological variations, which improves blast pattern accuracy and overall mine advancement rates.
7. Mining Wheel Loader
   For mining wheel loaders, hydraulic cylinders lift and tilt the bucket assembly to scoop and deposit aggregates or minerals into transport vehicles. These units handle lift capacities up to 50 tons, using double-acting pistons for smooth operation at varying speeds, which aids in stockpile management and reduces spillage, contributing to streamlined workflows in processing plants or loading zones.

Mining Dozer	Mining Loader
Mining Excavator	Mining Dump Truck

Custom Hydraulic Pressurized Cylinder for Rotary Drilling Rig

1. Bore Diameter Customization
For custom hydraulic pressurized cylinders in rotary drilling rigs, bore diameters typically range from 125 mm to 210 mm to accommodate varying force requirements based on rig size and geological demands. Engineers select precise sizes to optimize internal volume for fluid displacement, ensuring efficient power transmission while maintaining structural integrity under loads exceeding 100 tons in mining operations, which directly influences the cylinder's overall thrust capability and compatibility with existing equipment frames.

2. Rod Diameter Specifications
Rod diameters for these cylinders are engineered between 90 mm and 150 mm to provide sufficient tensile strength against bending moments during extension cycles. This dimension is critical for withstanding axial forces in high-vibration environments, where thicker rods reduce deflection risks and enhance longevity, allowing operators to achieve deeper penetrations in hard rock formations without compromising on speed or safety protocols in field applications.

3. Stroke Length Adaptability
Stroke lengths up to 8500 mm enable extensive vertical movement of the power head, tailored to specific drilling depths in projects like mineral exploration or foundation piling. Custom adjustments ensure the cylinder retracts fully for transport and extends adequately for operational needs, minimizing energy loss through precise hydraulic control and supporting seamless integration with rig hydraulics to handle variable site conditions effectively.

4. Pressure Rating Configurations
Maximum pressure ratings of 35 MPa are standard, but custom versions can be calibrated for higher thresholds to manage intense downward forces in challenging terrains. This setup prevents system overloads by incorporating pressure relief mechanisms, which safeguard components during peak operations, thereby reducing maintenance intervals and ensuring consistent performance in remote mining sites where immediate repairs may not be feasible.

5. Material Selection Criteria
High-strength alloy steels, often treated with chrome plating for corrosion resistance, form the core materials to endure abrasive particles and moisture in underground or open-pit settings. Choices like stainless steel variants for rods enhance durability against chemical exposures, while seals from nitrile or polyurethane compounds provide leak-proof operation, contributing to extended service life and compliance with industry standards for environmental resilience.

6. Sealing and Mounting Options
Advanced sealing systems, including double-lip wipers and high-pressure O-rings, prevent contaminant ingress and fluid escape, customized to fit specific mounting configurations such as trunnion or clevis ends. These features allow for flexible installation on diverse rig models, improving alignment accuracy and vibration dampening, which ultimately supports higher productivity rates by minimizing downtime associated with seal failures or misalignment issues in rigorous drilling tasks.
