Hydraulic Rear Suspension Cylinder for Mining Dump Trucks
Discover durable hydraulic rear suspension cylinders for mining dump trucks from Mexico Ever-Power. With bore diameters from 150mm to 450mm, rod sizes up to 400mm, and max working pressure of 38MPa, these cylinders excel in vibration absorption and load distribution. Ideal for harsh mining environments, offering customized options for enhanced reliability and performance. Ensure stable operations—contact us for tailored solutions today.

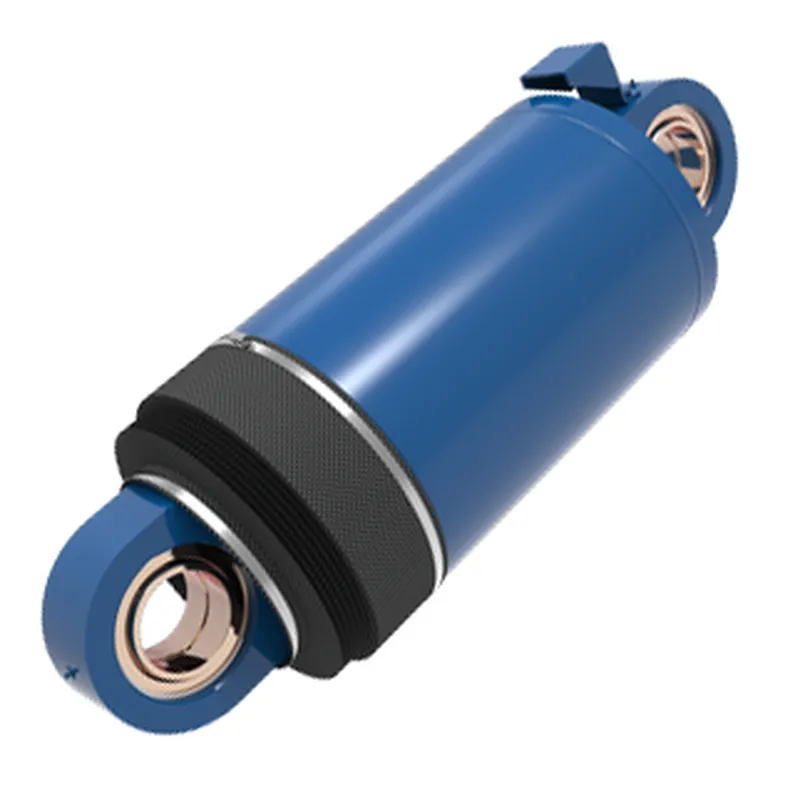

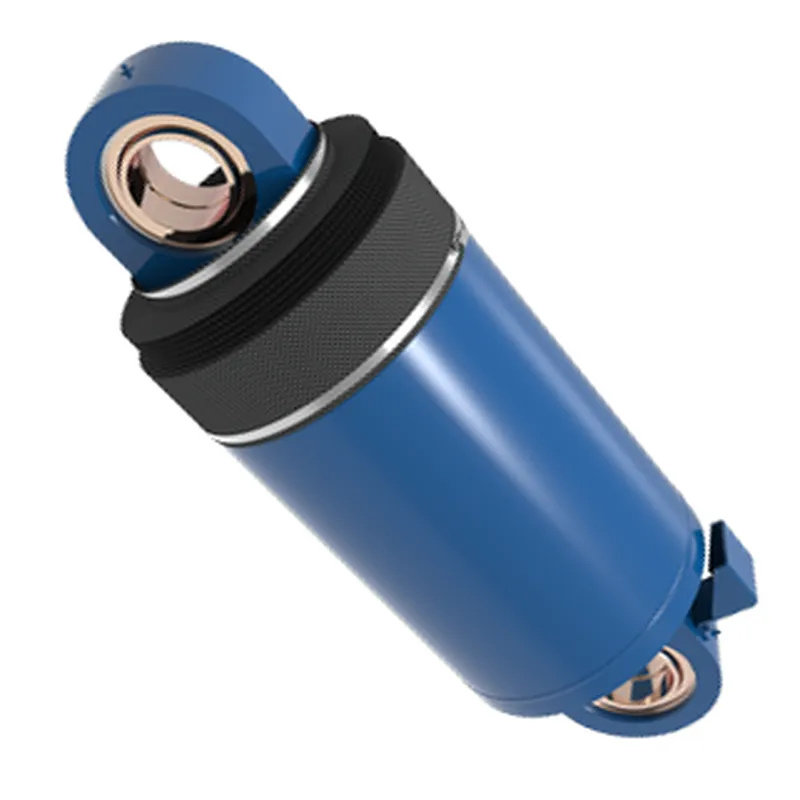

Mining Dump Truck Hydraulic Rear Suspension Cylinder Overview
The hydraulic rear suspension cylinder serves as a critical component in mining dump trucks, designed to handle the rigorous demands of heavy-duty operations. It primarily supports the vehicle's weight while absorbing and mitigating vibrations caused by uneven terrain and heavy loads. By dynamically distributing the load between the middle and rear axles, this cylinder ensures balanced axle capacity, which is essential for maintaining stability and preventing premature wear on the truck's structure. In mining environments, where equipment faces constant exposure to dust, debris, and extreme pressures, the rear suspension hydraulic cylinder integrates seamlessly with other hydraulic systems, such as steering and lifting mechanisms, to optimize overall vehicle performance.
The hydraulic cylinder for mining dump truck enhances operational efficiency by reducing downtime associated with mechanical failures. For instance, in large-scale open-pit mining, where trucks haul tons of material over rough paths, the cylinder's ability to eliminate vibrations protects both the vehicle and the operator from excessive strain. This not only extends the lifespan of the dump truck but also improves fuel efficiency through smoother rides. As a replacement part, it can be customized to fit various models, incorporating features like high-strength piston rods that resist corrosion and wear.
Technical Specifications
For custom requirements beyond these standard specs, such as extended strokes or specialized materials, please contact our team at Mexico Ever-Power for personalized consultations.
| Product Name: | Rear Suspension Hydraulic Cylinder |
| Function: | Support weight, absorb, and eliminate vibration. |
| Bore diameter: | 150mm～450mm |
| Rod diameter: | 120mm～400mm |
| Stroke: | ≤400mm |
| Pressure | Maximum38MPa |
Features of Hydraulic Rear Suspension Cylinder for Mining Dump Truck
- Robust Structural Design for Durability
The cylinder incorporates a reinforced framework engineered to extend operational lifespan amid intense pressures and substantial payloads common in mining haulage. Materials selected for their superior tensile strength are subjected to precise thermal processing and fusion techniques, enabling the unit to endure repetitive stress cycles without structural compromise, which is vital for continuous performance in demanding quarry and pit operations. - Enhanced Piston Rod Protection
Surface enhancements on the piston rod involve specialized coatings and hardening methods that provide exceptional resistance to abrasion and environmental degradation. This treatment ensures sustained functionality in environments laden with particulate matter and moisture, typical of open-cast mining sites, thereby minimizing the risk of premature failure and supporting reliable vehicle handling over extended periods. - Superior Sealing Mechanisms
Equipped with heavy-duty seal components crafted from resilient compounds, the cylinder excels in repelling dust and retaining hydraulic fluid integrity under extreme conditions. This sealing prowess prevents ingress of foreign particles, safeguarding internal mechanisms and maintaining consistent pressure levels, which is essential for operational reliability in rugged terrains where contamination poses a constant threat. - Integrated Guidance System for Stability
The built-in guide ring offers substantial load-bearing capabilities to counteract side forces encountered during vehicle maneuvers. This feature promotes precise alignment and smooth extension, making it ideal for applications in mining equipment where lateral stresses from uneven surfaces could otherwise lead to misalignment or reduced efficiency in suspension dynamics. - Versatile Series Configurations
Available in an extensive lineup of sizes and specifications, the cylinder accommodates a broad spectrum of dump truck models, from compact units suited for smaller excavations to heavy-duty variants for large-scale transport. This adaptability allows mining operators to select precise fits that optimize vehicle balance and load management, enhancing overall fleet versatility and economic viability. - Maintenance Reduction and Safety Enhancement
By effectively dampening impacts and vibrations transmitted through the chassis, the cylinder diminishes wear on adjacent components and lowers the likelihood of operator fatigue-related incidents. This results in fewer service interventions and heightened workplace safety protocols, aligning with industry standards for equipment that prioritizes long-term dependability in high-risk mining environments.
Advantages of Rear Suspension Hydraulic Cylinder for Dump Truck
A key strength of the rear suspension hydraulic cylinder lies in its capacity to adjust load distribution dynamically, ensuring even weight spread across axles during operation. This mechanism avoids excessive strain on individual parts, which in turn prolongs the overall durability of mining dump trucks and cuts down on maintenance expenses. In high-stakes mining settings, where equipment halts can disrupt production schedules and inflate operational budgets, this feature proves invaluable by sustaining consistent uptime and safeguarding against costly breakdowns from uneven terrain impacts.
Another notable edge comes from the cylinder's flexibility in customization, where engineers can refine designs according to precise client specifications like tailored stiffness profiles or damping characteristics. Such adaptations allow the component to align perfectly with diverse mining scenarios, whether navigating soft soil in open pits or handling steep gradients in underground hauls. For operators dealing with variable payload weights or environmental factors, this personalization delivers targeted efficiency, reducing the need for frequent adjustments and enhancing vehicle responsiveness to real-world challenges.
The cylinder's resilience in severe conditions further sets it apart, featuring reinforced seals and alloys that stand up to abrasion, rust formation, and pressures reaching 38MPa without compromising function. Unlike conventional hydraulic lift options, which may falter under prolonged exposure to dust, moisture, or thermal extremes, this design minimizes failure rates and supports dependable service in rugged mining fleets. Consequently, it contributes to safer workflows by stabilizing rides, which lessens operator fatigue and lowers accident risks from vibrations or instability.
Beyond these, the cylinder promotes fuel savings through smoother suspension action, as balanced loads reduce engine workload on inclines or rough paths. In competitive mining sectors, this translates to measurable gains in productivity, with fleets experiencing fewer unscheduled repairs and extended intervals between overhauls. For businesses prioritizing long-term asset management, investing in such robust components aligns with strategies aimed at optimizing resource use while maintaining compliance with industry safety norms.
Rear Suspension Hydraulic Cylinder Components
1. Cylinder Barrel
This tubular enclosure forms the main body of the rear suspension hydraulic cylinder, crafted from high-grade steel alloys to contain pressurized fluid and withstand dynamic loads in mining dump trucks. Its seamless construction, often honed internally for smooth piston movement, ensures leak-proof operation under pressures up to 38MPa, while external reinforcements protect against impacts from debris in rugged quarry settings, contributing to overall structural integrity during heavy-haul cycles.
2. Piston Assembly
The piston serves as the internal divider within the cylinder, machined from durable metals to separate fluid chambers and convert hydraulic pressure into linear force for suspension adjustments. In mining applications, it features precision grooves for seal installation, enabling efficient load distribution across axles, and its design incorporates wear-resistant surfaces to handle repetitive extensions up to 400mm strokes, minimizing friction and extending service intervals in demanding off-road conditions.
3. Piston Rod
Extending from the piston through one end of the cylinder, this rod transmits mechanical force to the truck's suspension linkage, typically chrome-plated for enhanced corrosion resistance in moist or dusty mine environments. With diameters ranging from 120mm to 400mm, it undergoes hardening processes to resist bending under lateral forces, ensuring stable vibration absorption and reliable performance during uneven terrain navigation in large-scale mining operations.
4. Sealing System
Comprising multiple O-rings, wipers, and backup seals made from synthetic elastomers, this system prevents fluid leakage and contaminant entry, crucial for maintaining hydraulic efficiency in harsh mining sites. Positioned at rod and piston interfaces, these components are selected for their temperature tolerance from sub-zero to high-heat extremes, supporting consistent pressure retention and reducing maintenance needs by averting premature wear in suspension dynamics.
5. End Caps and Heads
These threaded or bolted closures at both cylinder ends secure internal components and provide ports for hydraulic fluid entry and exit, fabricated from forged steel to endure high internal pressures without deformation. In rear suspension setups for dump trucks, the rod-end cap includes bushings for smooth rod guidance, while the base cap offers mounting points, facilitating easy integration into vehicle frames and ensuring balanced load handling across mining fleet variations.
Types of Mining Dump Truck Hydraulic Cylinder
- Hydraulic Steering Cylinder
In mining dump trucks, the hydraulic steering cylinder facilitates precise directional control by converting fluid pressure into linear motion that pivots the wheels or axles. Typically mounted near the front chassis, it handles high torque demands in uneven terrains, with bore sizes often exceeding 200mm to manage loads over 100 tons, ensuring responsive maneuvering and operator safety during tight turns in confined quarry spaces. - Hydraulic Lifting Cylinder
This component powers the bed elevation mechanism in mining dump trucks, enabling efficient unloading of heavy materials like ore or overburden. Constructed with robust pistons capable of strokes up to 5 meters, it operates under pressures around 25MPa, distributing force evenly to prevent tipping, and integrates with safety valves to avoid overloads in high-volume extraction sites where rapid cycles are essential for productivity. - Hydraulic Front Suspension Cylinder
Designed to absorb frontal impacts and maintain stability, the hydraulic front suspension cylinder in mining dump trucks cushions the cab and chassis against shocks from rough surfaces. Featuring adjustable damping for loads varying from 50 to 300 tons, it uses nitrogen-charged accumulators to enhance ride quality, reducing component fatigue and improving vehicle longevity in aggressive off-road conditions typical of surface mining operations. - Hydraulic Rear Suspension Cylinder
The hydraulic rear suspension cylinder supports weight distribution and vibration damping at the back of mining dump trucks, balancing axle loads dynamically during hauls. With rod diameters up to 400mm and maximum pressures of 38MPa, it mitigates uneven terrain effects, prolonging tire life and minimizing structural stress in large-scale pit environments where consistent performance under extreme payloads is critical for operational efficiency.
Applications of Hydraulic Rear Suspension Cylinder in Mining

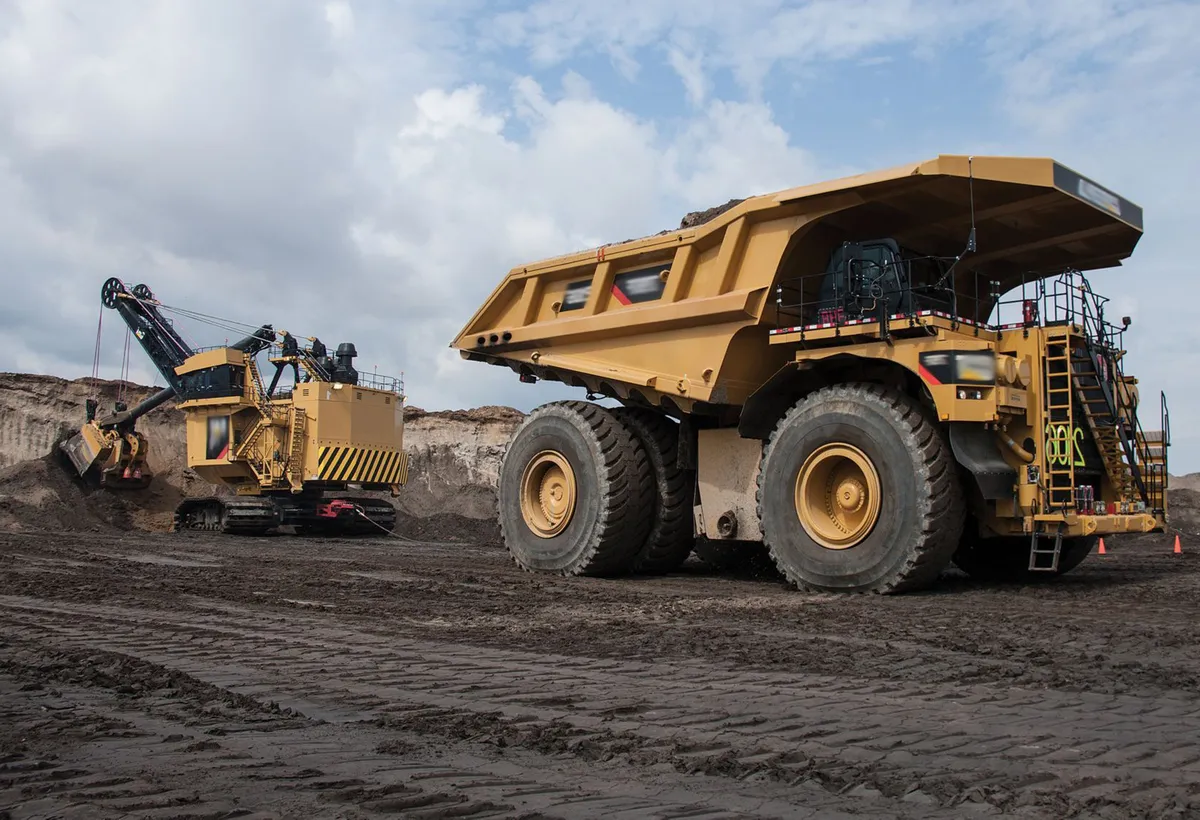

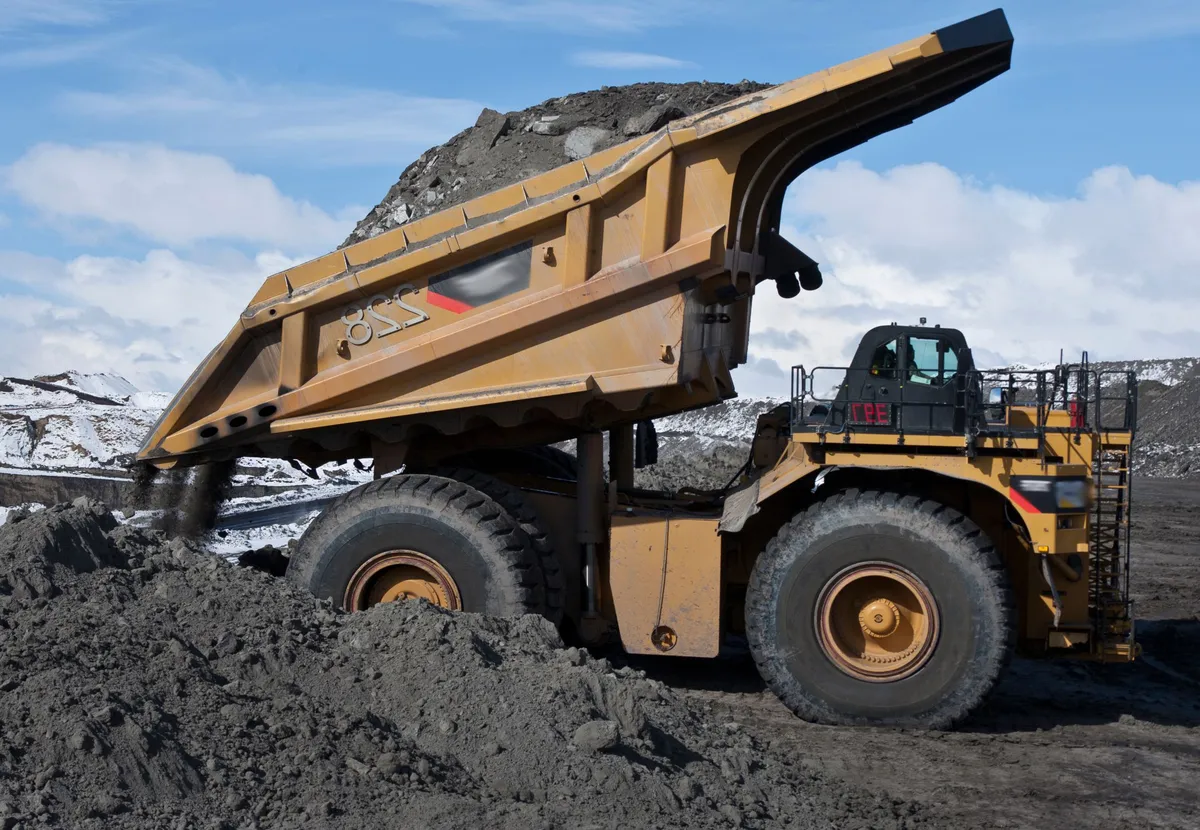

1. Mining Dump Truck
In mining dump trucks, the rear suspension hydraulic cylinder plays a pivotal role in managing heavy payloads by dynamically balancing axle loads and absorbing terrain-induced shocks during transport over uneven surfaces. This application enhances vehicle stability, reduces tire wear, and minimizes structural fatigue, allowing for efficient haulage of ore and waste materials in open-pit operations where loads often exceed 200 tons, thereby supporting continuous productivity without frequent mechanical interventions.
2. Mining Motor Grader
For mining motor graders, the rear suspension hydraulic cylinder facilitates precise blade control and smooth navigation across rough gradients by dampening vibrations and distributing weight evenly. Essential in road maintenance within mine sites, it ensures consistent grading performance under variable soil conditions, prolonging equipment lifespan and improving operator precision during tasks like leveling haul roads or preparing extraction areas, which demand reliable suspension for sustained accuracy.
3. Mining Wheel Loader
The rear suspension hydraulic cylinder in mining wheel loaders aids in handling substantial bucket loads by providing adaptive shock absorption and load equalization during scooping and dumping cycles. This setup is crucial for operations in quarries or stockpiles, where it mitigates impacts from rocky debris, enhances machine maneuverability, and reduces downtime from component stress, enabling efficient material transfer in high-volume loading scenarios typical of surface mining environments.
4. Mining Underground Truck
In underground mining trucks, the rear suspension hydraulic cylinder supports navigation through confined tunnels by offering robust vibration control and axle load adjustment in low-clearance, high-humidity settings. It contributes to safer transport of extracted minerals by preventing chassis distortions from irregular floors, extending operational hours in deep shafts, and aligning with stringent safety protocols that prioritize equipment reliability amid the challenges of subsurface extraction activities.
5. Mining Drilling Jumbo
Applied to mining drilling jumbos, the rear suspension hydraulic cylinder ensures stable positioning during borehole creation by counteracting drill-induced vibrations and maintaining balance on uneven rock faces. This functionality is vital for precision drilling in tunnel development or ore body exploration, where it safeguards against alignment shifts, optimizes drill bit efficiency, and facilitates extended sessions in volatile geological formations, aligning with demands for accuracy in underground infrastructure projects.
 |
 |
| Mining Wheel Loader | Mining Dump Truck |
 |
 |
| Mining Motor Grader | Mining Underground Truck |
Common Troubleshooting of Mining Machinery Hydraulic Cylinder
- Fluid Leakage Issues
Operators often encounter fluid leaks around seals or connections in the hydraulic rear suspension cylinder, which manifest as visible drips or reduced system pressure during operation. Common causes include worn O-rings from prolonged exposure to abrasive mine dust or improper installation torque. To resolve, inspect all fittings for tightness, replace damaged seals with manufacturer-approved parts, and flush the system to remove contaminants, ensuring compliance with pressure ratings up to 38MPa to prevent recurrence in high-load mining environments. - Overheating Problems
Excessive heat buildup in the mining machinery hydraulic cylinders can lead to degraded fluid viscosity and component expansion, noticeable through steam emissions or sluggish response in suspension adjustments. This typically stems from overloaded circuits, restricted coolant flow, or ambient temperatures exceeding operational limits in open-pit sites. Address by verifying fluid levels and quality, cleaning radiators to improve airflow, and incorporating thermal sensors for ongoing monitoring, which helps maintain efficiency and avoids costly downtime in fleet management. - Slow or Uneven Extension/Retraction
When the cylinder exhibits delayed or asymmetric movement, it disrupts load balancing across axles, often indicated by uneven truck stance or vibration during hauls. Root causes may involve air entrapment in lines, clogged filters from particulate ingress, or piston rod misalignment due to mounting wear. Corrective steps include bleeding air from the system, replacing filters at scheduled intervals, and realigning components with precision tools, thereby restoring smooth functionality essential for navigating uneven mining terrains. - Unusual Noises During Operation
Grinding, squealing, or knocking sounds from the rear suspension hydraulic cylinder signal internal friction or loose parts, which can escalate to structural damage if ignored. Frequently, this arises from inadequate lubrication, bearing failures under heavy payloads, or debris accumulation in guide rings. Mitigation involves applying specified lubricants, inspecting bearings for play, and conducting ultrasonic tests to detect hidden flaws, promoting safer and quieter performance in demanding quarry conditions. - Pressure Loss or Fluctuations
Sudden drops or inconsistent pressure readings compromise the cylinder's ability to absorb shocks, evident in erratic gauge displays or reduced damping effectiveness. This issue commonly results from valve malfunctions, hose ruptures, or fluid contamination by water ingress in wet mining areas. Remedy by calibrating pressure regulators, repairing or replacing compromised hoses, and implementing routine fluid analysis to identify impurities, ensuring sustained reliability for trucks handling tons of material daily. - Seal Degradation and Failure
Premature seal wear leads to internal bypassing of fluid, causing inefficient load distribution and potential cylinder lockup, often detected through performance logs showing inconsistent stroke lengths. Exposure to extreme thermal cycles or incompatible fluids accelerates this, particularly in underground operations with variable humidity. Solutions entail selecting seals rated for mining specifics, conducting annual replacements, and training maintenance teams on proper handling to extend component life and minimize operational interruptions.
Why Choose Mexico Ever-Power's Mining Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., founded in May 1978, has established itself as a prominent high-tech entity dedicated to producing mid- to high-end hydraulic components, with a particular emphasis on mining machinery hydraulic cylinders. This focus enables us to supply robust solutions like the hydraulic rear suspension cylinder, essential for demanding applications in mining dump trucks where load balancing and vibration control are critical. Our expansive 103-acre facility in Mexico supports a workforce exceeding 400 professionals, complemented by an in-house research institute, advanced hydraulic product testing laboratories, and a high-tech development center. These resources, bolstered by proprietary intellectual property for core manufacturing equipment, allow us to innovate and customize products such as rear suspension hydraulic cylinders, hydraulic lift cylinders, and mining hydraulic cylinders to meet precise operational needs.
With headquarters in Mexico City, our operations extend globally, exporting to more than 53 countries across continents, including key mining hubs in North and South America. This strategic positioning offers distinct advantages for local clients, such as expedited shipping and adherence to regional environmental and safety regulations, ensuring seamless integration of hydraulic cylinders for mining into existing fleets. Customers consistently select us for our unwavering dedication to quality, underpinned by rigorous assurance protocols that verify durability under extreme pressures—up to 38MPa in models like the hydraulic cylinder for mining dump truck. In harsh mining environments, our components, including those for mining excavators and rotary drilling rigs, demonstrate superior resistance to wear and corrosion, minimizing failures and extending equipment life.
What truly distinguishes Mexico Ever-Power is our client-focused methodology, spanning from detailed initial consultations on design parameters like stiffness and damping to comprehensive after-sales assistance, including specialized maintenance guidance. For professionals in the mining sector seeking dependable hydraulic cylinders for mining, this approach fosters enduring collaborations, driving efficiency gains and curtailing operational interruptions. In a market filled with options, our proven expertise in delivering precision-engineered solutions positions us as the go-to provider for enhanced performance in mining machinery hydraulic cylinders.
 |
 |
 |
 |
FAQs
Q: How does a rear suspension hydraulic cylinder differ from a standard hydraulic lift cylinder?
A: A rear suspension hydraulic cylinder emphasizes ongoing vibration reduction and dynamic load equilibrium across the chassis, contrasting with a hydraulic lift cylinder that concentrates on forceful upward motion for tasks like tipping beds or elevating tools in excavation. In mining machinery hydraulic cylinder contexts, the rear version supports continuous operation under lateral stresses, while lift models handle intermittent heavy lifting, each tailored to distinct operational demands in dump truck fleets.
Q: What are the key specifications for mining machinery hydraulic cylinders?
A: Essential specifications for mining machinery hydraulic cylinders encompass bore diameters spanning 150mm to 450mm, rod dimensions reaching up to 400mm, maximum strokes of 400mm, and operational pressures peaking at 38MPa. These parameters equip hydraulic cylinders for mining with the strength needed for enduring extreme loads and environmental rigors, ensuring consistent performance in applications like the hydraulic cylinder for mining dump truck where precision and resilience are paramount.
Q: Can hydraulic cylinders for mining be customized for specific dump truck models?
A: Customization options for hydraulic cylinders for mining abound, allowing adjustments to factors such as stiffness profiles and damping responses to match particular dump truck configurations and site-specific requirements. This bespoke approach in mining hydraulic cylinder production guarantees seamless integration and heightened efficiency, whether for standard haulers or specialized variants, addressing unique challenges in varied mining landscapes across regions like Mexico.
Q: What maintenance is required for a hydraulic cylinder for mining dump truck?
A: Maintenance for a hydraulic cylinder for mining dump truck entails routine checks for fluid seepage, periodic oil replacements roughly every 5,000 operational hours, and thorough debris removal to avert accumulation that could impair seals or internals. Incorporating these practices into regular schedules helps preserve the integrity of rear suspension hydraulic cylinders, extending their service life and minimizing disruptions in high-stakes mining activities where downtime impacts productivity.
Q: How to install a mining hydraulic cylinder in a rotary drilling rig?
A: Installing a mining hydraulic cylinder in a rotary drilling rig requires precise alignment with designated mounting brackets, fastening using bolts tightened to specified torque values, secure attachment of hydraulic hoses, and initial no-load trials to confirm smooth actuation. This methodical process ensures the hydraulic cylinder for rotary drilling rig operates reliably, enhancing drilling stability and safety in geological exploration tasks within mining operations.
Q: What advantages do hydraulic cylinders for mining excavator offer over mechanical alternatives?
A: Hydraulic cylinders for mining excavator surpass mechanical counterparts by delivering enhanced shock absorption, instantaneous load adaptations, and superior endurance against wear in tough settings, thereby curtailing instances of equipment breakdown. Unlike rigid mechanical systems, these mining hydraulic cylinders facilitate finer control and reduced energy loss, proving advantageous for excavators handling dense earth or rock, where flexibility translates to safer and more productive digs.
Q: How often should seals be replaced in a rear suspension hydraulic cylinder?
A: Seals in a rear suspension hydraulic cylinder warrant quarterly examinations for degradation signs, with replacements advised every two to three years or sooner if erosion is evident, to uphold fluid containment and pressure stability. This proactive timeline for hydraulic rear suspension cylinder upkeep prevents leaks that could compromise performance in mining dump trucks, aligning with best practices for longevity in abrasive industrial applications.
Q: What working pressure can a hydraulic lift cylinder for mining machinery handle?
A: A hydraulic lift cylinder for mining machinery is engineered to sustain working pressures as high as 38MPa, enabling it to execute demanding elevation duties without sacrificing structural soundness or operational security. This capacity suits the rigorous requirements of mining environments, where such cylinders support heavy material handling, ensuring dependable lifts in equipment like loaders or haulers under variable load conditions.
Q: How to troubleshoot vibrations in a hydraulic cylinder for mining dump truck?
A: Troubleshooting vibrations in a hydraulic cylinder for mining dump truck starts with examining the system for trapped air, scrutinizing seals for breaches, and confirming consistent pressure readings through gauge checks; if issues linger, engage certified technicians for in-depth analysis. This systematic evaluation for rear suspension hydraulic cylinders helps isolate causes like misalignment or fluid inconsistencies, restoring smooth functionality crucial for traversing uneven mine paths.
Customer Reviews
Liam Thompson, Operations Foreman, Western Australia, Australia
"Our team in the Pilbara region has relied on these hydraulic rear suspension cylinders for mining dump trucks over the past 18 months, and they've proven tough against constant iron ore hauls on bumpy tracks. The 350mm stroke version we picked reduces chassis strain effectively, and Mexico Ever-Power's quick turnaround on orders—under two weeks—kept our fleet rolling without delays. Solid engineering that holds up in heat and dust."
Sophie Leclerc, Maintenance Engineer, Quebec, Canada
"As someone overseeing equipment in Canadian gold mines, I value the ease of servicing these rear suspension hydraulic cylinders. We've fitted them with 250mm bores on our excavators, and the anti-corrosion features shine in freezing winters. Their support team guided us through spec tweaks for better integration, no failures after 14 months of daily use. Dependable choice for mining hydraulic cylinders."
Derek Johnson, Fleet Manager, Nevada, USA
"In Nevada's copper operations, these hydraulic cylinders for mining have boosted our dump truck uptime significantly. Opted for the 38MPa max pressure models, and they've handled overloads without a hitch for over a year. Logistics from Mexico Ever-Power were spotless, arriving in days despite remote delivery—though I'd suggest reinforced crates for rough handling. Great for vibration control in harsh pits."
Thabo Nkosi, Site Supervisor, Gauteng, South Africa
"South African platinum mines demand rugged gear, and Mexico Ever-Power's mining machinery hydraulic cylinders deliver. Our 400mm rod diameter units on dump trucks absorb shocks from uneven roads flawlessly after 20 months, cutting tire replacements by half. Service was proactive; they followed up on installation tips, making the whole process smooth. Reliable for long shifts in deep excavations."
Ivan Petrov, Equipment Specialist, Siberia, Russia
"Handling coal transports in Siberian cold, these hydraulic cylinder for mining dump truck options from Mexico Ever-Power stand out for durability. The 300mm stroke hydraulic rear suspension cylinder we installed resists freezing and wear, performing steadily for 16 months. Delivery navigated customs efficiently in under 10 days, with excellent follow-through on queries. Key for stable hauls in extreme weather."
Maria Gonzalez, Procurement Officer, Antofagasta, Chile
"In Chile's copper belt, we've integrated these rear suspension hydraulic cylinders into our fleet, noting superior load balancing on steep inclines. The 450mm bore hydraulic cylinders for mining excavator we customized show no fatigue after 13 months of heavy loads. Mexico Ever-Power's responsive quotes and timely shipping—arrived in a week—make them our preferred supplier for consistent quality."
Carlos Silva, Mining Technician, Minas Gerais, Brazil
"Brazilian iron ore sites test equipment limits, but these mining hydraulic cylinders from Mexico Ever-Power exceed expectations. Our 200mm stroke models for rotary drilling rigs dampen vibrations effectively, lasting over two years with minimal upkeep. Their team excelled in custom damping advice, though packaging could be tougher for jungle transports. Overall, boosts efficiency without breakdowns."
Ahmad Rahman, Operations Coordinator, Papua, Indonesia
"For Indonesian nickel mining, the hydraulic lift cylinder variants we sourced enhance dump truck stability on muddy paths. Mexico Ever-Power's 38MPa-rated hydraulic rear suspension cylinder handles wet conditions without corrosion issues after 15 months. Logistics impressed with fast Asia-Pacific delivery in eight days, and their expertise in spec matching sealed the deal for ongoing orders."
