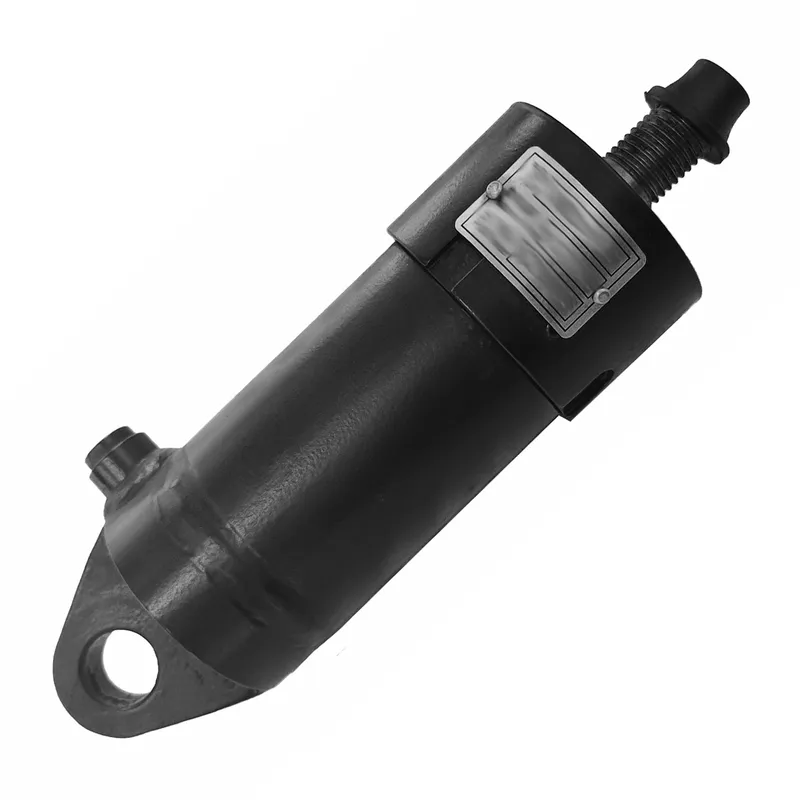

Hydraulic Spring Cylinder for Truss Arm Crawler Cranes
Discover our robust hydraulic spring cylinder designed for truss arm crawler cranes. Engineered for durability and precision, this cylinder offers a 506mm stroke, 21MPa pressure rating, and seamless integration in demanding crane environments. Ideal for Mexican construction sites, it ensures reliable performance and easy maintenance to keep your operations running smoothly.
Overview of Hydraulic Spring Cylinder for Truss Arm Crawler Crane
The hydraulic spring cylinder represents a critical component in modern crane systems, particularly for truss arm crawler cranes used in heavy-duty construction and industrial applications. This specialized cylinder combines hydraulic power with spring mechanisms to provide controlled extension and retraction, ensuring stability and safety during lifting operations. In Mexico's diverse terrain, from urban buildings in Mexico City to remote mining sites, the hydraulic spring cylinder for crane operations offers unmatched reliability. It is built to withstand harsh conditions, including dust, moisture, and extreme temperatures common in Mexican climates.
The spring hydraulic cylinder enhances operational efficiency by reducing downtime through its robust design. Operators appreciate how it integrates seamlessly with existing crawler crane setups, providing a smooth hydraulic cylinder for crane performance without extensive modifications. In the context of Mexico's growing infrastructure projects, this cylinder supports the rapid assembly and disassembly of truss arms, contributing to faster project timelines. Its compatibility with various crane models ensures versatility, while the emphasis on quality materials prevents common failures like leaks or pressure drops.
Crane Hydraulic Spring Cylinder Dimensions
Technical Specifications
For custom specifications or additional requirements, please contact our team at Ever-Power Mexico for personalized solutions.
| Hydraulic Spring Cylinder |
|||||||
| Drawing number | Bore diameter (D) | Rod diameter (d) | Stroke (S) | Installation distance (L) | Working pressure | Interface dimensions (M) | Weight |
| ZXYG24.01-00 | Φ63 | Φ32 | 25 | 267 | 4MPa | G1/4 | 6.5kg |
| Product Name: | Spring Hydraulic Cylinder |
| Function: | buffering effect |
| Cylinder diameter: | 50mm-63mm |
| Rod diameter: | 32mm |
| Travel: | 25mm-60mm |
| Maximum pressure: | 6MPa |
| Maximum thrust: | 19KN |
Truss Arm Crawler Crane Hydraulic Spring Cylinder Features
1. Integrated Spring Mechanism for Automatic Retraction
This essential component enables swift and reliable retraction of the piston rod without external power, crucial for stabilizing truss arm crawler cranes on uneven Mexican terrains such as those in construction zones near mountainous regions. Automating this process, it reduces operator involvement, thereby lowering the risk of accidents and improving overall site efficiency in demanding environments like urban developments in Mexico City or remote industrial sites.
2. Compact Design with Corrosion-Resistant Seals
Engineered for seamless fitting into various crane models, the cylinder's streamlined structure allows quick installation while its robust seals protect against moisture ingress from frequent rains in coastal areas like Veracruz. This design choice ensures long-term operational integrity, preventing downtime caused by environmental degradation and supporting continuous use in Mexico's humid subtropical climates.
3. Precision-Machined Pistons for Smooth High-Pressure Operation
Crafted with high-tolerance machining, these pistons deliver consistent performance under pressures up to 21MPa, minimizing vibrations that could otherwise accelerate wear on adjacent crane components. Construction professionals in Mexico have noted this leads to extended equipment lifespan, particularly beneficial for heavy-lifting tasks in infrastructure projects across the country's diverse landscapes.
4. Advanced Leak-Prevention Seals
Incorporating state-of-the-art sealing technology, the cylinder effectively eliminates fluid leaks that plague legacy systems, ensuring hydraulic fluid retention even during prolonged operations. This reliability is vital for truss arm applications in arid zones like northern Mexico, where maintenance access might be limited, thus maintaining peak performance without frequent interventions.
5. Customizable Stroke Lengths for Specific Configurations
Tailored to accommodate varying truss arm requirements, options like the standard 506mm stroke can be adjusted to fit unique crane setups, enhancing adaptability for specialized tasks. In Mexico's growing mining sector, this flexibility allows operators to optimize crane hydraulic cylinders extension for precise load handling, contributing to safer and more productive workflows.
6. Anti-Rust Outer Casing for Durability
Treated with specialized coatings, the exterior withstands exposure to salt-laden air in port cities such as Tijuana or extreme temperature fluctuations in desert regions, preserving structural strength over years of service. This protective measure underscores the cylinder's suitability for Mexico's varied weather conditions, reducing corrosion-related failures and associated repair costs.
Working Principle of Spring Hydraulic Cylinder for Crawler Crane
The operational mechanism of the spring hydraulic cylinder in crawler cranes relies on the balanced interaction of pressurized hydraulic fluid and stored spring energy to achieve controlled motion. Initially, a hydraulic pump directs fluid into the cylinder chamber, generating a force that propels the piston rod outward. This action compresses the internal spring while extending the truss arm, allowing for accurate positioning of loads during crane activities. Flow control valves precisely manage the fluid volume and rate, which is critical for maintaining equilibrium and preventing abrupt shifts that could compromise structural integrity on varied surfaces.
Once the extension phase concludes, operators release the hydraulic pressure through the valve system. At this point, the pre-compressed spring exerts its restorative force, swiftly pulling the piston rod back inward without requiring further pump activation. This efficient retraction conserves power and enables rapid resets, proving especially valuable in crawler cranes navigating Mexico's challenging landscapes, such as rugged construction sites in mountainous areas or soft ground in coastal regions.
This combined approach enhances overall system responsiveness, reducing wear on components like hoses and pumps by limiting continuous hydraulic demands. For instance, in repetitive lifting cycles common to infrastructure projects, the cylinder's design supports seamless transitions between extended and retracted states, promoting safer operations and lower maintenance needs. Engineers often integrate pressure sensors to monitor real-time performance, ensuring the mechanism adapts to fluctuating loads.
Types of Hydraulic Cylinder for Truss Arm Crawler Cranes
- Lift Hydraulic Cylinder
This type of cylinder is essential for controlling the vertical movement of the main truss arm in crawler cranes, enabling precise elevation of heavy loads during construction tasks. It operates by extending under hydraulic pressure to raise the arm, providing the primary lifting force required for operations in infrastructure projects across varied terrains. With specifications often including cylinder diameters from 100mm to 320mm and maximum pressures up to 31.5MPa, it ensures reliable thrust for demanding applications like bridge building in urban settings. - Support Hydraulic Cylinder
Designed to extend and stabilize the crane's outriggers or support legs, this cylinder enhances overall machine balance on uneven ground typical in Mexican mining sites. By deploying hydraulic force to lock the supports in place, it prevents tipping during heavy lifts, contributing to safer work environments. Common features include robust rod diameters of 85mm to 220mm and a maximum thrust capacity of 2226KN, making it indispensable for maintaining structural integrity in extended crane operations. - Arm Anti-Backtilt Hydraulic Cylinder
This specialized cylinder prevents unintended backward tilting of the truss arm by applying a counteractive force, ensuring controlled positioning during load handling. It functions to regulate arm frame movements, which are critical for precision in tasks such as material placement on high-rise constructions. Engineered with travel distances up to 3550mm and pressures reaching 31.5MPa, it offers substantial thrust of 2533KN to counteract gravitational pulls in dynamic crane environments. - Pin Shaft Hydraulic Cylinder
Utilized for securing and actuating pin shafts that connect truss arm sections, this cylinder facilitates quick assembly and disassembly of crane components on job sites. It delivers targeted hydraulic power to insert or retract pins, streamlining setup processes for mobile crawler cranes. Typically featuring compact designs with high-strength materials, it supports efficient operations in remote areas, where rapid reconfiguration is necessary to adapt to changing project demands. - Oil Hydraulic Cylinder
As a fundamental component in truss arm systems, this cylinder relies on oil-based hydraulic fluid to generate motion for various crane functions, including extension and retraction mechanisms. It provides consistent performance in maintaining arm alignment under load, suitable for prolonged use in industrial settings. With durable seals and corrosion-resistant casings, it handles pressures up to 21MPa, ensuring minimal fluid loss and reliable service in humid or dusty conditions prevalent in coastal construction zones. - Power Pin Hydraulic Cylinder
This cylinder powers the locking pins that secure truss arm extensions, offering enhanced stability and safety during crane articulation. By exerting force to engage or disengage pins, it allows for secure adjustments without manual intervention, reducing operator risk. Built with modular elements for easy maintenance, it often includes quick-response hydraulics and can manage substantial loads, making it vital for high-efficiency workflows in large-scale infrastructure developments.
Crane Hydraulic Cylinder Applications Industries
Hydraulic cylinders play a pivotal role in crane operations across various Mexican industries, supporting the country's economic expansion through infrastructure and resource development. In the construction sector, which experienced a 4.1% growth in 2024, these components are integral to truss arm crawler cranes used for erecting high-rise buildings and bridges in densely populated urban centers such as Mexico City. Their robust design enables precise material handling in confined spaces, minimizing operational disruptions while accommodating heavy loads during projects like highway expansions and residential developments. This sector's demand for durable cylinders has surged with government initiatives focusing on public works, where equipment like excavators and concrete pumps rely on double-acting and telescopic models for efficient lifting and positioning.
In northern Mexico's mining operations, hydraulic cylinders excel in harsh environments, facilitating the assembly of drilling rigs and material handlers amid dust and vibrations. Regions rich in minerals, such as Sonora and Chihuahua, benefit from their ability to withstand extreme conditions, ensuring continuous ore extraction and equipment stability. These cylinders contribute to enhanced productivity in open-pit and underground mining, where crawler cranes manage substantial weights during loading and transport tasks.
Coastal port facilities, including those in Veracruz and Manzanillo, utilize hydraulic cylinders in crawler cranes for streamlined cargo handling, boosting throughput efficiency in logistics operations. As cross-border trade grows, these components support faster loading and unloading of containers, integrating with marine cranes and stackers to optimize port workflows.
Furthermore, applications extend to renewable energy initiatives, particularly wind farm installations in Baja California, where the cylinders' reliability ensures safe placement of turbine components under variable weather conditions. In earthquake-prone areas like the Pacific coast, customizable features allow for seismic-resistant builds, adapting to specific structural demands.
Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd. has built a solid reputation since its founding in May 1978 as a high-tech enterprise focused on mid- to high-end hydraulic components, with hydraulic cylinders at the core of its lineup. Spanning over 45 years, this experience translates into deep expertise in crafting products that meet the tough demands of crane operations in Mexico's construction, mining, and port sectors. The company operates across 103 acres with more than 400 employees, housing its own research institute, hydraulic testing lab, and R&D center where engineers develop independent technologies for key equipment. Every cylinder undergoes rigorous testing through a full quality assurance system that aligns with international benchmarks, using dependable materials to deliver safer, more efficient, and reliable performance in real-world conditions.
Innovation drives the operation, with ongoing efforts to create a "future factory" that emphasizes advanced automation, intelligence, customization, and networking. This approach directly tackles local challenges, such as adapting cylinders to Mexico's shifting climates—from humid coasts to arid interiors—and complying with regional regulations for heavy machinery. For crane users, this means solutions like customized stroke lengths or mounts that fit specific truss arm setups without extensive overhauls.
A proven history backs this up: exports reach over 53 countries across continents, including strong ties in South America like Brazil, with cylinders excelling in engineering machinery for construction, mining equipment assembly, and marine applications. Competitive edge comes from balancing cost with unwavering quality—no shortcuts on durability or precision. Partnerships thrive on this reliability, earning consistent positive feedback for products that perform under pressure and minimize downtime.
Opting for Ever-Power connects you with a partner committed to practical advancements that support Mexico's industrial growth, from urban builds to resource extraction, all while prioritizing long-term value and operational ease.
 |
 |
 |
 |
FAQs
Q: How does a spring hydraulic cylinder differ from a standard hydraulic cylinder for crane?
A: The main distinction arises from the built-in spring element in the spring hydraulic cylinder, which enables self-retraction upon pressure release, thereby conserving energy and boosting operational speed. In contrast, conventional hydraulic cylinders depend entirely on fluid pressure for both directions, often leading to higher power demands and slower cycles in crane tasks.
Q: What are the maintenance requirements for a hydraulic spring cylinder in harsh Mexican environments?
A: Routine upkeep includes daily visual checks for fluid leaks and debris buildup, along with thorough component cleaning using appropriate solvents. Oil replacement should occur after every 500 operating hours to counteract effects from dust storms or high humidity, while annual inspections of seals and springs help sustain performance in regions like the Sonoran Desert or Gulf Coast.
Q: Can the hydraulic cylinder for crane be customized for specific truss arm lengths?
A: Customization is readily available, with options to modify stroke lengths, mounting configurations, or bore sizes to align with particular truss arm dimensions. Clients can submit detailed requirements to our engineering staff for a bespoke design that integrates seamlessly into existing crawler crane systems, ensuring optimal fit for specialized applications.
Q: How to install a hydraulic spring cylinder on a crawler crane safely?
A: Safe installation begins with proper alignment of the cylinder mounts to the truss arm frame, followed by tightening bolts to specified torque levels using calibrated equipment. Initial low-pressure tests confirm functionality before full integration, and adherence to occupational safety standards, including personal protective gear, remains paramount throughout the process.
Q: What materials are used in manufacturing hydraulic spring cylinders for durability?
A: Construction incorporates high-tensile steel for the main body and piston rods, complemented by specialized coatings resistant to rust and abrasion. These choices promote extended service life in outdoor exposures, with additional alloys for seals that resist degradation from oils and environmental contaminants typical in crane environments.
Q: How to troubleshoot common issues with spring hydraulic cylinders?
A: For problems like delayed retraction, start by examining spring alignment and tension adjustments, then verify hydraulic fluid levels and purity. If leaks appear, inspect seal integrity and replace as needed; referring to the provided user manual offers detailed steps, including diagnostic tools for pressure readings to resolve issues promptly.
Q: What are the benefits of using a hydraulic spring cylinder in mining applications?
A: In mining contexts, it delivers steadfast operation amid heavy payloads and vibrations, curtailing equipment halts in challenging landscapes like those in northern Mexico. The spring-assisted retraction accelerates cycles, while robust construction withstands abrasive particles, ultimately lowering long-term costs through reduced energy needs and fewer repairs.
Q: How long does a hydraulic cylinder for crane typically last?
A: Under standard conditions with consistent care, these cylinders endure beyond 10,000 operational cycles or span several years, influenced by factors such as load frequency and environmental exposure. Real-world usage in Mexican projects often extends this duration when paired with proactive servicing schedules.
Q: Can hydraulic spring cylinders handle extreme temperatures in Mexico?
A: Engineered to function reliably from -20°C in cooler highland areas to 80°C in arid zones, these cylinders incorporate thermal-resistant seals and fluids. This range accommodates Mexico's climatic diversity, from Baja California's heat to Sierra Madre's chills, maintaining efficiency without performance drops during prolonged exposure.
