Hydraulic Stick Cylinder for Medium/Large Excavators

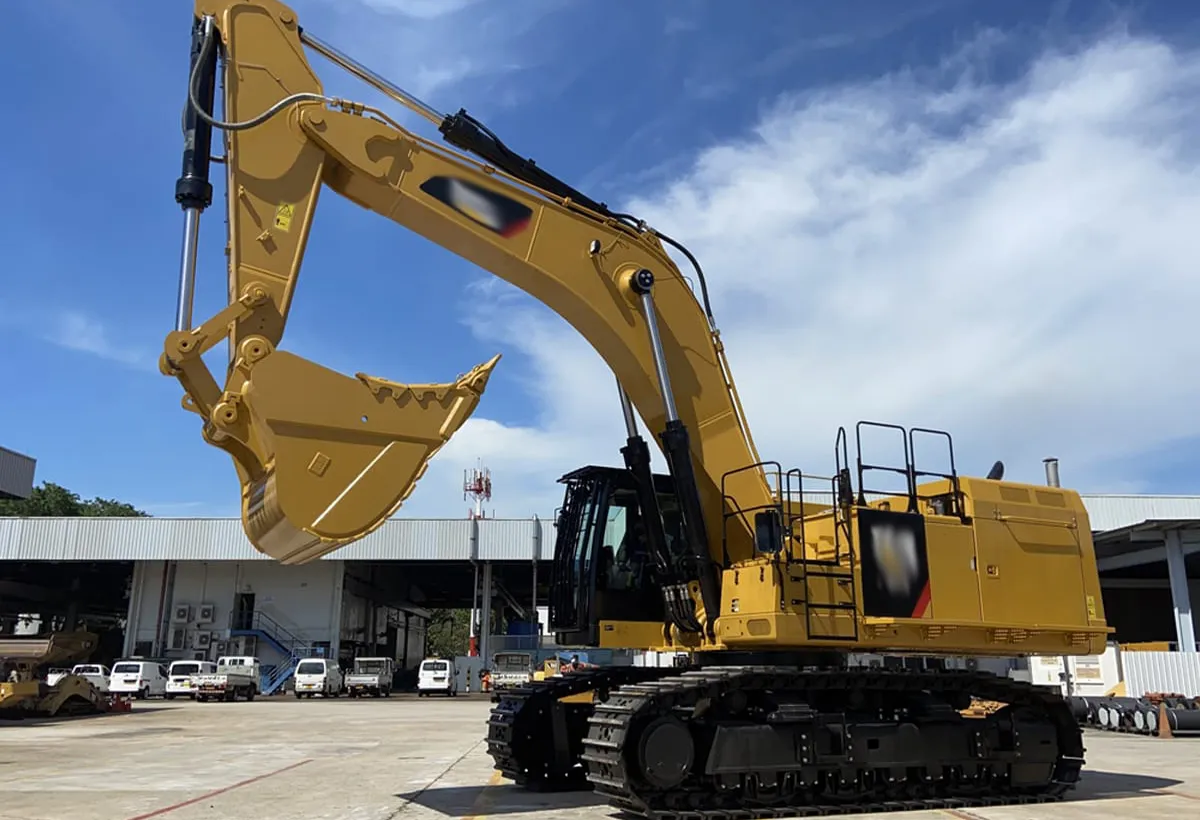

Large Excavator Hydraulic Stick Cylinder Overview

The hydraulic stick cylinder serves as a pivotal element in the operation of medium and large excavators, enabling the extension and retraction of the stick arm to facilitate efficient digging and material handling. Constructed from high-strength alloy steel, this double-acting cylinder withstands extreme pressures and harsh environments typical in construction sites, mining operations, and demolition projects. Its design incorporates advanced sealing systems that prevent fluid leaks and contamination, ensuring consistent performance over prolonged use. Operators benefit from the cylinder's ability to deliver powerful thrust forces, which enhance the excavator's reach and depth capabilities without compromising stability. In practical terms, this component integrates seamlessly with various excavator models, providing the necessary force for tasks that demand precision and reliability, such as trenching through rocky terrain or lifting heavy loads.

Beyond its structural integrity, the excavator hydraulic cylinder emphasizes versatility, making it suitable for a range of applications where linear motion is critical. For instance, in urban development projects, it allows for controlled movements that minimize disruption to surrounding structures. The cylinder's customizable stroke lengths—up to 2600mm—accommodate specific machine requirements, reducing the need for frequent adjustments and improving overall workflow efficiency. Maintenance teams appreciate the wear-resistant coatings on the piston rod, which protect against abrasion and extend the unit's lifespan, ultimately lowering operational costs.

Technical Specifications

If your project demands custom configurations beyond these standard specifications, such as adjusted stroke lengths or specialized mounting options, please contact our team at Ever-Power for tailored solutions to fit your exact needs.

Product Name:	Large Excavator Stick Hydraulic Cylinder
Function:	Control the movement of the forearm.
Bore Diameter:	210mm-360mm
Rod diameter:	145mm-260mm
Stroke:	≤2600mm
Maximum pressure MPa:	35MPa
Thrust Force:	3560.8KN

Features of Hydraulic Stick Cylinder for Large Excavator

1. Robust Construction with High-Strength Materials
Engineers often select the hydraulic stick cylinder for its barrel and rod made from premium alloy steel, which provides exceptional resistance to deformation under heavy loads and ensures long-term alignment through countless operational cycles. This material enhances the overall reliability of the excavator hydraulic cylinder, making it ideal for demanding environments where consistent performance is critical, with users noting reduced downtime in fieldwork.

2. Advanced Sealing Technology for Environmental Protection
The stick hydraulic cylinder incorporates specialized seals designed to handle wide temperature variations and block out contaminants like dust and moisture commonly encountered in outdoor settings. This feature promotes smoother functionality in the excavator hydraulic stick cylinder, minimizing vibrations that could cause operator discomfort during extended shifts, and supports efficient operations across various construction and mining tasks.

3. Durable Wear-Resistant Coatings on Key Components
Critical surfaces of the hydraulic cylinder for excavator receive protective coatings that significantly extend maintenance intervals by preventing pitting and surface damage from abrasive materials. In scenarios such as quarry work, this attribute preserves the integrity of the hydraulic cylinder excavator, allowing for prolonged use without frequent interventions, which is particularly beneficial for fleet operators managing multiple units.

4. Flexible Customization for Specific Applications
Our team tailors the excavator hydraulic cylinder with options like adjustable rod diameters and stroke lengths to fit seamlessly into diverse machinery configurations, eliminating the need for major alterations. This adaptability is highly valued in sectors requiring standardization, such as infrastructure projects, where the large excavator hydraulic cylinder can be modified to meet unique demands without compromising core strength.

5. Superior Durability Through Fatigue-Resistant Design
The core structure of the stick hydraulic cylinder utilizes alloy steel tested in extreme conditions, from dry deserts to wet coastal zones, offering high tensile strength that combats fatigue over time. This ensures the excavator hydraulic stick cylinder remains dependable for prolonged service, reducing replacement frequency and supporting cost-effective maintenance strategies in global operations.

Types of Large Excavator Hydraulic Cylinders

• Bucket Hydraulic Cylinder
  Positioned at the end of the dipper arm, the bucket hydraulic cylinder drives the bucket's tilting and curling motions essential for scooping, dumping, and precise material placement during excavation tasks. Typically more compact than boom variants, these cylinders deliver controlled force to adjust the bucket's angle, enabling operators to handle diverse soil types or debris efficiently while minimizing spillage in construction or mining operations.
• Swing Hydraulic Cylinder
  Also referred to as a slew cylinder, this component facilitates the rotational movement of the excavator's upper structure around a vertical axis, allowing for swift directional changes without repositioning the entire machine. It proves invaluable in confined job sites, such as urban demolition or pipeline installation, where maneuverability enhances productivity and safety by reducing the need for excessive ground disturbance.
• Boom Hydraulic Cylinder
  Responsible for elevating and lowering the primary boom assembly, these robust cylinders generate substantial breakout force to penetrate hard surfaces and lift heavy loads in demanding environments like quarrying or foundation digging. Their larger dimensions and high-pressure capabilities ensure stability under extreme stresses, supporting extended reach and enabling the machine to perform overhead tasks with reliable precision.

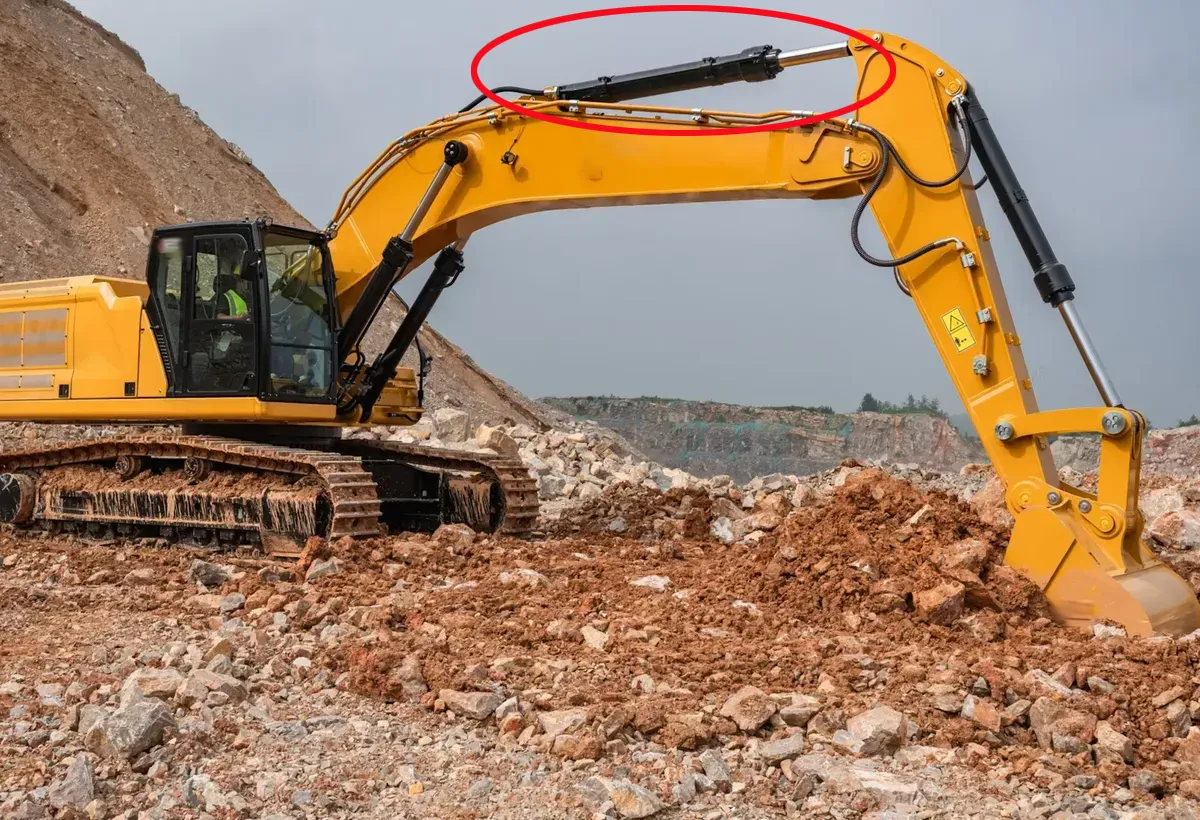

• Stick Hydraulic Cylinder
  Commonly known as the dipper or arm cylinder, it controls the extension and retraction of the stick arm that supports the bucket, providing the necessary reach for deep trenching or material handling. This cylinder's design emphasizes durability to withstand repetitive cycles in harsh conditions, such as rocky terrains, thereby optimizing the excavator's digging depth and cycle times for enhanced operational efficiency.
• Track Adjuster
  Situated within the undercarriage, the track adjuster employs a hydraulic cylinder mechanism filled with grease to maintain optimal tension in the excavator's tracks, preventing slippage or excessive wear during movement over uneven surfaces. Regular adjustments via this system extend track life and improve traction, crucial for stability in soft ground or sloped areas encountered in landscaping and infrastructure projects.

Advantages of Stick Hydraulic Cylinder for Excavator

One key benefit of incorporating our stick hydraulic cylinder into excavator systems stems from its capacity to maintain steady force delivery, which directly boosts excavation efficiency and lowers fuel usage for the equipment. In fast-paced industries such as building projects, where schedules demand strict adherence, this level of performance helps avoid delays and associated financial setbacks. The dual-action mechanism supports both forceful extensions for robust digging and gentle retractions for accurate positioning, giving machine handlers the control required for intricate maneuvers alongside substantial power for demanding loads.

Financial advantages become apparent through the cylinder's reduced upkeep demands, where durable seals and protective layers extend the time between part renewals. Managers overseeing vehicle fleets frequently determine that an initial commitment to a superior excavator hydraulic cylinder results in decreased overall expenses across a decade or more. Additionally, the sealed construction limits fluid escapes, contributing to cleaner work areas and compliance with environmental regulations that protect surrounding ecosystems from potential contamination.

On the productivity front, the high push capability of this excavator hydraulic cylinder permits greater penetration depths with minimal repetitions, speeding up task completion rates. Professionals engaged in structure removal activities often highlight its steadiness when managing varying pressures, leading to rarer halts from technical faults. Through refined fluid circulation, the cylinder shortens operation loops, enabling higher volumes of earth or debris relocation each hour. This proves particularly useful in large-scale extraction sites like stone pits, where output directly impacts daily targets.

Large Excavator Hydraulic Cylinder Applications

1. Construction Industry
In the construction sector, large excavator hydraulic cylinders facilitate essential tasks such as site preparation, foundation excavation, and structural demolition by providing the necessary force for deep digging and material relocation. These components ensure precise control over the machine's arm movements, enabling efficient handling of concrete, soil, and debris in urban development projects, while their robust design withstands the rigors of continuous operation on varied terrains.

2. Mining Industry
Within mining operations, these hydraulic cylinders support the extraction of minerals and overburden removal through powerful extension capabilities that allow for penetrating dense rock formations and managing substantial loads. They contribute to enhanced productivity in open-pit and underground settings by maintaining stability under high-pressure conditions, reducing equipment downtime, and accommodating the abrasive environments typical of ore processing and haulage activities.

3. Forestry and Logging
For forestry and logging applications, large excavator hydraulic cylinders enable the manipulation of heavy timber and clearing of dense vegetation by delivering controlled force for felling, skidding, and loading operations. Their adaptability to uneven woodland terrains ensures safe and effective tree handling, minimizing soil disruption and supporting sustainable practices in timber harvesting across remote or sloped forested areas.

4. Oil and Gas Industry
In the oil and gas field, these cylinders play a critical role in drilling site preparation, pipeline trenching, and equipment positioning by offering reliable thrust for excavating through challenging geological layers. They enhance operational safety and efficiency in onshore exploration and extraction, where resistance to corrosive elements and extreme weather conditions is vital for maintaining workflow continuity.

5. Marine and Port Industry
The marine and port sector utilizes large excavator hydraulic cylinders for dredging channels, constructing breakwaters, and handling cargo containers, where their corrosion-resistant features withstand saltwater exposure during underwater and shoreline tasks. This application promotes precise material movement in harbor maintenance and expansion projects, ensuring structural integrity and operational reliability in dynamic coastal environments.

6. Waste Management and Recycling
In waste handling facilities, these cylinders enable the sorting and compaction of refuse through controlled bucket and arm movements, facilitating the excavation of landfills or recycling pits. They provide durability against corrosive materials and heavy debris, promoting safe and systematic processing that aligns with environmental standards for urban sanitation and resource recovery.

Construction Industry	Marine and Port Industry
Mining Industry	Oil and Gas Industry

Common Troubleshooting of Excavator Stick Hydraulic Cylinder

• Fluid Leaks Around Seals or Connections
  Operators often notice hydraulic fluid seeping from the rod seals or hose fittings on the excavator stick hydraulic cylinder, which can stem from worn gaskets or improper installation. To address this, inspect all sealing surfaces for cracks or debris buildup, then replace damaged components with compatible parts while ensuring torque specifications are met during reassembly to prevent recurrence and maintain system pressure integrity.
• Slow or Jerky Extension and Retraction Movements
  When the stick hydraulic cylinder exhibits sluggish response or uneven motion during operation, potential causes include air entrapment in the fluid lines or restricted flow from clogged filters. Begin by bleeding the hydraulic system to remove trapped air, followed by cleaning or replacing filters, and verify pump output to restore smooth functionality and avoid strain on the excavator's arm assembly.
• Overheating During Prolonged Use
  Excessive heat buildup in the excavator stick hydraulic cylinder may result from overloaded conditions or inadequate fluid levels, leading to reduced viscosity and component wear. Monitor temperature gauges regularly, top up hydraulic oil to recommended levels using the specified grade, and adjust workload cycles to allow cooling periods, thereby extending the cylinder's service life in demanding environments.
• Unusual Noises Like Squealing or Knocking
  Audible disturbances from the stick hydraulic cylinder, such as grinding or banging sounds, frequently indicate internal contamination by particles or misalignment of the piston rod. Conduct a thorough flush of the hydraulic circuit to eliminate debris, realign the rod if necessary, and lubricate pivot points to eliminate friction, ensuring quieter and more reliable performance during excavation tasks.
• Loss of Power or Reduced Thrust Force
  A noticeable drop in the cylinder's ability to generate force for digging or lifting often points to low system pressure caused by pump malfunctions or internal leaks. Test pressure readings at key points using a gauge, repair any detected leaks, and service the pump assembly to regain optimal thrust, which is crucial for handling heavy materials without compromising safety.
• Cylinder Drift or Unintended Movement
  If the excavator stick hydraulic cylinder shifts position without input, this could arise from faulty check valves or seal degradation allowing fluid bypass. Examine and replace compromised valves, inspect seals for integrity, and perform a hold test under load to confirm stability, preventing accidental shifts that could pose risks on active job sites.

Why Choose Mexico Ever-Power's Excavator Hydraulic Cylinders?

FAQs

Q: How do I choose the right stick hydraulic cylinder for my medium excavator?
A: Selecting an appropriate stick hydraulic cylinder involves evaluating key aspects such as bore diameter ranging from 210mm to 360mm, rod dimensions, and maximum stroke up to 2600mm to align with your equipment's requirements and workload needs in sectors like building sites. Prioritize compatibility with the excavator hydraulic stick cylinder's load-bearing capabilities to guarantee reliable performance during intensive tasks without risking operational failures.

Q: What materials are used in manufacturing excavator hydraulic stick cylinders?
A: Excavator hydraulic stick cylinders are crafted from robust alloy steel for the main barrel and rod components, paired with resilient polymer seals engineered to endure abrasion and environmental pollutants in rugged conditions. This material selection bolsters the longevity of the hydraulic cylinder for excavator, providing resistance against daily stresses encountered in heavy machinery applications.

Q: Can hydraulic cylinders for excavators be customized for specific applications?
A: Certainly, hydraulic cylinders for excavators can be modified to suit particular needs, including alterations to stroke distances, application of protective layers for rust prevention, and adaptation to specialized attachment points ideal for extraction or structural dismantling activities. Our team tailors the excavator hydraulic cylinder to fit unique operational scenarios, ensuring seamless integration and improved functionality across diverse job requirements.

Q: How often should I perform maintenance on large excavator hydraulic cylinders?
A: For large excavator hydraulic cylinders, conduct visual checks for fluid escapes on a weekly basis and wipe down exposed rods each day to prevent buildup. Schedule complete oil replacements every 1000 operating hours and swap out seals at 5000-hour intervals to promote extended durability, particularly when the hydraulic cylinder for large excavator thumb is exposed to frequent use in compact spaces.

Q: What are common signs of failure in hydraulic cylinder for large excavator thumb?
A: Typical indicators of issues in a hydraulic cylinder for large excavator thumb include visible oil seepage, diminished pushing strength, or abnormal sounds like grinding during cycles, often signaling degraded seals or internal dirt accumulation. Addressing these promptly in the large excavator hydraulic cylinder prevents escalation, maintaining safe and consistent performance in tight-area operations.

Q: Are excavator hydraulic cylinders compatible with different brands of machinery?
A: Excavator hydraulic cylinders from our range follow industry-standard measurements, facilitating integration with leading equipment manufacturers, although we advise cross-checking detailed specifications for optimal fit. This compatibility extends to the excavator hydraulic stick cylinder, allowing operators to upgrade or replace units across varied fleets without extensive modifications.

Q: How does temperature affect the performance of large excavator hydraulic cylinders?
A: Variations in ambient temperature can alter the thickness of hydraulic fluid in large excavator hydraulic cylinders, potentially slowing response times in cold weather or causing overheating in hot climates. Our designs incorporate seals tolerant to broad thermal spans, and selecting suitable lubricants aids in sustaining steady operation of the hydraulic cylinder excavator across seasonal changes.

Q: How to troubleshoot low thrust in a stick hydraulic cylinder?
A: To diagnose reduced power in a stick hydraulic cylinder, examine fluid volumes for deficiencies, assess pump functionality for inconsistencies, or clear obstructed strainers that might impede flow. Purging air pockets from the lines commonly rectifies these concerns in the excavator hydraulic cylinder, restoring full force for effective material handling.

Q: What safety features are included in our excavator hydraulic cylinders?
vOur excavator hydraulic cylinders incorporate overflow valves and securing devices to avert excessive pressures and unintended shifts, thereby bolstering workplace protection during use. These elements in the hydraulic stick cylinder help mitigate risks of sudden breakdowns, ensuring operator confidence in high-load scenarios across construction and extraction sites.
