Hydraulic Support Cylinder for Truss Arm Crawler Cranes
Discover reliable hydraulic support cylinders for truss arm crawler cranes from Mexico Ever-Power. Engineered for heavy-duty performance with strokes up to 506mm and pressures of 21MPa, ensuring stability in demanding construction environments. Contact us for custom solutions tailored to your crane operations.

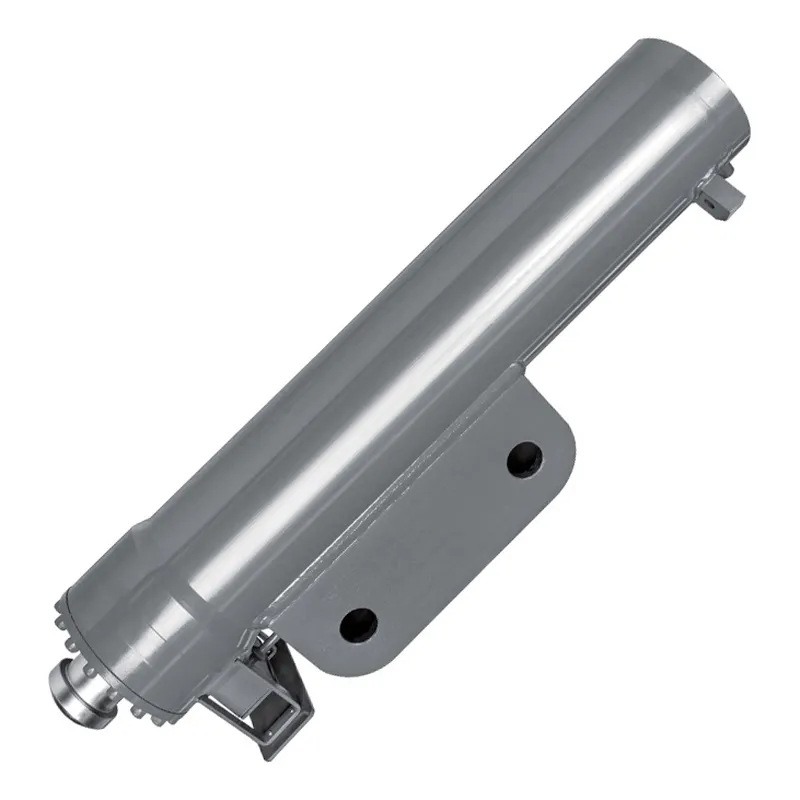

Overview of Hydraulic Support Cylinder for Truss Arm Crawler Crane
The hydraulic support cylinder plays a pivotal role in enhancing the structural integrity and operational efficiency of truss arm crawler cranes. Designed specifically for demanding construction and lifting applications, this component provides essential support by extending and retracting to stabilize the truss arm during various maneuvers. In Mexico's bustling construction sector, where projects often involve challenging terrains and heavy loads, the support hydraulic cylinder ensures that cranes maintain balance and safety. Manufactured with precision engineering, it integrates seamlessly into crawler crane systems, offering durability against environmental stresses like dust, moisture, and extreme temperatures common in regions such as Mexico City or coastal areas.
The hydraulic cylinder for crane applications incorporates advanced sealing technologies to prevent leaks and maintain consistent pressure. This results in smoother operations and reduced downtime, which is critical for contractors aiming to meet tight deadlines. At Mexico Ever-Power, we prioritize components that not only meet international standards but also adapt to local regulatory requirements, such as those set by Mexican construction authorities. By focusing on robust materials like high-strength steel and corrosion-resistant coatings, our hydraulic support cylinders extend the lifespan of crane equipment, ultimately lowering maintenance costs for operators in industries ranging from infrastructure development to mining.
Crane Hydraulic Support Cylinder Dimensions
Technical Specifications
If your project requires modifications beyond these standard specifications, such as adjusted stroke lengths or specialized mounting options, feel free to contact our team at Mexico Ever-Power for tailored consultations and prompt customizations.
| Hydraulic Support Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| YY11112020 | Φ170xΦ150x800 | 30MPa | 40MPa | 800 | 1140 | 262kg |
| Product Name: | Support Hydraulic Cylinder |
| Function: | Supporting function |
| Cylinder diameter: | 100mm-300mm |
| Rod diameter: | 80mm-220mm |
| Travel: | 700mm-800mm |
| Maximum pressure: | 31.5MPa |
| Maximum thrust: | 2226KN |
Features of Hydraulic Support Cylinder for Cranes
One standout feature of the support hydraulic cylinder is its robust construction, which incorporates high-tensile steel to withstand the rigors of daily crane operations. This material choice not only enhances longevity but also minimizes the risk of deformation under heavy loads, making it ideal for truss arm crawler cranes in Mexico's diverse construction landscapes. Additionally, the cylinder's precision-machined components ensure minimal friction during extension and retraction, leading to smoother movements and less wear on connected parts.
Another critical aspect is the integrated safety mechanisms, such as overload protection valves, which prevent system failures during unexpected pressure spikes. These features are particularly valuable in high-risk environments like urban building sites or remote mining operations, where equipment reliability directly impacts worker safety. Furthermore, the hydraulic cylinder for crane use includes customizable end fittings, allowing seamless integration with various truss arm designs without extensive modifications.
In terms of efficiency, the cylinder's compact design reduces overall weight while maintaining high performance, contributing to better fuel economy for the crawler crane. Operators appreciate how this balance of strength and lightness facilitates easier transportation and setup on job sites. Overall, these features position the hydraulic support cylinder as a versatile solution for enhancing crane productivity.
The seals used in our cylinders are engineered from advanced polymers that resist degradation from hydraulic fluids and environmental contaminants. This results in fewer maintenance intervals and lower operational costs over time. When compared to standard models, our version offers superior resistance to corrosion, especially in humid coastal regions of Mexico.
Advantages of Support Hydraulic Cylinder for Truss Arm Crawler Crane
1. Enhanced Stability and Safety in Operations
The support hydraulic cylinder delivers consistent structural reinforcement, effectively mitigating the risk of crane overturns during heavy lifting activities on truss arm crawler cranes. This feature fosters a secure workplace by lowering incident occurrences and aligning with Mexico's rigorous occupational health guidelines, while its 21MPa pressure capacity supports substantial weights without sacrificing operational accuracy or velocity, ultimately safeguarding personnel and equipment in diverse job sites.
2. Cost-Effective Longevity and Reduced Maintenance
Opting for a premium support hydraulic cylinder yields substantial financial benefits through prolonged operational lifespan and fewer repair interventions. Mexican construction firms have noted a reduction in equipment halts by as much as 30 percent upon adopting these units, owing to their resilient build that withstands daily rigors, thereby optimizing budgets in fast-paced industries where delays can escalate expenses significantly.
3. Superior Adaptability to Challenging Environments
In variable conditions, the hydraulic cylinder for crane use demonstrates exceptional responsiveness to fluctuating pressures and orientations, ensuring the truss arm stays securely positioned across irregular landscapes prevalent in Mexican developments such as viaduct erections or petroleum platform assemblies. This versatility enhances overall crane functionality, allowing seamless adjustments that maintain productivity even under demanding topographical constraints.
4. Promotion of Environmental Responsibility
By curbing hydraulic fluid seepage, these crane hydraulic cylinders aid in upholding Mexico's environmental protocols, preventing soil and water contamination that could arise from operational spills. This eco-conscious design not only supports sustainable practices but also appeals to regulatory bodies, enabling companies to pursue green certifications while minimizing ecological footprints in sensitive areas like coastal or rural project zones.
5. Seamless Compatibility and Installation Simplicity
Engineered to interface effortlessly with leading crane manufacturers, the support hydraulic cylinder eliminates the necessity for bespoke tooling during setup, streamlining integration processes for operators. This user-friendly attribute accelerates deployment times, reduces training requirements, and ensures compatibility across a range of models, making it an ideal choice for fleet managers seeking efficient upgrades without extensive modifications.

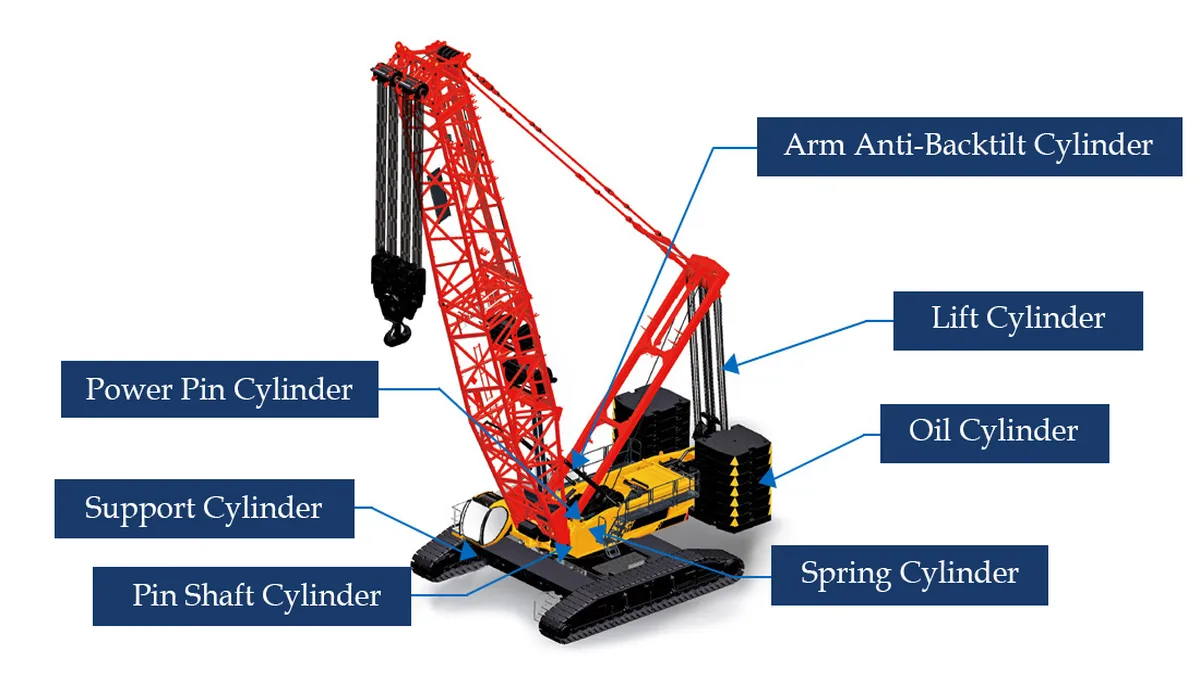

Types of Hydraulic Cylinder for Truss Arm Crawler Cranes
- Hydraulic Lift Cylinder
This component serves as the primary mechanism for elevating the truss arm in crawler cranes, utilizing pressurized fluid to extend the piston and achieve precise height adjustments during load handling operations. Its robust design incorporates high-strength materials to withstand substantial forces, ensuring reliable performance in construction sites where vertical reach is essential for tasks such as material placement on elevated structures. - Hydraulic Pin Shaft Cylinder
Engineered to facilitate rotational movements at key pivot points within the truss arm assembly, the hydraulic pin shaft cylinder enables smooth articulation and positioning of crane sections. By integrating secure locking features, it maintains structural alignment under varying loads, which proves critical in environments demanding frequent adjustments like urban infrastructure projects. - Hydraulic Spring Cylinder
Incorporating internal spring elements alongside hydraulic actuation, this cylinder type aids in load distribution and vibration dampening for truss arm crawler cranes. It enhances operational stability by providing supplementary force during extension and retraction, particularly useful in scenarios involving uneven terrain or sudden impacts from heavy equipment maneuvers. - Hydraulic Oil Cylinder
As a foundational element in crane hydraulics, the hydraulic oil cylinder converts fluid pressure into linear motion for various support functions, including arm extension and stabilization. Its sealed construction prevents leaks while accommodating high-pressure environments, making it indispensable for sustained operations in demanding industrial settings where durability directly influences productivity. - Hydraulic Power Pin Cylinder
Specialized for securing and releasing pin connections in the crane's framework, this cylinder delivers powerful thrusting action to engage or disengage structural locks efficiently. It supports rapid setup and breakdown processes, reducing downtime on job sites and ensuring compliance with safety protocols during assembly or disassembly of truss components. - Hydraulic Arm Anti-Backtilt Cylinder
Designed specifically to counteract unintended rearward tilting of the truss arm, this cylinder applies controlled counterforce to maintain equilibrium under load. By integrating with the crane's control system, it prevents potential overturns, thereby enhancing operator safety and equipment integrity in high-risk lifting applications such as bridge construction or heavy machinery transport.

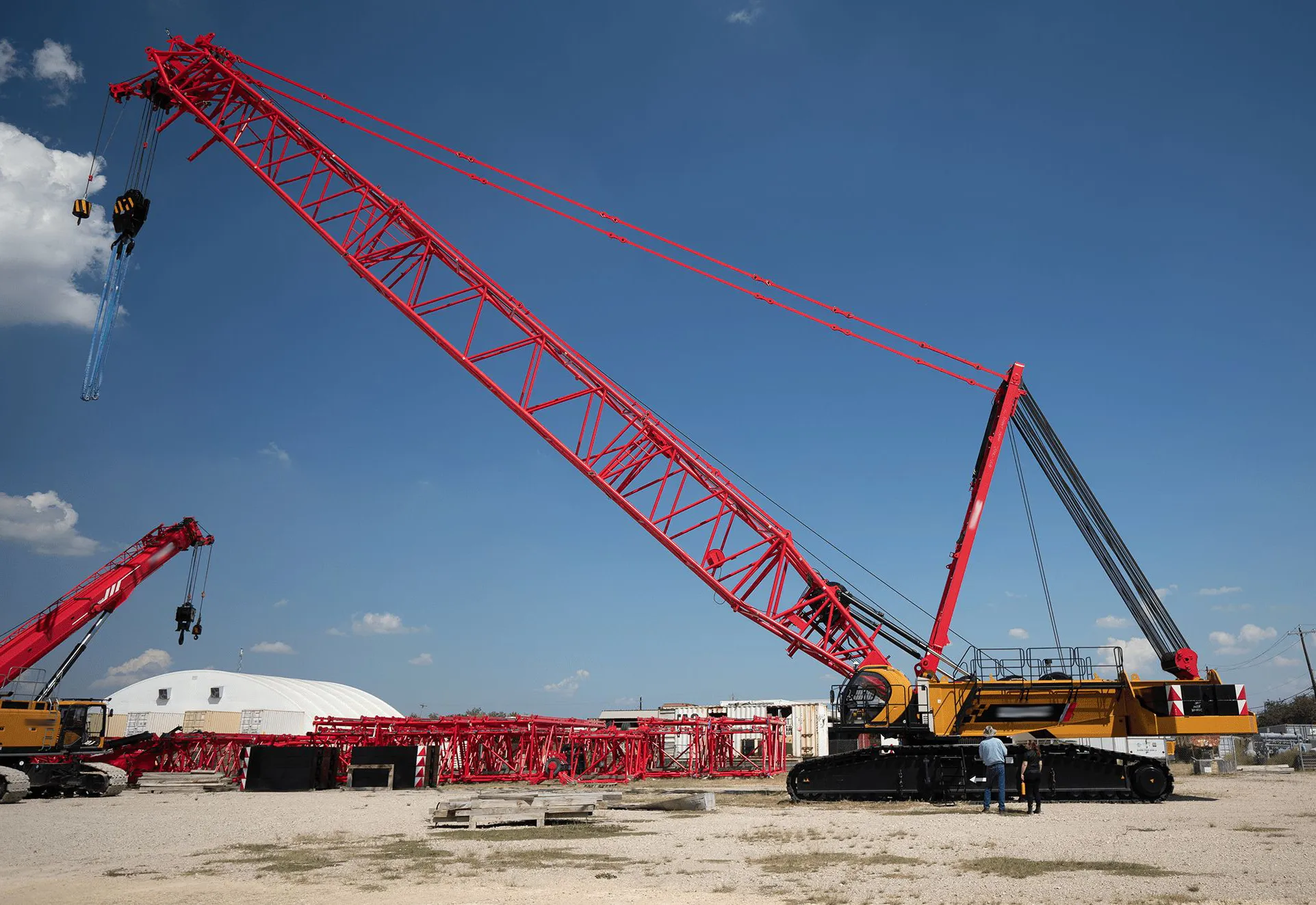

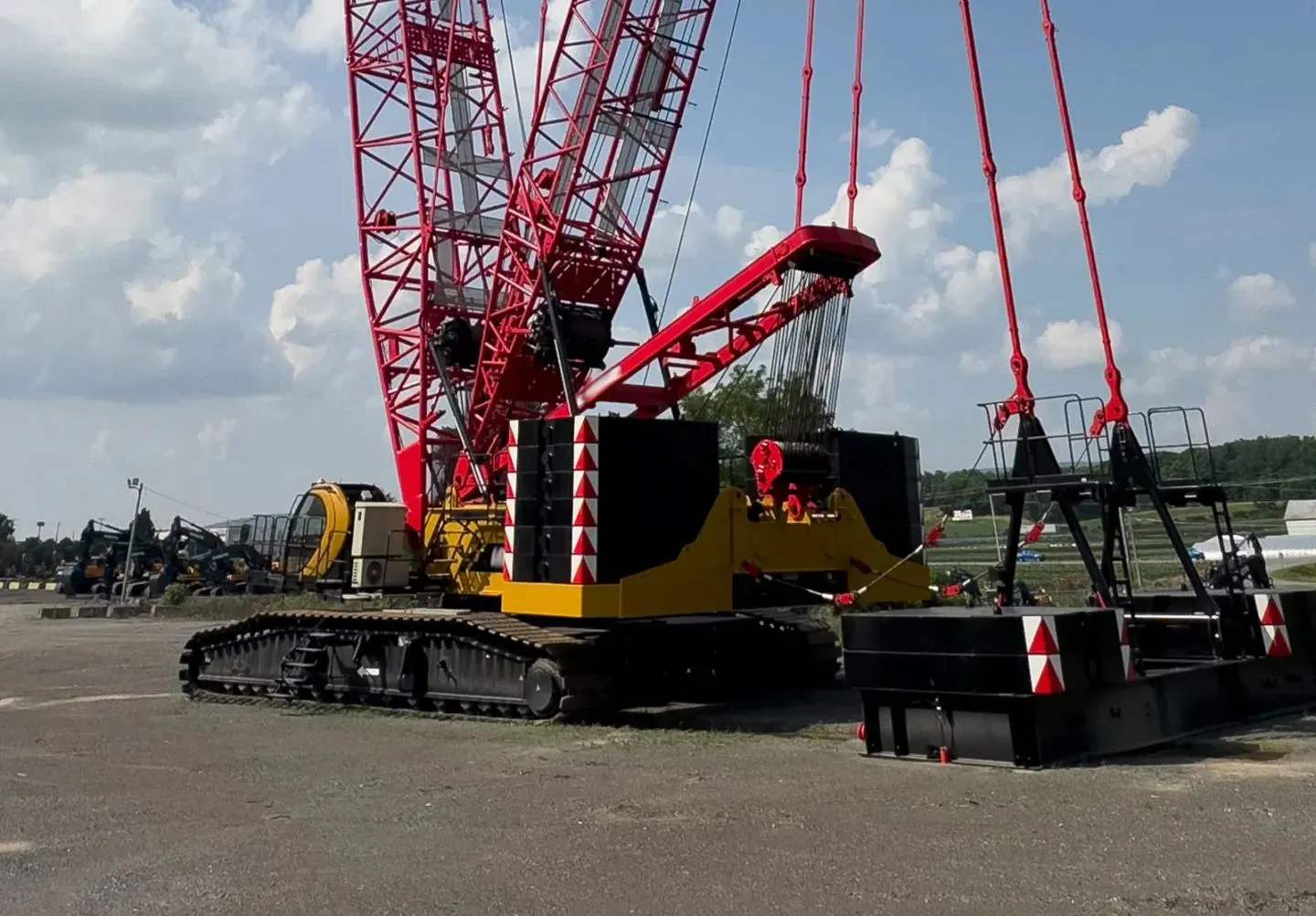

Crawler Crane Hydraulic Support Cylinder Applications
The hydraulic support cylinder serves as a critical component in numerous sectors, particularly within Mexico's dynamic industrial landscape. In urban construction environments, such as those in Monterrey and Mexico City, these cylinders are integral to truss arm crawler cranes used for erecting skyscrapers and developing large-scale infrastructure like highways and commercial complexes. By delivering precise stabilization during elevated lifts, they help manage substantial weights, minimizing sway and ensuring that operations proceed without interruptions, which is vital in densely populated areas where safety margins are narrow and regulatory oversight from bodies like the Secretariat of Labor and Social Welfare is stringent.
Shifting to the mining sector, which forms a cornerstone of Mexico's economy in regions like Sonora and Zacatecas, the support hydraulic cylinder withstands extreme operational demands. Cranes equipped with these units handle the rigors of ore extraction and material transport in open-pit settings, where constant exposure to abrasive dust, intense vibrations from machinery, and uneven ground surfaces test equipment limits. The cylinder's design promotes consistent arm support, allowing cranes to navigate rough topography while maintaining load integrity, thereby reducing equipment failures and supporting continuous productivity in an industry where downtime can lead to significant financial losses.
Coastal port activities along Mexico's Pacific and Gulf shores, including major hubs like Veracruz and Manzanillo, also rely heavily on this technology for efficient maritime logistics. Here, the hydraulic cylinder facilitates arm extension and retraction in crawler cranes during container loading and unloading from vessels, enabling quick turnaround times for cargo ships. This capability not only streamlines supply chain processes but also adapts to tidal variations and weather challenges, underscoring the cylinder's role in bolstering international trade flows and economic connectivity.
Furthermore, in bridge maintenance and rehabilitation projects spanning rivers and valleys—common in areas like the Sierra Madre ranges—the cylinder ensures exact positioning of truss arms for inspection, repair, or reinforcement tasks. Workers benefit from enhanced stability that prevents accidental shifts, directly contributing to safer job sites and compliance with national engineering standards. Beyond these core uses, applications extend to renewable energy installations, such as wind turbine assembly in Baja California, where the cylinder aids in precise component placement at heights, and even in emergency response scenarios following natural disasters, assisting cranes in debris clearance and structural assessments.
Installation Steps
1. Preparation and Inspection of Mounting Areas
Commence the installation by meticulously examining the mounting interfaces on the truss arm crawler crane for proper alignment, surface integrity, and absence of debris or contaminants. This initial assessment is essential to prevent misalignment issues that could compromise the cylinder's performance, ensuring all contact points are level and free from corrosion or damage, which might otherwise lead to operational inefficiencies or safety hazards during crane usage.
2. Secure Attachment of the Cylinder
Position the hydraulic support cylinder accurately within the designated brackets and fasten it using premium-grade bolts rated for high tensile strength. Apply torque according to the precise specifications outlined by the manufacturer to mitigate any potential vibrations or loosening over time, thereby maintaining structural stability and prolonging the component's service life in demanding crane applications.
3. Hydraulic Line Connection and System Purging
Proceed by linking the hydraulic conduits to the cylinder's ports, verifying that all fittings are compatible and sealed appropriately to avoid leaks. Thoroughly bleed the lines to expel trapped air, a process vital for sustaining uniform hydraulic pressure and averting cavitation phenomena that could erode internal surfaces and impair functionality.
4. Initial Testing and Valve Calibration
Conduct preliminary trials of the cylinder's extension and retraction under unloaded circumstances to confirm seamless movement and identify any irregularities. Fine-tune the control valves as required to achieve optimal flow rates and response times, ensuring the system operates efficiently before integrating it into full crane operations.
5. Final Verification and Safety Checks
Upon completing the mechanical setup, perform a comprehensive review of all connections, pressure levels, and operational parameters against safety standards. This step includes documenting the installation details for maintenance records and consulting with qualified technicians if any discrepancies arise, guaranteeing compliance with industry regulations and reliable long-term performance.
Why Choose Mexico Ever-Power's Crane Hydraulic Cylinders?
As a prominent supplier based in Mexico, Mexico Ever-Power Hydraulic Cylinder Co., Ltd. draws on more than four decades of specialized experience since its founding in 1978, establishing itself as a high-tech leader in producing mid- to high-end hydraulic components. Our expansive 103-acre facility supports over 400 skilled professionals and includes dedicated research institutes, advanced testing laboratories, and a robust R&D center, all geared toward crafting precision-engineered products like the hydraulic support cylinder for truss arm crawler cranes. This infrastructure enables us to maintain stringent quality controls, backed by comprehensive assurance systems and adherence to international standards, ensuring each cylinder undergoes thorough evaluations for durability and performance.
What sets us apart is our unwavering focus on customer-centric service, delivering swift responses to inquiries and bespoke engineering adjustments that account for Mexico's diverse climatic conditions, from arid deserts to humid coastal zones. We prioritize partnerships with clients across construction, mining, and maritime sectors, offering tailored solutions that enhance operational reliability in challenging environments. Our global footprint spans exports to over 53 countries in Asia, Europe, North America, South America, Africa, and Oceania, fortified by a resilient supply chain that guarantees prompt deliveries and minimizes disruptions to your projects.
In terms of value, we provide competitively priced options without sacrificing material integrity or craftsmanship, making our hydraulic support cylinders an economical choice for contractors balancing budgets and quality demands. Ultimately, selecting Mexico Ever-Power means aligning with a trusted entity committed to excellence, where reliability, forward-thinking development, and client satisfaction form the core of our operations in the hydraulic cylinder market for crane applications. This dedication has earned us lasting relationships with renowned enterprises worldwide, underscoring our role as a dependable partner for your equipment requirements.
 |
 |
 |
 |
FAQs
Q: How does the support hydraulic cylinder improve crane safety?
A: Through delivering steady pressure reinforcement reaching 21MPa, the support hydraulic cylinder averts truss arm unsteadiness, thereby diminishing accident probabilities during intensive load activities. It bolsters compliance with safety protocols by ensuring consistent positioning, which is particularly vital in environments prone to high winds or uneven surfaces common in industrial settings.
Q: What materials are used in manufacturing hydraulic cylinders for cranes?
A: Manufacturers typically employ high-tensile steel alloys fortified with anti-corrosive layers to guarantee resilience against degradation and mechanical strain in rigorous conditions. These selections enhance the cylinder's ability to endure prolonged exposure to elements like moisture, particulates, and thermal variations encountered in crane operations.
Q: Can I customize the stroke length of the hydraulic support cylinder?
A: Customization options are available for stroke lengths exceeding the baseline 506mm configuration; our specialists can modify dimensions to align with particular crane requirements. Simply reach out to discuss your model's specifics, and we will provide engineered adaptations that maintain performance standards and integration compatibility.
Q: How often should I perform maintenance on a support hydraulic cylinder?
A: Conduct routine checks on fluid volumes and sealing components monthly, supplemented by comprehensive overhauls biannually, adjusted based on operational frequency and environmental exposure. This schedule helps identify wear early, prolonging component lifespan and preventing unexpected failures in active crane deployments.
Q: Is the hydraulic support cylinder compatible with all truss arm crawler cranes?
A: Although crafted for widespread adaptability across various models, we can refine mounting configurations to suit unique specifications upon evaluation. This flexibility allows seamless incorporation into existing fleets, addressing variances in design from different crane producers while upholding operational efficacy.
Q: What are the advantages of using a hydraulic cylinder for crane stability in Mexico?
A: Tailored to confront regional hurdles such as elevated moisture levels and airborne debris, it delivers dependable output across local initiatives in urban expansion or resource sectors. Benefits include heightened durability, reduced operational interruptions, and alignment with national safety norms, fostering efficient project execution in varied terrains.
Q: How to troubleshoot common issues with support hydraulic cylinders?
A: Initiate diagnostics by examining for fluid escapes or erratic motions, frequently linked to impurities in the oil—proceed with oil renewal and seal assessments immediately. Systematic approaches like pressure monitoring and component inspections can resolve most concerns, restoring full functionality with minimal downtime.
Q: How does the working principle of a hydraulic support cylinder affect crane efficiency?
A: Rooted in principles of liquid mechanics, it permits accurate regulation of motion and force, curtailing power dissipation and elevating the crane's comprehensive output. This translates to swifter task completion, lower fuel expenditure, and smoother handling, which collectively enhance productivity in demanding professional environments.
Customer Reviews
Luis Hernandez, Construction Foreman, Queretaro
"We've been putting this hydraulic support cylinder through its paces on our truss arm crawler cranes for nearly two years in industrial builds, and it hasn't skipped a beat. The 506mm stroke gives us just the right reach for tight spots, and that 21MPa pressure holds strong even on long shifts. What stands out is the build quality—solid steel that shrugs off daily knocks without a dent."
Elena Vargas, Operations Coordinator, Hermosillo
"Switched to Mexico Ever-Power's support hydraulic cylinder last summer for our desert projects, and the difference in reliability is huge. It's handled over a year of dusty, hot conditions without any leaks or pressure drops. Their team walked us through a custom seal option over the phone, super helpful and no extra charge—definitely boosted our crew's confidence on site."
Roberto Sanchez, Logistics Manager, Veracruz
"Delivery from Mexico Ever-Power was lightning fast; our order of hydraulic cylinders for crane support arrived in under four days, perfectly packed with no scratches. We've used them for eight months in port loading ops, and the corrosion resistance is spot on against the salty breeze. Saved us a bundle on rushed shipping fees compared to other suppliers."
Isabel Morales, Safety Inspector, Chihuahua
"As a safety nut, I love how this hydraulic support cylinder amps up stability on our crawler cranes—been relying on it for 15 months without a single incident. The precise control under full load keeps everything steady, aligning great with our strict protocols. Mexico Ever-Power's warranty coverage gave us extra peace of mind right from the start."
Miguel Ortega, Technician Lead, Oaxaca
"This thing's a beast! Installed the hydraulic cylinder for our truss arms about ten months back, and maintenance has been a breeze—no weird noises or fluid issues at all. Their support folks answered my spec questions same day via email, which kept our downtime minimal during setup. Totally worth it for the hassle-free performance."
Patricia Flores, Procurement Officer, Leon
"Mexico Ever-Power nailed the value aspect with their hydraulic support cylinder; we got a batch delivered in a week last fall, and it's performed flawlessly in mixed terrain jobs for over a year. Focus on the 21MPa rating—it's perfect for our heavy lifts without overstraining the system. Their responsive service team sealed the deal for future orders."
Antonio Ramirez, Site Supervisor, Culiacan
"In our humid farm equipment setups, this support hydraulic cylinder has lasted 20 months with zero seal problems, thanks to the tough coatings. Logistics were smooth—arrived on time without delays. But it's the product's consistent pressure handling that really keeps our operations running without hitches."
Gabriela Ruiz, Engineering Consultant, Merida
"We've incorporated Mexico Ever-Power's hydraulic cylinder into crane fleets for Yucatan projects, using it daily for 12 months, and the integration was seamless with no compatibility snags. Their engineering support customized the mounting quickly, under a week, which was impressive. Quality shines through in every lift, reducing our overall repair costs noticeably."
