Hydraulic Swing Arm Cylinder for Hook Arm Lift Garbage Truck
Engineered for demanding waste collection, our hydraulic swing arm cylinder ensures smooth, reliable hook arm lifting on garbage trucks. With advanced sealing, corrosion-resistant construction, and working pressures up to 25 MPa, it delivers consistent performance in harsh conditions. Custom configurations available from Mexico Ever-Power for maximum uptime and efficiency.
Garbage Truck Hydraulic Swing Arm Cylinder Overview
The hydraulic swing arm cylinder serves as a critical component in hook arm lift garbage trucks, enabling precise and powerful swinging motion to lift, position, and unload heavy refuse containers. Designed specifically for municipal and commercial waste management vehicles, this cylinder converts hydraulic pressure into controlled mechanical force, allowing operators to handle bins ranging from small skips to large roll-off containers with minimal effort. Its robust build addresses the repetitive, high-load demands typical in daily collection routes, where reliability directly impacts operational efficiency and vehicle downtime.
In modern sanitation fleets, the swing arm hydraulic cylinder must withstand exposure to corrosive waste materials, variable weather conditions, and continuous duty cycles. Our design prioritizes durability through high-grade steel construction and specialized surface treatments, ensuring long service life even in aggressive environments such as coastal or industrial zones. This cylinder integrates seamlessly with standard hook lift systems, supporting both single and dual-arm configurations while maintaining smooth articulation throughout the full range of motion.

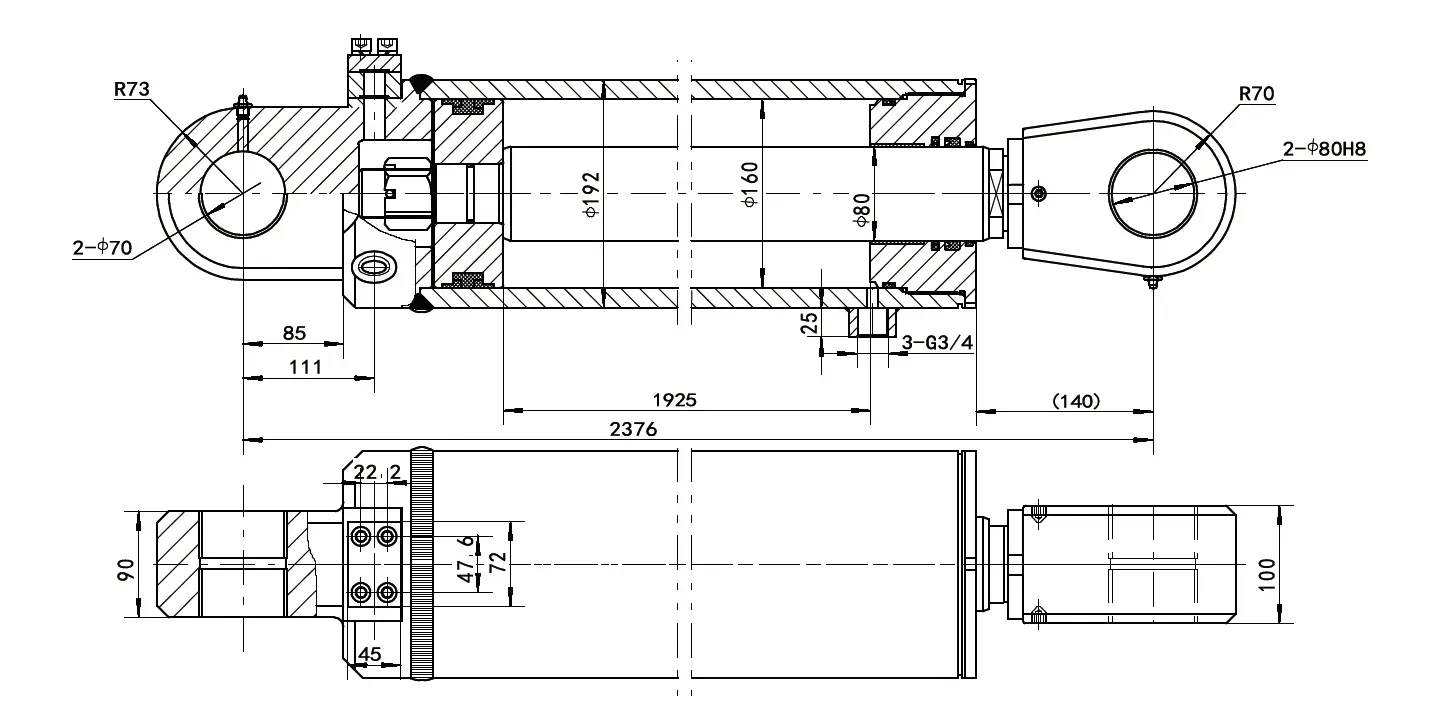

Hydraulic Swing Arm Cylinder Dimensions
Technical Specifications
For custom requirements beyond these standard specifications, such as adjusted stroke lengths or specialized coatings, please contact our team for tailored solutions.
| Hydraulic Swing Arm Cylinder | ||||||
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| YY11112014 | Φ160xΦ80x1925 | 30MPa | 35MPa | 1925 | 2376 | 290kg |
| Product Name: | Swing Arm Hydraulic Cylinder |
| Function: | Control the up and down movement of the arm hook. |
| Cylinder diameter: | 115mm-180mm |
| Rod diameter: | 63mm-90mm |
| Travel: | 1000mm-2500mm |
| Maximum pressure: | 30MPa |
| Maximum thrust: | 763KN |
Characteristics of Hydraulic Swing Arm Cylinder for Garbage Truck
The hydraulic swing arm cylinder designed for hook arm lift garbage trucks includes a range of specialized attributes suited to the demanding conditions of waste management tasks. Its core structure relies on high-strength alloy steel for the barrel and rod, which offers strong defense against deformation and wear during frequent heavy-duty cycles. Tight manufacturing standards in machining reduce resistance inside the unit, leading to more fluid movement in both outward and inward directions than typical models provide.
A key aspect involves the sealing setup, which uses layered polyurethane and nitrile materials along with protective wipers to block dirt entry and hold in fluids reliably. This approach stands up well to rough particles and harsh substances often found in trash collection, helping seals last longer and cutting down on routine checks and fixes.
Focus on rust prevention stands out, with hard chrome layers and custom protective finishes applied to outer parts to resist moisture and salt damage in varied settings like coastal routes or wet climates. Fasteners and brackets incorporate stainless steel where needed, preserving secure attachments over time. Together, these elements support a hydraulic swing arm cylinder that delivers steady operation across many work shifts, aiding fleet managers in maintaining schedules without unexpected stops.
Beyond basic build, the cylinder features adjustable mounting options that fit various truck frames, allowing for straightforward integration into existing setups. Operators value the balanced pressure distribution, which ensures even force application during swings, reducing strain on connected parts. In practical use, this results in quicker container handling, which can boost daily productivity for sanitation teams. Material choices also consider environmental factors, such as compatibility with standard hydraulic oils to avoid breakdowns in extreme heat or cold.
Working Principle of Swing Arm Hydraulic Cylinder for Garbage Truck
The core mechanism behind the swing arm hydraulic cylinder in garbage trucks stems from fundamental fluid dynamics principles, specifically how force spreads evenly through an enclosed liquid under pressure. This setup uses hydraulic fluid, typically oil, pumped at high pressure into the cylinder via dedicated inlet ports. The incoming fluid presses against the piston surface, creating a straight-line push that the connected arm linkage transforms into a pivoting swing action essential for maneuvering waste containers.
In the extension phase, fluid enters the chamber at the cylinder's base end, driving the piston and attached rod forward. This motion raises the swing arm, enabling it to hook and elevate bins securely off the ground for transport or emptying. For retraction, the flow shifts to the rod-side chamber, pulling the rod back inward to lower the arm gently and return it to its starting point. To manage this safely, built-in balance valves regulate the pace of movement, avoiding abrupt falls even with heavy loads attached, which helps prevent accidents on uneven job sites.
This dual-action design—allowing force in both directions—delivers fine-tuned handling over the entire range of travel. Safety features like pressure overflow valves guard against excessive buildup that could strain components, while built-in buffers at the ends of the stroke absorb jolts, extending the unit's lifespan. The whole assembly ties into the vehicle's central hydraulic pump and controls, coordinating with elements like bin clamps or stabilizers for seamless workflow. In daily operations, such as municipal waste rounds, this integration means drivers can execute lifts and swings with minimal manual input, boosting efficiency while reducing wear on the truck's frame.
Types of Garbage Truck Hydraulic Cylinders
1. Hydraulic Swing Arm Cylinder
This type facilitates the pivotal swinging motion required for positioning and lifting waste containers in hook arm systems. Constructed with durable alloy materials and precision seals, it converts fluid pressure into controlled rotational force, ensuring smooth operation during repeated cycles in municipal collection routes. Its design accommodates varying load weights, typically up to 15 tons, while maintaining stability against impacts from uneven terrain.
2. Hydraulic Telescopic Cylinder
Employed for extending and retracting the hook arm to reach distant or elevated containers, this cylinder features multiple nested stages that allow compact storage yet provide extended reach when activated. It operates under high pressure to handle heavy payloads, with internal cushions to minimize shock during full extension, making it suitable for versatile truck configurations in industrial waste handling.
3. Hydraulic Locking Cylinder
Designed to secure containers firmly in place during transport, this cylinder applies consistent clamping force through hydraulic actuation, preventing shifts or dislodgements on rough roads. It integrates safety valves for pressure regulation and uses corrosion-resistant components to withstand exposure to debris, ensuring reliable performance in daily sanitation operations across diverse environments.
Applications of Garbage Truck Hydraulic Cylinders
- Municipal Solid Waste Collection
In urban sanitation services, hydraulic cylinders power the lifting and tipping mechanisms on rear-loader or side-loader trucks, enabling efficient curbside pickup of household refuse. These components handle frequent cycles, supporting container weights up to 10 tons while ensuring operator safety through controlled movements on crowded streets. Their integration with compactors reduces volume for transport to landfills, minimizing trips and fuel use in daily routes. - Industrial Waste Transport
For manufacturing and construction sites, these garbage truck hydraulic cylinders facilitate secure handling of heavy debris in roll-off trucks, where robust extension and retraction manage loads like scrap metal or demolition materials. Designed for high-impact environments, they provide stability during off-road maneuvers, preventing spills and complying with hazardous waste regulations in industrial zones. This application often involves custom fittings to match specialized containers, enhancing productivity in logistics chains. - Recycling Operations
Recycling facilities rely on hydraulic cylinders in front-end loaders to manipulate bins filled with sorted plastics, paper, or glass, allowing precise dumping into processing lines. Their corrosion-resistant builds withstand exposure to mixed materials, while adjustable strokes accommodate varying bin sizes for streamlined sorting. This use promotes environmental efficiency by enabling high-volume throughput, reducing manual labor and supporting sustainable waste management practices across regional centers. - Hazardous Waste Management
In specialized vehicles for chemical or medical waste, cylinders ensure sealed and controlled tipping to avoid contamination risks during collection from hospitals or labs. Equipped with safety locks and pressure sensors, they maintain secure operations under strict regulatory standards, handling toxic loads safely over long distances. This sector benefits from their durability in extreme conditions, aiding compliance with environmental laws and protecting public health.
Why Choose Mexico Ever-Power's Garbage Truck Hydraulic Cylinders?
Selecting Mexico Ever-Power Hydraulic Cylinder Co., Ltd. for garbage truck hydraulic cylinders means partnering with a firm that has accumulated more than four decades of focused knowledge in crafting mid- to high-end hydraulic systems. Founded in May 1978 as a high-tech operation, the company has grown to specialize in components like swing arm cylinders, which are vital for efficient waste collection vehicles. This long-standing background allows for refined production methods that address the specific challenges of sanitation equipment, such as enduring repetitive loads and harsh outdoor conditions.
The company's infrastructure supports this expertise through a self-operated research institute, a dedicated hydraulic testing laboratory, and a cutting-edge R&D center. These resources drive ongoing advancements in cylinder design, incorporating independent developments in key machinery to ensure products like those for hook arm lift systems meet rigorous demands. A thorough quality control framework aligns with global benchmarks, backed by extensive manufacturing and inspection protocols. Every garbage truck hydraulic cylinder undergoes detailed evaluation before dispatch, guaranteeing it performs under pressure without compromise.
With shipments reaching over 53 nations across continents—including major footholds in North America, Europe, and Asia—Mexico Ever-Power demonstrates a deep grasp of varied market needs. This international scope translates to adaptable solutions for waste management fleets, whether in urban Mexican routes or broader North American operations. Clients receive prompt shipping, personalized configurations to fit exact truck specifications, and dedicated follow-up assistance to minimize disruptions.
 |
 |
 |
 |
FAQs
Q: What is the typical working pressure for a hydraulic swing arm cylinder in garbage trucks?
A: In standard setups, the hydraulic swing arm cylinder functions effectively within a range of 16 MPa to 25 MPa, adjusted according to the specific weight of containers and the geometry of the hook arm. This flexibility ensures safe and efficient lifting in various garbage truck models. Our designs incorporate a maximum rating of 25 MPa to provide an added buffer against peak loads during intensive waste collection operations.
Q: How does the swing arm hydraulic cylinder handle corrosive waste environments?
A: The swing arm hydraulic cylinder employs hard chrome plating on key surfaces alongside tailored anti-corrosion layers to shield against aggressive substances in refuse settings. Multi-layered seals further block harmful ingress, preserving internal components over time. This approach significantly prolongs the unit's lifespan in demanding conditions, such as those encountered in coastal or industrial garbage truck routes where exposure to salts and chemicals is common.
Q: Can the hydraulic cylinder for garbage truck be customized for specific truck models?
A: Yes, customization options for the hydraulic cylinder for garbage truck include adjustments to bore size, stroke length, mounting configurations, and pressure capabilities to align precisely with individual vehicle requirements. This service allows for seamless integration into diverse hook arm lift systems, enhancing performance and reliability. Fleet operators often request such modifications to optimize operations in unique waste management scenarios.
Q: What maintenance interval is recommended for the hydraulic swing arm cylinder?
A: Routine visual checks on the hydraulic swing arm cylinder should occur every 500 operating hours to spot early wear or contamination. Annual fluid replacement is advised, or earlier if signs of degradation appear, while comprehensive seal evaluations are best scheduled every 2,000 hours or once per year. Adhering to this schedule helps maintain peak efficiency in garbage truck hydraulic systems and prevents costly interruptions.
Q: How does the cylinder prevent leaks during long-term use?
A: To combat leaks in prolonged applications, the garbage truck hydraulic cylinder features polyurethane and NBR seals paired with effective wiper mechanisms that exclude debris and retain fluids reliably. These elements work together to sustain integrity through numerous cycles, minimizing risks in high-use environments. Regular monitoring complements this design, ensuring sustained performance for hook arm lift operations.
Q: Is the swing arm hydraulic cylinder suitable for extreme temperatures?
A: The swing arm hydraulic cylinder performs consistently across a broad temperature spectrum from -30°C to +100°C, thanks to seals engineered for thermal resilience in both frigid winters and scorching summers. This capability makes it ideal for garbage truck fleets operating in varied climates, from arid deserts to snowy regions, without compromising hydraulic efficiency or structural soundness.
Q: What load capacities can the hydraulic cylinder for garbage truck support?
A: Standard variants of the hydraulic cylinder for garbage truck manage loads between 8 and 15 tons effectively, suitable for most hook arm lift tasks involving common container sizes. For heavier demands, we offer engineered upgrades based on detailed assessments to handle increased weights safely. This scalability supports diverse applications in municipal and commercial waste handling.
Q: How do I know if my garbage truck hydraulic cylinder needs replacement?
A: Indicators for replacing a garbage truck hydraulic cylinder include noticeable fluid seepage, slower extension speeds, surface marks on the rod, or excessive positional drift when under weight. Conducting periodic examinations allows early detection of these issues, avoiding operational halts in hook arm systems. Consulting with specialists can confirm the need for timely swaps to maintain fleet readiness.
Q: Can I use the hydraulic swing arm cylinder with existing hydraulic systems?
A: Integration of the hydraulic swing arm cylinder into current setups is feasible when the system's flow volume, pressure levels, and fluid composition match the cylinder's parameters. We provide compatibility reviews upon inquiry to ensure smooth incorporation without modifications. This adaptability benefits operators upgrading garbage truck components while preserving overall hydraulic network functionality.
Q: How does corrosion resistance compare to standard cylinders?
A: Compared to conventional options, our garbage truck hydraulic cylinder boasts enhanced corrosion defenses through specialized platings and robust materials that better withstand pollutants and weather extremes. This superior barrier reduces early deterioration risks, offering longer service intervals in challenging waste environments. Fleet managers often note the cost savings from fewer replacements in harsh operational settings.
