4.5″ Bore x 24″ Stroke Log Splitter Hydraulic Cylinder

4.5" Bore x 24" Stroke Log Splitter Hydraulic Cylinder Overview

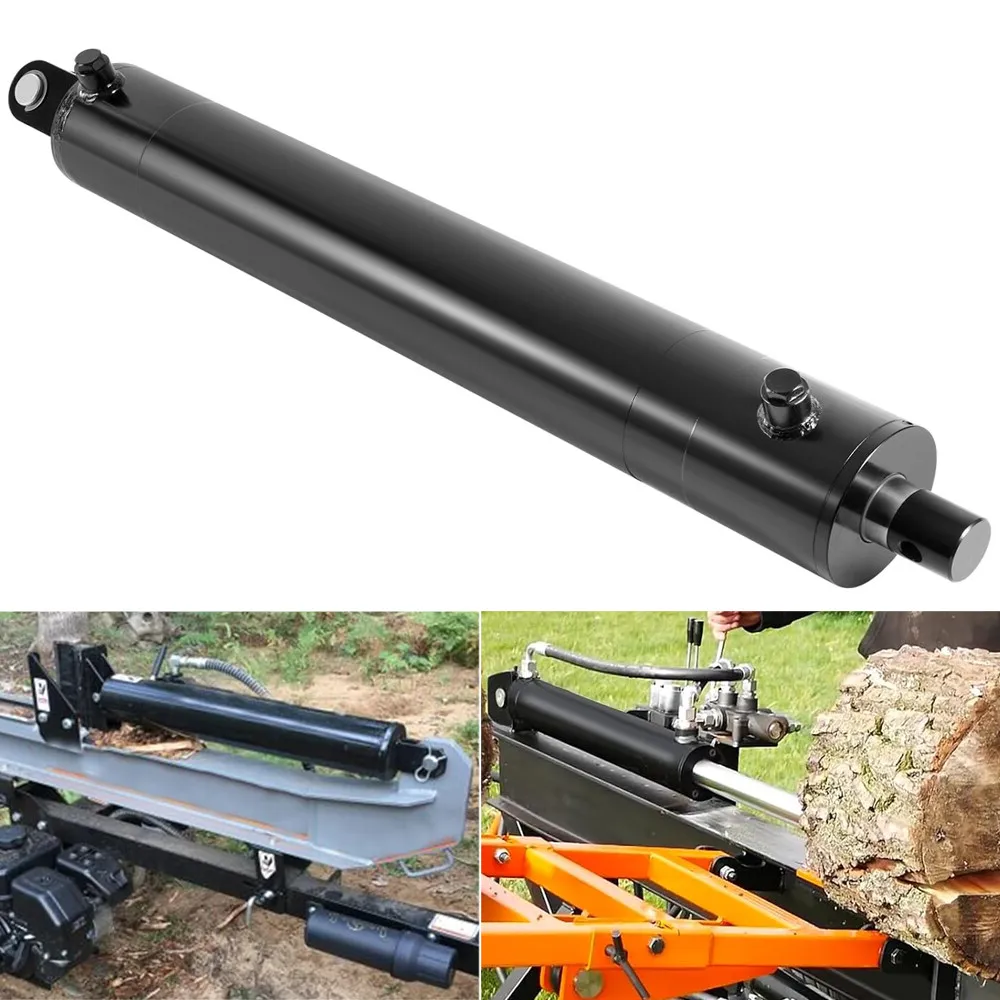

Built for strength and performance, the Mexico Ever-Power Welded Log Splitter Cylinder features a 4.5-inch bore, 24-inch stroke, and is rated up to 3500 PSI. It comes equipped with a welded clevis base mount and a drilled pin-hole rod end for secure, stable installation. This universal replacement ram is compatible with a wide range of log splitter brands, including Champion, YARDMAX, CountyLine, Huskee, SuperHandy, BOSS, and others.

Operators in the forestry and wood processing sectors often face demanding conditions where equipment must endure repeated high-pressure cycles without failure. The hydraulic cylinder for log splitter from Mexico Ever-Power addresses these challenges by incorporating robust materials like honed cold-drawn tubing and chrome-plated rods, ensuring longevity even in harsh outdoor environments. Whether you're replacing a worn-out component on a residential setup or integrating it into commercial machinery, this cylinder provides consistent force delivery, minimizing downtime and enhancing productivity. Its double-acting design allows for precise control during both extension and retraction, making it a reliable choice for splitting dense hardwoods or softer logs alike. With a focus on compatibility, it fits seamlessly into existing systems, reducing the need for extensive modifications.

Log Splitter Hydraulic Cylinder Dimensions

Technical Specifications

If your application requires custom dimensions or additional features, feel free to contact our team at Mexico Ever-Power for tailored solutions to meet your specific needs.

Bore :	4.5 in
Outer Dia. (⌀) :	5.12 in
Stroke :	24 in
Rod Dia. (⌀) :	1.75 in
Port Size :	1/2" NPT
Base Pin Dia (⌀) :	1.125 in
Retracted :	34.5 in
Rod Pin Dia (⌀) :	0.563 in
Extended :	58.5 in
Overall length :	36.7 in
Pressure :	3500 PSI
Column Load :	42,200 LBs
Oil Volume :	6.7 QTs
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Pin Hole
Action :	Double Acting
Weight :	80 LBs

Key Features of Hydraulic Cylinder for Log Splitter

• Extreme Load Capacity
  The welded clevis mount at the base end, combined with a 5.12-inch honed cold-drawn tubing and a 1.75-inch chrome-plated rod made from steel 1045, includes a drilled pin-hole rod end that facilitates straightforward mounting. High-grade piston seals enhance its ability to manage substantial loads during a full 24-inch stroke, making it suitable for rigorous splitting operations where reliability under pressure is essential.
• Wide Range Hydraulic Applications
  This cylinder excels in wood processing environments by generating significant force to split logs with precision and dependability. It integrates seamlessly into both home-based and professional log splitters, featuring a rod-end pin that ensures firm connections and adaptability to horizontal or vertical configurations, thus supporting diverse user needs in forestry and landscaping tasks.
• Double-Acting Functionality
  By delivering regulated force in extension and retraction phases, this design promotes operational efficiency across multiple scenarios. It allows for precise control during log splitting cycles, reducing effort and time while accommodating various equipment setups, which proves invaluable in settings requiring consistent and adaptable hydraulic power.
• High-Quality Construction
  Incorporating a steel piston and gland equipped with wear rings, the unit is built from superior materials that resist wear and environmental degradation. This approach guarantees extended operational lifespan and protection against rust, ideal for prolonged exposure in outdoor conditions typical of log splitting machinery.
• Precision Engineering
  Engineered with exacting dimensional standards and sophisticated seal mechanisms, the cylinder effectively curbs fluid escapes and sustains peak efficiency. Such meticulous craftsmanship supports stable performance even under varying loads, aligning with professional demands for dependable hydraulic components in heavy-duty applications.
• Smooth Operation
  The precisely honed barrel interiors paired with robust seals contribute to fluid, uninterrupted motion throughout each cycle. This results in minimal friction and vibration, enhancing user comfort and equipment longevity during repeated use in wood splitting processes.
• Easy Maintenance
  Designed for accessible servicing, the cylinder allows quick inspections and part replacements without specialized tools, thereby limiting interruptions to workflow. Regular upkeep routines are straightforward, helping maintain consistent functionality and extending the overall service period in practical field conditions.

Working Principle of Hydraulic Cylinder for a Log Splitter

The fundamental operation of a hydraulic cylinder in a log splitter relies on the principle that pressure exerted on a confined fluid distributes uniformly throughout the system. This allows for the amplification of force without significant loss, enabling the cylinder to convert hydraulic energy into mechanical motion effectively. As pressurized fluid flows into the cylinder via designated inlet ports, it acts against the piston surface, generating a linear thrust that propels the rod outward. This extension phase delivers the primary splitting power, where the rod connects to a wedge or blade that penetrates and separates wood fibers under controlled conditions. Such a mechanism ensures that even modest pump inputs can produce substantial output forces, making it suitable for handling various log sizes and densities in practical applications.

In a double-acting configuration, which is standard for most log splitters, the cylinder facilitates movement in both directions through strategic fluid routing. During the forward stroke, hydraulic fluid enters the base end of the cylinder, expanding the chamber behind the piston and driving the rod forward to engage the log. This action aligns with the splitter's wedge to apply concentrated pressure at the point of contact, overcoming the wood's natural resistance. For retraction, the system redirects fluid to the rod end while venting the base side, creating a pulling force that withdraws the rod swiftly. This dual capability not only accelerates cycle times but also enhances operational safety by allowing precise control over the wedge's position, reducing the risk of jams or uneven splits in repetitive tasks.

Beyond basic extension and retraction, the cylinder's performance hinges on maintaining equilibrium in pressure dynamics and fluid integrity. The force output is directly proportional to the piston's effective area multiplied by the applied pressure, typically ranging up to 3500 PSI in robust models, which translates to column loads exceeding 40,000 pounds. Seals and valves play a critical role in preventing internal bypass or external leaks, preserving system efficiency over extended use. Operators must monitor fluid quality and temperature to avoid viscosity changes that could impair response times, ensuring consistent functionality in diverse environments, from residential firewood preparation to commercial forestry operations. Proper understanding of these elements aids in troubleshooting common issues, such as sluggish movements often linked to air entrapment or contaminated fluid.

Advantages of Using Log Splitter Hydraulic Cylinders

Efficiency Gains in Operations

The capability to operate at pressures reaching 3500 PSI enables this hydraulic cylinder for a log splitter to significantly diminish the physical exertion involved in processing substantial logs, frequently reducing overall splitting durations by half when contrasted with traditional manual approaches. This enhanced throughput stems from the cylinder's refined mechanics, which facilitate seamless piston movements and rapid cycle completions, thereby permitting extended operational periods without necessitating frequent pauses for rest. In practical terms, such efficiency proves particularly beneficial for users managing high volumes of wood, as it optimizes workflow and aligns with the demands of both seasonal and continuous applications, ultimately contributing to heightened productivity in forestry and related fields.

Cost-Effectiveness Over Time

A comprehensive two-year warranty reflects the manufacturer's assurance in the product's enduring performance, which can avert the expenses associated with recurrent component swaps over extended usage. The broad compatibility with established brands such as CountyLine and Huskee eliminates the requirement for bespoke adaptations, thereby streamlining procurement and curbing ancillary expenditures on modifications or specialized servicing. For entities engaged in larger-scale operations, the availability of volume-based pricing reductions amplifies economic advantages, allowing for scalable investments that yield sustained returns.

Safety and Reliability Benefits

Incorporating state-of-the-art sealing mechanisms, the cylinder effectively mitigates the potential for fluid escapes, which in turn diminishes workplace hazards like slippery surfaces that could lead to accidents during handling. The robust mounting architecture, featuring secure clevis and pin configurations, guarantees steadfast fixation under intense pressures, thereby reducing the likelihood of structural failures or operational mishaps. This emphasis on dependability not only safeguards personnel but also upholds equipment integrity across varied environmental conditions, positioning the Mexico Ever-Power offering as a preferable alternative to less refined market options that may falter in demanding scenarios.

Applications of Hydraulic Cylinder for Log Splitter

1. Residential Wood Processing
Individuals managing household firewood supplies rely on this hydraulic cylinder in log splitters to process pieces measuring up to 24 inches in length with minimal manual input. Its design accommodates compact, mobile units commonly found in suburban neighborhoods across Mexico, where space constraints demand equipment that is both efficient and straightforward to operate. This application supports seasonal preparations for heating needs, ensuring safe handling of materials like softwoods or mixed varieties without excessive physical strain, while the cylinder's robust construction withstands occasional use in varied weather conditions typical of residential environments.

2. Commercial Forestry Operations
Within industrial contexts, this cylinder integrates into large-scale machinery for high-volume wood division, effectively managing dense species such as oak or pine in facilities like sawmills and remote logging sites. The elevated pressure tolerance of 3500 PSI enables sustained performance during extended shifts, facilitating the breakdown of substantial timber loads to meet production quotas. Professionals in these operations value the component's ability to maintain consistent force output, which minimizes equipment downtime and aligns with regulatory standards for workplace efficiency in Mexico's forestry sector.

3. Agricultural and Landscaping Uses
In farming operations, the log splitter hydraulic cylinders aids in land clearance by powering splitters that convert felled trees into usable biomass for soil enhancement or fuel, adapting to tractor-mounted or standalone systems. Landscaping professionals utilize it for estate upkeep, where reliability during precise tasks like pruning debris management is critical. The flexible mounting features, including clevis and pin-hole options, permit customization across different equipment types, ensuring seamless incorporation into workflows that involve irregular terrain and diverse material handling requirements in rural and urban Mexican settings.

Why Choose Mexico Ever-Power's Log Splitter Hydraulic Cylinders?

FAQs

Q: How to replace a hydraulic cylinder on a log splitter?
A: To replace a hydraulic cylinder on a log splitter, start by safely disconnecting the hydraulic hoses and draining residual fluid, then remove the securing pins from the mounts. Align the new hydraulic log splitter cylinder with the existing frame, ensuring the clevis base and pin-hole rod end match precisely, before reconnecting the lines and conducting a thorough test for any fluid escapes while purging air from the system to restore full operational integrity.

Q: What PSI is best for a log splitter hydraulic cylinder?
A: For optimal performance, a 3500 PSI rating stands out as the preferred level for a log splitter hydraulic cylinder, particularly in models with a 4.5-inch bore, as it effectively manages the rigors of dividing dense hardwoods without overburdening the unit. This pressure threshold in hydraulic cylinder log splitter designs ensures reliable force delivery, aligning with industry standards for heavy-duty applications where sustained power prevents stalls during intensive use.

Q: Is a double-acting hydraulic log splitter cylinder better?
A: Indeed, a double-acting hydraulic log splitter cylinder outperforms single-acting variants by offering regulated motion in extension and retraction, which accelerates processing cycles and boosts overall productivity. This feature in the best hydraulic cylinder for log splitter allows for quicker resets after each split, making it a superior choice for users handling frequent loads, as it minimizes downtime and enhances control in varied operational environments.

Q: How to maintain a hydraulic cylinder log splitter?
A: Maintaining a hydraulic cylinder log splitter involves routine examinations of seals for integrity, annual replacement of hydraulic fluid to preserve viscosity, and removal of accumulated dirt to avert abrasion; always retract the rod fully for storage in a moisture-free area. Such practices extend the lifespan of log splitter hydraulic cylinders, preventing common failures and ensuring consistent performance across seasons, especially in outdoor conditions prone to environmental wear.

Q: What brands is this log splitter hydraulic cylinders compatible with?
A: This log splitter hydraulic cylinders offer broad compatibility as a universal replacement, fitting seamlessly with models from Champion, YARDMAX, CountyLine, Huskee, SuperHandy, BOSS, and additional brands, simplifying upgrades without custom modifications. Designed as a hydraulic cylinder for a log splitter, it matches standard mounting and port configurations, providing a reliable option for owners seeking durable alternatives to original equipment in diverse machinery setups.

Q: How long does a best hydraulic cylinder for log splitter last?
A: Under diligent upkeep, the best hydraulic cylinder for log splitter can endure between five and ten years, supported by a two-year manufacturer warranty that instills confidence in its robustness. Factors like regular inspections and proper fluid management contribute to this longevity in log splitter hydraulic cylinder applications, allowing it to withstand thousands of cycles in forestry or residential tasks without significant degradation.

Q: Can I customize a hydraulic cylinder for a log splitter?
A: Certainly, customization options for a hydraulic cylinder for a log splitter are available upon request, including adjustments to bore size, stroke extension, or specific mounting styles to align with unique equipment requirements. Reaching out to our team facilitates tailored modifications for hydraulic log splitter cylinder designs, ensuring precise fit and enhanced functionality for specialized operations in wood processing or agricultural contexts.

Q: What oil volume does this log splitter hydraulic cylinder require?
A: This log splitter hydraulic cylinder demands approximately 6.7 quarts of suitable hydraulic fluid to achieve peak efficiency throughout its extension and retraction movements, preventing cavitation and maintaining smooth pressure dynamics. Selecting the correct viscosity for hydraulic cylinder log splitter systems is crucial, as it supports the unit's 3500 PSI capability and protects internal components during prolonged splitting sessions.

Q: How to troubleshoot leaks in hydraulic cylinder log splitter?
A: Troubleshooting leaks in a hydraulic cylinder log splitter begins with inspecting seals and connection points for damage, followed by securing loose fittings or substituting compromised elements to halt further deterioration. In cases involving log splitter hydraulic cylinders, bleeding the system after repairs restores pressure balance, while monitoring during test runs helps identify persistent issues, safeguarding against operational hazards in high-force environments.

Q: What are signs of wear in a hydraulic log splitter cylinder?
A: Indicators of wear in a hydraulic log splitter cylinder include sluggish movements during cycles, audible irregularities like grinding sounds, or evident fluid seepage around joints, signaling the need for immediate rod and piston evaluations. Addressing these symptoms promptly in hydraulic cylinder for log splitter units prevents escalation, maintaining safety and efficiency for users engaged in regular wood handling activities.
