5″ Bore x 30″ Stroke Log Splitter Hydraulic Cylinder

5" Bore x 30" Stroke Log Splitter Hydraulic Cylinder Overview

The 5" bore x 30" stroke log splitter hydraulic cylinder is a heavy-duty component designed to handle the rigors of frequent wood processing. Built with precision engineering, this double-acting unit ensures consistent force application in both extension and retraction phases, making it ideal for log splitters that require reliable power delivery. Its welded construction incorporates high-grade steel materials, providing resistance to wear and environmental factors commonly encountered in outdoor settings. This hydraulic cylinder for a log splitter integrates seamlessly with various equipment models, offering versatility for users in forestry, farming, and residential applications. With a focus on operational efficiency, it minimizes downtime through its robust seals and smooth piston movement, ensuring that every stroke contributes to productive output without unnecessary interruptions.

Built for strength and performance, the Mexico Ever-Power welded log splitter cylinder features a 5-inch bore, 30-inch stroke, and is rated up to 3500 PSI. It comes equipped with a welded clevis base mount and a drilled pin-hole rod end for secure, stable installation. This universal replacement ram is compatible with a wide range of log splitter brands, including Champion, YARDMAX, CountyLine, Huskee, SuperHandy, BOSS, and others.

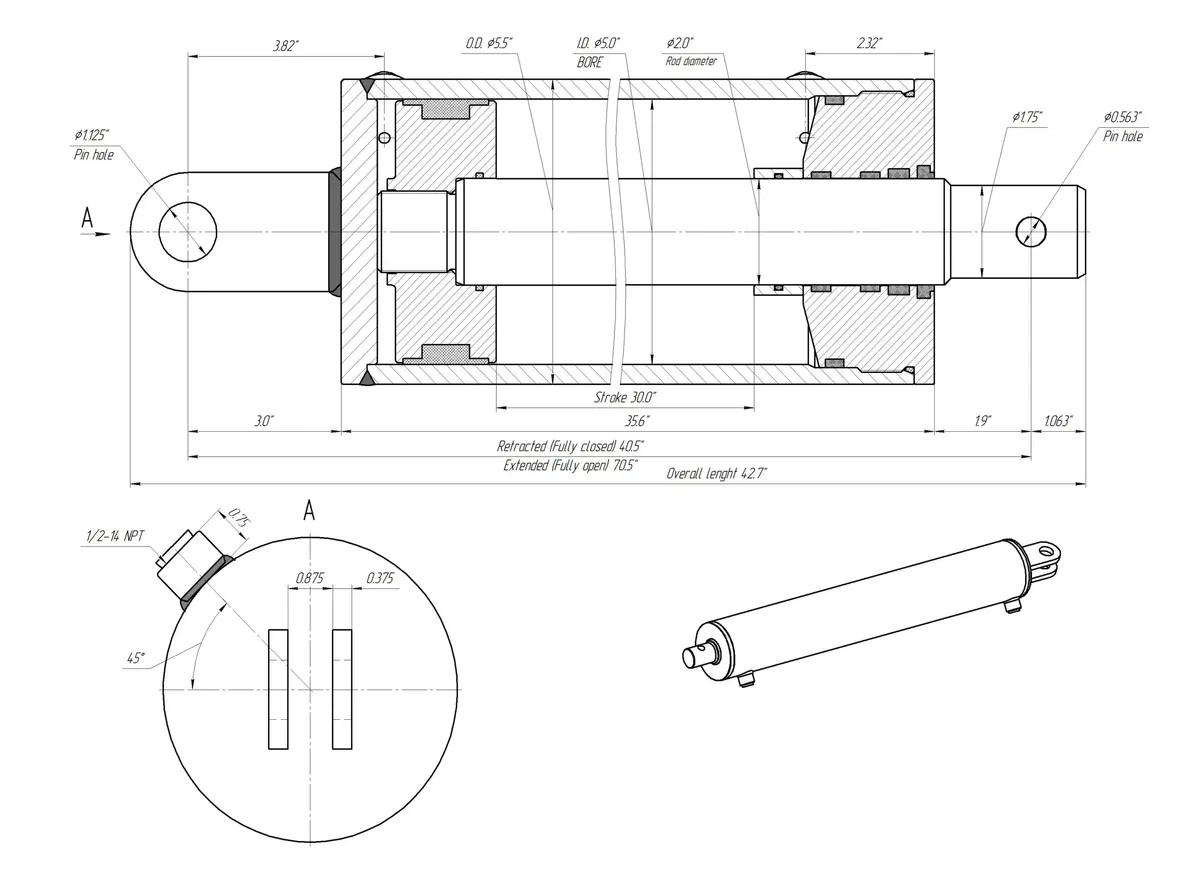

Log Splitter Hydraulic Cylinder Dimensions

Technical Specifications

If your application requires custom modifications or additional features beyond these standard specifications, please contact our team at Mexico Ever-Power for personalized assistance and quoting.

Bore :	5 in
Outer Dia. (⌀) :	5.5 in
Stroke :	30 in
Rod Dia. (⌀) :	2 in
Port Size :	1/2" NPT
Pin Dia. (⌀) :	9/16 in
Extended :	70.5 in
Retracted :	40.5 in
Overall length :	42.7 in
Pressure :	3500 PSI
Column Load :	58,900 LBs
Oil Volume :	10.2 QTs
Design :	Welded
Rod Type :	Chrome Plated
Rod End :	Pin Hole
Action :	Double Acting
Weight :	103 LBs

Key Features of Hydraulic Cylinder for Log Splitter

• Extreme Load Capacity
  This cylinder is built to withstand demanding loads thanks to its welded clevis mount at the base end, paired with ⌀ 5.5″ honed cold-drawn tubing and a ⌀ 2.0″ chrome-plated rod made from steel 1045. The drilled pin-hole rod end allows secure and straightforward mounting, while top-quality piston seals ensure reliable performance under heavy stress, delivering consistent force across the full 30″ stroke even in tough wood-splitting conditions.
• Wide Range of Hydraulic Applications
  Engineered specifically for wood processing, this cylinder provides the high force required to split logs quickly and dependably. It suits both residential and commercial log splitters, with a rod-end pin that supports easy attachment and integration into horizontal or vertical designs, making it a practical choice for varied setups in forestry, farming, or home firewood preparation.
• Double-Acting Functionality
  The double-acting design delivers controlled power in both extension and retraction phases, allowing precise operation and faster cycle times. This feature enhances versatility across different tasks, enabling operators to manage log positioning and splitting with greater efficiency and reduced manual effort.
• High-Quality Construction
  Constructed with a steel piston and steel gland fitted with wear rings, this cylinder uses premium-grade materials that resist corrosion and wear over extended periods. The robust build ensures long service life, even when exposed to outdoor elements or continuous heavy-duty use in challenging environments.
• Precision Engineering
  Tight manufacturing tolerances and advanced sealing technology work together to prevent leakage and maintain consistent pressure throughout operation. This level of engineering supports stable performance under varying loads, reducing the risk of failure and ensuring dependable results in demanding applications.
• Smooth Operation
  The finely honed cylinder barrel combined with high-quality seals provides fluid, consistent movement with minimal friction. This results in quieter performance and reduced wear on internal components, allowing the cylinder to operate reliably during prolonged sessions without noticeable vibration or resistance.
• Easy Maintenance
  The straightforward design simplifies routine inspections, seal replacements, and fluid checks, helping to keep downtime to a minimum. Accessible components and standard fittings make servicing quick and cost-effective, supporting continuous operation and extending the overall lifespan of the equipment.

Log Splitter Hydraulic Cylinder Parts

1. Cylinder Barrel
   The cylinder barrel serves as the main housing for the internal components, typically made from honed cold-drawn steel tubing with a diameter of around 5.5 inches to withstand high pressures up to 3500 PSI. This sturdy tube contains the hydraulic fluid and guides the piston's movement, ensuring smooth operation during log splitting while resisting deformation under heavy loads in outdoor environments.
2. Piston Rod
   Crafted from chrome-plated steel 1045 material with a 2-inch diameter, the piston rod extends and retracts to apply force for splitting wood. Its polished surface reduces friction and prevents corrosion from exposure to moisture or debris, allowing reliable performance over extended periods in demanding forestry or residential applications.
3. Piston
   The steel piston divides the cylinder into two chambers, enabling double-acting functionality by responding to hydraulic pressure on either side. Equipped with wear rings to minimize internal abrasion, it delivers consistent thrust, such as up to 58,900 pounds of column load, making it essential for efficient wood processing without compromising structural integrity.
4. Rod Gland
   Positioned at the rod end, the steel gland houses seals and guides the rod's movement while preventing fluid leaks. This component incorporates advanced sealing technology to maintain pressure integrity, supporting long-term durability even in variable conditions like those found in commercial log splitting operations across different terrains.
5. Base and Cap Ends
   The base end features a welded clevis mount for secure attachment to the splitter frame, while the cap end seals the opposite side. These ends, often drilled for pins or fittings, provide stable mounting points and contain ports for hydraulic hoses, ensuring the cylinder integrates seamlessly with pumps and valves in a complete system.
6. Seals and Wear Rings
   High-quality piston seals and rod seals prevent hydraulic fluid from escaping, maintaining operational efficiency and safety. Wear rings fitted around the piston and gland reduce metal-to-metal contact, extending the cylinder's lifespan by protecting against wear from repeated cycles in heavy-duty tasks like handling dense hardwoods.
7. Hydraulic Ports
   Typically 1/2-inch NPT ports allow fluid entry and exit, connecting the cylinder to the hydraulic circuit including pumps and valves. These fittings are crucial for controlling flow direction in double-acting designs, enabling precise extension and retraction to optimize splitting speed and power in various equipment setups.

Applications for Hydraulic Log Splitter Cylinder

Our hydraulic log splitter cylinder plays a vital role in forestry operations, where it powers equipment for efficient timber harvesting and log preparation. Professionals in wood processing rely on its robust design to handle high-volume tasks, such as breaking down felled trees into manageable sections for transport or further milling. The 30-inch stroke allows for splitting oversized logs without multiple repositionings, which streamlines workflows in sawmills and pulp production facilities. In agricultural environments, this cylinder integrates seamlessly with machinery used for clearing overgrown land or generating biomass fuel, enabling farmers to process dense hardwoods like oak or eucalyptus with minimal effort and reduced equipment strain.

For residential purposes, homeowners turn to this hydraulic component as a dependable upgrade for personal log splitters, offering a safer and more effective method than traditional axe work. It supports backyard firewood production, ensuring consistent results even for occasional users who value ease of setup and operation. On the commercial side, lumber mills and recycling centers incorporate it into automated systems for rapid throughput, where its compatibility with both horizontal and vertical splitter configurations allows for tailored installations in workshops or equipment rental fleets. This versatility helps businesses maintain productivity during peak seasons, adapting to diverse project scales from small custom jobs to large-scale material reclamation.

In Mexico's rural regions, the cylinder contributes to sustainable practices by facilitating precise wood splitting that cuts down on waste and preserves forest resources. Local communities use it in eco-friendly harvesting initiatives, aligning with national efforts to promote responsible land management amid varying climates and terrains. Whether in arid highlands or humid coastal areas, its durable build withstands environmental challenges, supporting initiatives like community biofuel programs or artisanal woodworking that emphasize efficiency and minimal ecological impact.

Maintenance Tips for Hydraulic Cylinder for a Log Splitter

• Regular Inspections for Seals and Rods
  To keep your log splitter hydraulic cylinder performing at its peak, conduct thorough checks on seals and rods every 100 hours of operation. Look for signs of wear, cracks, or degradation that could lead to leaks in this hydraulic cylinder for log splitter, as early detection prevents costly downtime and maintains the unit's efficiency in wood-splitting tasks.
• Exterior Cleaning and Corrosion Checks
  Maintain the exterior of your hydraulic log splitter cylinder by wiping away dirt, sawdust, and other debris after each use to avoid buildup that might accelerate wear. Pay close attention to the chrome-plated surfaces on the rod, inspecting for any rust spots that could compromise the integrity of this best hydraulic cylinder for log splitter over time.
• Hydraulic Fluid Monitoring and Replacement
  Always monitor fluid levels in your hydraulic cylinder log splitter to ensure they remain within recommended ranges, topping up as necessary with the correct type of oil. Replace contaminated or degraded hydraulic fluid promptly to prevent internal damage, which is crucial for the smooth operation of log splitter hydraulic cylinders in demanding environments.
• Lubrication of Moving Components
  Apply appropriate lubricants to pin connections and other moving parts on your hydraulic cylinder for a log splitter regularly to minimize friction and reduce the risk of seizing. This simple step extends the overall lifespan of the assembly, ensuring reliable performance during extended splitting sessions without unnecessary interruptions.
• Off-Season Storage Practices
  When not in use, store your log splitter hydraulic cylinder in a dry, sheltered location to protect it from moisture, dust, and temperature extremes that could cause corrosion or seal brittleness. Proper storage habits safeguard the hydraulic system, preserving its readiness for future wood-processing needs in various settings

Why Choose Mexico Ever-Power's Log Splitter Hydraulic Cylinders?

FAQs

Q: How does a hydraulic cylinder for log splitter work?
A: The hydraulic cylinder for log splitter transforms pressurized fluid into straight-line motion, driving the piston outward to exert splitting force on logs. Its double-acting setup permits regulated movement in extension and retraction, allowing operators to position and process wood accurately while maintaining control over the entire cycle for safer and more effective results.

Q: What are the key specs of the 5" bore x 30" stroke hydraulic log splitter cylinder?
A: This hydraulic log splitter cylinder boasts a 5-inch bore diameter combined with a 30-inch stroke length, supporting operations at up to 3500 PSI and delivering a column load capacity of 58,900 pounds. These specifications equip it for robust tasks, ensuring it handles large or dense logs without compromising on stability or output in demanding environments.

Q: Is this hydraulic cylinder log splitter compatible with my equipment?
A: Yes, the hydraulic cylinder log splitter serves as a versatile universal replacement compatible with popular brands such as Champion and YARDMAX. Its welded clevis mounting system simplifies integration into existing setups, whether for horizontal or vertical splitters, allowing seamless upgrades without extensive modifications to your current machinery.

Q: What maintenance is required for the best hydraulic cylinder for log splitter?
A: Maintaining the best hydraulic cylinder for log splitter demands routine checks on seals and exterior surfaces every 100 hours to spot wear early. Regular cleaning to clear debris, along with timely fluid replacements, helps avert leaks and sustains peak performance, ultimately prolonging the unit's service life in frequent use scenarios.

Q: How to install a log splitter hydraulic cylinders?
A: Installing log splitter hydraulic cylinders starts with firmly securing the clevis base to the splitter's frame using appropriate hardware. Next, attach the hydraulic hoses to the ports and conduct initial tests for fluid flow and rod movement, verifying everything operates without resistance before putting it into full service on wood-splitting jobs.

Q: What advantages does the hydraulic cylinder for a log splitter offer?
A: The hydraulic cylinder for a log splitter brings notable benefits like enhanced resistance to corrosion through chrome plating, alongside improved energy use that lowers running costs. Its sturdy construction supports long-term reliability, minimizing breakdowns and offering a cost-effective solution for users handling varied wood types in ongoing operations.

Q: Can I customize the log splitter hydraulic cylinder?
A: Certainly, customization options for the log splitter hydraulic cylinder include adjustments to bore size, stroke length, or specific mounting configurations to match unique requirements. Reach out to our team for tailored designs that align with your equipment's demands, ensuring optimal fit and functionality in specialized applications.

Q: How to troubleshoot leaks in hydraulic log splitter cylinder?
A: To address leaks in a hydraulic log splitter cylinder, begin by examining all seals, connections, and fittings for damage or loose threads. Promptly swap out any compromised components and refill with fresh fluid, then test under pressure to confirm the fix, restoring full efficiency and preventing further issues during use.

Q: What is the warranty on log splitter hydraulic cylinders?
A: Our log splitter hydraulic cylinders come with a comprehensive 2-year warranty that protects against defects in craftsmanship or materials. This coverage includes support for repairs or replacements, reflecting our assurance in the product's quality and providing users with reliable backing for their investment in hydraulic equipment.

Q: How often should I replace the oil in my hydraulic cylinder log splitter?
A: Oil in your hydraulic cylinder log splitter should be replaced every 200 to 300 hours of active use or once a year, whichever occurs first, based on operational demands. This interval helps eliminate contaminants that could hinder performance, keeping the system running smoothly and extending component durability.

Q: Is this suitable for commercial use as a best hydraulic cylinder for log splitter?
A: Absolutely, this stands out as the best hydraulic cylinder for log splitter in commercial contexts, where its high load-bearing capability and durable build support intensive daily operations like in lumber yards or rental services. It excels in high-volume environments, offering consistent power and minimal maintenance needs to boost productivity without frequent interruptions.
