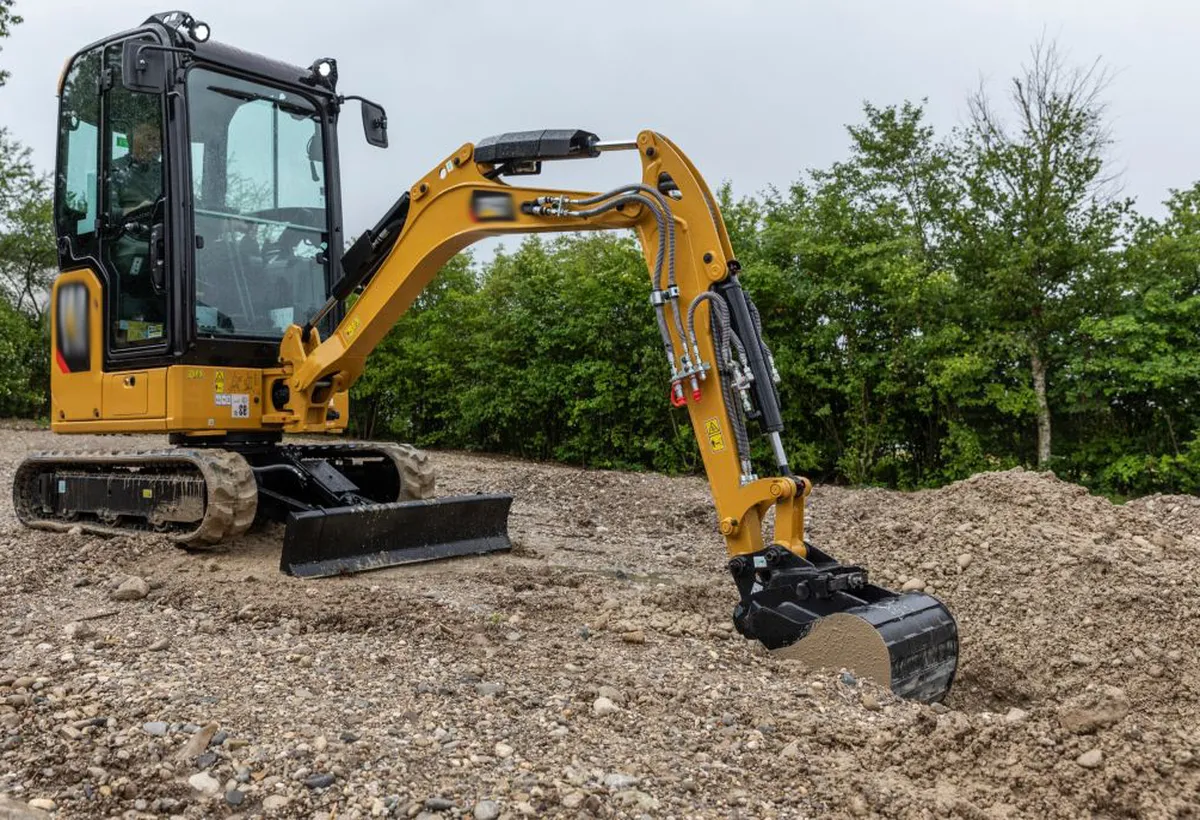

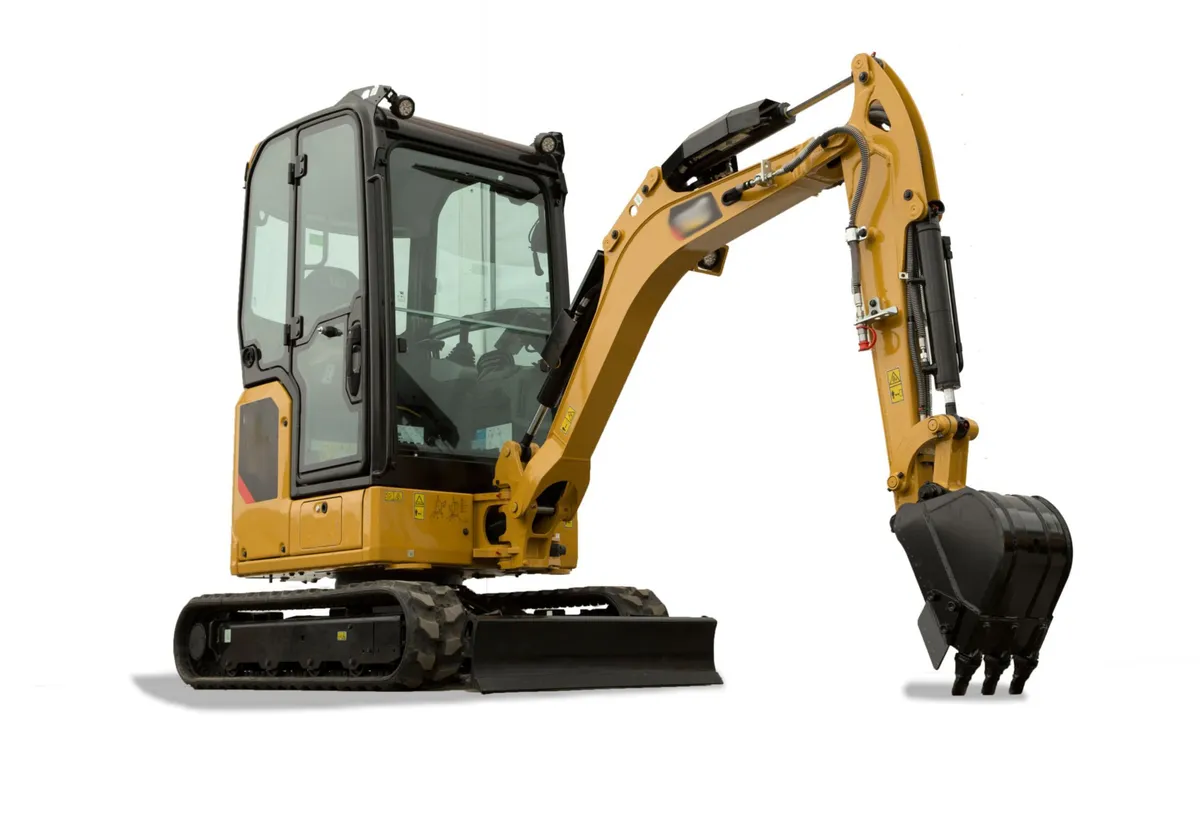

Hydraulic Boom Cylinder for Mini/Small Excavators
A hydraulic boom cylinder for mini excavator is a critical component of the machine’s hydraulic system, designed to control the movement of the boom arm. It is a robust, high-pressure cylinder that converts hydraulic fluid energy into mechanical force, enabling the boom arm to lift, lower, or hold heavy loads with precision. This cylinder plays a key role in excavation, lifting, and digging tasks.

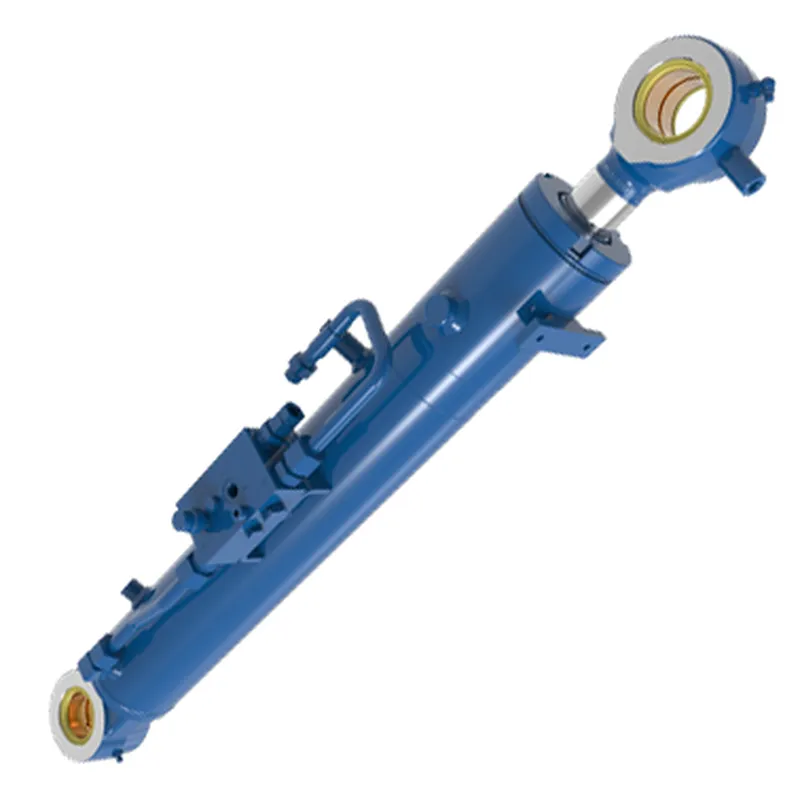

Mini Excavator Hydraulic Boom Cylinder Overview
In the realm of construction and excavation equipment, the hydraulic boom cylinder stands as a pivotal element that ensures smooth and powerful operation of mini and small excavators. This component, often referred to as the boom hydraulic cylinder is engineered to handle the demanding tasks of lifting and positioning heavy loads in confined spaces. Manufactured with precision by Mexico Ever-Power, these cylinders are designed to integrate seamlessly with various mini excavator models, providing the necessary force to extend and retract the boom arm efficiently.
The construction industry relies heavily on such reliable hydraulic systems to maintain productivity on job sites ranging from urban landscaping to rural infrastructure projects. With a focus on durability and performance, our hydraulic cylinder for excavator models incorporates advanced sealing technologies and robust materials to withstand harsh environmental conditions, including dust, moisture, and extreme temperatures.
Technical Specifications
For any custom requirements beyond these standard specifications, such as extended strokes or specialized mounting options, please contact our team at Mexico Ever-Power for personalized solutions.
| Product Name: | Mini Excavator Boom Hydraulic Cylinder |
| Function: | Control the lifting motion of the big arm. |
| Bore Diameter: | 50mm-125mm |
| Rod diameter: | 25mm-75mm |
| Stroke: | ≤1000 mm |
| Maximum pressure MPa: | 29.4MPa |
| Thrust Force: | 361KN |
Features of Hydraulic Boom Cylinders for Mini Excavators
1. Durability and Material Composition
The hydraulic boom cylinder excels in durability due to its construction from high-strength steel alloys that resist corrosion and fatigue. This material choice is critical for excavator hydraulic cylinders operating in abrasive environments, where exposure to soil, rocks, and weather elements is constant. Seals made from advanced polymers further enhance longevity by preventing fluid leaks, a common issue in lesser-quality mini excavator hydraulic cylinders.
2. Precision Engineering and Performance
Precision machining ensures smooth piston movement within the cylinder barrel, minimizing friction and wear. For hydraulic cylinders for mini excavators, this translates to responsive control, allowing operators to perform intricate tasks with accuracy. The integration of cushioning mechanisms at stroke ends reduces shock loads, protecting both the cylinder and the excavator structure.
3. Customization Options
Mexico Ever-Power offers customization for boom hydraulic cylinders, including variations in bore and rod diameters to match specific machine requirements. This flexibility is particularly beneficial for hydraulic cylinders for excavator thumbs, where additional attachments demand tailored force outputs. Such options ensure seamless integration and optimal efficiency.
The features of our hydraulic boom cylinders are designed with end-user needs in mind, drawing from decades of manufacturing experience in Mexico. By incorporating feedback from field applications, we refine designs to address real-world challenges, such as vibration resistance and thermal stability. This approach not only boosts reliability but also contributes to safer operations on site.
Working Principle of Boom Hydraulic Cylinder for Excavators
The working principle of a boom hydraulic cylinder in excavators relies on the fundamental mechanics of fluid power systems, where pressurized oil or similar liquids serve as the medium to generate motion and force. At its core, the cylinder consists of a sealed barrel housing a piston attached to a rod, dividing the interior into two chambers. When the excavator's hydraulic pump delivers fluid under high pressure into one chamber—typically the base end for extension—the piston is driven forward, extending the rod and thereby lifting or swinging the boom arm upward. This action converts hydraulic energy into linear mechanical force, allowing the machine to perform tasks like digging or lifting with substantial power relative to the system's compact size.
Conversely, for retraction, the control valve redirects the fluid flow to the rod-end chamber while simultaneously draining the base-end chamber back to the reservoir. This reversal pulls the piston inward, lowering the boom in a controlled manner. The precision of this process stems from the excavator's valve manifold, which regulates flow rates and pressures based on operator inputs via joysticks or pedals. Integrated sensors and relief valves play a critical role here, automatically adjusting to prevent over-pressurization that could damage components or compromise safety. For instance, if excessive load is encountered during operation, these valves release surplus pressure, maintaining system integrity.
The efficiency of this principle depends on factors such as fluid viscosity, which affects response times in varying temperatures, and the cylinder's bore-to-rod ratio, which determines the speed and force output. Excavator operators often notice how smoother fluid circulation leads to more responsive boom movements, essential for navigating tight job sites. Maintenance practices, like regular filter changes to keep contaminants at bay, directly support this functionality by ensuring consistent pressure delivery. Over years of field use, engineers have refined these designs to incorporate double-acting configurations, where both extension and retraction are powered, enhancing overall machine versatility in construction, mining, or landscaping applications.
Types of Mini Excavator Hydraulic Cylinders
1. Hydraulic Bucket Cylinder
This component drives the bucket's motion at the dipper arm's tip, enabling precise tilting and curling actions essential for scooping and dumping materials. In compact excavators, these cylinders are engineered with smaller dimensions to optimize space while delivering sufficient force for tasks like trenching or grading. Their design incorporates robust seals to withstand repetitive cycles in abrasive soils, ensuring reliable performance during extended operations on construction sites.
2. Hydraulic Stick Cylinder
Commonly referred to as the arm or dipper cylinder, it controls the extension and retraction of the arm that supports the bucket assembly. This allows operators to reach varying depths and angles, crucial for efficient excavation in confined areas. Built with high-strength materials, these cylinders provide the necessary leverage to handle loads without compromising machine stability, making them indispensable for urban utility work or landscaping projects where accuracy is paramount.
3. Hydraulic Blade Cylinder
Also known as the dozer cylinder, it facilitates the vertical adjustment of the front-mounted blade, which is utilized for pushing debris, leveling ground, or enhancing the excavator's balance during digging. In mini models, this cylinder integrates seamlessly with the undercarriage to offer controlled movements that aid in backfilling or site preparation. Its hydraulic mechanism ensures smooth operation, reducing operator effort and minimizing wear on the blade attachment over time.
4. Hydraulic Swing Cylinder
Referred to as the slew cylinder, it enables the rotational pivoting of the excavator's upper structure around a central axis, allowing directional changes without repositioning the entire machine. This feature is vital for navigating tight workspaces, such as residential yards or indoor demolition sites, where maneuverability directly impacts productivity. The cylinder's precise control valves regulate swing speed and torque, promoting safety and efficiency in multi-directional tasks.

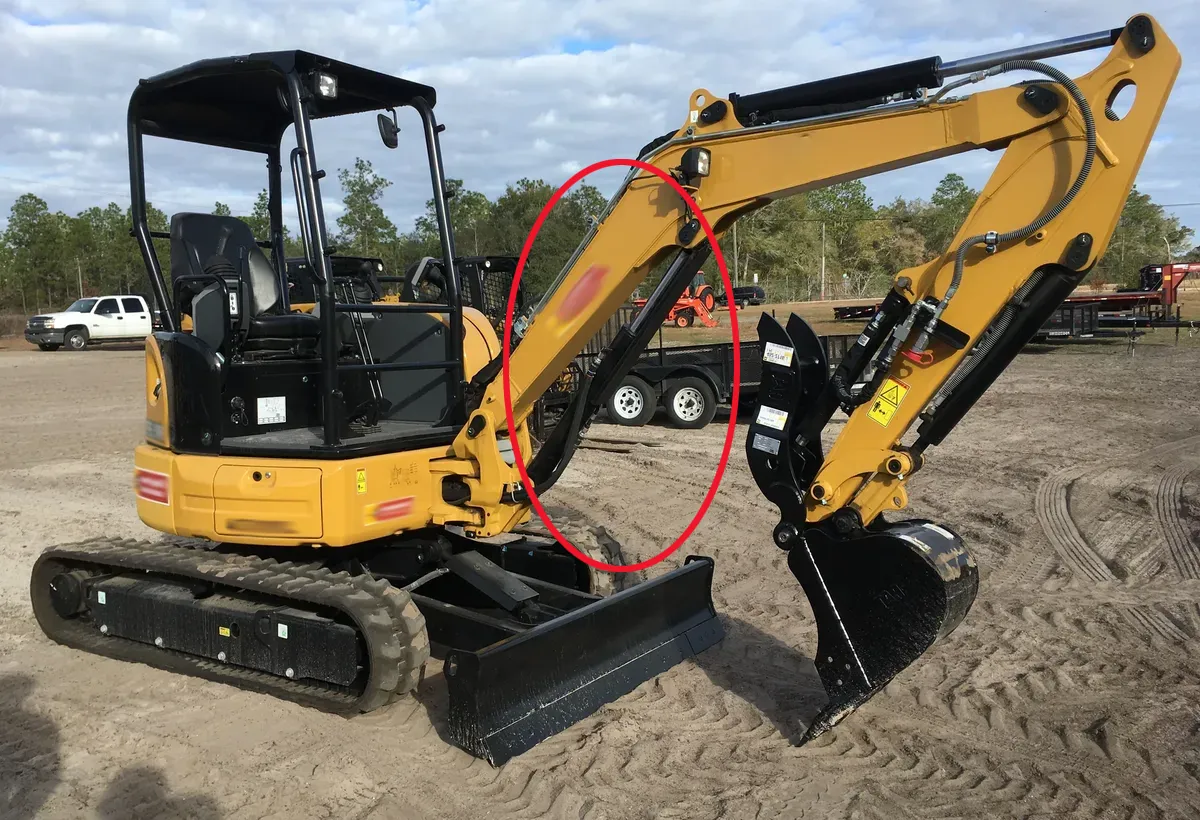

5. Hydraulic Boom Cylinder
Responsible for elevating and lowering the primary boom arm, these cylinders are among the most robust in the system, generating substantial breakout force to penetrate tough surfaces. Their larger bore and extended stroke accommodate heavy lifting demands in applications like foundation digging or material handling. Engineered for durability, they feature advanced cushioning to absorb shocks, thereby extending the excavator's operational lifespan and supporting consistent performance in diverse environmental conditions.
Excavator Hydraulic Boom Cylinder Applications
- Construction Industry
In construction settings, hydraulic boom cylinders enable precise control over excavator arms for tasks such as foundation digging, trench installation for utilities, and site preparation. Their robust design handles heavy loads in urban environments, ensuring stability during high-rise building projects or road expansions, where quick adjustments prevent delays and enhance worker safety through reliable force application. - Mining Industry
Mining operations rely on these cylinders for penetrating hard rock surfaces and extracting ores, with their high-pressure capabilities allowing deep excavation in open-pit or underground sites. They support continuous operation in dusty, abrasive conditions, reducing equipment failures and optimizing material removal rates to meet production quotas efficiently. - Forestry and Logging
Within forestry, boom cylinders facilitate the lifting and maneuvering of logs in dense wooded areas, aiding in tree felling, skidding, and loading onto transport vehicles. Their extended reach and powerful thrust adapt to uneven terrain, minimizing environmental impact by enabling selective cutting practices that preserve surrounding vegetation. - Marine and Port Operations
At ports and marine facilities, these cylinders power dredgers and ship unloaders to handle bulk cargo like sand or gravel from waterways. They withstand corrosive saltwater exposure through specialized coatings, ensuring smooth boom extensions for efficient loading and unloading, which is critical for maintaining dock throughput during tidal changes. - Agriculture Industry
Agricultural applications involve using boom cylinders for irrigation ditch creation, land leveling, and crop residue management on farms. Their adjustable force outputs accommodate varying soil types, from clay to sandy loam, supporting precision tasks that improve water distribution and yield without compacting fertile ground excessively. - Landscaping and Urban Development
In landscaping projects, hydraulic boom cylinders assist in shaping terrains for parks, golf courses, or residential developments by moving earth and planting materials accurately. They provide the finesse needed for aesthetic grading around structures, integrating with attachments like thumbs for handling rocks or plants, thus achieving durable, visually appealing results in confined city spaces. - Demolition and Recycling
For demolition work, these cylinders deliver the breakout force required to dismantle buildings or concrete structures safely, allowing controlled arm movements to sort debris on-site. In recycling facilities, they aid in processing scrap metal or waste, enhancing separation efficiency and reducing manual labor risks through automated handling mechanisms.
 |
 |
| Construction Industry | Marine and Port |
 |
 |
| Forestry and Logging | Mining Industry |
Maintenance Tips for Excavator Hydraulic Cylinders
1. Regular Inspection for Leaks and Wear
Operators should conduct visual checks on the hydraulic boom cylinder every 50 operating hours to spot fluid leaks around seals or rod surfaces, which can indicate worn components in the boom hydraulic cylinder. Addressing these early prevents pressure loss in the excavator hydraulic boom cylinder, extending its service life and maintaining efficiency in compact digging tasks typical for mini excavators.
2. Fluid Quality and Level Monitoring
Maintain optimal hydraulic fluid levels in the system supporting the excavator hydraulic cylinder by checking reservoirs weekly and replacing contaminated oil according to manufacturer guidelines. Clean fluid ensures smooth operation of the hydraulic cylinder for excavator, reducing internal friction that could lead to overheating or failure in mini excavator hydraulic cylinders during prolonged use on uneven terrain.
3. Cleaning External Surfaces
After each shift, wipe down the hydraulic cylinder excavator components, especially the exposed rod of the mini excavator hydraulic cylinder, to remove dirt, debris, and corrosive materials that accumulate in construction environments. This practice safeguards against pitting and seal degradation, preserving the integrity of the boom hydraulic cylinder over time.
4. Lubrication of Pivot Points
Apply appropriate grease to mounting pins and bushings connected to the hydraulic boom cylinder at intervals of 100 hours or as specified in the equipment manual. Proper lubrication minimizes wear on these joints in the excavator hydraulic boom cylinder, ensuring responsive movements and reducing strain on the overall hydraulic system for small excavators.
5. Temperature and Pressure Checks
Monitor operating temperatures and pressures in the hydraulic cylinder for excavator using built-in gauges during routine startups to detect anomalies that might stress the mini excavator hydraulic cylinders. Staying within recommended ranges prevents thermal expansion issues that could compromise seals in the boom hydraulic cylinder, promoting safer and more reliable fieldwork.
6. Storage and Off-Season Care
When storing the machine, fully extend the hydraulic boom cylinder and coat exposed rods with protective oil to inhibit rust formation on the excavator hydraulic cylinder. This step is crucial for preserving the condition of mini excavator hydraulic cylinders in humid or dusty storage areas, avoiding costly repairs upon reactivation.
Why Choose Mexico Ever-Power's Excavator Hydraulic Cylinders?
Mexico Ever-Power Hydraulic Cylinder Co., Ltd., founded in May 1978, stands as a prominent high-tech enterprise dedicated to crafting mid- to high-end hydraulic components, with a strong emphasis on engineering machinery such as excavators. Over the decades, the company has built a reputation for excellence by focusing on hydraulic cylinders that deliver unmatched precision and resilience, tailored specifically for demanding applications in construction and beyond. Spanning an impressive 103 acres, the facility houses state-of-the-art production workshops alongside a dedicated research institute, hydraulic product testing laboratory, and a cutting-edge R&D center. With a workforce exceeding 400 professionals, Mexico Ever-Power invests heavily in independent intellectual property for key equipment, enabling the creation of customized hydraulic solutions that address unique client needs across various sectors. This infrastructure not only supports the production of excavator hydraulic cylinders but also ensures they incorporate the latest advancements in materials and design, resulting in components that endure rigorous use in environments like mining, forestry, and urban development.
Commitment to international quality benchmarks is evident in every product, from forklift and industrial vehicle cylinders to specialized ones for excavators, aerial work platforms, and marine operations. Mexico Ever-Power's exports reach more than 53 countries in Asia, Europe, North America, South America, Africa, and Oceania, forging partnerships with leading firms in markets such as the United States, Germany, China, and Brazil. This extensive network underscores the company's reliability, where products consistently receive praise for their performance in real-world scenarios, minimizing operational interruptions and bolstering on-site safety through innovative features.
Selecting Mexico Ever-Power for your excavator hydraulic cylinders means gaining access to comprehensive after-sales assistance, where responsive teams provide guidance on installation, maintenance, and troubleshooting. Competitive pricing structures reflect the value of long-term durability, reducing overall ownership costs without sacrificing quality. For mini excavators in particular, Mexico Ever-Power's proven history translates to dependable cylinders that enhance machine efficiency, whether in tight urban digs or expansive agricultural projects. Clients worldwide appreciate this blend of tradition and innovation, making Mexico Ever-Power a trusted choice for hydraulic solutions that stand the test of time and terrain.
 |
 |
 |
 |
FAQs
Q: How do I choose the right boom hydraulic cylinder for my excavator model?
A: Selecting the appropriate excavator hydraulic boom cylinder involves evaluating key specs such as bore diameter ranging from 50 to 125mm and stroke lengths up to 1000mm, ensuring compatibility with your machine's hydraulic system and workload demands. Consult manufacturer guidelines for the hydraulic cylinder for excavator to match pressure ratings and mounting styles, avoiding mismatches that could lead to reduced performance or safety issues on the job site.
Q: What materials are used in manufacturing excavator hydraulic cylinders?
A: Excavator hydraulic cylinders are typically constructed from high-tensile steel for the barrel and rod to handle intense forces, paired with resilient seals made from synthetic compounds that resist degradation under pressures reaching 29.4 MPa. These materials in the hydraulic boom cylinder enhance durability against wear, making them suitable for the rigorous demands of mini excavator operations in varied terrains.
Q: Can hydraulic cylinders for mini excavators be customized?
A: Absolutely, at Mexico Ever-Power, customization for mini excavator hydraulic cylinders includes adjustments to rod diameter, stroke length, and specific mounting configurations to align with unique equipment needs. This flexibility ensures the hydraulic cylinder excavator performs optimally in specialized applications, such as adding attachments, without compromising on the core strength of the boom hydraulic cylinder.
Q: How to install a hydraulic cylinder for excavator thumb attachments?
A: Installing a hydraulic cylinder for mini excavator thumb requires first isolating the hydraulic system for safety, then aligning and bolting the cylinder to designated pivot points while connecting fluid lines securely to prevent air entry. After setup, cycle the excavator hydraulic arm cylinder through test runs to verify smooth function, adjusting as needed to integrate seamlessly with the boom hydraulic cylinder for enhanced gripping capabilities.
Q: What maintenance is required for boom hydraulic cylinders?
A: Routine maintenance for boom hydraulic cylinders involves weekly checks for fluid leaks around seals, periodic oil replacements to keep the system clean, and cleaning the rod surface to remove buildup that could cause scratches. These steps preserve the integrity of the excavator hydraulic cylinder parts, prolonging the life of mini excavator hydraulic cylinders and minimizing unexpected breakdowns during fieldwork.
Q: Are mini excavator hydraulic cylinders resistant to harsh environments?
A: Yes, mini excavator hydraulic cylinders are built with corrosion-resistant coatings and seals that protect against dust infiltration, moisture damage, and temperature fluctuations from freezing cold to intense heat. This resilience in the hydraulic boom cylinder allows reliable performance in challenging settings like rainy construction zones or arid mining sites, safeguarding the overall excavator hydraulic cylinder functionality.
Q: How long do hydraulic cylinders for excavators typically last?
A: With diligent care, hydraulic cylinders for excavators can operate effectively for 5 to 10 years or more, depending on usage intensity and environmental exposure. Factors like regular servicing extend the lifespan of the boom hydraulic cylinder, ensuring that excavator hydraulic boom cylinder components remain robust through thousands of cycles in daily operations.
Q: What should I do if my excavator hydraulic cylinder leaks?
A: If an excavator hydraulic cylinder shows signs of leaking, immediately stop operations to inspect seals and connections for wear or damage, then replace faulty parts using authentic replacements from Mexico Ever-Power. This prompt action prevents further fluid loss in the hydraulic cylinder for excavator, restoring the boom hydraulic cylinder's pressure integrity and avoiding costly downtime.
Q: How does the working principle of a hydraulic cylinder for mini excavator improve efficiency?
A: The working principle of a hydraulic cylinder for mini excavator involves transforming fluid pressure into linear motion with minimal energy waste, allowing swift and forceful arm adjustments that streamline digging processes. This efficiency in the hydraulic cylinder excavator reduces operator fatigue and fuel consumption, while the precise control of the boom hydraulic cylinder enhances productivity in tight workspaces.
Customer Reviews
Li Wei, Construction Site Manager, Shanghai, China
"We've been relying on these hydraulic boom cylinders for our urban renewal projects, and they've proven incredibly sturdy. The excavator hydraulic boom cylinder with a 100mm bore diameter pushes through concrete debris without faltering after two years of intense daily shifts. Mexico Ever-Power's team provided detailed specs upfront, and their after-sales guidance on maintenance has kept everything running smoothly—no complaints here on quality or support."
Anna Müller, Equipment Supervisor, Berlin, Germany
"The boom hydraulic cylinder we installed on our mini fleet has exceeded expectations in precision digging for pipeline work. Its consistent performance in cold, wet conditions, thanks to robust seals in the excavator hydraulic cylinder, has saved us from frequent repairs over the past 15 months. Logistics from Mexico Ever-Power were spot-on, with the package arriving in under a week despite international shipping, making the whole process hassle-free."
Michael Johnson, Landscaping Foreman, London, United Kingdom
"Impressive how this hydraulic cylinder for excavator handles our garden redesign jobs— the mini excavator hydraulic cylinder's 800mm stroke allows for accurate soil layering without backlash. We've used it steadily for a year now on various terrains, and the build quality shines through with zero leaks. Mexico Ever-Power's customer service was attentive, answering my questions on compatibility right away, which built real trust."
Sophia Rossi, Heavy Equipment Operator, Milan, Italy
"Our team swears by the excavator hydraulic arm cylinder for its reliability in restoration sites; the hydraulic boom cylinder integrates seamlessly, providing that extra thrust needed for lifting ancient stones. After 20 months of operation, including in dusty environments, the mini excavator hydraulic cylinders show no wear on key parts. The warranty coverage from Mexico Ever-Power gives us confidence, and their pricing was fair for such durable gear."
David Thompson, Agricultural Technician, Toronto, Canada
"This hydraulic cylinder excavator has been a game-changer for our farm trenching, with the boom hydraulic cylinder's 50mm rod holding up against muddy fields for over 18 months without issues. Focus on the seals in the excavator hydraulic cylinder parts prevents contamination, ensuring steady force. Mexico Ever-Power's installation tips via email were helpful, and their responsive support team addressed a minor query in hours—top service all around."
Elena Santos, Mining Operations Coordinator, Rio de Janeiro, Brazil
"In our quarry setups, the hydraulic cylinder for mini excavator thumb adds vital grip strength, paired with the main hydraulic boom cylinder for efficient rock handling. We've clocked 24 months of heavy use, and the mini excavator hydraulic cylinders maintain peak performance at 29.4 MPa pressure without failures. Delivery timing from Mexico Ever-Power was impeccable, beating estimates by days, which kept our schedule intact amid tight deadlines."
